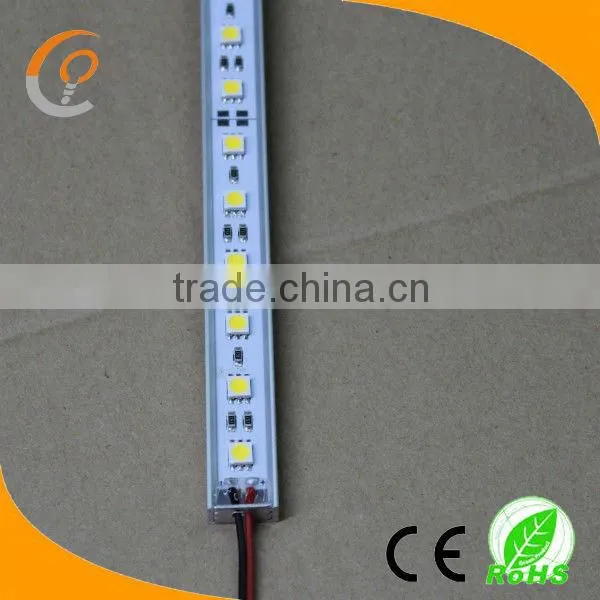

White LED Strip Light 12V LED Bar RGB 0.5m 1m 3m 36leds/m

Specifications

Cuttable along the mark
Each 1led/3leds individually controlled,show customized effects
Support online control by a controller

White LED Strip Light 12V LED Bar RGB 0.5m 1m 3m 36leds/m



Features:

1.High brightness SMD5050 LED, two data lines, two power supply lines.
2.Cuttable every 1/3LEDs+1IC along the mark
3.Each 3LEDs individually controlled,it can show customized effects
4.Support online control
5.No ultraviolet and infrared radiation
6.Energy saving, Low heat-release, Long lifetime for 50,000hrs
7.CE and RoHS approved



Specifications:

No.	Product Name	Model No.	LED Qty	IC Qty	Working Voltage	Power (max)	Grey Scale	Pixel	PCB(mm)	Color
1	LPD8806 LED Strip	BL-FWIC5050RGB18-8806	36	6	12V	9W	128	12	12	RGB



Different waterproof:

PCB: white/black
IP40: Non waterproof, 3M backside
IP65: Glue drop on the front side, 3M tape backside
IP67: Silicone tube protection
IP68: PVC tube+glue

Connection Diagram:





Four Wires:
DC+ and GND connect to power supplier;
CLK, DAT and GND connect to controller.

Note:

1. Please use DC12V or DC5V only according to specs data;
2. There are direction arrows on the PCB, arrow direction for connecting next reel strip;
3. GND not only for power wire, also as signal wire, need connect to both power and controller;
4. The Max distance between strips is 5m-10m, need use amplifier when more than 10m;
5. Every 5m strip need re-connect to power supplier, avoiding voltage drop;
6. Keep the surface of installation place clear and smooth, avoiding the strip fall off. DO NOT press the LED;
7. DO NOT attempt to make sharp bend with the strip;
8. DO NOT install where water or high humidity may be present without further protection;
9. Away from strong acid or strong alkali.

Application:

1. Architectural decoration Lighting

2. Backing lighting for signage letters

3. Decoration lighting for under water project

4. Archway /Canopy & Bridge Edge Lighting

5. Auditorium walkway lighting

6. Amusement park / Theater /Aircraft cabin mood lighting

7. Stairway Accent Lighitng

8. Channel letters  lighting
9. Furniture Decoration Lighting
10.Cove Lighting
