SMD 5050 5630 LED Under Cabinet Bar RGB 0.5m 1m 3m

SMD 5050 5630 LED Under Cabinet Bar RGB 0.5m 1m 3m thumbnail-1

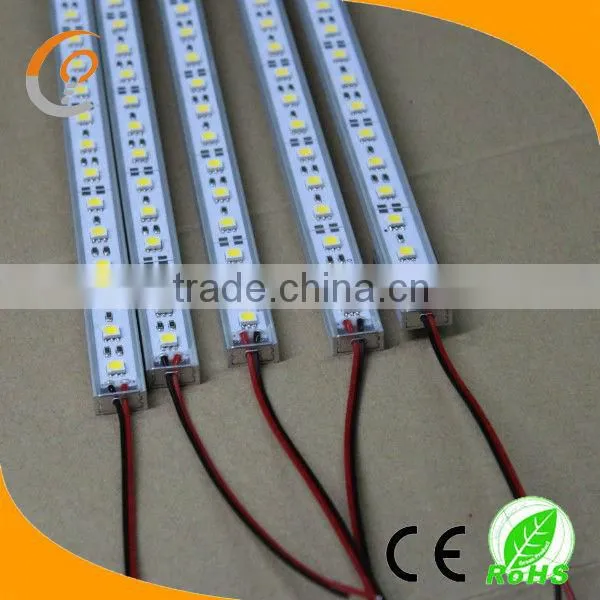

SMD 5050 5630 LED Under Cabinet Bar RGB 0.5m 1m 3m photo-1
US$ 1 - 3 MOQ: 100 Meters
Key Specifications
Get Latest Price
LED Light Source:
SMD5050 LED
Type:
LED Bar Lights
Input Voltage(V):
DC5V
Contact Supplier Request Quote Chat Now
Shenzhen Baolight Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD5050 LED
Type LED Bar Lights
Input Voltage(V) DC5V
Lamp Power 10
Lamp Luminous Flux(lm) /
Color Temperature(CCT) rgb
Working Temperature(℃) -20, 60
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
Certification CCC, CE, EMC, LVD
Emitting Color RGB
Place of Origin Guangdong, China
Brand Name Baolight
Model Number BL-SL5050SMDRGB-017

Specifications

Cuttable along the mark
Each 1led/3leds individually controlled,show customized effects
Support online control
SMD5050 RGB CE

SMD 5050 5630 LED Under Cabinet Bar RGB 0.5m 1m 3m



Features:

1.High brightness SMD5050 LED, two data lines, two power supply lines.
2.Cuttable every 1/3LEDs+1IC along the mark
3.Each 3LEDs individually controlled,it can show customized effects
4.Support online control
5.No ultraviolet and infrared radiation
6.Energy saving, Low heat-release, Long lifetime for 50,000hrs
7.CE and RoHS approved



Specifications:

SMD 5050 5630 LED Under Cabinet Bar RGB 0.5m 1m 3m

SMD 5050 5630 LED Under Cabinet Bar RGB 0.5m 1m 3mSMD 5050 5630 LED Under Cabinet Bar RGB 0.5m 1m 3m

Different waterproof:

PCB: white/black
IP40: Non waterproof, 3M backside
IP65: Glue drop on the front side, 3M tape backside
IP67: Silicone tube protection
IP68: PVC tube+glue

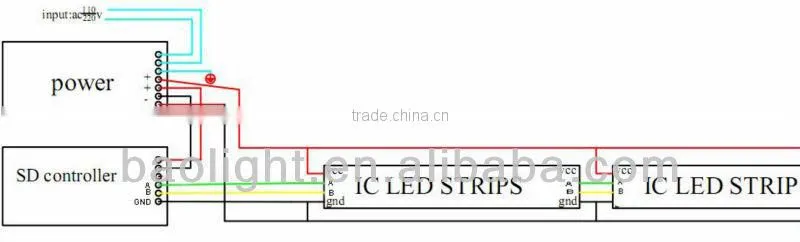

Connection Diagram:



SMD 5050 5630 LED Under Cabinet Bar RGB 0.5m 1m 3m



Four Wires:
DC+ and GND connect to power supplier;
CLK, DAT and GND connect to controller.







Note:



1. Please use DC12V or DC5V only according to specs data;
2. There are direction arrows on the PCB, arrow direction for connecting next reel strip;
3. GND not only for power wire, also as signal wire, need connect to both power and controller;
4. The Max distance between strips is 5m-10m, need use amplifier when more than 10m;
5. Every 5m strip need re-connect to power supplier, avoiding voltage drop;
6. Keep the surface of installation place clear and smooth, avoiding the strip fall off. DO NOT press the LED;
7. DO NOT attempt to make sharp bend with the strip;
8. DO NOT install where water or high humidity may be present without further protection;
9. Away from strong acid or strong alkali.





Application:

1. Architectural decoration Lighting

2. Backing lighting for signage letters

3. Decoration lighting for under water project

4. Archway /Canopy & Bridge Edge Lighting

5. Auditorium walkway lighting

6. Amusement park / Theater /Aircraft cabin mood lighting

7. Stairway Accent Lighitng

8. Channel letters  lighting
9. Furniture Decoration Lighting
10.Cove Lighting

SMD 5050 5630 LED Under Cabinet Bar RGB 0.5m 1m 3m

Factory:

SMD 5050 5630 LED Under Cabinet Bar RGB 0.5m 1m 3m

SMD 5050 5630 LED Under Cabinet Bar RGB 0.5m 1m 3m
