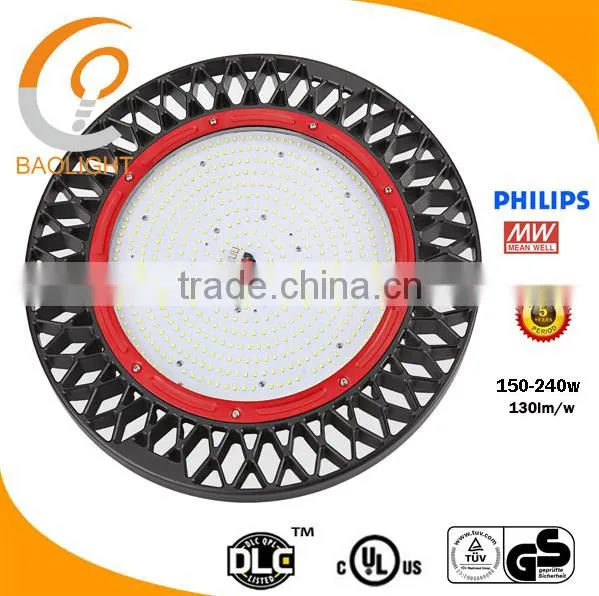

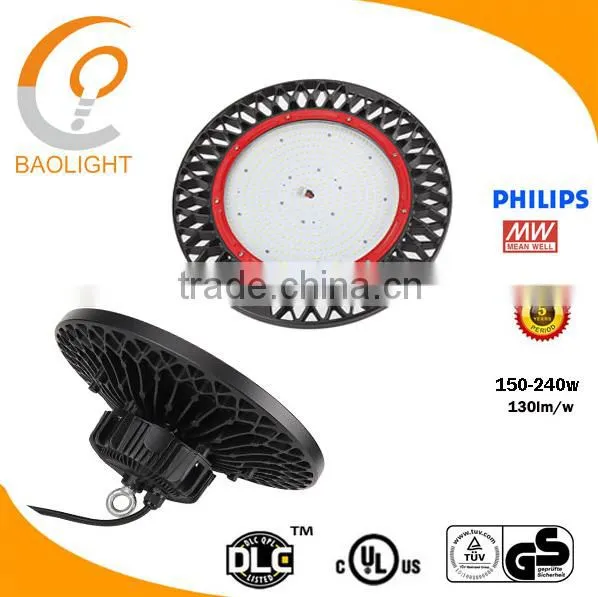

industrial pendant light 100W 150W 200W 240W ufo led high bay light 5 years warranty

industrial pendant light 100W 150W 200W 240W ufo led high bay light 5 years warranty

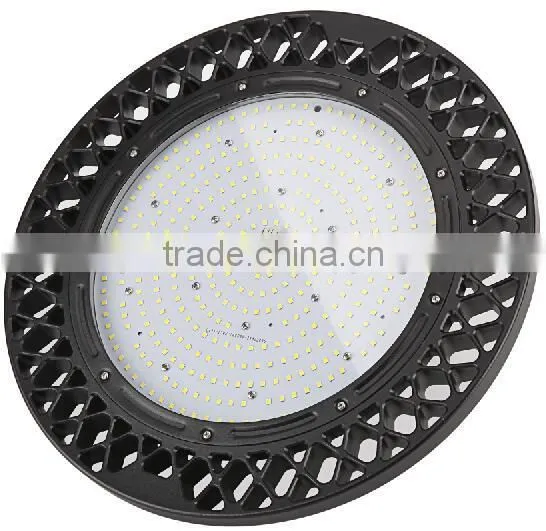

• Robust die-cast aluminum luminaire body painted in epoxy powder coating in Black(RAL9005) and Gray(RAL9007).

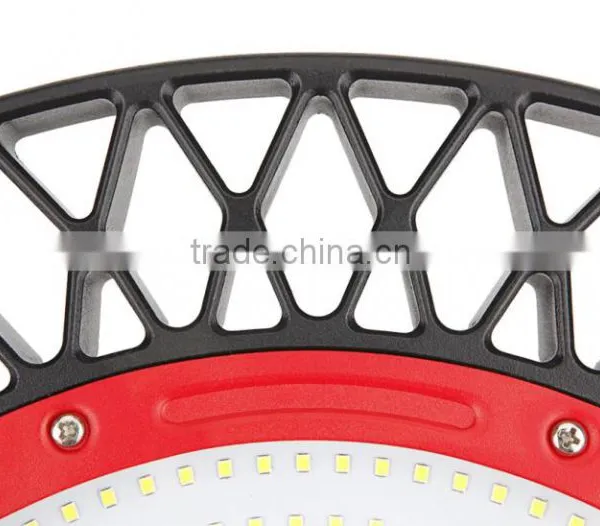

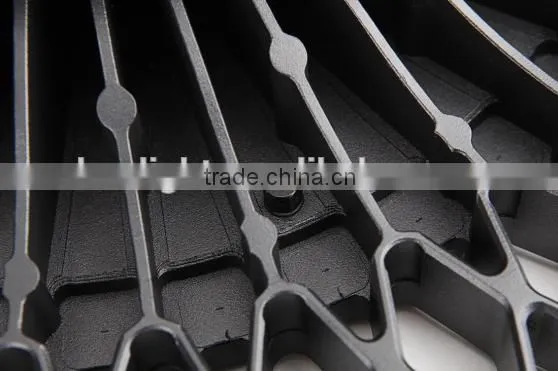

• Air-flow heat sink allows for fast air movement as the perfect cooling system to ensure the performance and longevity.
• The luminaire assembly meets dust and moisture rating of IP66 per IEC60598 and impact protection of IK08 per EN62262, ensure long life and protection from the environment.
• Rod mounting, hook with chain mounting and heavy duty steel yoke mounting are available.

Model		BL-HBL100	BL-HBL150	BL-HBL200	BL-HBL240
Power		100W	150W	200W	240W
LED	EPISTAR	200*1W 132*1.5W	300*1W        192*1.5W	400*1W     264*1.5W	480*1W 312*1.5W
	PHILIPS
Driver		SOSEN/ MEAN WELL UL
Input Voltage & PF		AC100-277V   PF>0.95
Lumen Efficiency		130lm/W
CCT		4000K, 5000K, 6000K
IP Rating		IP65
View Angle		120°
Operation Temp.		-40℃ ~ +50℃
Warranty		5 years
Certificate		ETL DLC



LED & Optics

Highly efficient LM80 approved NICHIA LED is applied for maximum efficiency and long life (calculated L70 > 50,000h @ Ta=40 Celsius degrees). Color temperature in warm white 4000K, mid-white 5000K and pure white 5700K with CRI80+ are available, CRI>70 is optional, LPW up to 130 is available.

Optics PC lens in 60, 90, 120 options with over 90% efficiency reduces light loss significantly.

Electronics

MEANWELL driver and Customized driver in 90-305Vac, 50/60Hz, power factor > 95% and THD <15%, IP65 waterproofed. With DALI, PWM or 0-10V dimming is available.

Over current, short circuit, over voltage and over temperature protections are integrated.

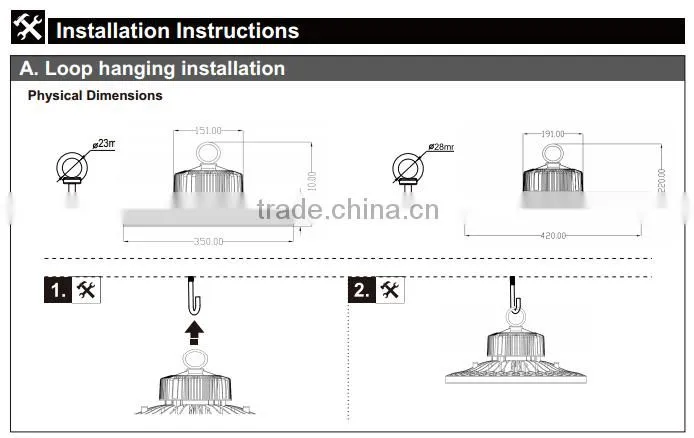

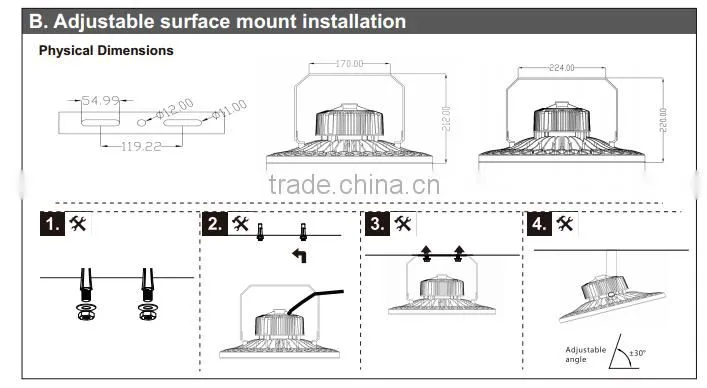

Installation

Applications

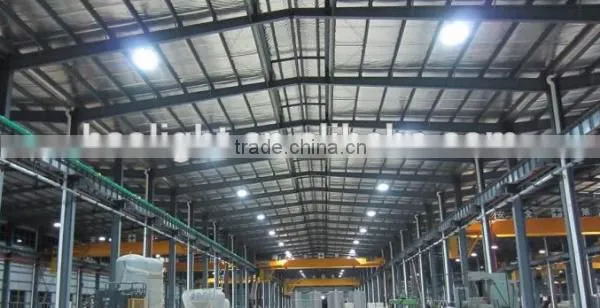

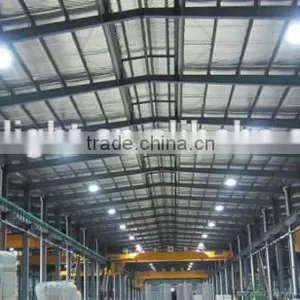

With unique high-purity die-cast aluminum heat sink, high-brightness SMD chip, high-effciency constant current and constant voltage power driver, the MINI LED high bay is designed for factories, workshops, warehouses, highway toll stations, gas stations, supermarkets, exhibition halls, stadiums and similar applications.
