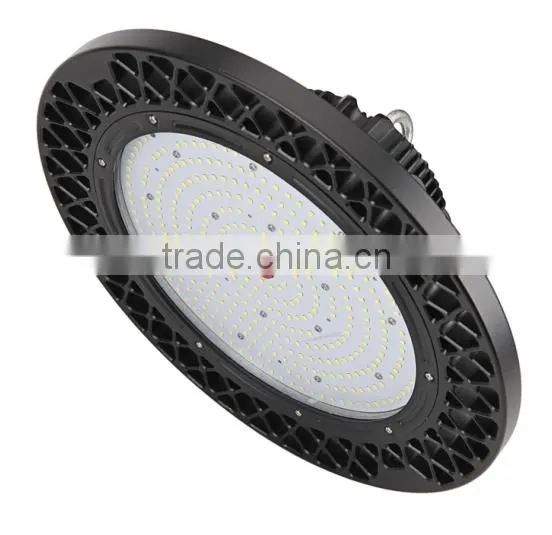

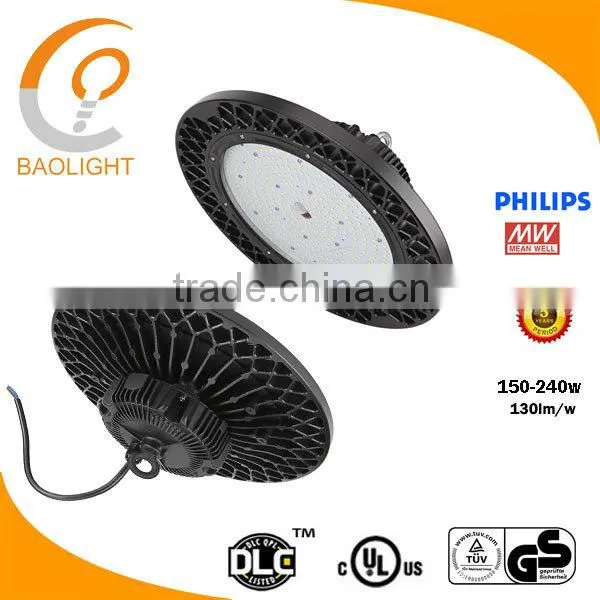

ETL DLC ufo high bay 150W 200W 240W IP65 100-277V 130lm/W with Patent design
- Robust die-cast aluminum luminaire body painted in epoxy powder coating in Black(RAL9005) and Gray(RAL9007).

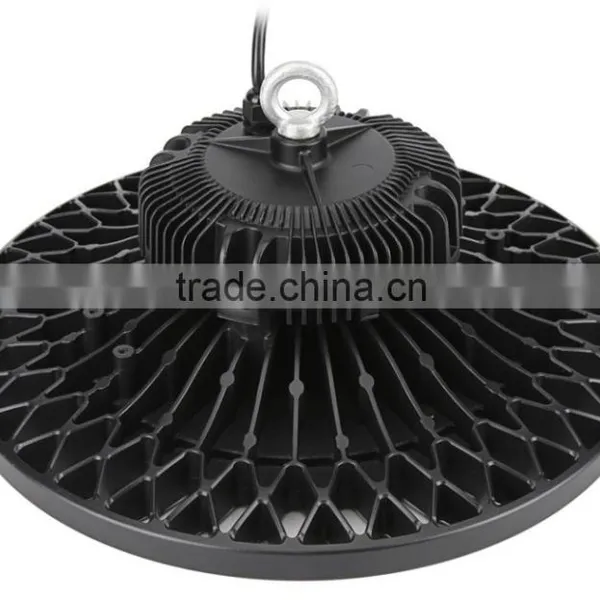

- Air-flow heat sink allows for fast air movement as the perfect cooling system to ensure the performance and longevity.
- The luminaire assembly meets dust and moisture rating of IP66 per IEC60598 and impact protection of IK08 per EN62262, ensure long life and protection from the environment.
- Rod mounting, hook with chain mounting and heavy duty steel yoke mounting are available.
Model |
BL-HBL100 |
BL-HBL150 |
BL-HBL200 |
BL-HBL240 |
|
Power |
100W |
150W |
200W |
240W |
|
LED |
EPISTAR |
200*1W 132*1.5W |
300*1W 192*1.5W |
400*1W 264*1.5W |
480*1W 312*1.5W |
PHILIPS | |||||
Driver |
SOSEN/ MEAN WELL UL |
||||
Input Voltage & PF |
AC100-277V PF>0.95 |
||||
Lumen Efficiency |
130lm/W |
||||
CCT |
4000K, 5000K, 6000K |
||||
IP Rating |
IP65 |
||||
View Angle |
120° |
||||
Operation Temp. |
-40℃ ~ +50℃ |
||||
Warranty |
5 years |
||||
Certificate |
ETL DLC |
||||
LED & Optics
Highly efficient LM80 approved NICHIA LED is applied for maximum efficiency and long life (calculated L70 > 50,000h @ Ta=40 Celsius degrees). Color temperature in warm white 4000K, mid-white 5000K and pure white 5700K with CRI80+ are available, CRI>70 is optional, LPW up to 130 is available.
Optics PC lens in 60, 90, 120 options with over 90% efficiency reduces light loss significantly.
Electronics
MEANWELL driver and Customized driver in 90-305Vac, 50/60Hz, power factor > 95% and THD <15%, IP65 waterproofed. With DALI, PWM or 0-10V dimming is available.
Over current, short circuit, over voltage and over temperature protections are integrated.
Installation
Applications
With unique high-purity die-cast aluminum heat sink, high-brightness SMD chip, high-effciency constant current and constant voltage power driver, the MINI LED high bay is designed for factories, workshops, warehouses, highway toll stations, gas stations, supermarkets, exhibition halls, stadiums and similar applications.
We provide technical support
