Mono/Single Color Red LED Module P10 320mm*160mm

Mono/Single Color Red LED Module P10 320mm*160mm thumbnail-1
Mono/Single Color Red LED Module P10 320mm*160mm photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
P10mm
Contact Supplier Request Quote Chat Now
Dongguan Asram Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM
Model Number P10mm
Usage Outdoor
Tube Chip Color Red
Display Function Animation
Pixels 10mm
Screen Dimension Customized size



Technical parameter
Unit board Pixel pitch 10mm
Module size 320mm*160mm
Resolution of module 32*16dots
Density of pixel 10000dots/m2
Pixel configuration LED546 1R
Main Technical parameter Red wavelength 625±2nm
Green wavelength 525±2nm
Blue wavelength 470±2nm
Colors 16777216
Best viewing distance 10-300m
Horizontal/Vertical Viewing angle 120 degree/60 degree
Gray scale 16bits per color
Color temperature 6500k
Brightness More than 4000cd/sqm
IP grade Front :IP67 back: IP65
Frame frequency 60HZ
Refresh frequency ≥2000HZ
Control method Synchronization/Asynchronization
Drive method 1/4 Scan
Temperature Storage:-40°C-+85°C
Working:-40°C-+65°C
Operating ambient humidity 10%—95%RH
Earth leakage current < 2mA
Defects rate. ≤0.00001(Led display line standard<0.0001)
Flatness Tolerance of interpixel ≤0.3mm
Tolerance of modules clearance ≤0.6mm
MTBF More than 10,000 hours
Life span More than 100,000hours
Power Operating voltage AC110V/220V±10%
Maximum/Average power consumption 1100/600w/m2
Current ≤20mA(single LED)
Power switch Automatic switch
Control system CPU Pentium4 or above
Signal Input Composite ,S-video,Component,VGA,DVI,HDMI,SDI,HD_SDI,etc
Controlling system main controller card+optical fiber transmission
Control method Asynchronization
Systems operating platforms WinXP,Win2000,Vista, Win7 etc.
Softer ware LED media player









Optional:



Single color



DIP

P7.62mm  488mm x 244mm 64x32 pixels

P10mm     320mm x 160mm 32x16 pixels

P12mm     400mm x 200mm 32x16 pixels

P16mm     256mm x 128mm 16x8 pixels

P20mm     320mm x 160mm 16x8 pixels



Dot Matrix

P4mm       256mm x 128mm 64x32 pixels

P4.75mm   304mm x 152mm 64x32 pixels

P7.62mm   488mm x 244mm 64x32 pixels







Dual color



DIP

P7.62mm   488mm x 244mm 64x32 pixels

P10mm      320mm x 160mm 32x16 pixels

P12mm      192mm x 192mm 16x16 pixels

P16mm      256mm x 128mm 16x8 pixels

P20mm      320mm x 160mm 16x8 pixels



Dot Matrix

P4mm       256mm x 128mm 64x32 pixels

P4.75mm   304mm x 152mm 64x32 pixels

P7.62mm   488mm x 244mm 64x32 pixels







Tri-color



DIP

P10mm  160mm x 160mm 16x16 pixels

P12mm  192mm x 192mm 16x16 pixels

P16mm  256mm x 256mm 16x16 pixels



Dot Matrix

P4mm        256mm x 128mm 64x32 pixels

P4.75mm   304mm x 152mm 64x32 pixels

P7.62mm   488mm x 244mm 64x32 pixels







Full color



SMD

P1.8mm   230mm x 115mm  128x94 pixels

P2mm      240mm x 120mm 120x60 pixels

P3mm      192mm x 96mm   64x32 pixels

P4mm      256mm x 128mm   64x32 pixels

P5mm      160mm x 160mm   32x32 pixels

P6mm      192mm x 192mm   32x32 pixels

P7.62mm  244mm x 122mm 32x16 pixels

P10mm     320mm x 160mm 32x16 pixels



DIP

P10mm 160mm x 160mm 16x16 pixels

P10mm 320mm x 160mm 32x16 pixels

P10mm 320mm x 320mm 32x16 pixels

P12mm 192mm x 192mm 16x16 pixels

P16mm 256mm x 256mm 16x16 pixels

P16mm 256mm x 128mm 16x8 pixels

P20mm 320mm x 160mm 16x8 pixels

P25mm 200mm x 200mm 8x8 pixels

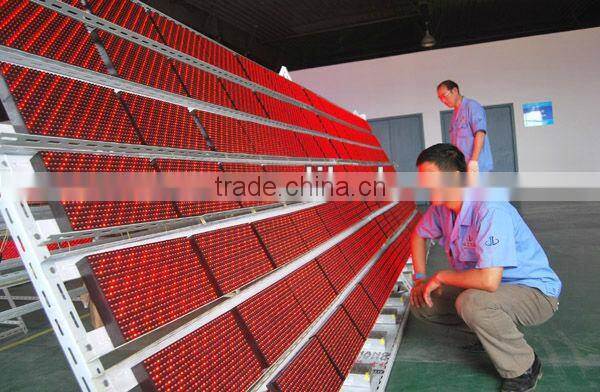

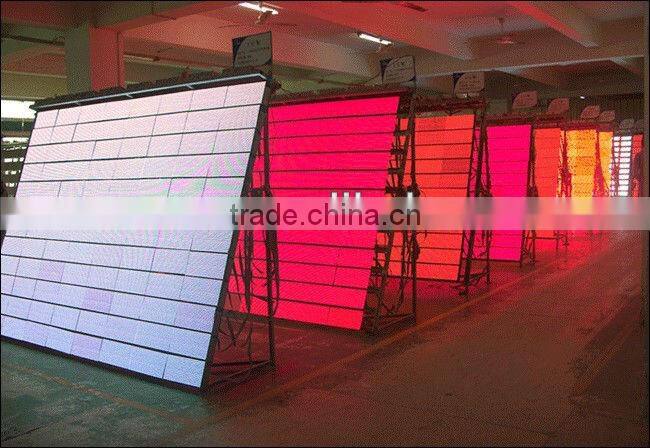

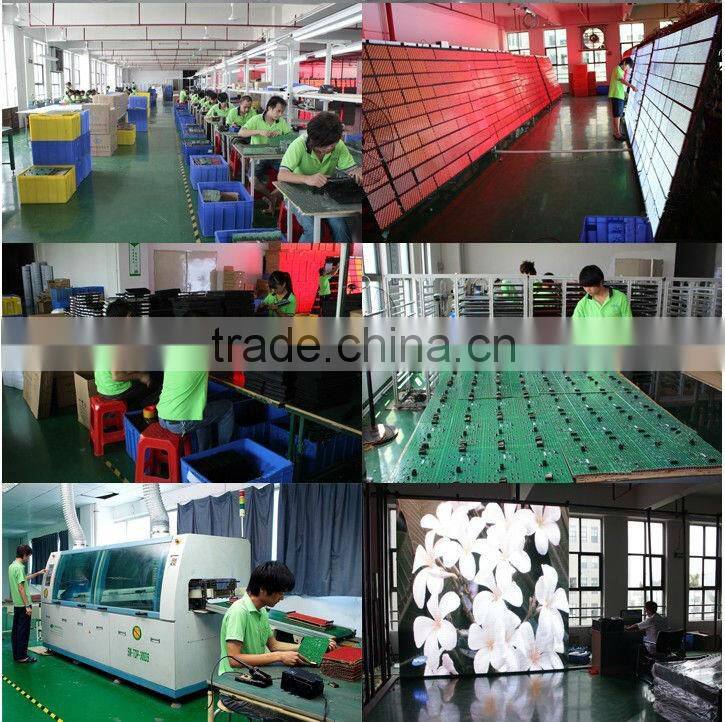

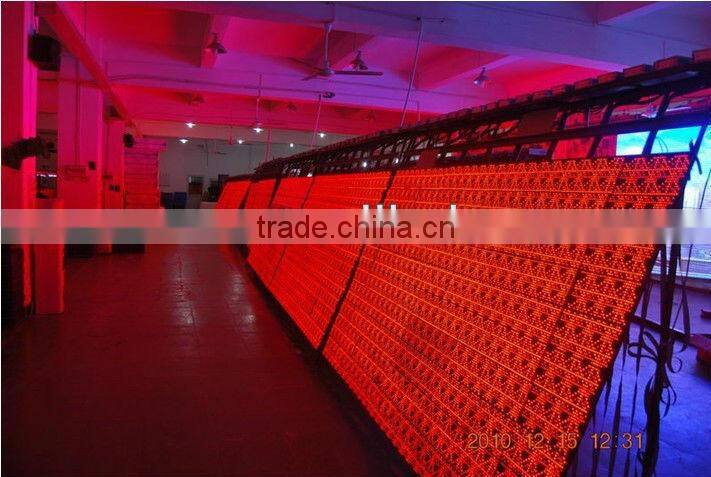

Factory workshop



Mono/Single Color Red LED Module P10 320mm*160mm

Mono/Single Color Red LED Module P10 320mm*160mmMono/Single Color Red LED Module P10 320mm*160mmMono/Single Color Red LED Module P10 320mm*160mmMono/Single Color Red LED Module P10 320mm*160mm

Mono/Single Color Red LED Module P10 320mm*160mm



Mono/Single Color Red LED Module P10 320mm*160mmMono/Single Color Red LED Module P10 320mm*160mmMono/Single Color Red LED Module P10 320mm*160mmMono/Single Color Red LED Module P10 320mm*160mmMono/Single Color Red LED Module P10 320mm*160mm



Mono/Single Color Red LED Module P10 320mm*160mmMono/Single Color Red LED Module P10 320mm*160mmMono/Single Color Red LED Module P10 320mm*160mmMono/Single Color Red LED Module P10 320mm*160mm
