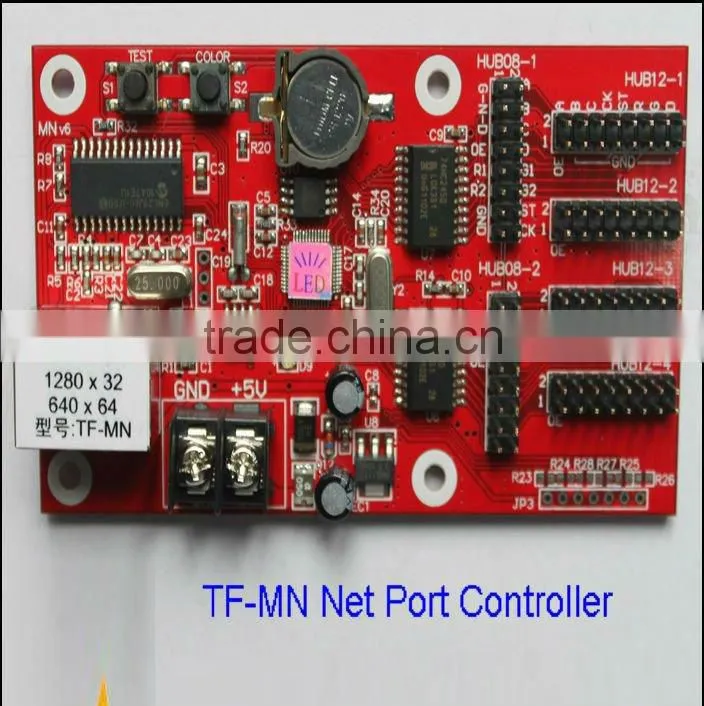

TF-MN LED Display Controller Card For P10/P16/P20 RS232 Drive Mode Change Messages Freely

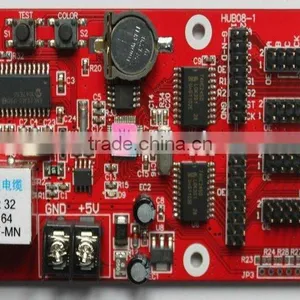

TF-MN LED Display Controller Card For P10/P16/P20 RS232 Drive Mode Change Messages Freely thumbnail-1
TF-MN LED Display Controller Card For P10/P16/P20 RS232 Drive Mode Change Messages Freely photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
TF
Contact Supplier Request Quote Chat Now
Dongguan Asram Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM
Model Number TF
Usage Other, Outdoor, Indoor, Semi-outdoor
Tube Chip Color Other, Single color, dual color, full color
Display Function Other, Supports video, animation, text, images, information etc
Pixels Other, 5mm, 6mm, 7mm, 10mm, 16mm, 20mm etc
Screen Dimension Customized size

Technical parameters



Model  TF-MN(support 16 zones)
Stock state  10000 pcs available
Communication port RJ45 network port
  Boundrate 57600,9600 adjusted,support auto match
Network function find IP itself,support network research,connect Direct or Crossed RJ45
Function introduction  Any zone division, Colorful Borders, LED display asynchronous control card
Usage  indoor/outdoor
Timer  HH/MM/SS , Clock frame embeded
Pixel  Single color 1280*32 ;640*64;
Double color 640*32;320*64;
Ports  2 pcs T-08 Ports; 4 pcs T-12 Ports
Scanning mode  support 1/16,1/8,1/4,1/2 Scan & static single color and double color module.
Storage  2M
Programe capacity Maximum 200 Programes,support 16 display zones at the same time per programe,each zone support max 200 messages display.
Display  rain,fountain,scroll and etc.45 kinds in all.
Border  support colors border,Picture border
Flash format  support GIF,SWF
Image format  support BMP,JPG,GIF,WMF,ICO
Brightness  16 levels,support manual adjustment
Screen switch  manual on/off
Test button  test buttons on-board,can adjust test model
Function expansion RF wireless modular,temperature & humidity sensor
Electrical parameters  +5V DC(4.5V~6V),Power consumption<0.2W
Working temperature  -30°c~70°c
Physical size  60mm×105mm,Holes distance:50mm×60mm





More types:





RS232 interface(connector)



TF-S1
TF-A1
TF-A2
TF-A3
TF-M2
TF-C2
TF-D2





USB interface(connector)



TF-SU
TF-S3U
TF-AU
TF-MU
TF-C3U
TF-DU
TF-EU
TF-FU





RJ45 network interface (conncetor)



TF-MN
TF-CN
TF-CNU
TF-FNU





Wireless controller(RF remote controller)



TF-GSM-A21
TF-DTU-SMS
TF-DTU-GPRS
IR-KEYBOARD

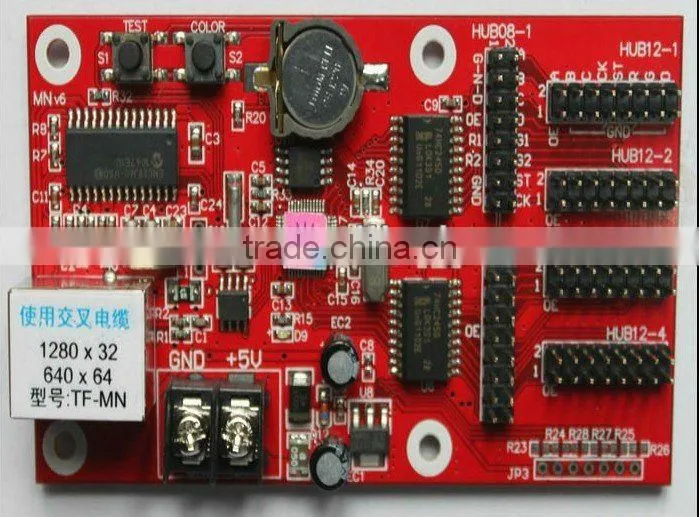

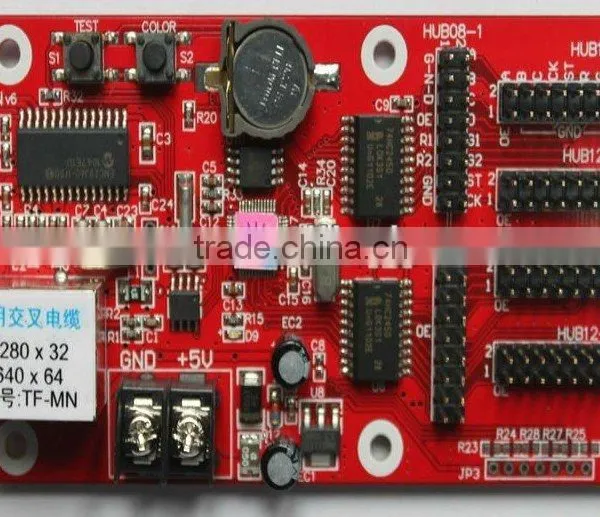

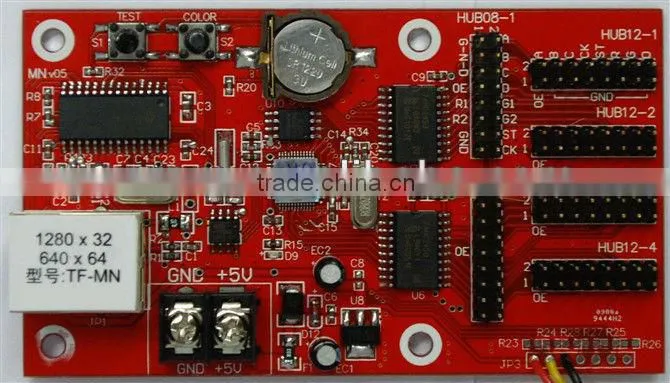

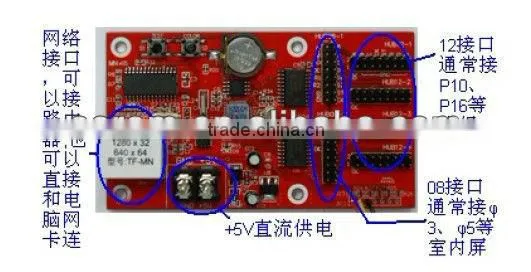

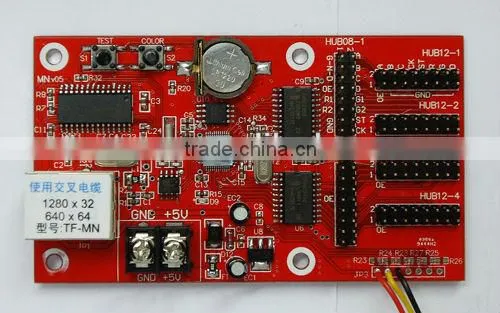

Pictures:



TF-MN LED Display Controller Card For P10/P16/P20 RS232 Drive Mode Change Messages FreelyTF-MN LED Display Controller Card For P10/P16/P20 RS232 Drive Mode Change Messages FreelyTF-MN LED Display Controller Card For P10/P16/P20 RS232 Drive Mode Change Messages FreelyTF-MN LED Display Controller Card For P10/P16/P20 RS232 Drive Mode Change Messages FreelyTF-MN LED Display Controller Card For P10/P16/P20 RS232 Drive Mode Change Messages Freely





More types:



 TF-MN LED Display Controller Card For P10/P16/P20 RS232 Drive Mode Change Messages FreelyTF-MN LED Display Controller Card For P10/P16/P20 RS232 Drive Mode Change Messages FreelyTF-MN LED Display Controller Card For P10/P16/P20 RS232 Drive Mode Change Messages FreelyTF-MN LED Display Controller Card For P10/P16/P20 RS232 Drive Mode Change Messages FreelyTF-MN LED Display Controller Card For P10/P16/P20 RS232 Drive Mode Change Messages FreelyTF-MN LED Display Controller Card For P10/P16/P20 RS232 Drive Mode Change Messages Freely

TF-MN LED Display Controller Card For P10/P16/P20 RS232 Drive Mode Change Messages Freely





Effect





 TF-MN LED Display Controller Card For P10/P16/P20 RS232 Drive Mode Change Messages FreelyTF-MN LED Display Controller Card For P10/P16/P20 RS232 Drive Mode Change Messages FreelyTF-MN LED Display Controller Card For P10/P16/P20 RS232 Drive Mode Change Messages Freely







Remarks







If you need some samples, please visit our Aliexpress store and buy them online.
