Home > Consumer Electronics > LED Display > Indoor LED Display > Hot Sales LED Pharmarcy Cross Display Pure Green Double Sides IP65 P20 LED Pharmacy Cross Display

Hot Sales LED Pharmarcy Cross Display Pure Green Double Sides IP65 P20 LED Pharmacy Cross Display

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

P20MM

Contact Supplier Request Quote Chat Now

Dongguan Asram Technology Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name OEM

Model Number P20MM

Usage Other, Outdoor, Indoor, Semi-outdoor

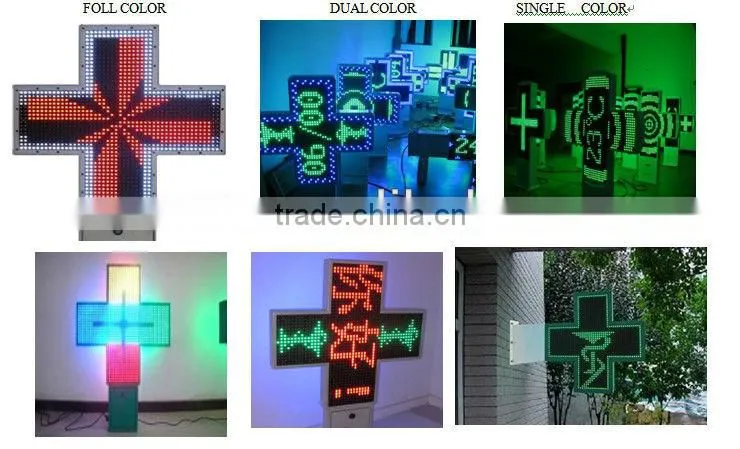

Tube Chip Color Other, Full color, dual color, single color

Display Function Other, Video images animation information text

Pixels 20mm

Screen Dimension Custom-made

Specifications

1. Hight brightness 12000nit

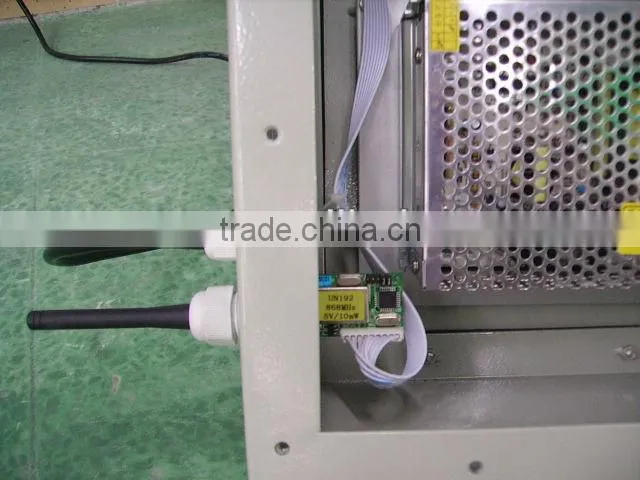

2. RF Wireless or RS232 control
3. Five years warranty
4. CE ROHS UL
5. Voltage AC110V-240V

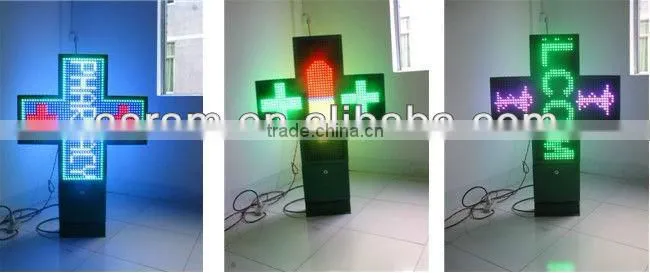

3D LED Pharmacy Cross

LED pharmacy cross is a very effective visual message display for hospital, pharmacy, medicine store and other applications, fundamental to be always present and to signal one's own presence to the customers and the whole city. Being visible even from great distance and provide an effective communication through the alphanumerical, and / or graphic display is indispensable for a modern pharmacy.
Pharmacy cross is a lot more of a bright sign: It's a system that allows to communicate with the potential customers and the all citizenship, an installation that confirms further the professionalism of a pharmacy and moreover is an informative tool that gives back an important service to the community.

The cross is controlled by infrared remote controller, also you can update the contents into the cross sign by computer.

LED cross includes the following items:

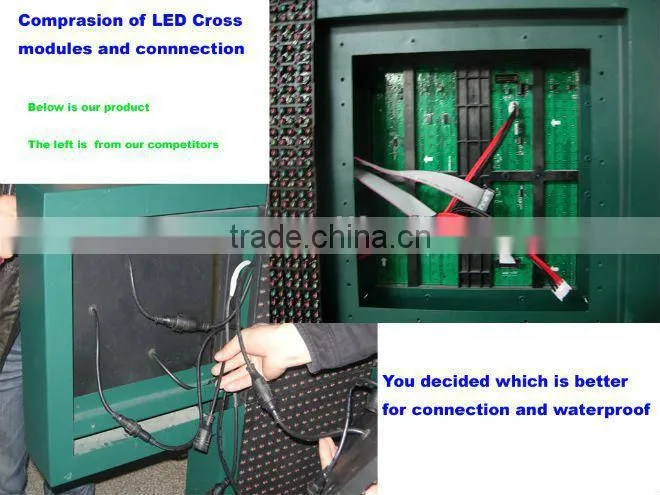

1. 10pcs LED (green) modules assembly (including 10pcs LED boards and 10pcs dive boards)

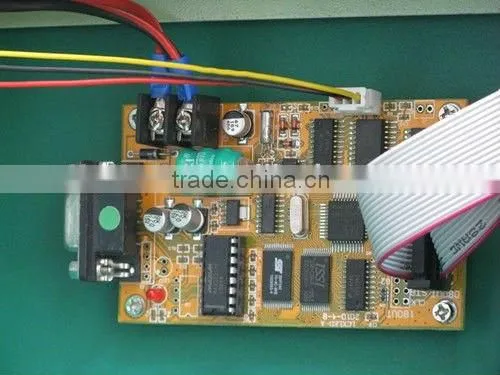

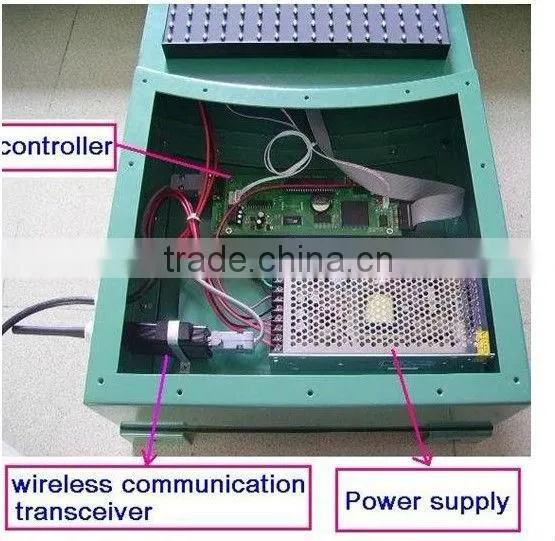

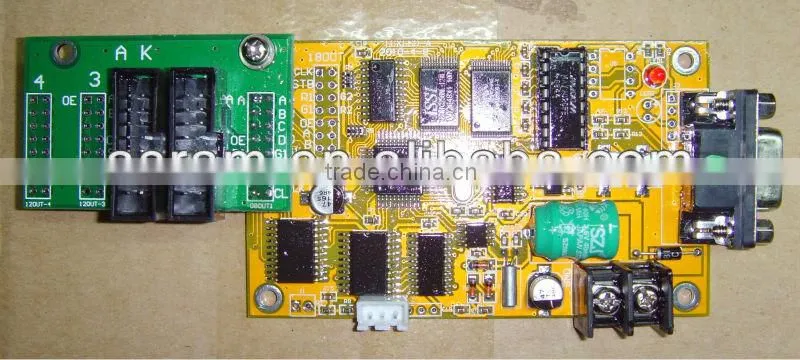

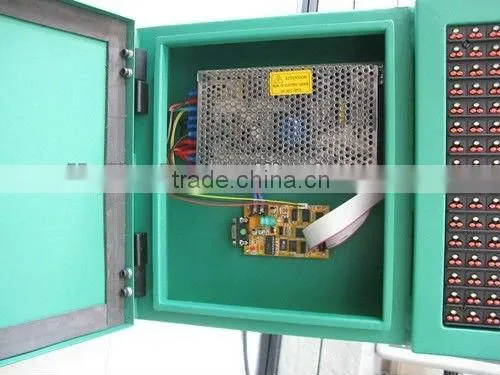

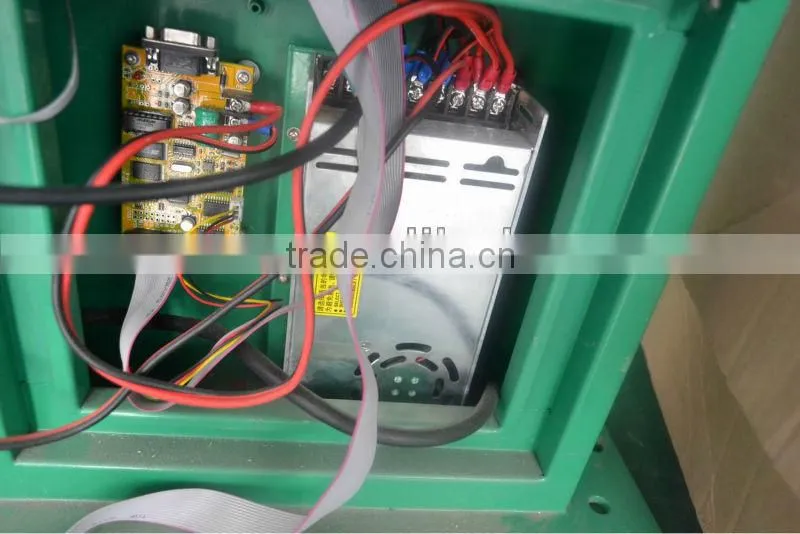

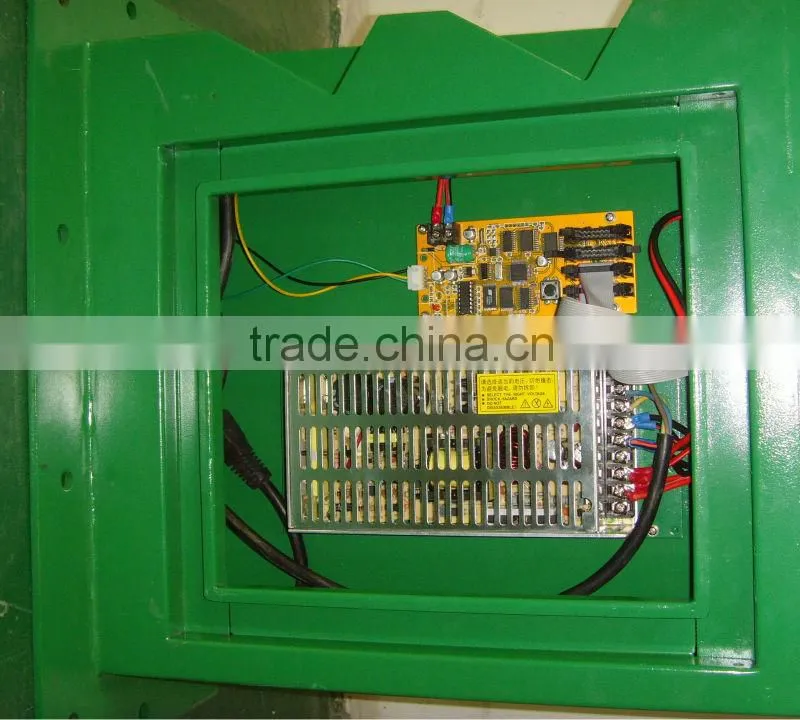

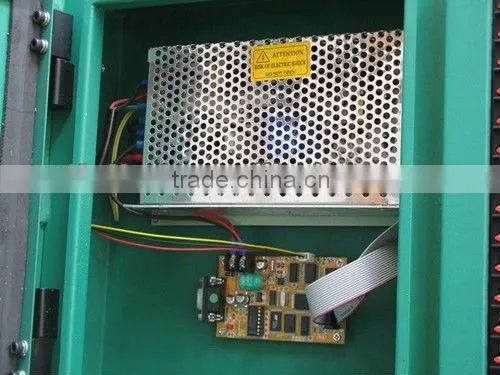

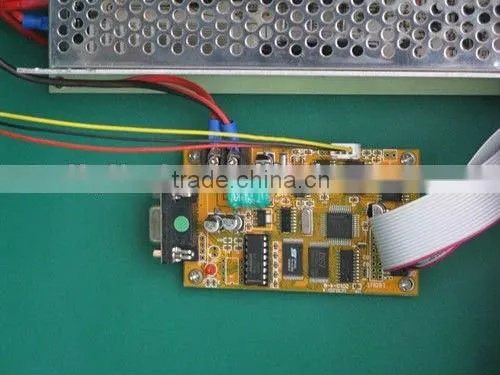

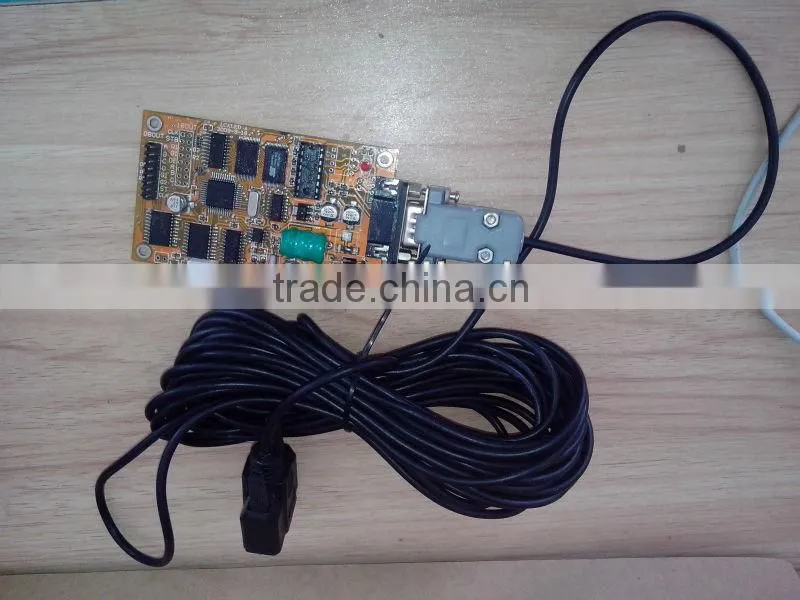

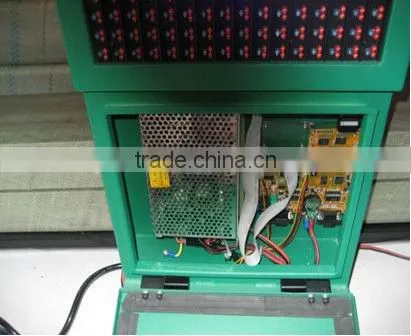

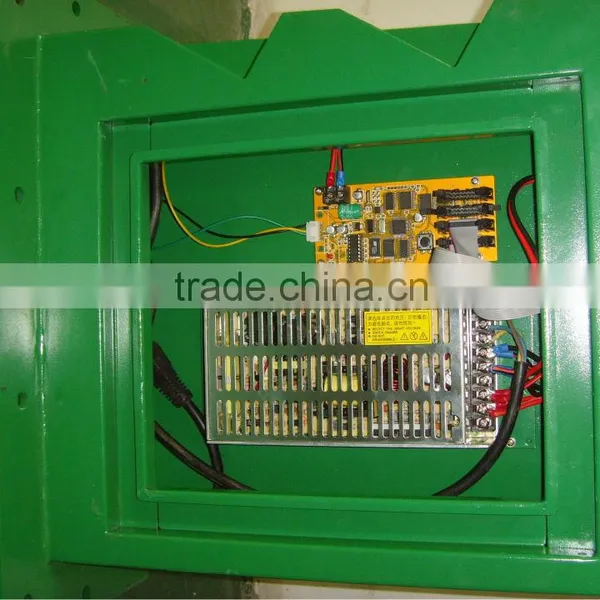

2. 1pcs control box (including 1pcs power supply and 1pcs control board)
3. 1pcs infrared remote controller
4. 10pcs signal cables, 2pcs dc power cables and 1pcs ac power

Features:
1. Programmable message display
2. Part animations group preset inside the LED display
3. Time, date, temperature and graphic display like vms
4. RS232<->422 / 485 converter
5. Low power consumption, < 85W
6. CE / UL approval power supply
7. IP65 water-proof protection construction

Specifications:
1.Perfect color uniformity of LED pixels
2.Green LED (red / amber / blue, double & mix color, RGB customized)
3.Each dot matrix module has 16*16 LEDs
4.Brightness: Over 7500 CD/SQM
5.Low heat consumption, less than 85W
6.Module size: 30cm*30cm each side
7.Double sides, each side is consisted of 5pcs LED modules
8.Water-proof design
9.Metal frame / holder fixed on the wall, enhanced frame with PC glass holder for choices
10.Controller:
Cables & wires have been installed inside. All connection parts are waterproof design
11.Software:
It may easily edit texts in any European countries languages like English, French, Spanish,Greek Romanianetc. animation mode, time + Date + temperature and graphic display etc. Like vms
Currently the software has 50 kinds of animation modes
12.Mannual is available in English, French and Spanish
13.Package :Wooden box
1420mm*1120mm*210mm/set Volumet Weight: 67KGS/set

Optional:

Model	Cabinet Size L x H x D (mm)	Max. Power	Pixels H x L	LED Pitch (mm)	Total LEDs	LED Colour

PC-40LG S1 (semi)	386 x 386 x 55	30W	48 x 48	7.62	1,280	Pure Green

PC-80LG WP S1	800 x 1120 x 100	130W	48 x 48	16	1,280	Pure Green

PC-80LG WP S2	800 x 1120 x 100	130W	48 x 48	16	2,560	Pure Green

PC-80LF WP S1	800 x 1120 x 130	200W	48 x 48	16	3,840	Full Colour

PC-80LF WP S2	800 x 1120 x 130	200W	48 x 48	16	7,680	Full Colour

PC-100LG WP S2	990 x 1340 x 100	130W	48 x 48	20	2,560	Pure Green

PC-100LF WP S2	990 x 1340 x 130	200W	48 x 48	20	7,680	Full Colour

PC-110LG WP S1	1060 x 1380 x 150	310W	64 x 64	16	3,072	Pure Green

PC-110LG WP S2	1060 x 1380 x 150	310W	64 x 64	16	6,144	Pure Green

Note: S1 = single sided S2 = double sided Semi = not weatherproof, only mount internally facing out through window WP = weatherproof case
