LS-T1 Hot Selling LED Controller Card for P10/P16/P20 Single or Double Color Module Display Controlller Card System

LS-T1 Hot Selling LED Controller Card for P10/P16/P20 Single or Double Color Module Display Controlller Card System thumbnail-1
LS-T1 Hot Selling LED Controller Card for P10/P16/P20 Single or Double Color Module Display Controlller Card System photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
LISTEN
Contact Supplier Request Quote Chat Now
Dongguan Asram Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM
Model Number LISTEN
Usage Other, Outdoor, Indoor, Semi-outdoor
Tube Chip Color Other, Single color, dual color, full color
Display Function Other, Supports video, animation, text, images, information etc
Pixels Other, 5mm, 6mm, 7mm, 10mm, 16mm, 20mm etc
Screen Dimension Customized size

Technical parameters



Industrial Performance

Adopt industrial Chips, low voltage to start, wide voltage(+3.6V--+5 V) reverse protection;

DIP-chip to ensure more reliable communication, TVS against lightning protection;

Hardware watchdog to avoid the system crash problem caused by the voltage instability or electromagnetic interference;




  • Any partitioning software
  • Any partitioning software, flexible operation, easy to use;
  • Support for multi-program playback, support programs broadcasting regularly;
  • Support multi-language text conversion;
  • Continuously moving for the text single line without spaces, support different font sizes and color choices;
  • Support for analog clock and animated, support screen testing;
  • Program files can be copied , supporting programs to save and load the file.




Detailed development document



  1. VC, VB, Delphi develop package, dynamic library DEMO and source code;
  2. Buttons, switches, timing, GSM / GPRS wireless communications and other typical applications;
  3. User-friendly design
  4. LED Player 3.2 software ;
  5. With 2*IO(HUB08) and 4*IO(HUB12)interface;
  6. easy to operate, no screen number selection, no dial-up switch selection;
  7. Smart settings for outdoor scan, supporting the mainstreaming of 1/16, 1/8, 1/4 static routing;
  8. Search function with a control card, the screen parameters, scan settings for back to read function;
  9. solve manufacturers’ collection difficult problem, you can set the deadline, cancel the deadline;




Applications

Wireless application: Highway GPRS advertising, community wireless LED display;

Commercial applications: shops, drugstore, chain stores advertising.

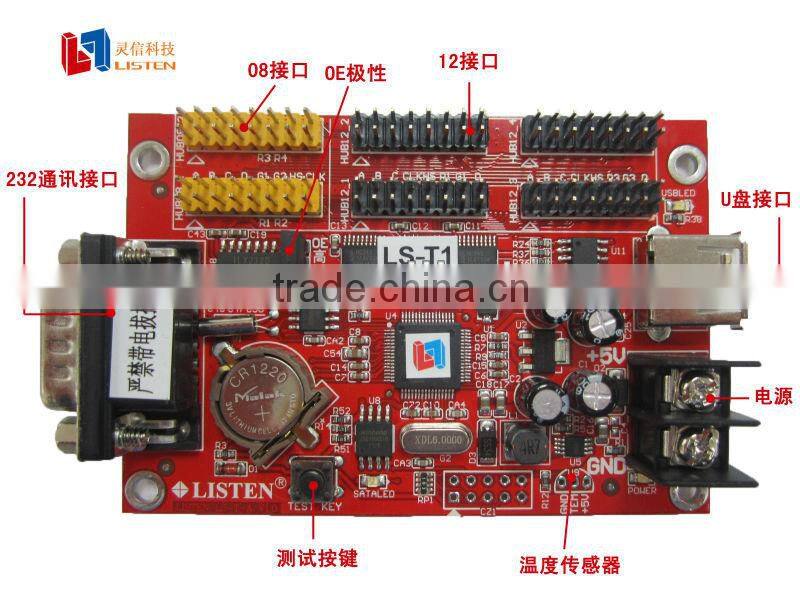

LS-T1(LAN+Serial) led display control card Parameters

Item No. LS-T1 (LAN+Serial)
Range  64K---single color 1024*64, dual color 1024*32,dual color 512*64;
Load

Indoor LED module(64*32)---single color 8pcs/dual color 4pcs
Outdoor P10 module(32*16)---single color 32pcs/dual color 16pcs
Scan mode 1/16,1/8,1/4, static routing
Scan interface 2*IO(HUB08),4*IO(HUB12)
Communication mode RS232
Wireless communication Support GSM,GPRS,RF
Memory 2M Bytes
Extended interface Test button ,temperature sensor , timing switch
Player LED Player 3.2

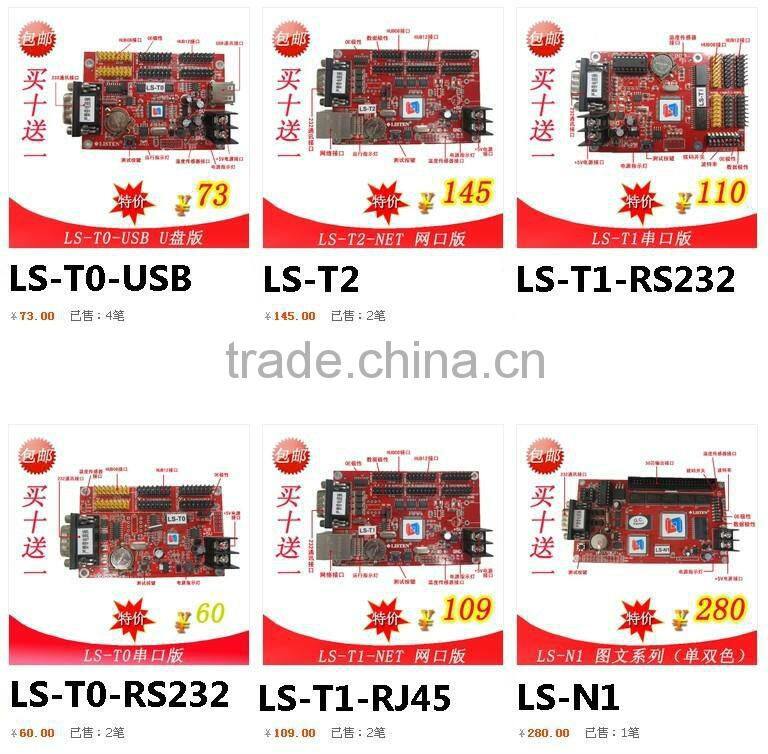

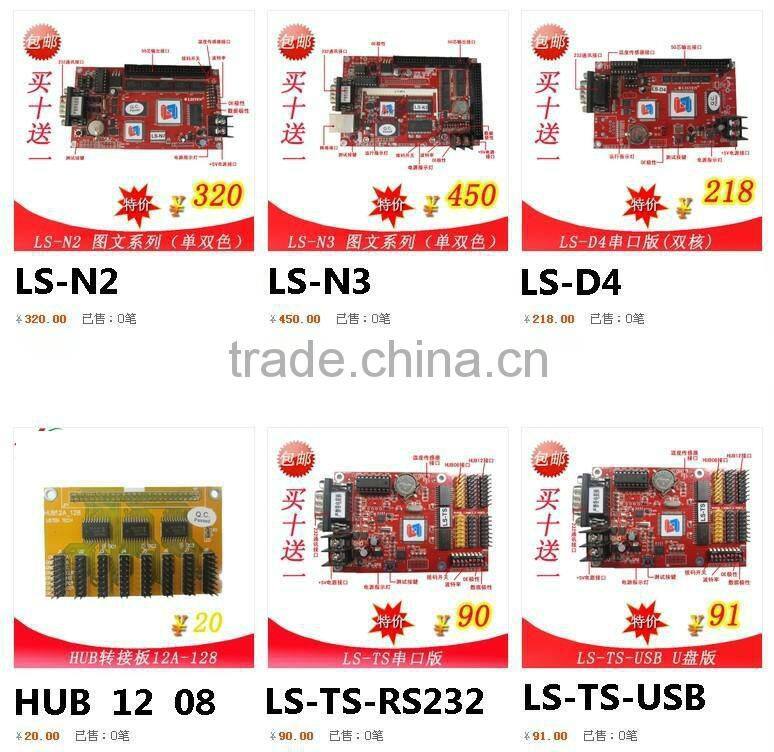

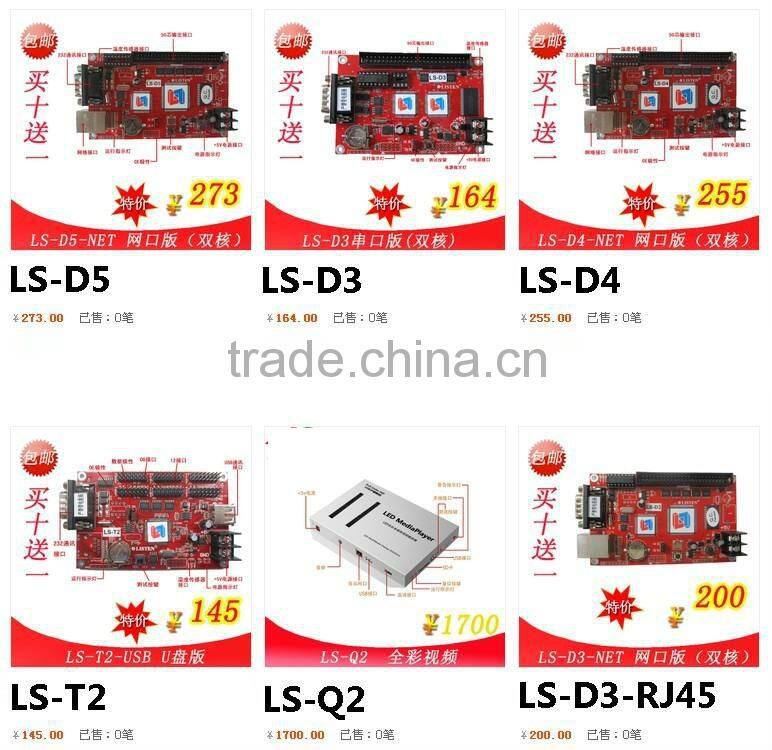

More types:

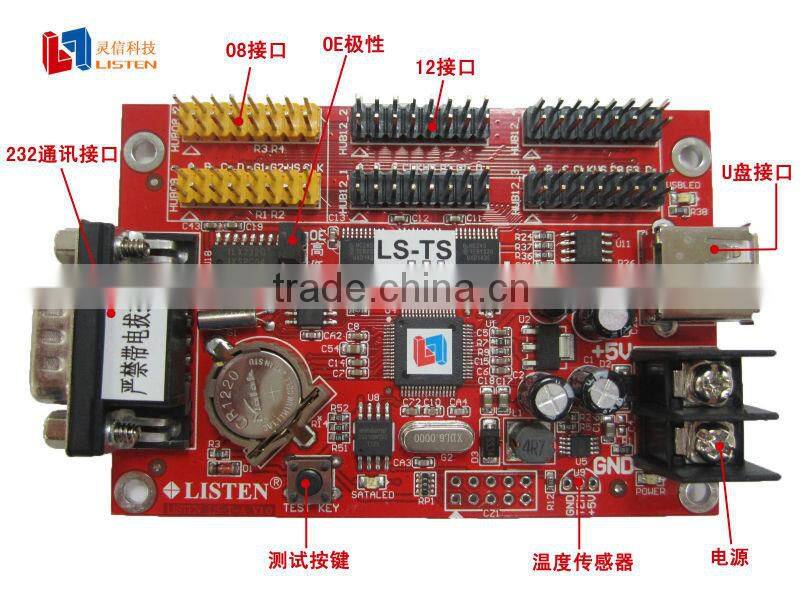

LS-TS-USB
LS-T1-USB
LS-T0-USB
LS-T0
LS-T1
LS-T2
LS-T3

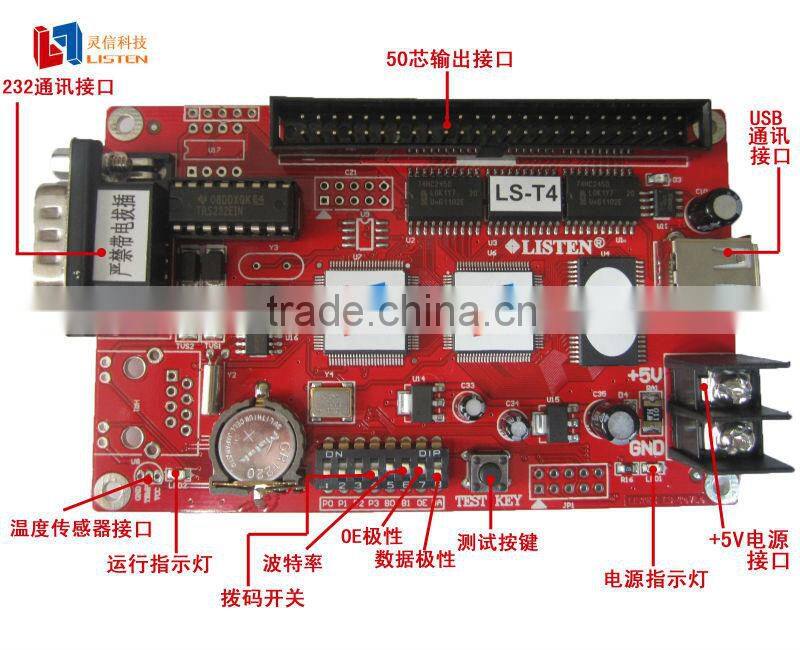

LS-T4

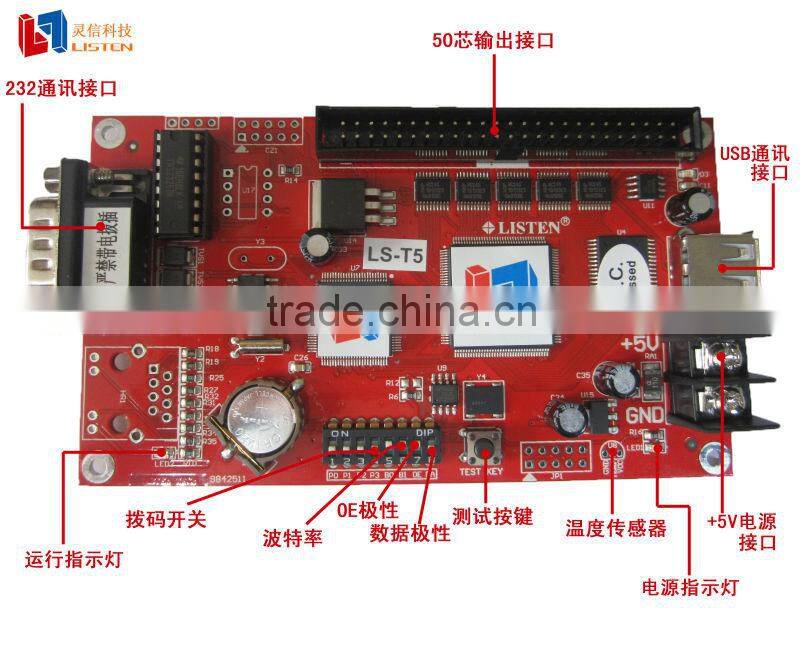

LS-T5

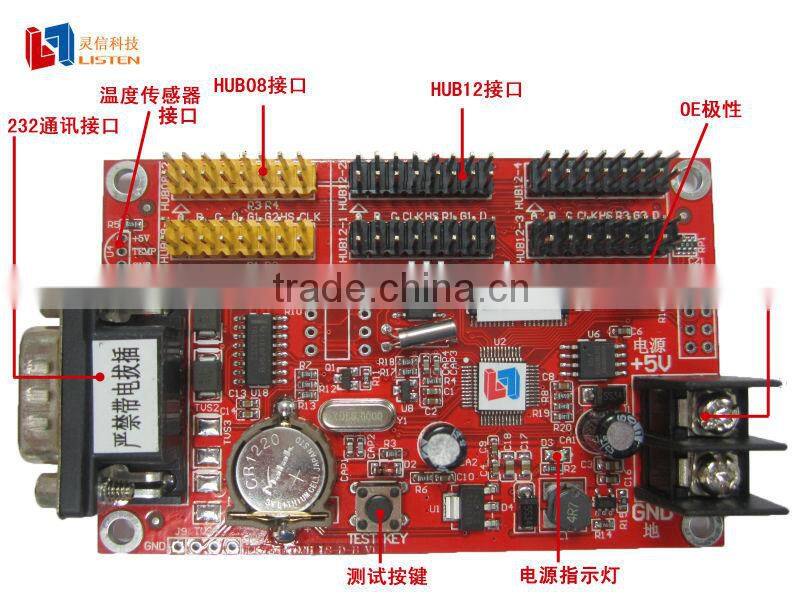

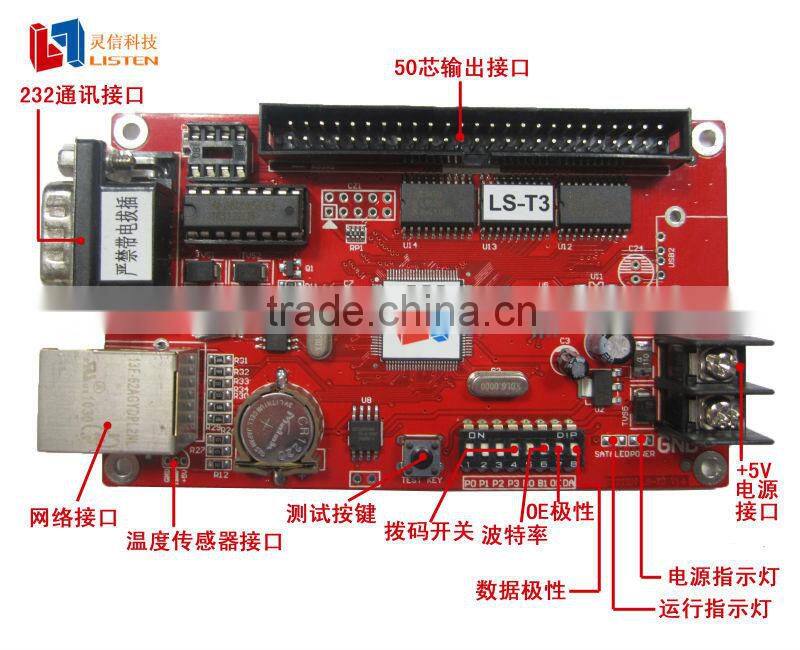

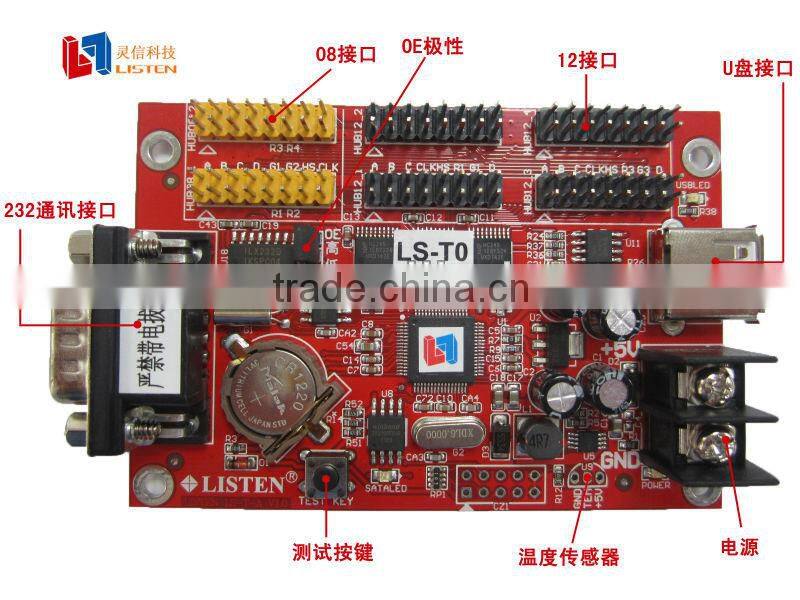

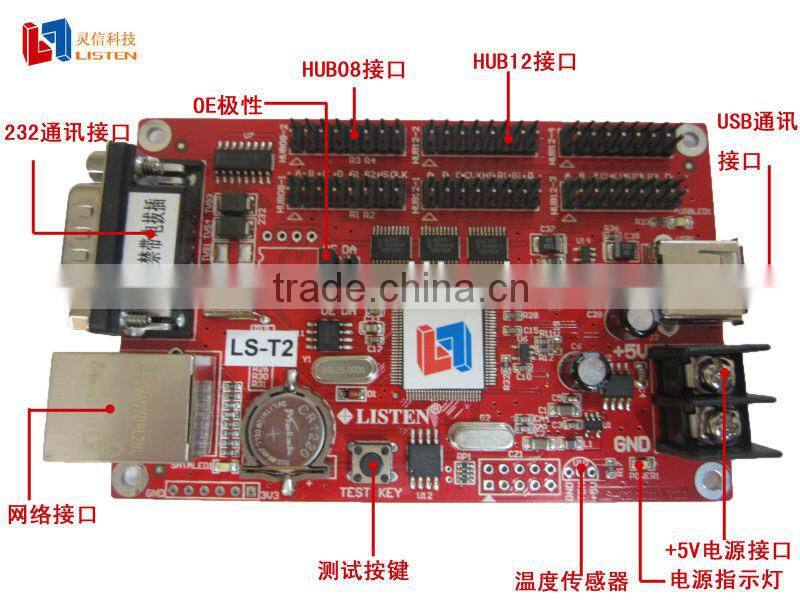

Pictures:

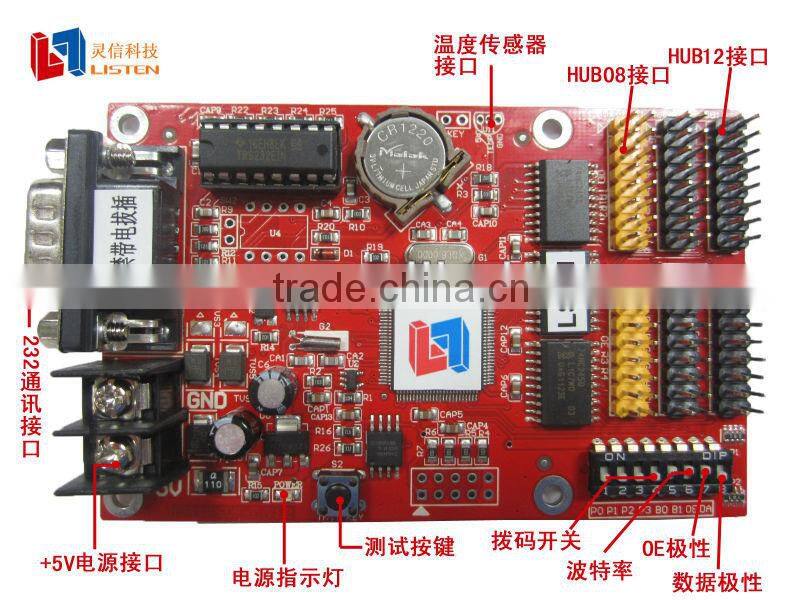

 LS-T1 Hot Selling LED Controller Card for P10/P16/P20 Single or Double Color Module display controlller card systemLS-T1 Hot Selling LED Controller Card for P10/P16/P20 Single or Double Color Module display controlller card systemLS-T1 Hot Selling LED Controller Card for P10/P16/P20 Single or Double Color Module display controlller card systemLS-T1 Hot Selling LED Controller Card for P10/P16/P20 Single or Double Color Module display controlller card systemLS-T1 Hot Selling LED Controller Card for P10/P16/P20 Single or Double Color Module display controlller card systemLS-T1 Hot Selling LED Controller Card for P10/P16/P20 Single or Double Color Module display controlller card systemLS-T1 Hot Selling LED Controller Card for P10/P16/P20 Single or Double Color Module display controlller card systemLS-T1 Hot Selling LED Controller Card for P10/P16/P20 Single or Double Color Module display controlller card systemLS-T1 Hot Selling LED Controller Card for P10/P16/P20 Single or Double Color Module display controlller card systemLS-T1 Hot Selling LED Controller Card for P10/P16/P20 Single or Double Color Module display controlller card systemLS-T1 Hot Selling LED Controller Card for P10/P16/P20 Single or Double Color Module display controlller card systemLS-T1 Hot Selling LED Controller Card for P10/P16/P20 Single or Double Color Module display controlller card systemLS-T1 Hot Selling LED Controller Card for P10/P16/P20 Single or Double Color Module display controlller card system













Effect



 LS-T1 Hot Selling LED Controller Card for P10/P16/P20 Single or Double Color Module display controlller card systemLS-T1 Hot Selling LED Controller Card for P10/P16/P20 Single or Double Color Module display controlller card system





Remarks







If you need some samples, please visit our Aliexpress store and buy them online.





Enjoy your shopping
