sd Card Rgb New Led Controller BX-5M1

sd Card Rgb New Led Controller BX-5M1 thumbnail-1
sd Card Rgb New Led Controller BX-5M1 photo-1
US$ 10 - 12 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
BX
Contact Supplier Request Quote Chat Now
Dongguan Asram Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM
Model Number BX
Usage Other, Outdoor, Indoor, Semi-outdoor
Tube Chip Color Other, Single color, dual color, full color
Display Function Other, Supports video, animation, text, images, information etc
Pixels Other, 5mm, 6mm, 7mm, 10mm, 16mm, 20mm etc
Screen Dimension Customized size

Technical support before sale



Any customers who want to buy our BX controllers, should confirm the controller model with our technical person in advance(u can check with us by TM ) ,if customers who bought the unsuitable models without asking our technical person,we will not afford the result .All the product pictures are for your reference if there is a little bit color different with reality,it is normal.







Applications:
Mainly for website application, support the LAN and internet. A best choice for single screen or cluster display system. Widely used in larger lintel display screen and LED cluster display system.




Features:
High cost performance, Support large screen, on-board USB Interface on-board 100M Ethernet Interface, MAC bindings Mechanism,Ethernet auto-connection.
3.5V- 6.5V wide voltage range.-40°C~80°C wide work temperature.
Support PC direct connection/cross-Ethernet connection/cross-internet connection, support firmware update online

Technical parameters:



Product model BX-5M1
Product status The latest 5th generation products,put into market on March 28,2012.
Control area Single color32K:2048*16 1024*32 672*48 512*64
Dual color16K:1024*16 512*32 336*48 256*64
Memory storage   2MByte
Screen types  All kinds of  single and double colors LED screen
Software function Screens cluster management/multi-program/multi-areas display/multi-languages
Program type Normal/Shared program
Program quantity  Support 128 programs,24 areas for each program
Area  type Image/text/animation/lunar calendar/digital clock/analogue clock
/timer/temperature/temperature & humidity
Frame mode Most advanced colorful / magic graphics frame/Area frame
Background Support text/image back ground/animation background
Time mode Analogue clock/digital clock/timing and counting-down timer (support multi-groups)
Communication mode 100M ethernet/RS232/RS485,stanard is 100M ethernet
Interface 2 nos T8 and 4 nos T12
Sensors supported Temperature /humidity
Remote control Remote control program/lock screen/brightness adjustment/power on/off /screen test
Bright regulation 16 grades brightness, manual and auto-timing adjustment/remote control
Power on/off mode Auto-timing powered on/off /remote control
Voltage 5V (3.5V~6.5VwideVoltage)
Maximum power 1.8W
Temperature -40°C~80°C
Secondary development Provide the DLL and corresponding demos
Software LedshowTW2012
User manual LEDshowTW 2012 software user manual









More types:





RJ45 network + USB interface(connector)



BX-5QS
BX-5Q2
BX-5Q1





RJ45 network + RS232 + USB interface(connector)



BX-5E1
BX-5E2
BX-5E3





USB interface(connector)



BX-5U0
BX-5U1
BX-5U2
BX-5U3
BX-5U4
BX-5U5
BX-5UT





RJ45 network + RS232 interface(connector)



BX-5M4
BX-5M3
BX-5M2
BX-5M1





RJ45 network (connector)



BX-5A4
BX-5A3
BX-5A2
BX-5A1
BX-5A0

BX-4A3
BX-4A2
BX-4A1
BX-4E
BX-4E1
BX-4M1
BX-4M2
BX-4M
BX-4U1
BX-4U2
BX-4U3
BX-4UT
BX-4U0

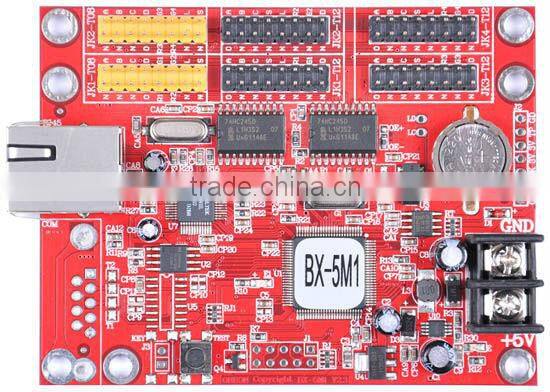

Pictures:



sd card rgb new led controller BX-5M1sd card rgb new led controller BX-5M1

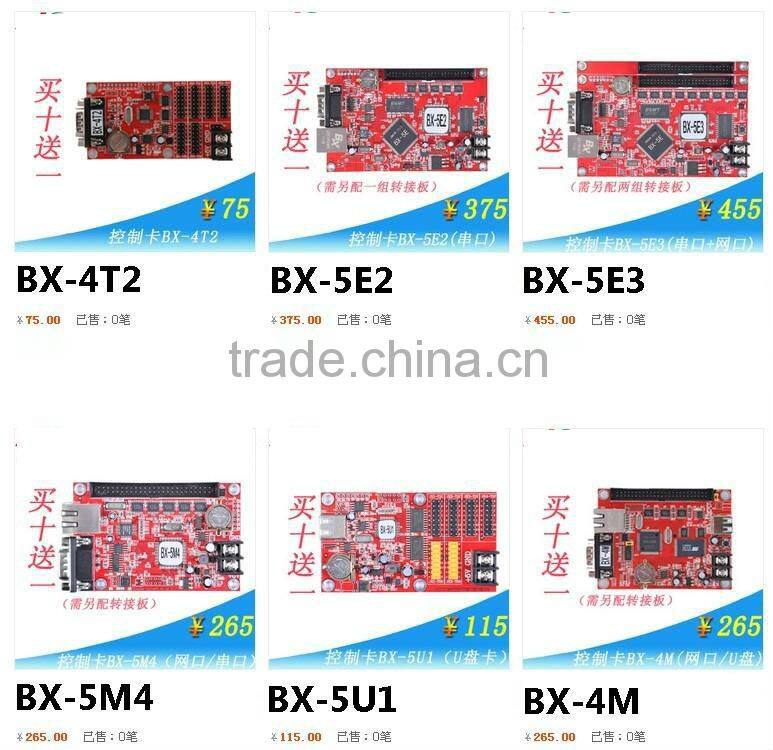

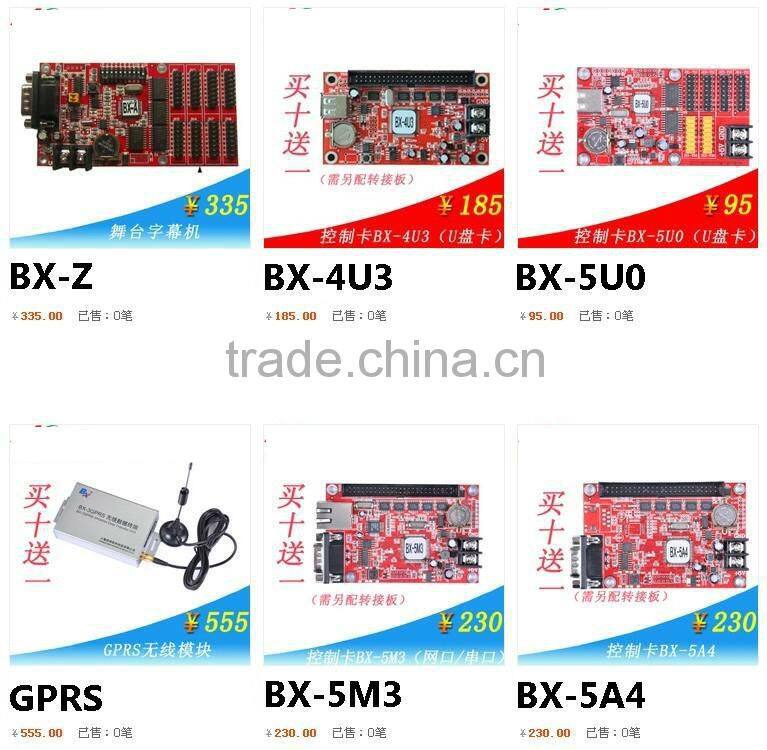

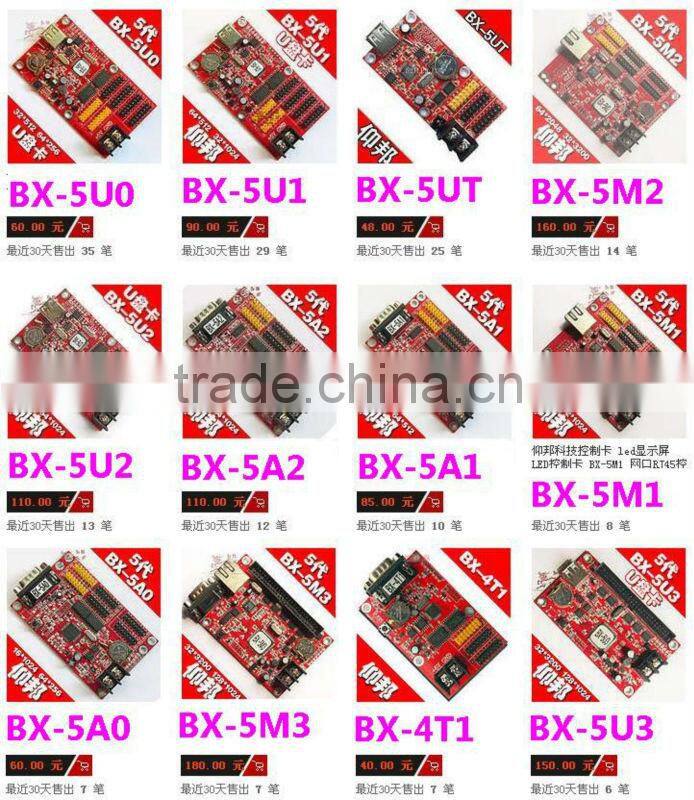

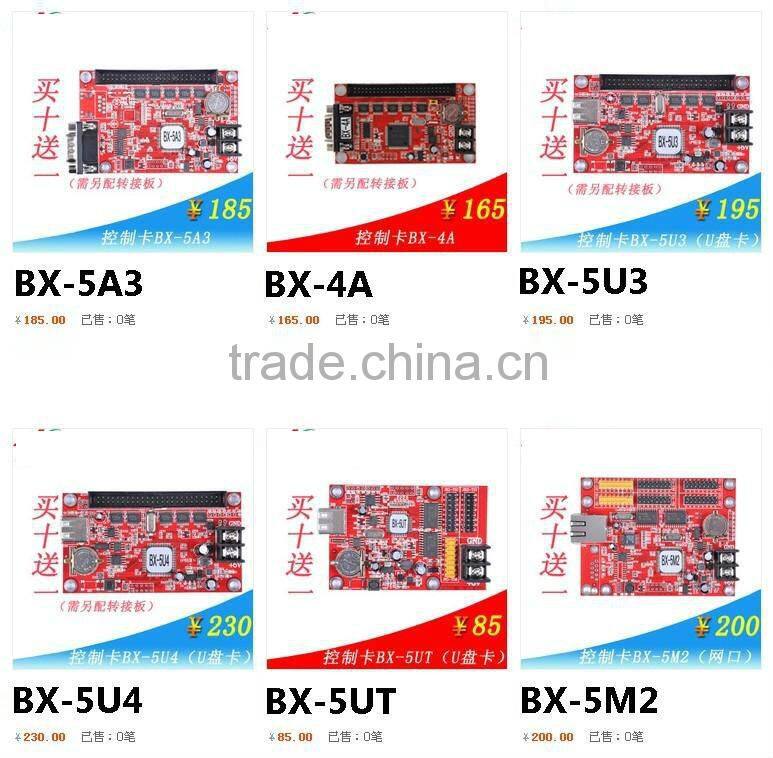

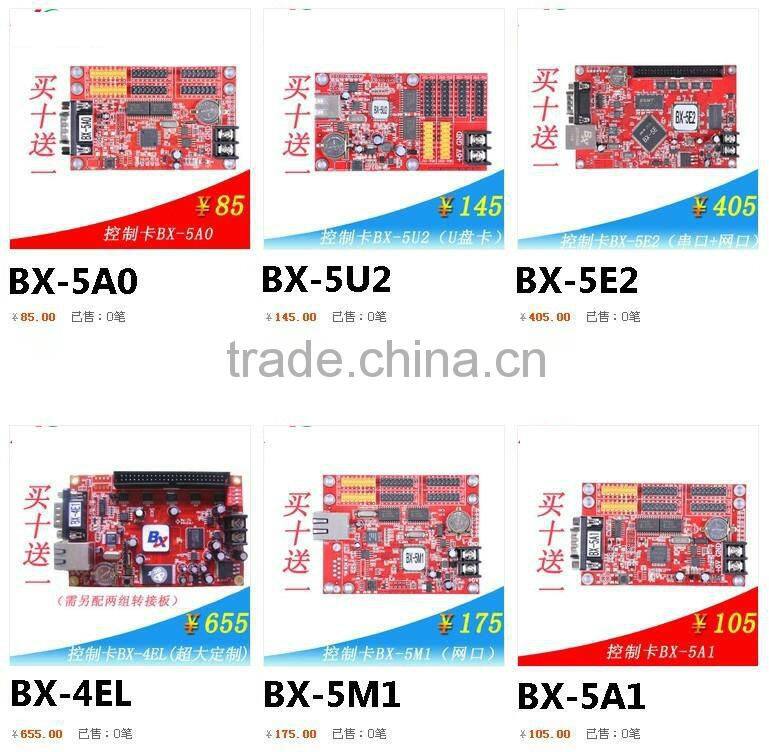

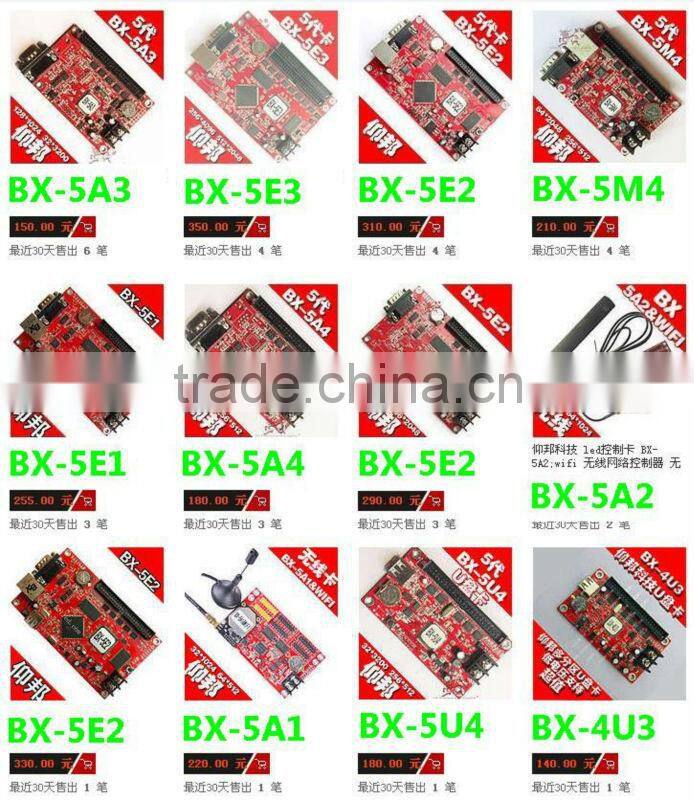

More types:



 sd card rgb new led controller BX-5M1sd card rgb new led controller BX-5M1sd card rgb new led controller BX-5M1sd card rgb new led controller BX-5M1sd card rgb new led controller BX-5M1sd card rgb new led controller BX-5M1



Effect





  sd card rgb new led controller BX-5M1 sd card rgb new led controller BX-5M1sd card rgb new led controller BX-5M1sd card rgb new led controller BX-5M1sd card rgb new led controller BX-5M1sd card rgb new led controller BX-5M1
