Home > Consumer Electronics > LED Display > Indoor LED Display > p6 Outdoor SMD Led DISPLAY

p6 Outdoor SMD Led DISPLAY

Name: p6 Outdoor SMD Led DISPLAY
Brand: ASRAM
SKU: 121349569
Availability: InStock

Negotiable MOQ: 1 Square Meter (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ASRAM

Model Number:

PH6

Contact Supplier Request Quote Chat Now

Dongguan Asram Technology Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ASRAM

Model Number PH6

Usage Outdoor

Tube Chip Color Full Color

Display Function Video

Pixels Other, 6mm

Screen Dimension Customized size

Specifications

1. High Resolution 27777dots
2. High Brightness 12000
3. ce,rohs,ul,fcc,saa
4. Five years warranty
5. Low power consumption

Specification:

Model	P6 Outdoor LED Display Screen
NO.	Items	Specifications
1	Pixel Pitch(MM)	6
2	Pixel Composition	SMD3in1
3	LED Encapsulation Type	SMD5050
4	LED Chip Sizes	12+13+13(RGB) Epistar + Silan + Nicha + Opto
5	Pixel Density(Dots/M2)	27777

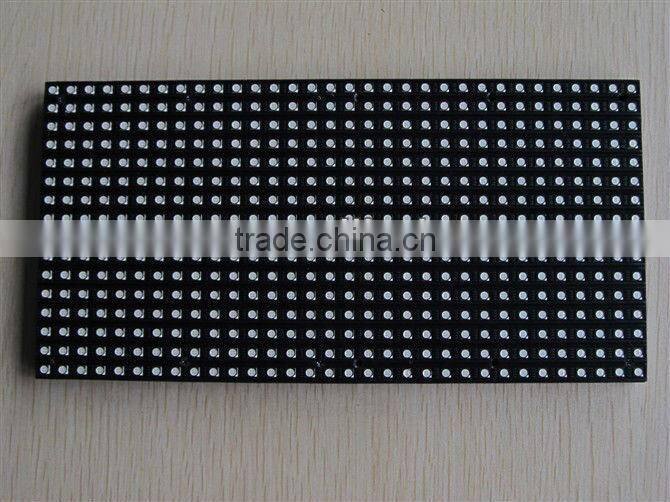

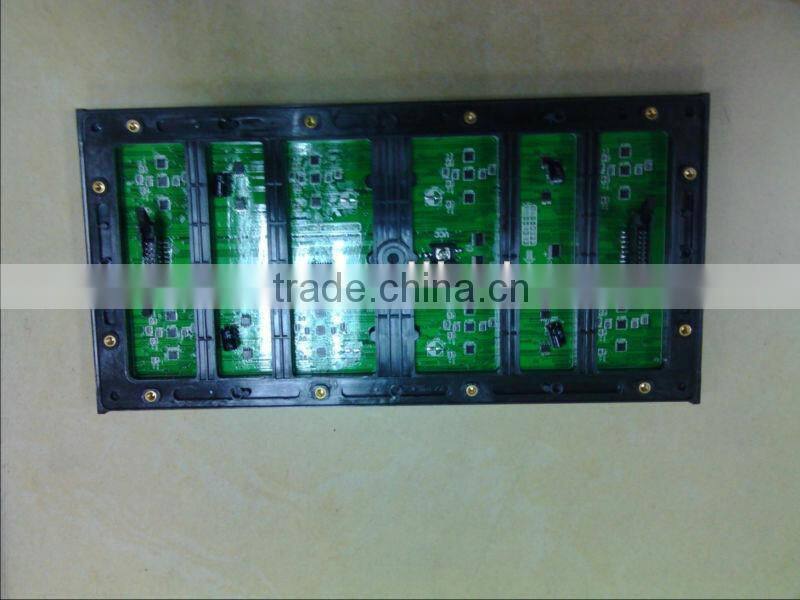

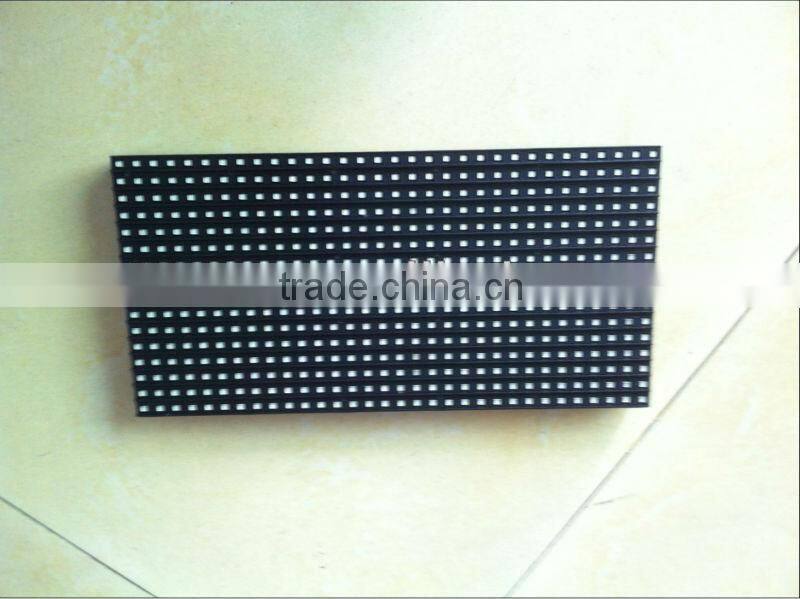

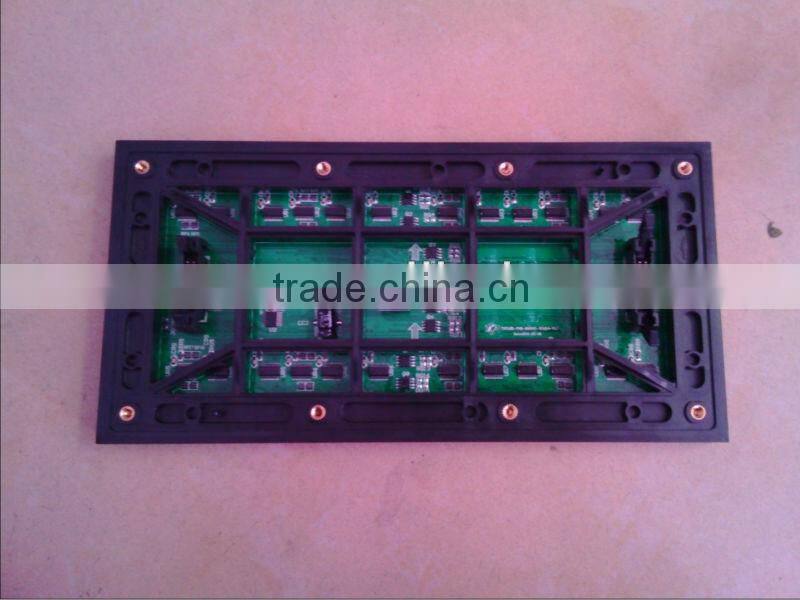

6	Module Size(MM)	192 x 96
7	Module Resolution(Dots)	32 x 16
8	Cabinet Size(MM)	960 x 960
9	Cabinet Resolution(Dots)	96 x 96
10	Maximum Brightness	10000cd/sqm
11	Before Dot to Dot Correction	8000cd/sqm
12	After Dot to Dot Correction	7000cd/sqm
13	Brightness Adjustment Range	Manually, Auto Stepless Continuous Adjustment, 14 levels Adjustment without Gray Scale Loss
14	Color Temperature Adjustable	3200K - 10000K
15	Best View Distance(M)	4m - 100m
16	Horizontal View Angle	120 deg
17	Vertical View Angle	60 deg
18	Signal Processing	16bit
19	Control Mode	Synchronization
20	Driving Mode	Static Constant Current
21	Contrast	3000:1
22	Colors	281 Trillion Billion
23	Gray scale per colors	65536 level
24	Video Frame Frequency	More than 60HZ
25	Refresh Rate	More than 3000HZ
26	Lifetime	100000 Hours
27	Maximum Power Consumption	Less than 700 w
28	Average Power Consumption	Less than 300 w
29	Cabinet Weight(without Steel Structure)	30 Kg
30	Compatible Signals(with video processor)	X Composite, X Component, RGB,SDI,HDSDI,DVI,AV, S-Video, VGA, HDMI, DP
31	Working Voltage	100-240V/AC 50/60HZ
32	Environment Temperature	–20 deg / +60 deg
33	Storage Temperature	–40 deg / +60 deg
34	IP Protection Rate	Front IP68, Rear IP65
35	Screen Surface Evenness	Less than 0.5mm
36	Working Humidity	10-99 percent
37	Storage Humidity	10-99 percent
38	Malfunction Dot Rate	Less than 0.0001
39	Display Screen Signals	RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION
41	Wind Resistance	Level 12
42	Shock Resistance	Level 8
