PH8 Full Color Outdoor Advertising Led Display/outdoor Advertising Led Screen/outdoor Advertising Led Billboard Video Screen SMD

PH8 Full Color Outdoor Advertising Led Display/outdoor Advertising Led Screen/outdoor Advertising Led Billboard Video Screen SMD thumbnail-1
PH8 Full Color Outdoor Advertising Led Display/outdoor Advertising Led Screen/outdoor Advertising Led Billboard Video Screen SMD photo-1
Negotiable MOQ: 1 Square Meter (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ASRAM
Model Number:
PH8
Contact Supplier Request Quote Chat Now
Dongguan Asram Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ASRAM
Model Number PH8
Usage Outdoor
Tube Chip Color Full Color
Display Function Video
Pixels Other, 8mm
Screen Dimension Customized size

Specifications

1. High Resolution 15625
2. High Brightness 12000nit
3. High Refresh Rage
4. Five years warranty
5. Low power consumption

Technology Parameter


Model

P8 Outdoor LED Display Screen

NO.

Items

Specifications

1

Pixel Pitch(MM)

8

2

Pixel Composition

SMD3in1

3

LED Encapsulation Type

SMD5050

4

LED Chip Sizes

12+13+13(RGB) Epistar + Silan + Nicha + Opto

5

Pixel Density(Dots/M2)

15625

6

Module Size(MM)

256 x 128

7

Module Resolution(Dots)

32 x 16

8

Cabinet Size(MM)

1024 x 1024

9

Cabinet Resolution(Dots)

128 x 128

10

Maximum Brightness

10000cd/sqm

11

Before Dot to Dot Correction

8000cd/sqm

12

After Dot to Dot Correction

7000cd/sqm

13

Brightness Adjustment Range

Manually, Auto Stepless Continuous Adjustment, 14 levels Adjustment without Gray Scale Loss

14

Color Temperature Adjustable

3200K - 10000K

15

Best View Distance(M)

6m - 100m

16

Horizontal View Angle

120 deg

17

Vertical View Angle

60 deg

18

Signal Processing

16bit

19

Control Mode

Synchronization

20

Driving Mode

Static Constant Current

21

Contrast

3000:1

22

Colors

281 Trillion Billion

23

Gray scale per colors

65536 level

24

Video Frame Frequency

More than 60HZ

25

Refresh Rate

More than 3000HZ

26

Lifetime

100000 Hours

27

Maximum Power Consumption

Less than 700 w

28

Average Power Consumption

Less than 300 w

29

Cabinet Weight(without Steel Structure)

30 Kg

30

Compatible Signals(with video processor)

X Composite, X Component, RGB,SDI,HDSDI,DVI,AV, S-Video, VGA, HDMI, DP

31

Working Voltage

100-240V/AC 50/60HZ

32

Environment Temperature

–20 deg / +60 deg

33

Storage Temperature

–40 deg / +60 deg

34

IP Protection Rate

Front IP68, Rear IP65

35

Screen Surface Evenness

Less than 0.5mm

36

Working Humidity

10-99 percent

37

Storage Humidity

10-99 percent

38

Malfunction Dot Rate

Less than 0.0001

39

Display Screen Signals

RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION

41

Wind Resistance

Level 12

42

Shock Resistance

Level 8

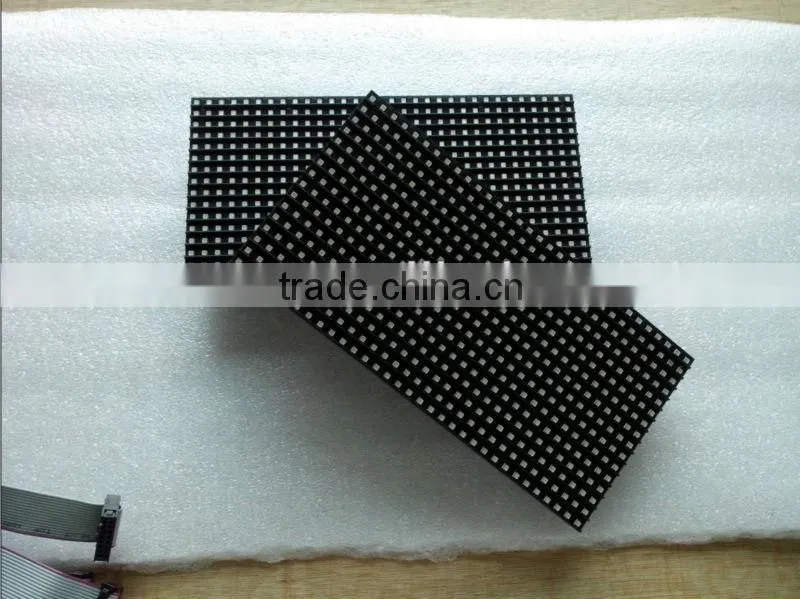

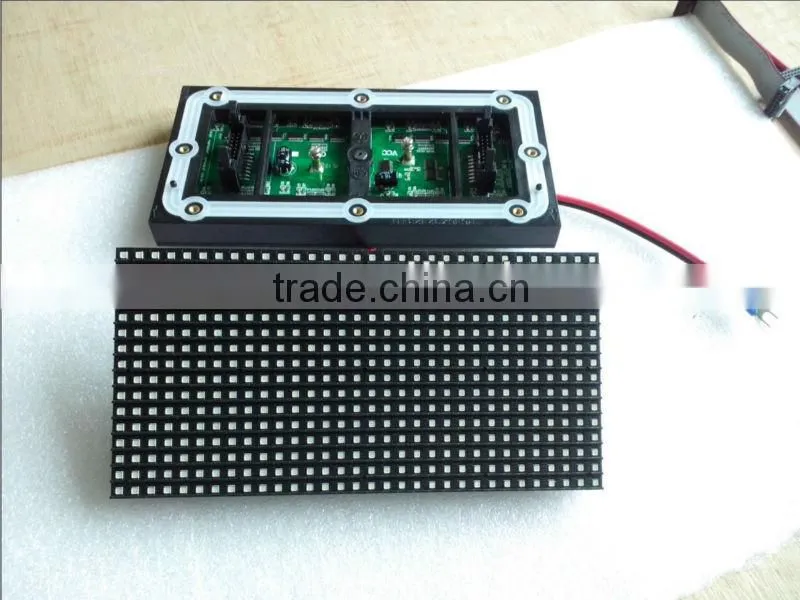

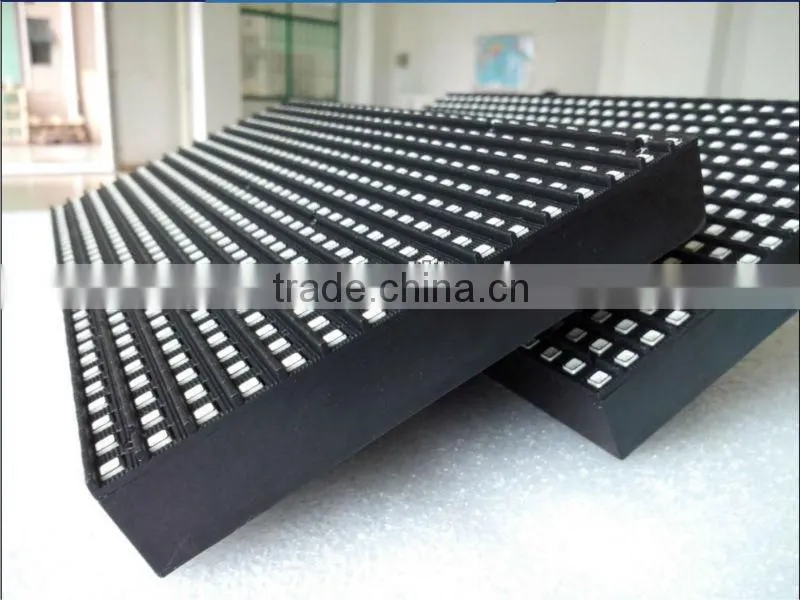

P8 outdoor SMD led module

PH8 full color outdoor advertising led display/outdoor advertising led screen/outdoor advertising led billboard video screen SMDPH8 full color outdoor advertising led display/outdoor advertising led screen/outdoor advertising led billboard video screen SMDPH8 full color outdoor advertising led display/outdoor advertising led screen/outdoor advertising led billboard video screen SMDPH8 full color outdoor advertising led display/outdoor advertising led screen/outdoor advertising led billboard video screen SMD


System connection:



PH8 full color outdoor advertising led display/outdoor advertising led screen/outdoor advertising led billboard video screen SMDPH8 full color outdoor advertising led display/outdoor advertising led screen/outdoor advertising led billboard video screen SMDPH8 full color outdoor advertising led display/outdoor advertising led screen/outdoor advertising led billboard video screen SMD

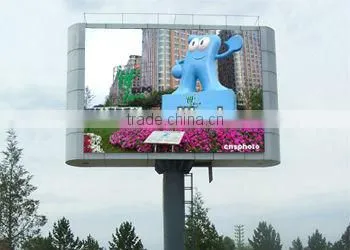

Project Name: outdoor led display project in Brazil.


Product Name: PH8MM SMD


Pixel Pitch: 10 mm


Screen Size: 76 Sq.m


Installation Address: Brazil


Installation Time: 2012





 PH8 full color outdoor advertising led display/outdoor advertising led screen/outdoor advertising led billboard video screen SMDPH8 full color outdoor advertising led display/outdoor advertising led screen/outdoor advertising led billboard video screen SMDPH8 full color outdoor advertising led display/outdoor advertising led screen/outdoor advertising led billboard video screen SMD









Project Name: outdoor led display project in Spain.


Product Name: PH8MM SMD


Pixel Pitch: 16 mm


Screen Size: 32 Sq.m


Installation Address: Spain


Installation Time: 2010





PH8 full color outdoor advertising led display/outdoor advertising led screen/outdoor advertising led billboard video screen SMDPH8 full color outdoor advertising led display/outdoor advertising led screen/outdoor advertising led billboard video screen SMD







More types

PH8 full color outdoor advertising led display/outdoor advertising led screen/outdoor advertising led billboard video screen SMDPH8 full color outdoor advertising led display/outdoor advertising led screen/outdoor advertising led billboard video screen SMD PH8 full color outdoor advertising led display/outdoor advertising led screen/outdoor advertising led billboard video screen SMD
