Roadside,street,highway,DIP P16 Pixel Advertising Led Display/panel/sign/screen/board

Roadside,street,highway,DIP P16 Pixel Advertising Led Display/panel/sign/screen/board thumbnail-1
Roadside,street,highway,DIP P16 Pixel Advertising Led Display/panel/sign/screen/board photo-1
Negotiable MOQ: 1 Square Meter (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
PH20
Contact Supplier Request Quote Chat Now
Dongguan Asram Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM
Model Number PH20
Usage Outdoor
Tube Chip Color Full Color
Display Function Video
Pixels 20mm
Screen Dimension Customized size

Specifications

1. High Resolution 10000dot
2. High Brightness 12000nit
3. ce,rohs,ul,fcc
4. Five years warranty
5. Low power consumption

Specification:

Model

P20 Outdoor LED Display Screen

NO.

Items

Specifications

1

Pixel Pitch(MM)

20

2

Pixel Composition

2R1G1B

3

LED Encapsulation Type

DIP546

4

LED Chip Sizes

12+13+13(RGB) Epistar + Silan + Nicha + Opto

5

Pixel Density(Dots/M2)

2500

6

Module Size(MM)

320 x 160

7

Module Resolution(Dots)

16 x 8

8

Cabinet Size(MM)

1280 x 960

9

Cabinet Resolution(Dots)

64 x 48

10

Maximum Brightness

12000cd/sqm

11

Before Dot to Dot Correction

8500cd/sqm

12

After Dot to Dot Correction

7000cd/sqm

13

Brightness Adjustment Range

Manually, Auto Stepless Continuous Adjustment, 14 levels Adjustment without Gray Scale Loss

14

Color Temperature Adjustable

3200K - 10000K

15

Best View Distance(M)

15m - 140m

16

Horizontal View Angle

120 deg

17

Vertical View Angle

60 deg

18

Signal Processing

16bit

19

Control Mode

Synchronization

20

Driving Mode

Static Constant Current

21

Contrast

3000:1

22

Colors

549 Trillion Billion

23

Gray scale per color

26720 level

24

Video Frame Frequency

More than 60HZ

25

Refresh Rate

More than 3000HZ

26

Lifetime

100000 Hours

27

Maximum Power Consumption

Less than 850 w

28

Average Power Consumption

Less than 350 w

29

Cabinet Weight(without Steel Structure)

30 Kg

30

Compatible Signals( with video processor)

X Composite, X Component, RGB,SDI,HDSDI,DVI,AV, S-Video, VGA, HDMI, DP

31

Working Voltage

100-240V/AC 50/60HZ

32

Environment Temperature

–20 deg / +60 deg

33

Storage Temperature

–40 deg / +60 deg

34

IP Protection Rate

Front IP68, Rear IP65

35

Screen Surface Evenness

Less than 0.5mm

36

Working Humidity

10-99 percent

37

Storage Humidity

10-99 percent

38

Malfunction Dot Rate

Less than 0.0001

39

Display Screen Signals

RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION

40

Wind Resistance

Level 12

41

Shock Resistance

Level 8





System connection:

 roadside,street,highway,DIP p16 pixel advertising led display/panel/sign/screen/boardroadside,street,highway,DIP p16 pixel advertising led display/panel/sign/screen/boardroadside,street,highway,DIP p16 pixel advertising led display/panel/sign/screen/board











Project Name: Outdoor LED display in Australia;


Product Model: PH16MM DIP;


Project Area: Australia;


Screen Size: 16sqm;



Time: 2011



roadside,street,highway,DIP p16 pixel advertising led display/panel/sign/screen/boardroadside,street,highway,DIP p16 pixel advertising led display/panel/sign/screen/boardroadside,street,highway,DIP p16 pixel advertising led display/panel/sign/screen/boardroadside,street,highway,DIP p16 pixel advertising led display/panel/sign/screen/board

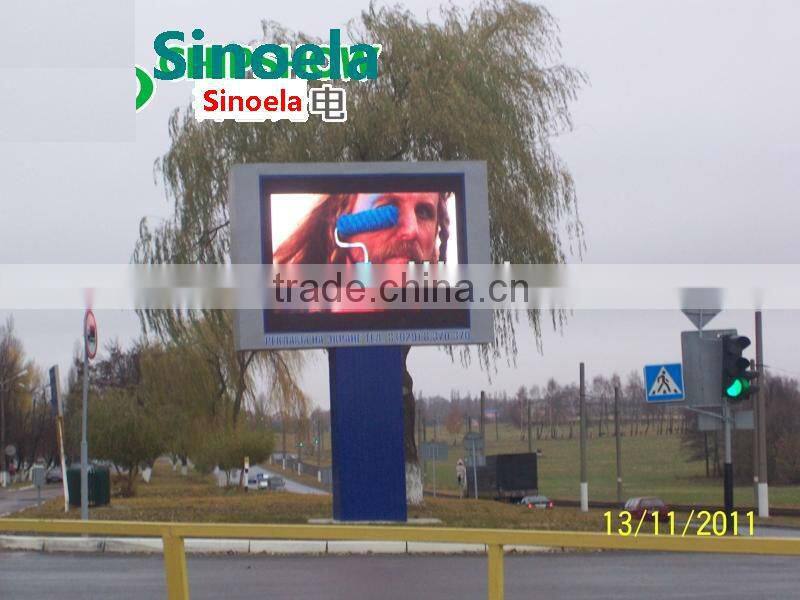

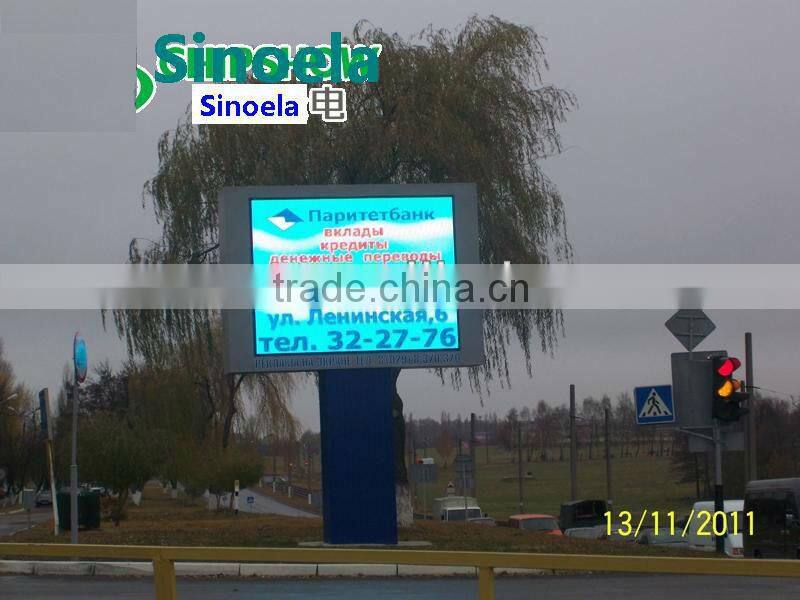

P16mm outdoor highway led display for advertising

Project Name: Russia outdoor LED Display;
Product Name: P16
Pixel Pitch: 16 mm
Screen Size: 8 Sq.m
Installation Address: Russia

Installation Time: May, 2008.



roadside,street,highway,DIP p16 pixel advertising led display/panel/sign/screen/boardroadside,street,highway,DIP p16 pixel advertising led display/panel/sign/screen/board







Packaging



roadside,street,highway,DIP p16 pixel advertising led display/panel/sign/screen/board





More types

roadside,street,highway,DIP p16 pixel advertising led display/panel/sign/screen/boardroadside,street,highway,DIP p16 pixel advertising led display/panel/sign/screen/boardroadside,street,highway,DIP p16 pixel advertising led display/panel/sign/screen/boardroadside,street,highway,DIP p16 pixel advertising led display/panel/sign/screen/boardroadside,street,highway,DIP p16 pixel advertising led display/panel/sign/screen/board
