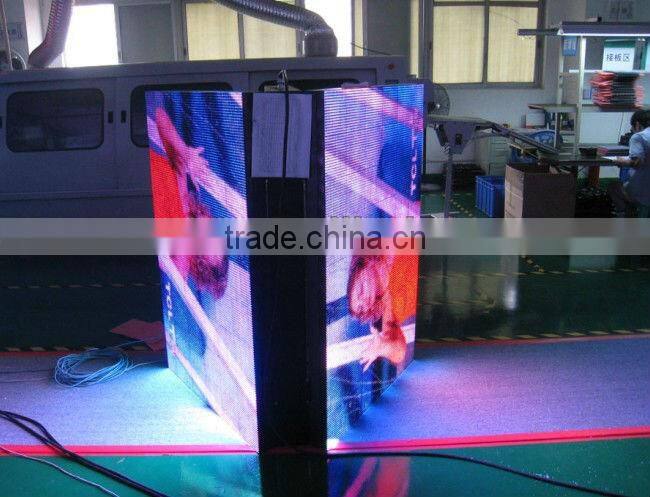

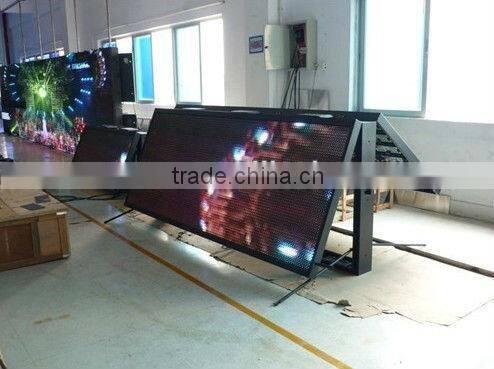

P16mm double sided outdoor led open sign
- 10000 Square Meter / Square Meters per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- 60W UL CE LED Canopy Lamp with aluminum frame Ex-factory price from Shenzhen
- 80W Energy-Saving Gas Station LED Canopy Lamp hot sale from Shenzhen
- 60W UL CE Energy Saving LED Canopy Lamp with 3 years warranty from Shenzhen
- 2014 new design, led flood light, led Gas Station Lamp, LED canopy light 100w
- Led flood light, led Gas Station Lamp, LED canopy light 100w
- 120W High power cree led canopy lamp Wholesale from Shenzhen for gas staton
Product Details
Place of Origin: | Guangdong, China | Brand Name: | OEM | Model Number: | PH16 |
Usage: | Outdoor | Tube Chip Color: | Full Color | Display Function: | Video |
Pixels: | 16mm | Screen Dimension: | Customized size |
Product Description
Specifications
1.High Resolution2.High Brightness
3.ce,rohs,ul,fcc
4.Five years warranty
5.Low power consumption
Specification:
Model | P16 Outdoor LED Display Screen | |
NO. | Items | Specifications |
1 | Pixel Pitch(MM) | 16 |
2 | Pixel Composition | 1R1G1B or 2R1G1B |
3 | LED Encapsulation Type | DIP346 |
4 | LED Chip Sizes | 12+13+13(RGB) Epistar + Silan + Nicha + Opto |
5 | Pixel Density(Dots/M2) | 3906 |
6 | Module Size(MM) | 256 x 256 (256 x 128 is optional) |
7 | Module Resolution(Dots) | 16 x 16 (16 x 8 is optional) |
8 | Cabinet Size(MM) | 1024 x 768 |
9 | Cabinet Resolution(Dots) | 64 x 48 |
10 | Maximum Brightness | 12000cd/sqm |
11 | Before Dot to Dot Correction | 9000cd/sqm |
12 | After Dot to Dot Correction | 8000cd/sqm |
13 | Brightness Adjustment Range | Manually, Auto Stepless Continuous Adjustment, 14 levels Adjustment without Gray Scale Loss |
14 | Color Temperature Adjustable | 3200K - 10000K |
15 | Best View Distance(M) | 15m - 110m |
16 | Horizontal View Angle | 120 deg |
17 | Vertical View Angle | 60 deg |
18 | Signal Processing | 16bit |
19 | Control Mode | Synchronization |
20 | Driving Mode | Static Constant Current |
21 | Contrast | 3000:1 |
22 | Colors | 281 Trillion Billion |
23 | Gray scale per colors | 65536 level |
24 | Video Frame Frequency | More than 60HZ |
25 | Refresh Rate | More than 3000HZ |
26 | Lifetime | 100000 Hours |
27 | Maximum Power Consumption | 850 w |
28 | Average Power Consumption | 380 w |
29 | Cabinet Weight(without Steel Structure) | 30 Kg |
30 | Compatible Signals(with video processor) | X Composite, X Component, RGB,SDI,HDSDI,DVI,AV, S-Video, VGA, HDMI, DP |
31 | Working Voltage | 100-240V/AC 50/60HZ |
32 | Environment Temperature | –20 deg / +60 deg |
33 | Storage Temperature | –40 deg / +60 deg |
34 | IP Protection Rate | Front IP68, Rear IP65 |
35 | Screen Surface Evenness | Less than 0.5mm |
36 | Working Humidity | 10-99 percent |
37 | Storage Humidity | 10-99 percent |
38 | Malfunction Dot Rate | Less than 0.0001 |
39 | Display Screen Signals | RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION |
40 | Wind Resistance | Level 12 |
41 | Shock Resistance | Level 8 |
P10mm outdoor led display screen for advertising
Project Name: Singapore outdoor LED Display;
Product Name: P10
Pixel Pitch: 10 mm
Screen Size: 12 Sq.m
Installation Address: Singapore
Installation Time: May, 2008.
