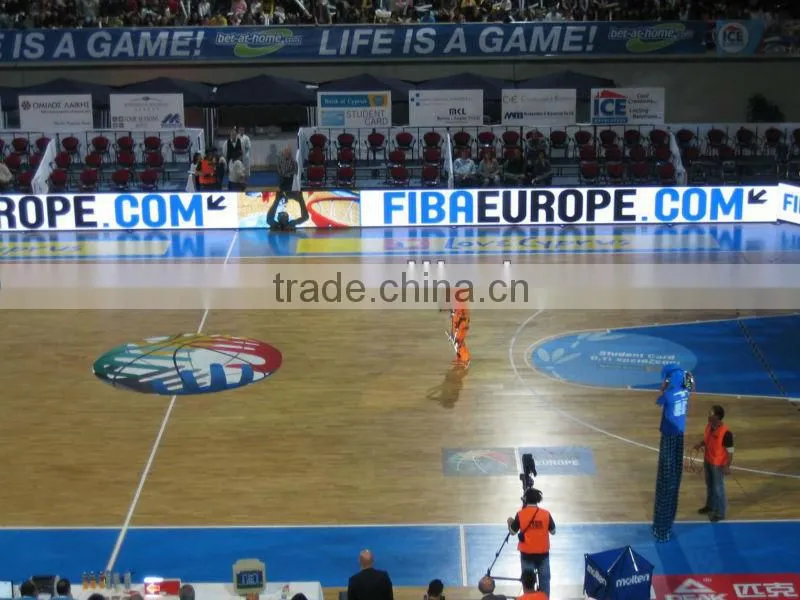

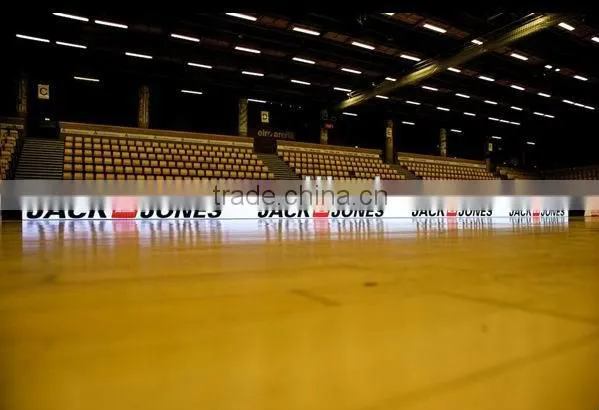

World Cup Giant Volleyball Football Basketball Soccer Stadium Led Display

Negotiable MOQ: 1 Square Meter (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

PH10

Contact Supplier Request Quote Chat Now

Dongguan Asram Technology Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name OEM

Model Number PH10

Usage Outdoor

Tube Chip Color Full Color

Display Function Video

Pixels 10mm

Screen Dimension Customized size

Specifications

1. High Resolution 10000
2. High Brightness 12000nit
3. CE, ROHS, UL, FCC
4. Five years warranty
5. Low power consumption

Model	P6 Indoor LED Display Screen
NO.	Items	Specifications
1	Pixel Pitch(MM)	6
2	Pixel Composition	SMD3in1
3	LED Encapsulation Type	SMD3528
4	LED Chip Sizes	12+13+13(RGB) Epistar + Silan + Nicha + Opto
5	Pixel Density(Dots/M2)	27777
6	Module Size(MM)	192 x 96
7	Module Resolution(Dots)	32 x 16
8	Cabinet Size(MM)	576 x 576
9	Cabinet Resolution(Dots)	96 x 96
10	Maximum Brightness	More than 3000cd/sqm
11	Before Dot to Dot Correction	More than 2000cd/sqm
12	After Dot to Dot Correction	More than 1700cd/sqm
13	Brightness Adjustment Range	Manually, Auto Stepless Continuous Adjustment, 14 levels Adjustment without Gray Scale Loss
14	Color Temperature Adjustable	3200K - 10000K
15	Best View Distance(M)	6m - 42m
16	Horizontal View Angle	12 deg
17	Vertical View Angle	60 deg
18	Signal Processing	16bit
19	Control Mode	Synchronization
20	Driving Mode	1/8 Scan
21	Contrast	1000:1
22	Colors	549 Trillion Billion
23	Gray scale per colors	26720 level
24	Video Frame Frequency	More than 60HZ
25	Refresh Rate	More than 1200HZ
26	Lifetime	100000 Hours
27	Maximum Power Consumption	Less than 900 w
28	Average Power Consumption	Less than 450 w
29	Cabinet Weight(without Steel Structure)	25 Kg
30	Compatible Signals(with video processor)	X Composite, X Component, RGB,SDI,HDSDI,DVI,AV, S-Video, VGA, HDMI, DP
31	Working Voltage	100-240V/AC 50/60HZ
32	Environment Temperature	–20 deg / +60 deg
33	Storage Temperature	–40 deg / +60 deg
34	IP Protection Rate	Indoor Use
35	Screen Surface Evenness	Less than 0.5mm
36	Working Humidity	10-99 percent
37	Storage Humidity	10-99 percent
38	Malfunction Dot Rate	Less than 0.0001
39	Display Screen Signals	RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION
40	Wind Resistance	Level 12
41	Shock Resistance	Level 8

System connection:

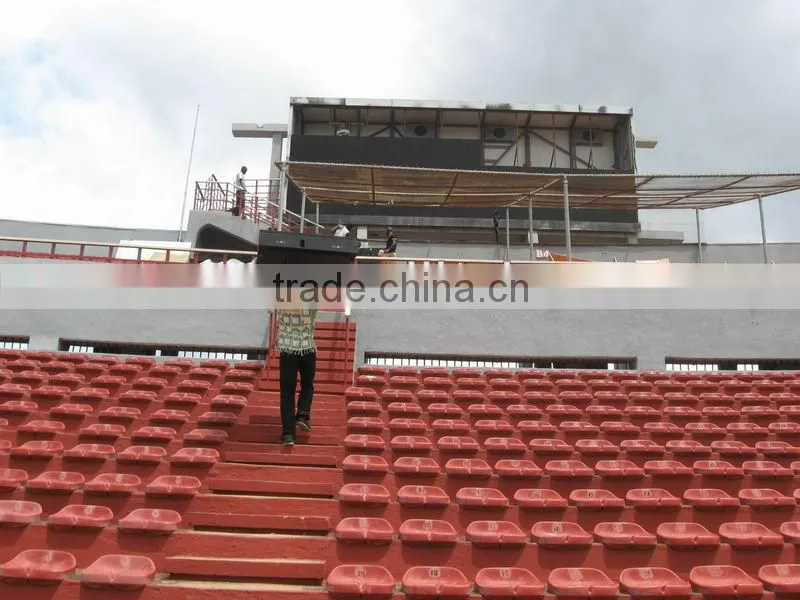

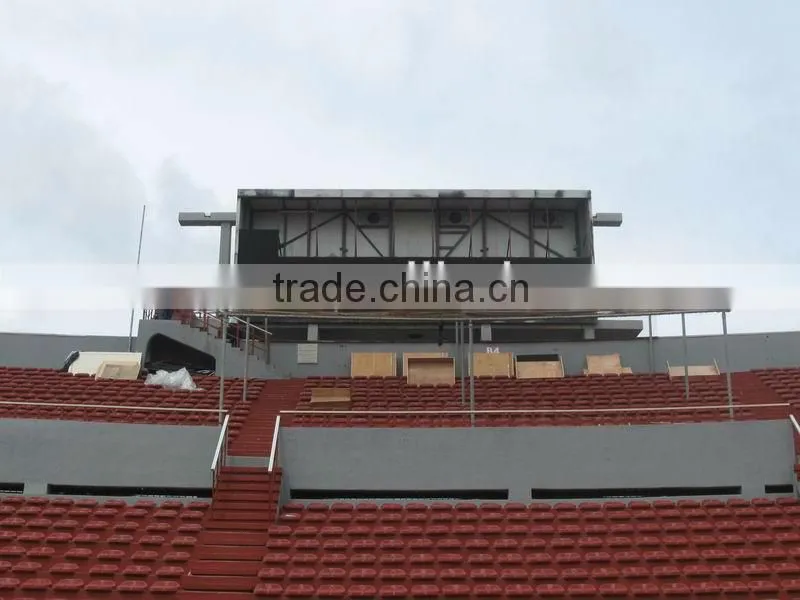

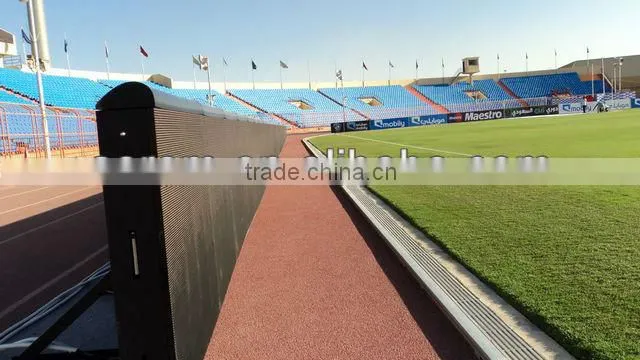

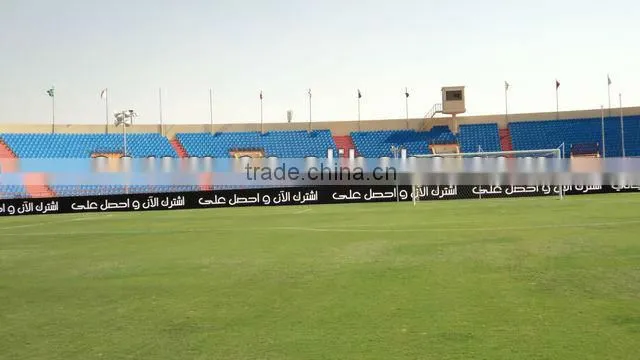

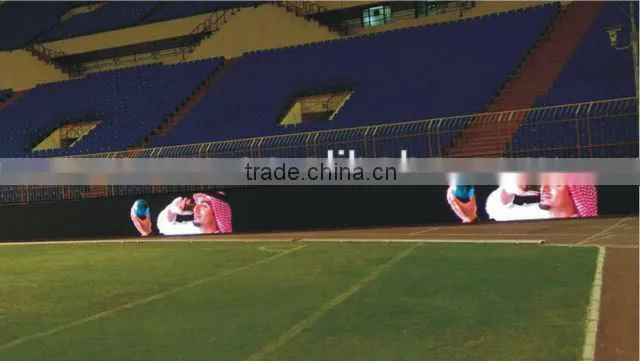

Project Name: led display project in Saudi Arabia.
Application Environment: Outdoor led advertising display, Football stadium led screen
Product Name: PH20MM SMD
Pixel Pitch: 20 mm
Screen Size: 280 Sq.m
Installation Address: Saudi Arabia
Installation Time: 2011

Project Name: Mexico outdoor LED Display;
Product Name: P16
Pixel Pitch: 16 mm
Screen Size: 460 Sq.m
Installation Address: Mexico

Installation Time: May, 2008

Project Name: led display project in Nigeria.
Application Environment: Outdoor led advertising display, Football field led screen
Product Name: PH16MM DIP
Pixel Pitch: 16 mm
Screen Size: 32 Sq.m
Installation Address: Nigeria
Installation Time: 2010
