Home > Consumer Electronics > LED Display > Indoor LED Display > Curved P20mm Outdoor Video Full Color Rental 360 Degree Led Display for Advertisement

Curved P20mm Outdoor Video Full Color Rental 360 Degree Led Display for Advertisement

Negotiable MOQ: 1 Square Meter (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

PH10

Contact Supplier Request Quote Chat Now

Dongguan Asram Technology Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name OEM

Model Number PH10

Usage Indoor

Tube Chip Color Full Color

Display Function Video

Pixels 10mm

Screen Dimension Customized size

Specifications

1. High Resolution 10000dot
2. High Brightness 12000nit
3. High Refresh Rete
4. Five years warranty
5. Low power consumption

Specification:

Product name: 360 Degree Curved LED display

Item:P10 mm

Details:

Product Description:

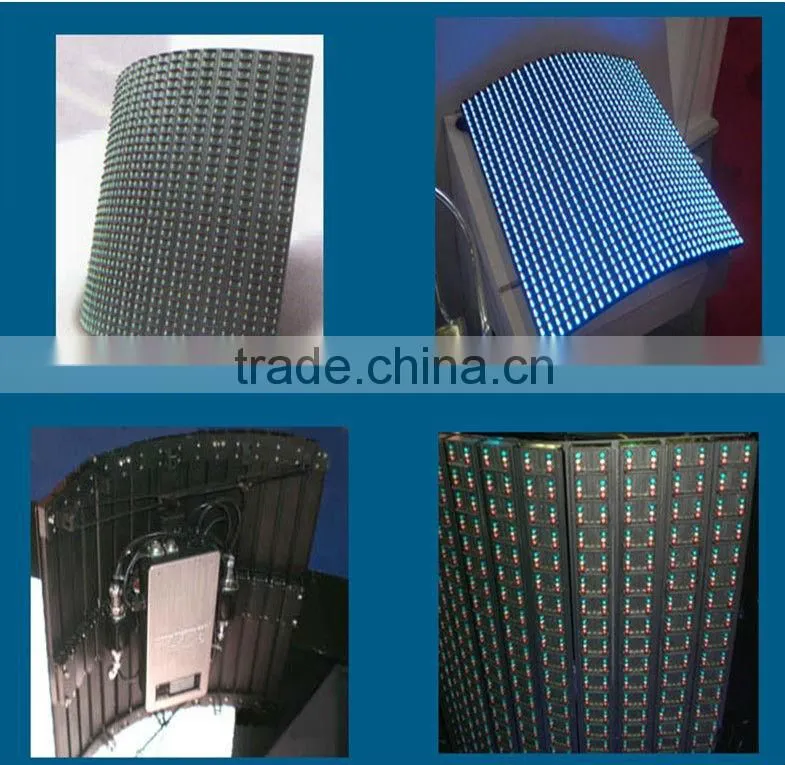

1. Function and Technology Character

Creative design ,nice appearance;

Curvature can be customized to meet different installation environment;
wide viewing angle,can reach more audiences

Outdoor and indoor solution are avaliable.

2. Spec Parameters

Display and control feature		Structure feature
Specification	Parameter	Specification	Parameter
Pixel Pitch	10 mm	Module size	160 mm*160 mm
Pixel composing	1R1G1B	Display resolution/module	16 dots*16 dots
Wavelength (R)	625±5	Standard cabinet size	1280 mm*960 mm
Wavelength (G)	522±3	Weight per sqm	65 Kg/sqm
Wavelength (B)	567±3	Protection classification	IP65
Wave Angle (H)	140°(H)/ 60°	Install mode	Wallmount, hung and stand structure
LED package	DIP 346	Cabinet Material	Iron/Aluminum
Density per sqm	10,000 pixel	Working power
Display color	256256256	Specification	Parameter
Whiteness brightness	≥5500	Working voltage	AC 220v/380v±10% 47~64Hz
Brightness level	128 grade	Max power/sqm	750W/sqm
Changing frame frequency	60 Hz	Average power/sqm	400W/sqm
Refresh	400 Hz	Short circuit protection	Yes
Driving method	1/4 Constant Driving	Led Lamp type	Nichia/Cotco/Cree/Axt/Silan/Taiwan
Control mode	synchronous	Working environment
Display port	DVI	Specification	Parameter
Display mode	1024768 /10241024	Environment	Outdoor
Out of control	1/10,000 ( scattered)	Working temperature	--20~50°C
lifetime	100,000 hours	Working Humidity	10~90%

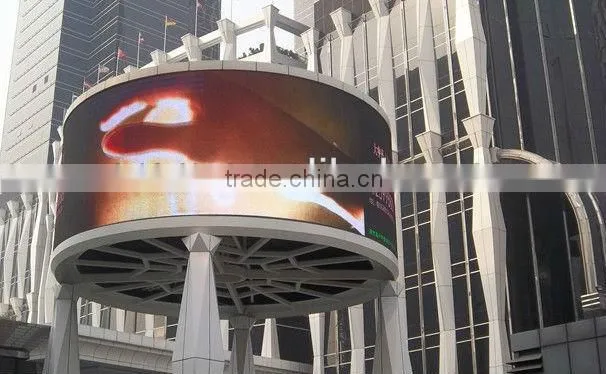

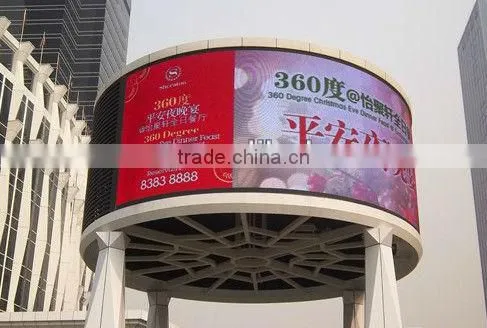

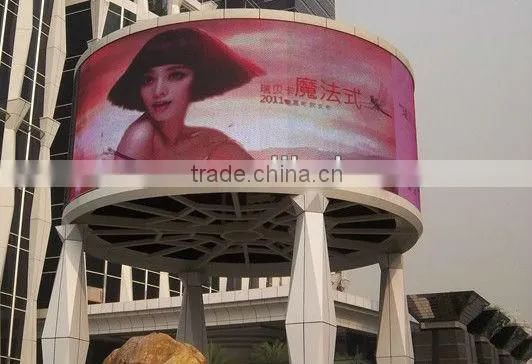

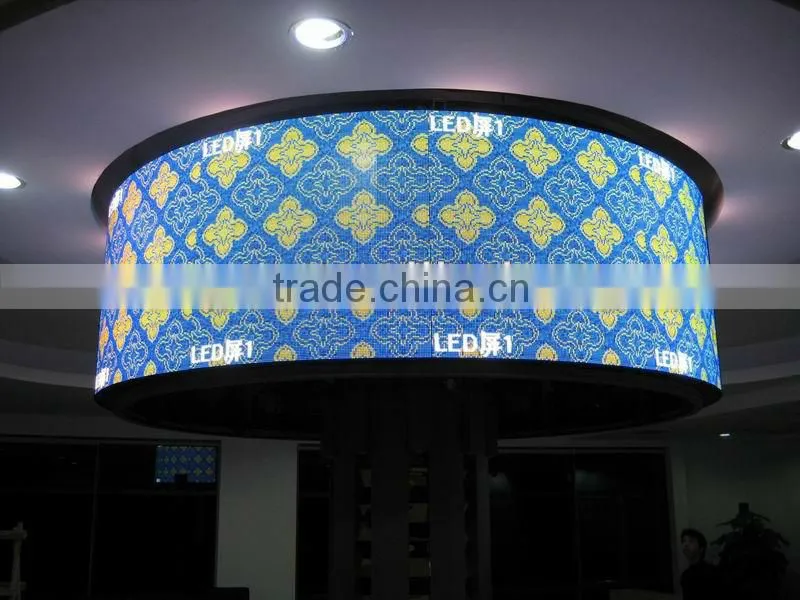

Project Name: Outdoor 360 degree LED display in Beijing;
Product Model: PH10MM SMD;
Project Area: Beijing;
Screen Size: 58 sqm;
Applicable environment: Indoor Outdoor video Commercial Advertising LED Display;
Time: 2009

Project Name: Indoor Rental led display project in USA.
Application Environment: Indoor led advertising display, Indoor stage led screen
Product Name: PH6MM SMD
Pixel Pitch: 6 mm
Screen Size: 18 Sq.m
Installation Address: USA
Installation Time: 2012
