p6 Full Color Indoor Led Stage for Concert Display

p6 Full Color Indoor Led Stage for Concert Display thumbnail-1
p6 Full Color Indoor Led Stage for Concert Display photo-1
Negotiable MOQ: 1 Square Meter (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
PH7.62
Contact Supplier Request Quote Chat Now
Dongguan Asram Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM
Model Number PH7.62
Usage Indoor
Tube Chip Color Full Color
Display Function Video
Pixels Other, 7.62MM
Screen Dimension Customized size

Specifications

1. High Resolution 4000dot
2. High Refresh Rate
3. ce,rohs,ul,fcc, iso
4. Five years warranty
5. Low power consumption

Products function introduction:
1) High intensity and can be adjusted, so can meet the request of the customers according the application environment;
2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light;
3) To pictures and character, have clear, exquisite and real display effect;
4) Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion;
5) Can repair each led lamps, so the cost of maintain is lower, and easy to repair.


Products Advantages:
1) Price Advantage: we have the best competitive price at the market; also have the same even better quality;
2) Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each led lamps;
3) Quality advantage: From material to finished product, from design to produce, we control all steps that are the guarantee of the quality and reliability;
4) Service advantage: Better service at same situation, better cooperation at same service.



1

Cabinet size

976mmW*976mmH*140mmT

2

Cabinet Resolution

128pixels *128 pixels

3

Cabinet Weight

About30KG

4

Pixel density(dots/M2)

17222dots/ m2

5

White Balance Brightness

≥1600 (cd/m2)

6

Brightness Adjusted

256 grade automatically, 8 grade manually

7

Color temperature(K)

5000—9500

8

View Angle

Horizontal:140°; Vertical:140°

9

Best viewing distance(m)

7—150

10

Communication distance

120 meters by LAN cable(without relay)(optical fiber transmission 500M-10000M)

11

Drive Method

1/8 scran or 1/4 scan

12

Gray Grades

4096levels for each color

13

Display Color

68.7billion

14

Refresh Frequency (Hz)

≥4000-5000

15

Control Mode

Synchronous with PC

16

Signal interface

DVI

17

Input signal

S-Video,Component,VGA,DVI,
HDMI,HD_SDI

18

Display format

1024 * 768, 1280*1024, 1600*1200, 1920*1280,

19

Software

Support windows series system

20

Waterproof

Yes

21

Protection

IP43

22

Working temperature(ºC)

(-20°C~+60°C )

23

Humidity(RH)

10%—90%RH

24

LED Lifetime(hours)

≥100,000

25

Whole Display Flatness

Less than 1mm Juncture

26

Power Consumption

Average:≤450w/m2;Maximum: ≤1300

27

Operating Voltage

AC100V±220V 50~60HZ

28

Operating Platform

WINDOWS(WIN98,WIN2000, WIN XP)



System connection:

 p6 full color indoor led stage for concert display

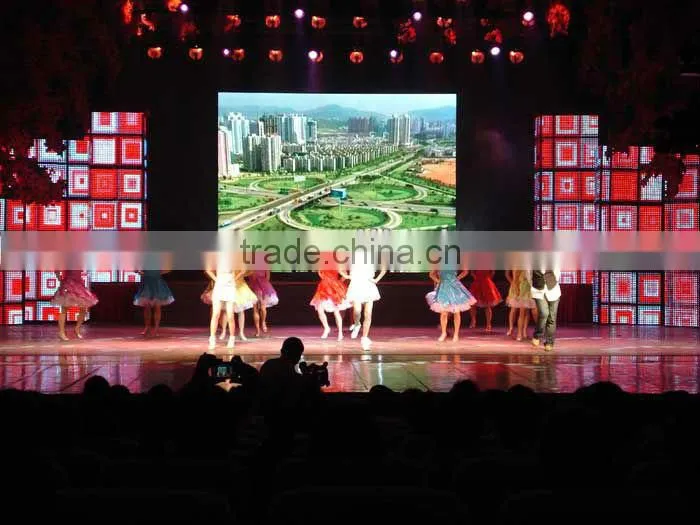

Project Name: Concert Background LED display in Thailand;


Product Model: PH4MM SMD;


Project Area: Thailand;


Screen Size: 16 sqm;


Applicable environment: Indoor Concert Stage Background Commercial Advertising LED Display; Indoor Meeting Room LED Display


Time: 2009





 p6 full color indoor led stage for concert display





p6 full color indoor led stage for concert display





p6 full color indoor led stage for concert display





p6 full color indoor led stage for concert display

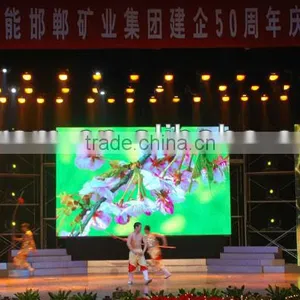

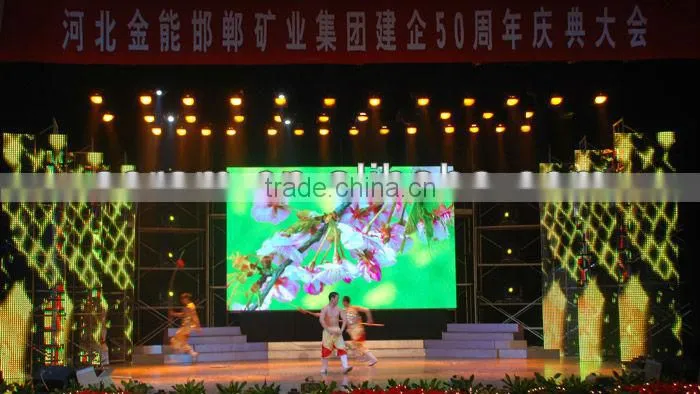

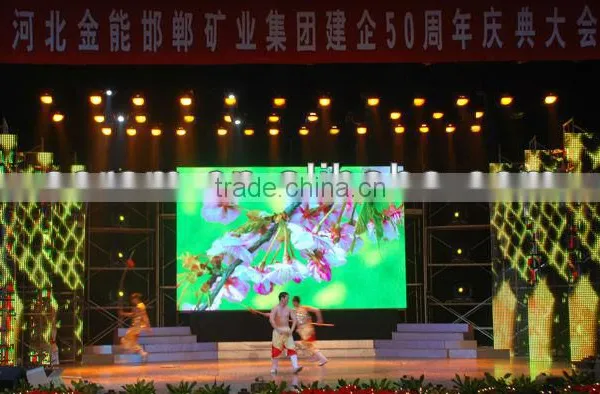

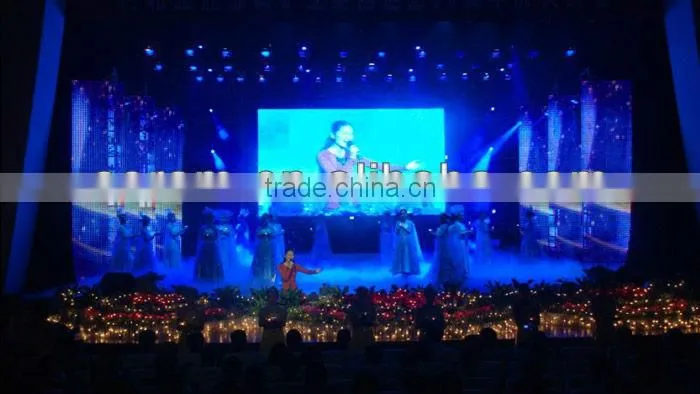

Project Name: Concert Background LED display in China;


Product Model: PH7.62MM SMD;


Project Area: China;


Screen Size: 72 sqm;


Applicable environment: Indoor Concert Stage Background Advertising LED Display; Indoor LED Display;


Time: 2009





p6 full color indoor led stage for concert display





p6 full color indoor led stage for concert display





p6 full color indoor led stage for concert display





p6 full color indoor led stage for concert display





Packaging



p6 full color indoor led stage for concert display
