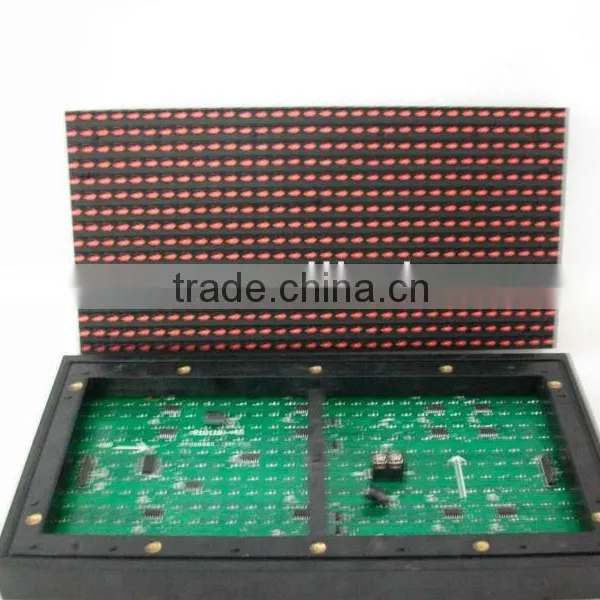

Brazil---Good price Outdoor waterproof p10 P12 P16 P20 red led display module p10 32x16 pix

Specifications

1. Hight Brightness 12000nit
2. Resolution 32 x 16 pixels
3. Outdoor waterproof IP68
4. Input voltage 5V
5. CE ROHS UL ISO







Technical parameter
Unit board	Pixel pitch	10mm
	Module size	320mm*160mm
	Resolution of module	32*16dots
	Density of pixel	10000dots/m2
	Pixel configuration	LED546 1R(Red, Amber, Yellow, Green, White, Pink)
Main Technical parameter	Red wavelength	625±2nm
	Green wavelength	525±2nm
	Blue wavelength	470±2nm
	Colors	16777216
	Best viewing distance	10-300m
	Horizontal/Vertical Viewing angle	120 degree/60 degree
	Gray scale	16bits per color
	Color temperature	6500k
	Brightness	More than 4000cd/sqm
	IP grade	Front :IP67 back: IP65
	Frame frequency	60HZ
	Refresh frequency	≥2000HZ
	Control method	Synchronization/Asynchronization
	Drive method	1/4 Scan
	Temperature	Storage:-40°C-+85°C
		Working:-40°C-+65°C
	Operating ambient humidity	10%—95%RH
	Earth leakage current	< 2mA
	Defects rate.	≤0.00001(Led display line standard<0.0001)
	Flatness	Tolerance of interpixel ≤0.3mm
		Tolerance of modules clearance ≤0.6mm
	MTBF	More than 10,000 hours
	Life span	More than 100,000hours
Power	Operating voltage	AC110V/220V±10%
	Maximum/Average power consumption	1100/600w/m2
	Current	≤20mA(single LED)
	Power switch	Automatic switch
Control system	CPU	Pentium4 or above
	Signal Input	Composite ,S-video,Component,VGA,DVI,HDMI,SDI,HD_SDI,etc
	Controlling system	main controller card+optical fiber transmission
	Control method	Asynchronization
	Systems operating platforms	WinXP,Win2000,Vista, Win7 etc.
Softer ware	LED media player









Optional:



Single color



DIP

P7.62mm  488mm x 244mm 64x32 pixels

P10mm     320mm x 160mm 32x16 pixels

P12mm     400mm x 200mm 32x16 pixels

P16mm     256mm x 128mm 16x8 pixels

P20mm     320mm x 160mm 16x8 pixels



Dot Matrix

P4mm       256mm x 128mm 64x32 pixels

P4.75mm   304mm x 152mm 64x32 pixels

P7.62mm   488mm x 244mm 64x32 pixels







Dual color



DIP

P7.62mm   488mm x 244mm 64x32 pixels

P10mm      320mm x 160mm 32x16 pixels

P12mm      192mm x 192mm 16x16 pixels

P16mm      256mm x 128mm 16x8 pixels

P20mm      320mm x 160mm 16x8 pixels



Dot Matrix

P4mm       256mm x 128mm 64x32 pixels

P4.75mm   304mm x 152mm 64x32 pixels

P7.62mm   488mm x 244mm 64x32 pixels







Tri-color



DIP

P10mm  160mm x 160mm 16x16 pixels

P12mm  192mm x 192mm 16x16 pixels

P16mm  256mm x 256mm 16x16 pixels



Dot Matrix

P4mm        256mm x 128mm 64x32 pixels

P4.75mm   304mm x 152mm 64x32 pixels

P7.62mm   488mm x 244mm 64x32 pixels







Full color



SMD

P1.8mm   230mm x 115mm  128x94 pixels

P2mm      240mm x 120mm 120x60 pixels

P3mm      192mm x 96mm   64x32 pixels

P4mm      256mm x 128mm   64x32 pixels

P5mm      160mm x 160mm   32x32 pixels

P6mm      192mm x 192mm   32x32 pixels

P7.62mm  244mm x 122mm 32x16 pixels

P10mm     320mm x 160mm 32x16 pixels



DIP

P10mm 160mm x 160mm 16x16 pixels

P10mm 320mm x 160mm 32x16 pixels

P10mm 320mm x 320mm 32x16 pixels

P12mm 192mm x 192mm 16x16 pixels

P16mm 256mm x 256mm 16x16 pixels

P16mm 256mm x 128mm 16x8 pixels

P20mm 320mm x 160mm 16x8 pixels

P25mm 200mm x 200mm 8x8 pixels

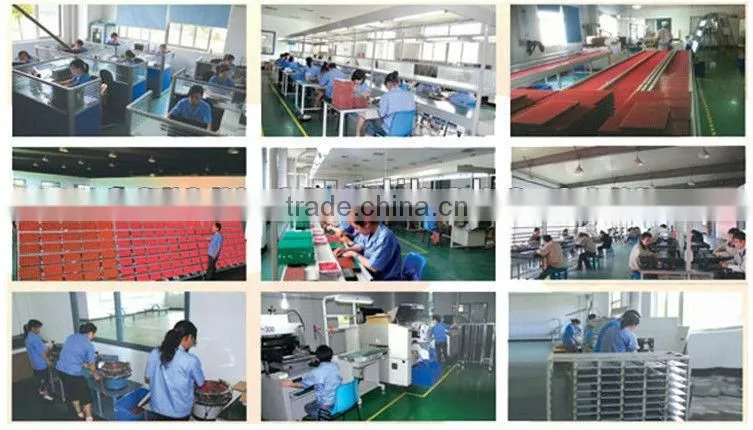

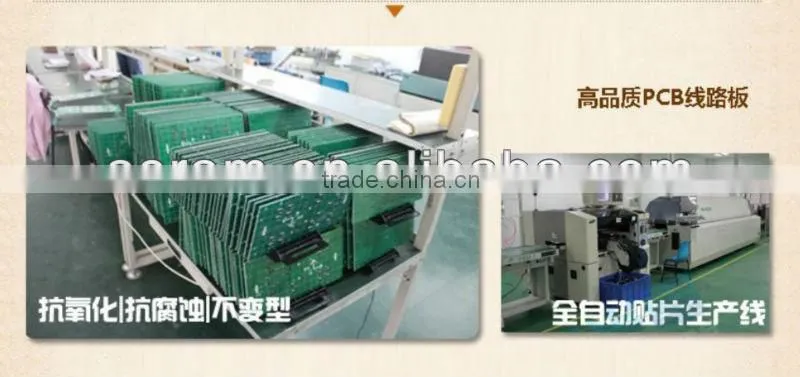

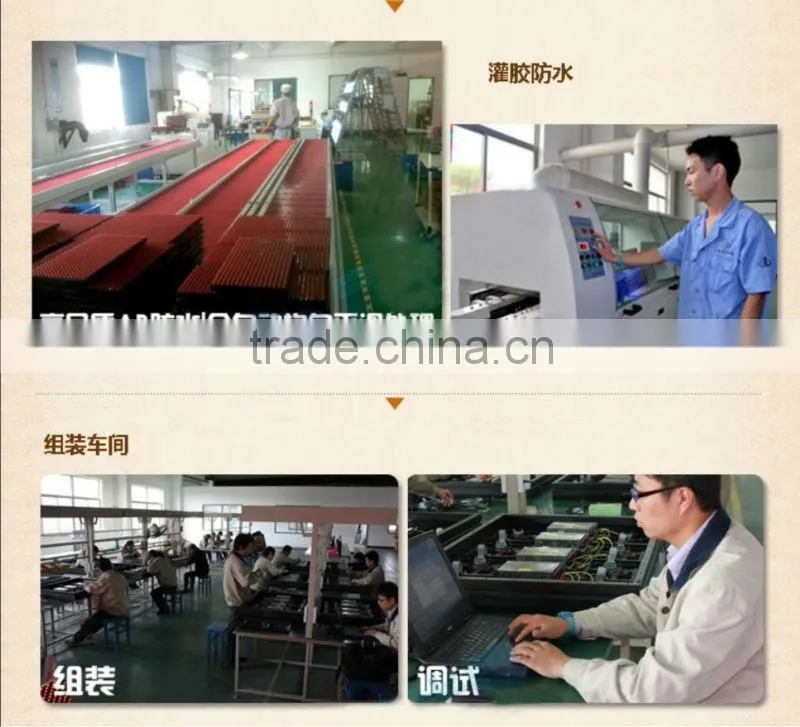

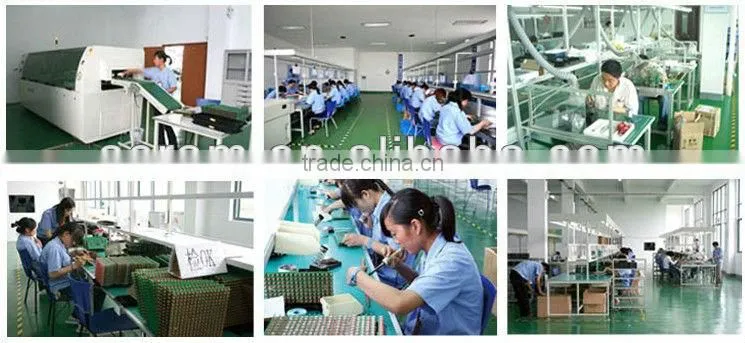

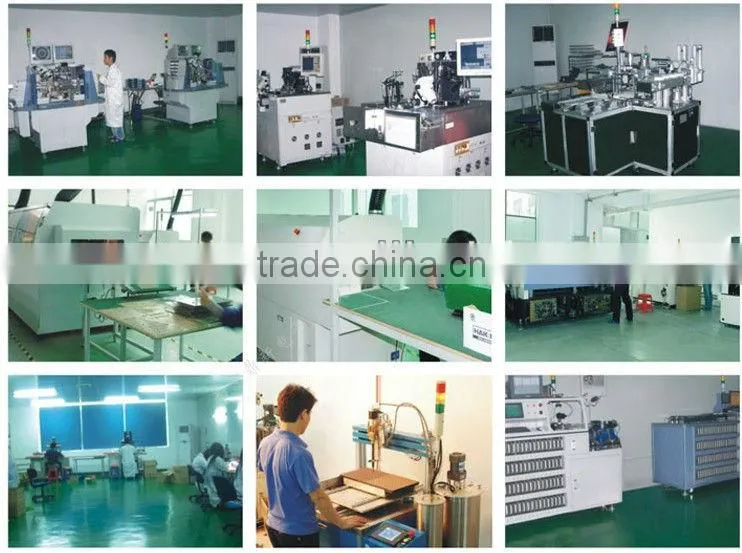

Factory workshop















P.S.







If you want some samples, please go into our Aliexpress store and buy them online.





Thank you
