Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Cutting Machine > Shearing Bending Machine,shearing Machine Press Brake
US$ 7,400 - 11,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
Hellen
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Shear Machine Hand,electric Hand Shearing Machine PriceUS$ 7,400 - 11,000MOQ: 1 Set -
CNC Hydraulic Automatic Plate Shearing Machine,steel Cutting MachineUS$ 7,400 - 11,000MOQ: 1 Set
-
Automatic Aluminium Sheet Cutting Machine,angle Iron Shearing MachineUS$ 7,400 - 11,000MOQ: 1 Set
-
CNC Hydraulic Metal Plate Guillotine Cutting Machine, Aluminium Sheet Guillotine Shearing MachineUS$ 8,500 - 15,000MOQ: 1 Set
-
NC Hydraulic Shear Machine,QC11Y Hydraulic Shear Metal Plate MachineUS$ 8,500 - 15,000MOQ: 1 Set
Condition
New
Place of Origin
Anhui, China
Brand Name
Hellen
Model Number
QC12Y-8x2500
Voltage
380V
Rated Power
7.5KW
Dimension(L*W*H)
3840x1650x1750mm
Weight
6,600KG
Certification
CE
Warranty
2 years
After-sales Service Provided
Engineers available to service machinery overseas
Product Description

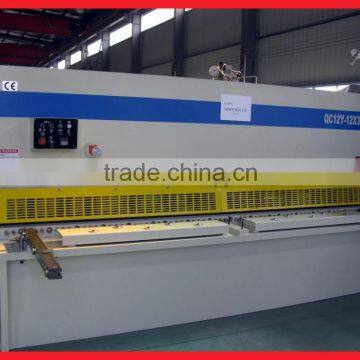

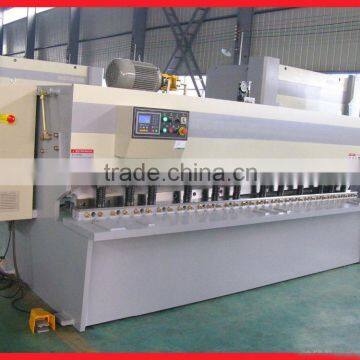

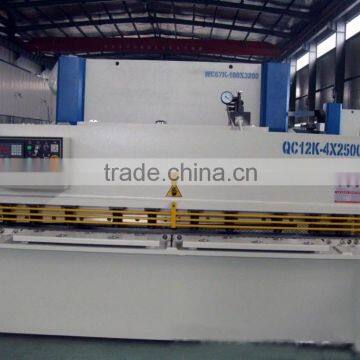

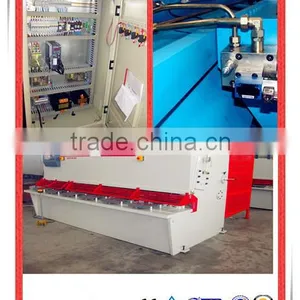

CNC shearing machine function and characteristics:
- All steel welded structure, vibrating treatment of ageing for removal of internal stress, with good rigidity and stability.
- Integrated hydraulic transmission system, with good reliability.
- Triple support rolling guide rail to eliminate gaps of support and enhance shearing quality.
- Mechanical back gauge with manual fine tuning, and digital indication(or for other choice CNC system, CNC system and the location of encoder closed-loop control system, high speed, high accuracy, good stability, can ensure precisely that back gauge after the precision of size displacement, and the numerical control system has the function of automatic detection precision compensation and the additional functions).
- Clearance in between shearing blades adjusted by hand wheel or automatic to be quick, accurate and convenient. Rectangular blades with four cutting edges to prolong working life, adjustable shearing angle to reduce deformation of the sheet.
- Upper blade holder has inward structure to facilitate material feed in and also enhance accuracy of the work piece.
- Function of shearing in sections, function of aligning with light.
- Optional: rear material holding device (or for other choice)
Components and parts :
Hydraulic system: Omega(USA);
Pump: Gear pump;
Electrics: Germany Te/Omron;
O-rings: Japanese NOK;
Ball screw: TAIWAN HIWIN;
Line guide rail: TAIWAN HIWIN;
Foot Switch: Karcon (South Korea)
NC Controller: Elgo P9521 (Germany)
standard equipments:
Segmented upper blade 1set (two sides can be use)
Lower blade 1set (four sides can be use)
Front supporting arms 3
Emergency stop button;
Back, and front safty fence;
Shadow line lighting
Safety foot switch
Foundation bolts 1set
Manuals and diagram 1book
| Model | Shear size | Shear Angle | Strodes | Backgauge Range | Main Motor | Weight | Overall Dimensions |
| L×W×H | |||||||
| QC12Y-4×2000 | 4×2000 | 1 ° 30’ | ≥21 | 20-600 | 7.5 | 4,650 | 2540×1610×1650 |
| QC12Y-4×2500 | 4×2500 | 1 ° 30’ | ≥18 | 20-600 | 7.5 | 5,500 | 3140×1610×1650 |
| QC12Y-4×3200 | 4×3200 | 1 ° 30’ | ≥14 | 20-600 | 7.5 | 6,600 | 3840×1610×1650 |
| QC12Y-4×4000 | 4×4000 | 1 ° 30’ | ≥10 | 20-600 | 7.5 | 7,550 | 4680×1705×1700 |
| QC12Y-4×5000 | 4×5000 | 1 ° 30’ | ≥10 | 20-600 | 7.5 | 16,000 | 5786×2200×2160 |
| QC12Y-6×2000 | 6×2000 | 1 ° 30’ | ≥22 | 20-600 | 7.5 | 5,100 | 2540×1960×1650 |
| QC12Y-6×2500 | 6×2500 | 1 ° 30’ | ≥18 | 20-600 | 7.5 | 5,500 | 3140×1610×1650 |
| QC12Y-6×3200 | 6×3200 | 1 ° 30’ | ≥14 | 20-600 | 7.5 | 6,600 | 3840×1610×1650 |
| QC12Y-6×4000 | 6×4000 | 1 ° 30’ | ≥10 | 20-600 | 11 | 8,500 | 4640×1705×1700 |
| QC12Y-6×5000 | 6×5000 | 1 ° 30’ | ≥10 | 20-750 | 11 | 19,700 | 5786×2200×2160 |
| QC12Y-6×6000 | 6×6000 | 1 ° 30’ | ≥7 | 20-800 | 15 | 25,000 | 6900×2570×2280 |
| QC12Y-8×2500 | 8×2500 | 1 ° 30’ | ≥14 | 20-600 | 11 | 5,500 | 3140×1610×1650 |
| QC12Y-8×3200 | 4×2000 | 1 ° 30’ | ≥12 | 20-600 | 11 | 6,600 | 3840×1610×1650 |
| QC12Y-8×4000 | 8×4000 | 1 ° 30’ | ≥8 | 20-600 | 11 | 8,500 | 4680×1705×1700 |
| QC12Y-8×5000 | 8×5000 | 1 ° 30’ | ≥7 | 20-750 | 15 | 21,000 | 5786×2252×2310 |
| QC12Y-8×6000 | 8×6000 | 1 ° 30’ | ≥5 | 20-750 | 15 | 28,000 | 6900×2570×2280 |
| QC12Y-10×2500 | 10×2500 | 2 ° | ≥10 | 20-600 | 15 | 7,500 | 3350×1750×1950 |
| QC12Y-10×3200 | 10×3200 | 1 ° 48’ | ≥10 | 20-600 | 15 | 9,500 | 3975×1750×1950 |
| QC12Y-10×4000 | 10×4000 | 2 ° | ≥12 | 20-800 | 18.5 | 15,000 | 4800×2280×2100 |
| QC12Y-12×2500 | 12×2500 | 2 ° | ≥11 | 20-600 | 15 | 7,500 | 3350×1750×1950 |
| QC12Y-12×3200 | 12×3200 | 1 ° 30’ | ≥10 | 20-800 | 18.5 | 12,500 | 4020×2050×2230 |
| QC12Y-12×4000 | 12×4000 | 2 ° | ≥7 | 20-800 | 18.5 | 18,000 | 4820×2300×2300 |
| QC12Y-16×2500 | 16×2500 | 2 ° | ≥8 | 20-800 | 18.5 | 15,000 | 3400×2060×2350 |
| QC12Y-16×3200 | 16×3200 | 2 ° | ≥7 | 20-800 | 18.5 | 16,300 | 4062×2300×2350 |
| QC12Y-16×4000 | 16×4000 | 2 ° | ≥5.7 | 25-800 | 30 | 20,000 | 4850×2300×2300 |
| QC12Y-20×2500 | 20×2500 | 2 ° 30’ | ≥6 | 20-800 | 37 | 14,000 | 3440×2088×2570 |
| QC12Y-20×3200 | 20×3200 | 2 ° 30’ | ≥5 | 35-800 | 37 | 20,000 | 4150×2310×2730 |
| QC12Y-20×4000 | 20×4000 | 2 ° 30’ | ≥5 | 30-1000 | 37 | 25,000 | 4920×2400×2770 |
| QC12Y-20×5000 | 20×5000 | 2 ° 30’ | ≥4 | 20-800 | 37 | 30,000 | 5900×3000×3300 |
| QC12Y-25×2500 | 25×2500 | 3 ° | ≥5 | 40-800 | 37 | 16,500 | 3450×2300×2730 |
| QC12Y-25×3200 | 25×3200 | 3 ° | ≥4 | 40-1000 | 37 | 26,000 | 4100×2400×2770 |
Packaging & Shipping
1 PVC film covered hydraulic shearing machine
2.Whole machine fixed in the container with steel rope,very safe
3.Wooden case or pallet or iron box
4.If have stock,can provide right now
5.If no stock,small machine delivery time 7-15days.Big machine delivery time 25-40days.
6.Can give destination port best price or cost to the customer factory.
Our Services
1.All machines have been tested by 48 hours before ship out.
2.All products have 2 year warranty.
3.Supported 24 hours online service. If any problems happen, our team will do our best to solve the problems.
4.If any component is damaged during guarantee time. we can send the component to the customer by DHL freely.
Company Information
1.Name:Maanshan Hellen CNC Machine Tool Co.,LTD
Phone:+86-18755529493 Fax:+86-05556727629
Skype:cnchellen
Web: http://hlmt.en.china.cn/
2.Brand:HELLEN
3.Manufacture: Hydraulic press, Press brake,Shearing machine,Punching and Stamping machine,Moulds and Mixer accessories .
