Ultrasonic Equipment for Geogrid Welding Machine

Ultrasonic Equipment for Geogrid Welding Machine photo-1
Ultrasonic Equipment for Geogrid Welding Machine photo-2
Ultrasonic Equipment for Geogrid Welding Machine photo-3
Ultrasonic Equipment for Geogrid Welding Machine photo-4
Ultrasonic Equipment for Geogrid Welding Machine photo-5
US$ 75,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
YONGXING
Model Number:
YX-6000
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name YONGXING
Model Number YX-6000
Voltage AC380V
Power 40KW
Frequency N 50-60HZ
Welding Area 2000~3000
Dimensions 7.0*8.0*2.2
Weight 5.7T
Usage The production line is used to automatically knit and weld two kinds o
After-sales Service Provided Engineers available to service machinery overseas

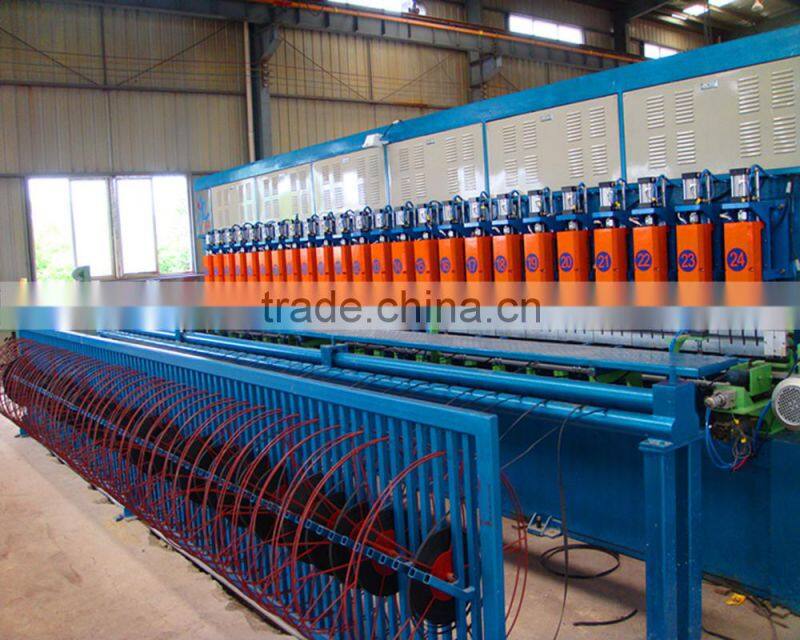

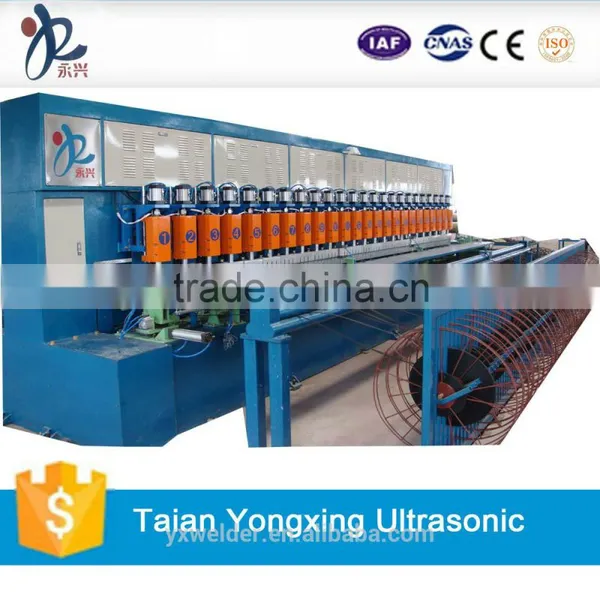

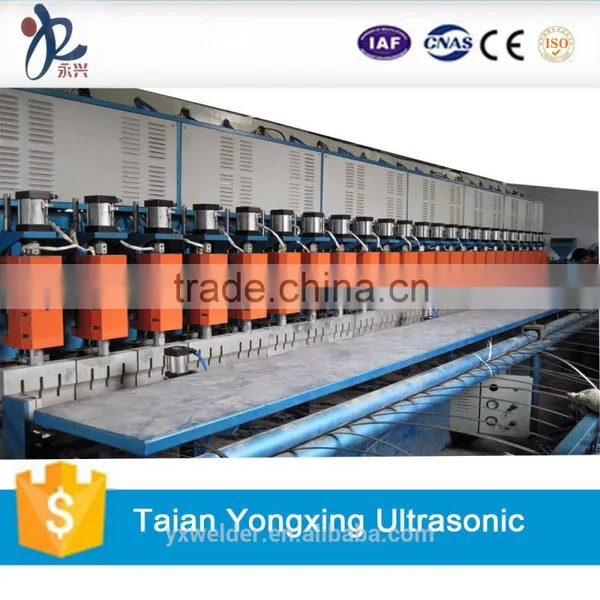

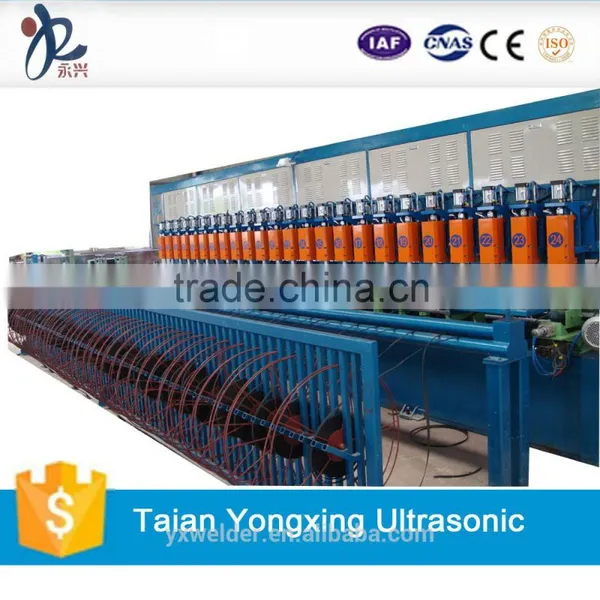

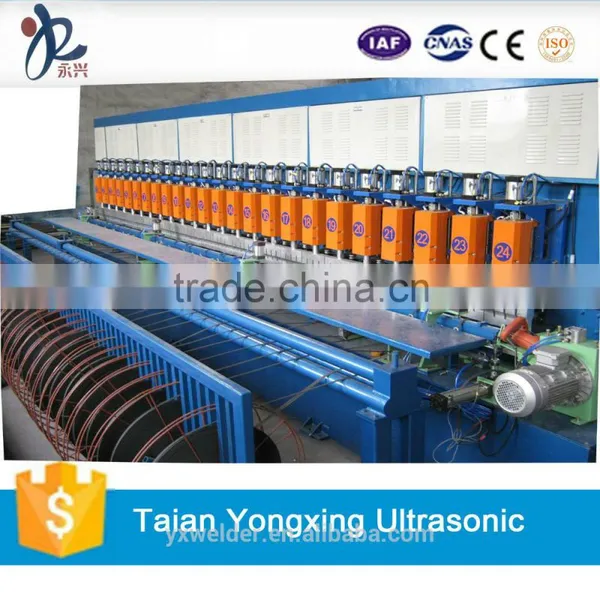

Ultrasonic equipment for geogrid welding machineUltrasonic equipment for geogrid welding machine Equipment Introduction:
    The production line is used to automatically knit and weld two kinds of strips.The supporting material of coal-mine roof which is used when exploiting mines;The steel-plastic complex net is used to reinforce the road basement and embankment.
    Equipment Features:
    1.PLC control system.
    2.The transducer is the Germany piezoelectric ceramics ,the mold is made of aluminium alloy from USA
    3.The pneumatic adopts the Airtac Material.
    4.Use the supersonic design and welding depth establishment .
    5.The intension between 20KN-200KN;
    6.The mining geogrid size:40X40mm,50X50mm, 65X65mm

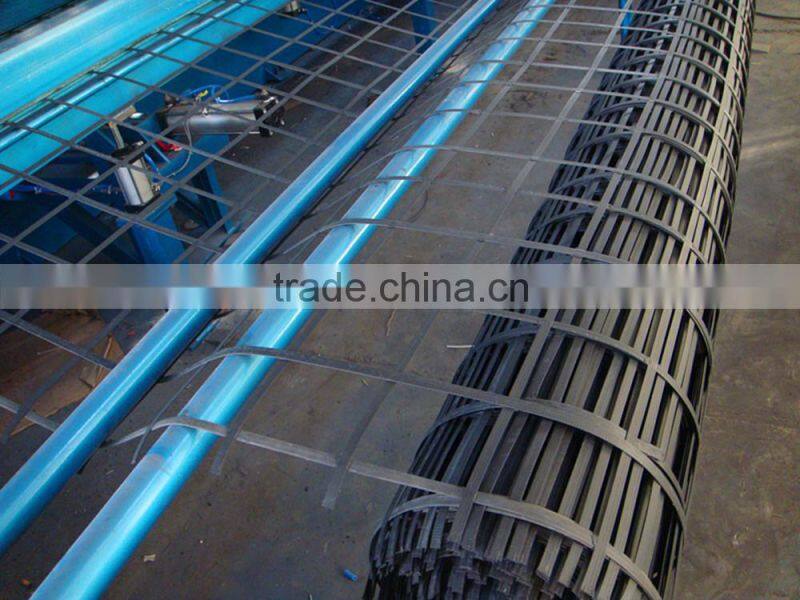

    Knitting Steel-plastic Geogrid:

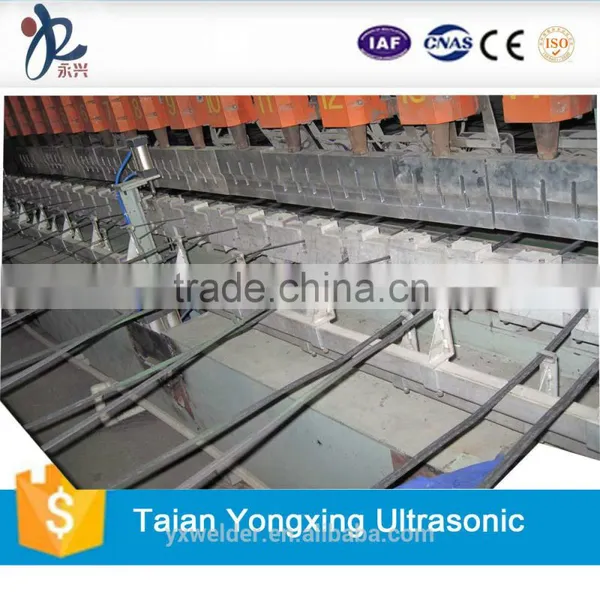

    1. the vertical and horizontal strips are welded by high-frequency ultrasonic welding at the intersections ,the environment temperature could vary between -20 to 40
    2. the number of the steel wire of one single strip is more than 9 or designed as the customer’ requests.
    3. the intension of one single strip ≥4000N,the insulation resistance of the surfaces of one single strip ≥1000MΩ.
    Equipment Parameters:



Item

Specification

Item

Specification

No.of welding heads

24

The whole machine welding width

6m

Max power(KW)

40

Volume of air pressure

0.2~0.3m³

Size of the equipment(L*W*H)(m)

7.0*8.0*2.2

Transverse weld spacing

40mm, 50mm, 65mm

Rated input voltage

AC380V 50-60HZ

The longitudinal weld spacing

40mm, 50mm, 65mm

Rated input pressure

0.6~0.8MPa

Daily output

2000~3000
