CE Certificate Geogrid Ultrasonic Welding Equipment
- 2 Set / Sets per Month
- Qingdao Port
- T/T
- Huitai hot selling OEM auto hot plate sheet board plastic pallet welding machine
- Auto Plastic Pallet sheet plate board Hot Plate Welding Machine for pallet
- automatic PP board edge sealing machine, coroplast sheet layer pads welding machine
- Huitai plastic capillary tube welding machine plastic welders pvc plastic hot plate welding machine bonding
- PP Membrane Hot Filter Plate Chamber Filter Press Plate and Frame Filter Plate welding machine
- Plastic PP Membrane Hot Chamber Filter Press vertical Frame Filter Plate welding machine plate-and-frame belt
Product Details
Place of Origin: | Shandong, China | Brand Name: | YONGXING | Model Number: | YXGR-6000 |
Voltage: | AV380V | Power: | 62.4KW | Frequency: | 50-60Hz |
Welding Area: | 60mm--250mm*4m,5m,6m | Dimensions: | 7.0m*8.0m*2.2m | Weight: | 5.7T |
Usage: | geogrid welding for road, railway and slope, etc. | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Equipment Introduction:

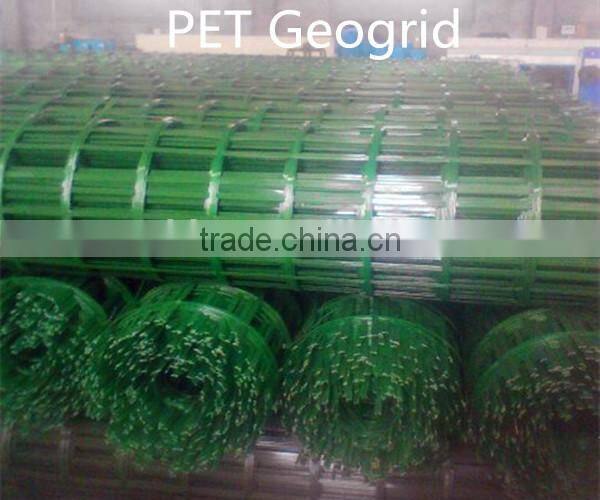

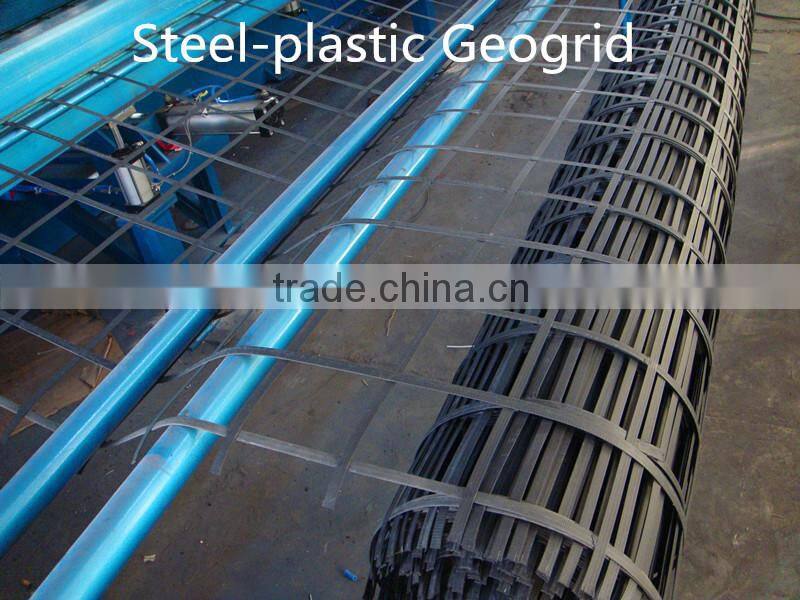

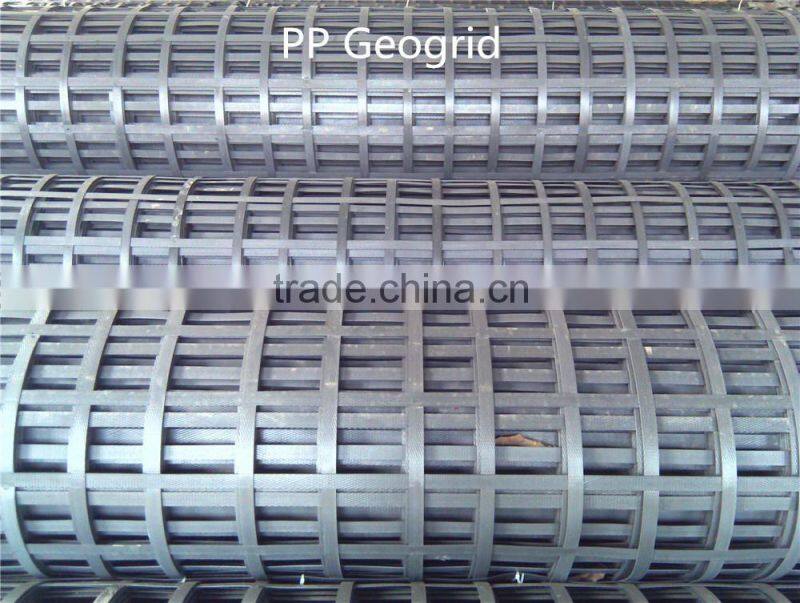

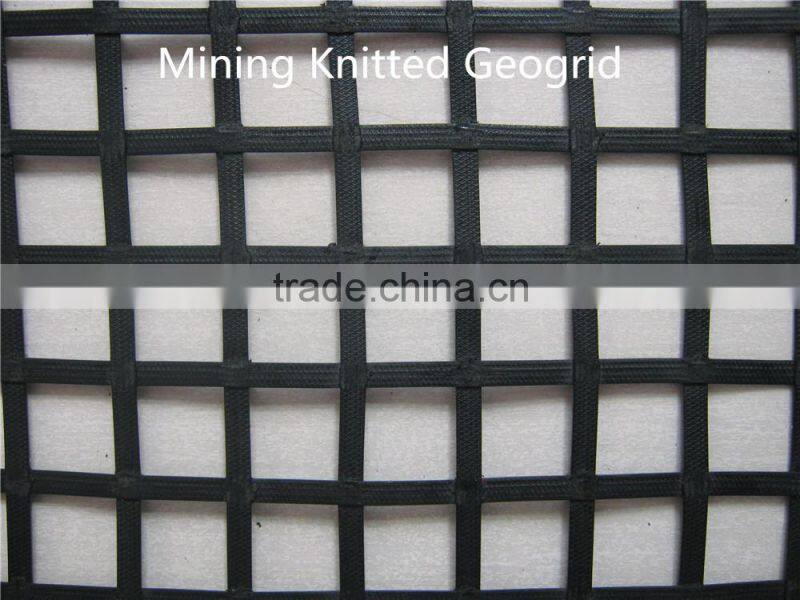

The equipment is composed by 24 Ultrasonic Plastic Welders of 2800W, 15KHz. It can weld all kinds of geogrid: Steel-plastic Geogrid, Mining Steel-plastic Geogrid, PP Geogrid, PET Geogrid. The equipment introduces the most advanced ultrasonic technology from Germany. The pneumatic system uses the best Airtac Material in China, and adopts imported PLC controlling system and touching screen demonstration.

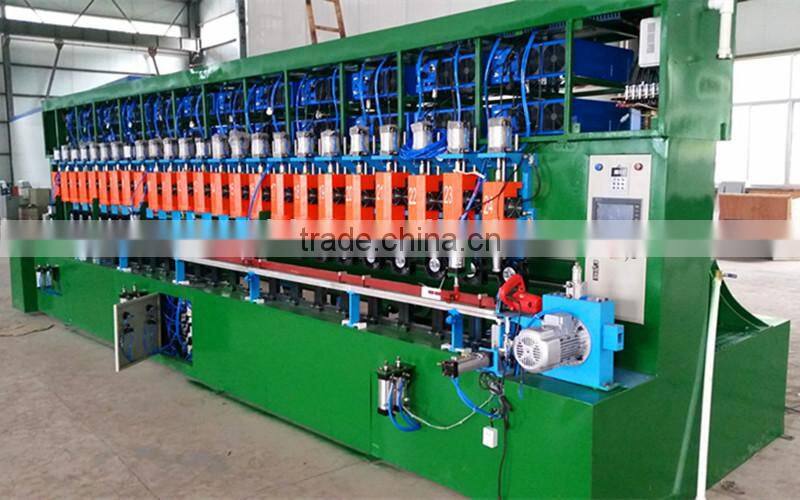

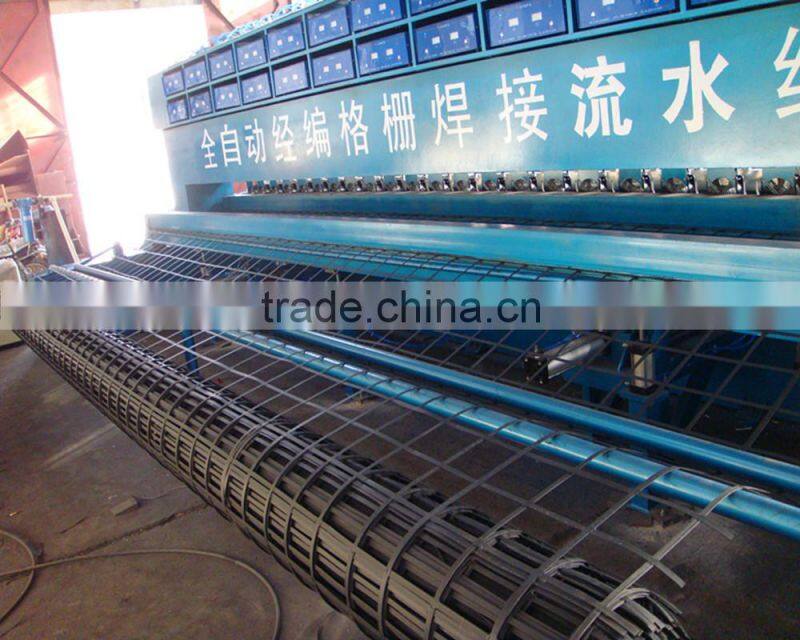

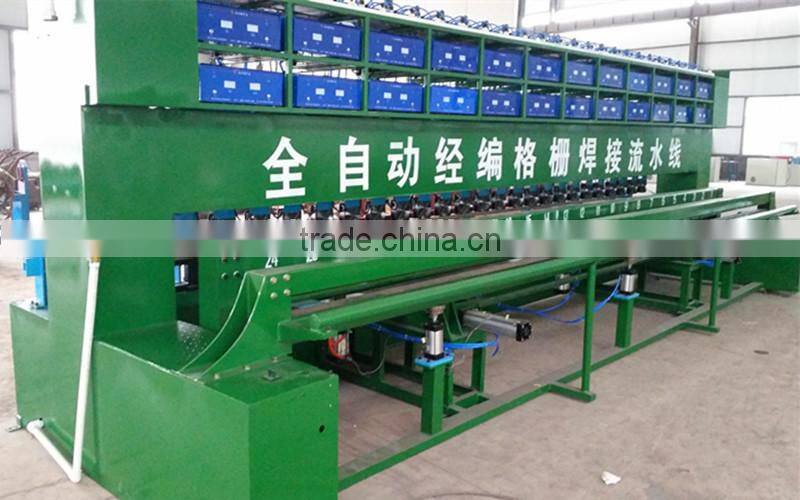

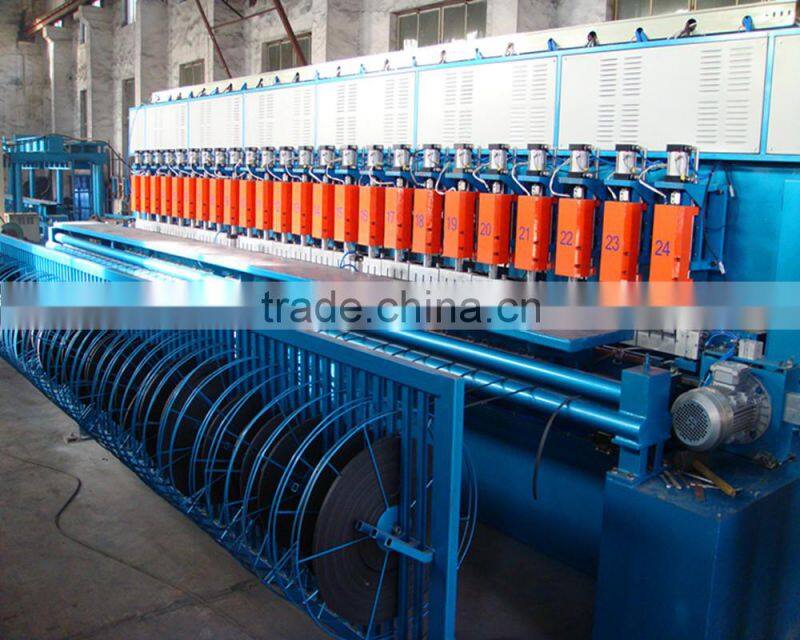

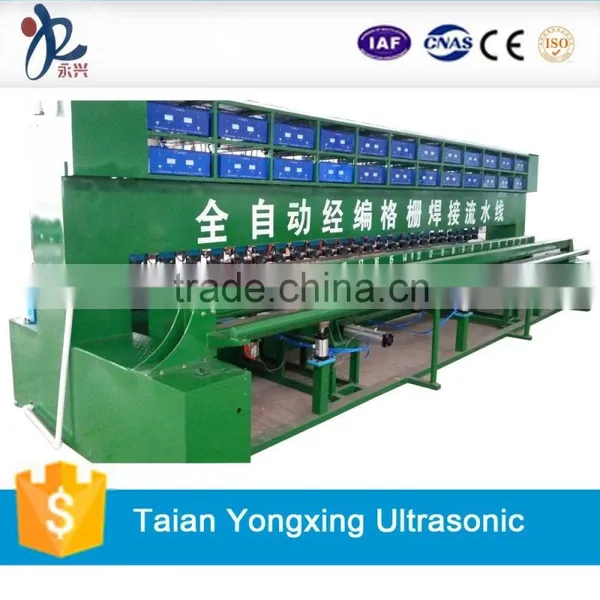

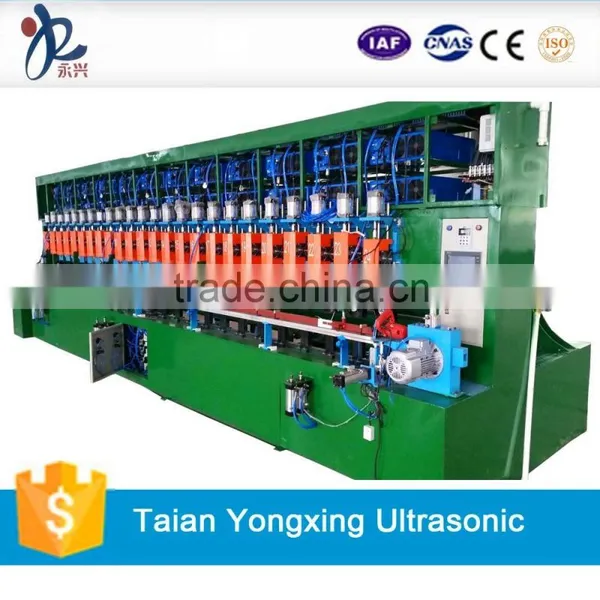

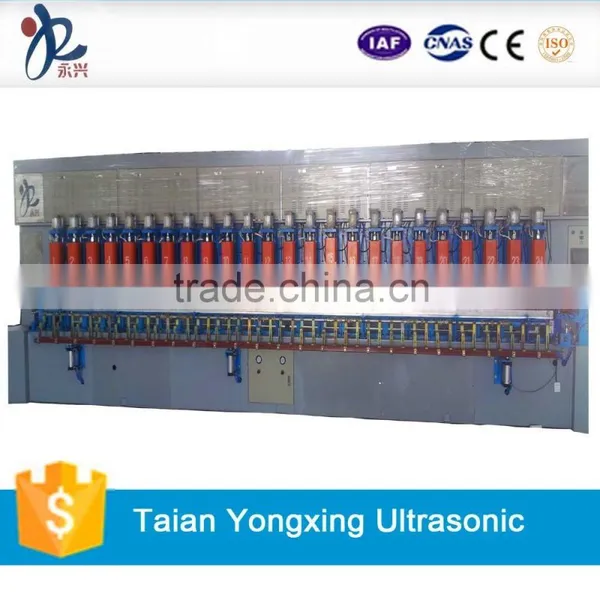

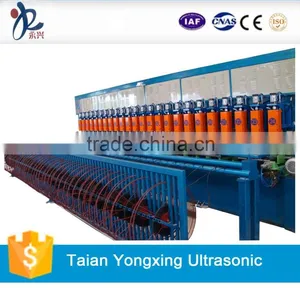

Display from Different Viewing Angles:
Equipment Features:
1. Touch-screen display and parameter setting, imported piezoelectric ceramic transducer from Germany, the output strength is steady.
2. Color display touch-screen control panel.
3. Multi-language you set, easy to use.
4. Levels of adjustable mold design, mold fast and easy adjustment.
5. The new power amplifier circuit, power is more robust, more durable transducers.
6. Frequency automatic tracking, a variety of parameter settings. High degree of automation in the domestic production of similar products in the leading position.
7. Pneumatic system uses the best Airtac Material in China.
8. The intension could be adjusted between 20KN--200KN, the meshes could be adjusted according to the tensile strength and design request.
Equipment Technical Parameters:
Item | Specification | Item | Specification |
No.of welding heads | 24 | Rated input pressure | 0.6-0.8MPa |
Max power(KW) | 62.4 | Volume of air pressure | 1.5-2.0M3 2.5-3.0M3 |
Size of the equipment(L*W*H)(m) | 7.0*8.0*2.2 | Transverse weld spacing (mm) | 60~250 adjustable |
Weight(t) | 5.7 | The longitudinal weld spacing(mm) | 60~250 adjustable |
Rated input voltage | AC380V N50-60HZ | The whole machine welding width (m) | 4m, 5m, 6m adjustable |
Daily output | 8000~10000 |
Main Equipment Components Display:

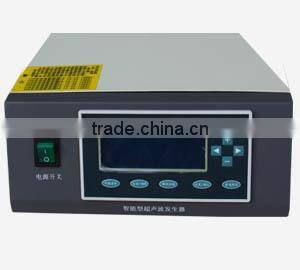

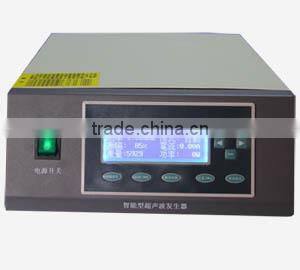

1. Intelligent Automatic Frequency-tracking Ultrasonic Generator:

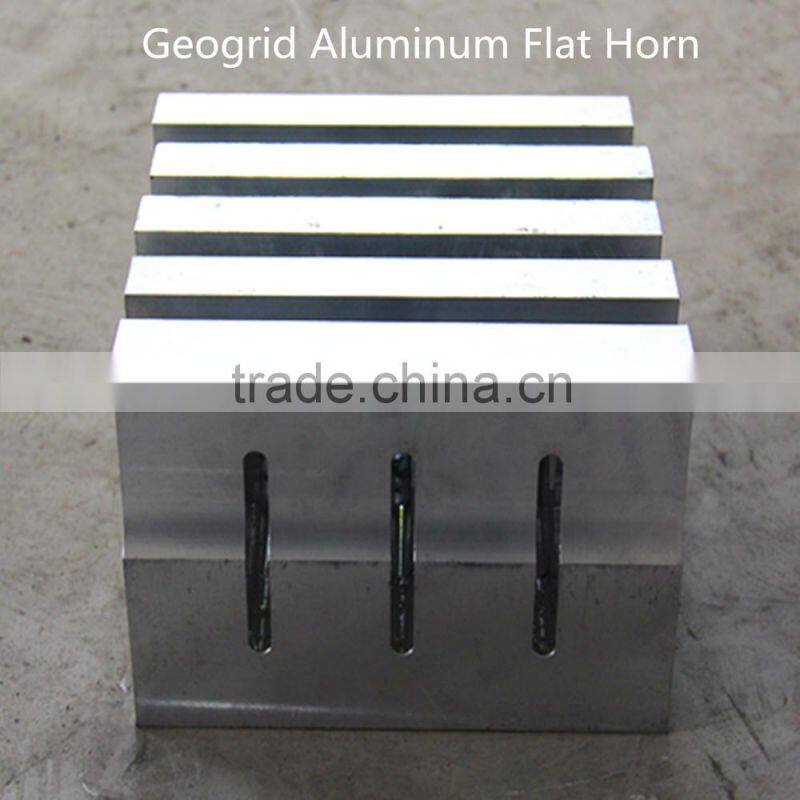

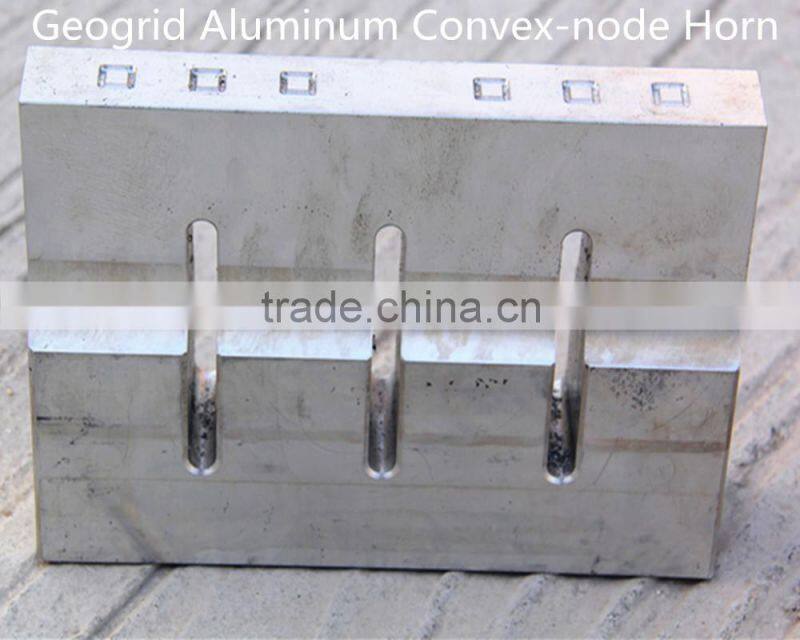

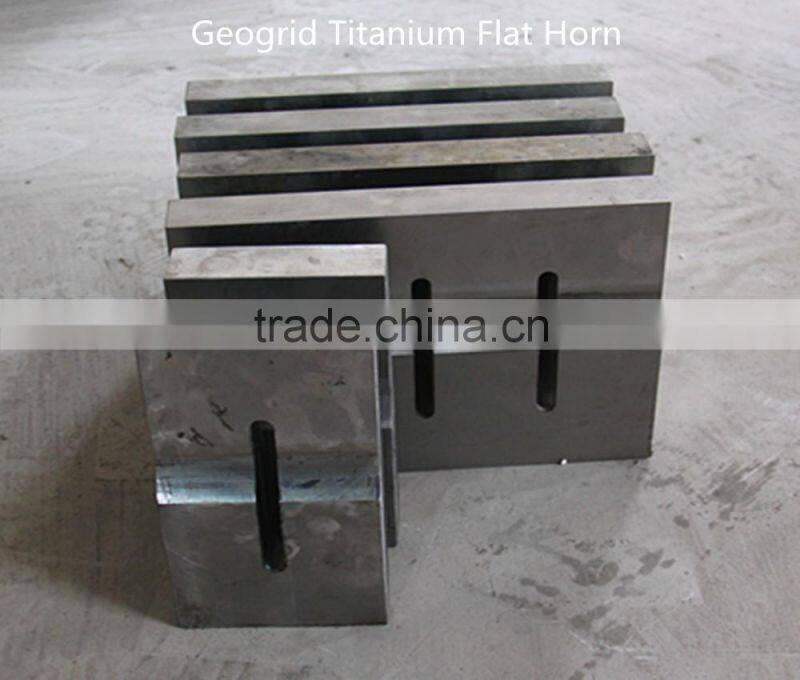

2. Ultrasonic Horn made of Aviation Aluminum or Titanium:

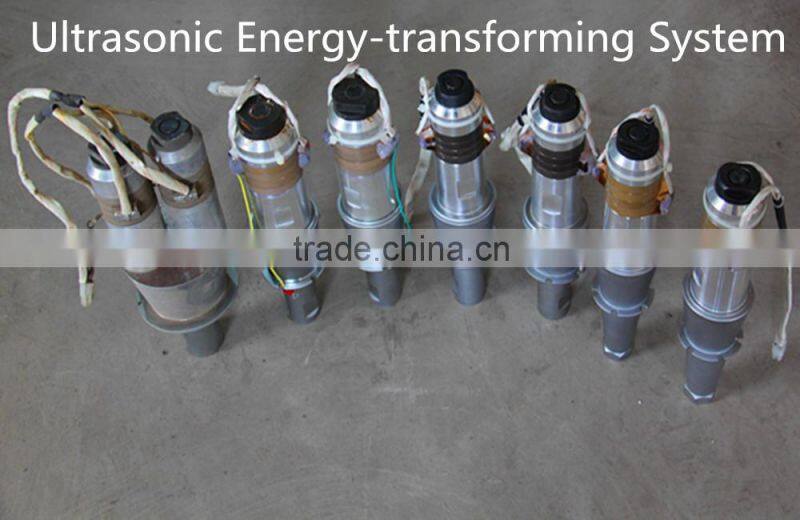

3. Piezoelectric Transducer from GERMANY with strong and steady output:
Equipment Advantages:
1. Flexible and stable mechanical working, fully automatic production;
2. Improve welding quality greatly, superior welding effects;
3. Improve working efficiency greatly, simple operation and laborsaving, reduce work intensity and safety danger;
4. Lower electricity-consuming, long longevity and high welding accuracy.

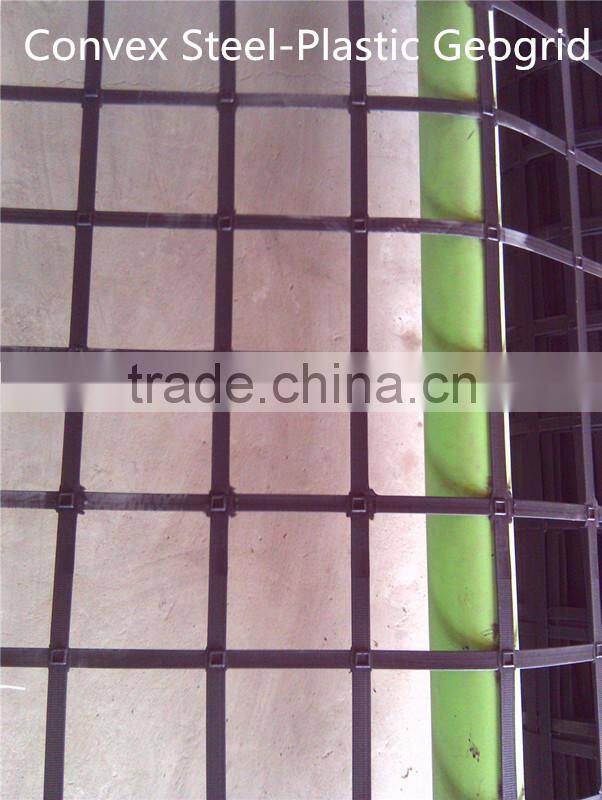

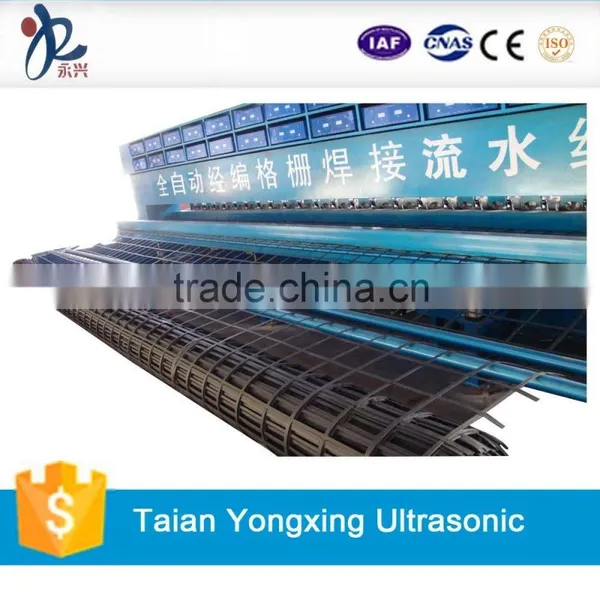

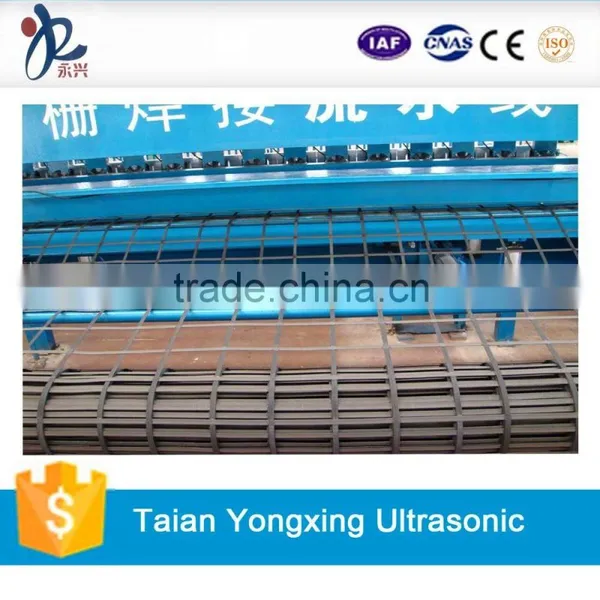

Equipment Product Demonstration:
Our Advantages:
1. We have our own factory and professional designers. We can manufacture what you need with competitive price totally as your requests;
2. Our company provides before-sales, in-sales and after-sales services with heart and soul in equipmet design and engineering construction;
3. Different country has different environment, voltage and other elements which related to production. Don't worry we have the most professional engineers to clear all the concerns and promise the regular production in your country.
