hot sale spot plastile welding machine
- 2 Set / Sets per Month
- Qingdao Port
- T/T
- Huitai hot selling OEM auto hot plate sheet board plastic pallet welding machine
- Auto Plastic Pallet sheet plate board Hot Plate Welding Machine for pallet
- automatic PP board edge sealing machine, coroplast sheet layer pads welding machine
- Huitai plastic capillary tube welding machine plastic welders pvc plastic hot plate welding machine bonding
- PP Membrane Hot Filter Plate Chamber Filter Press Plate and Frame Filter Plate welding machine
- Plastic PP Membrane Hot Chamber Filter Press vertical Frame Filter Plate welding machine plate-and-frame belt
Product Details
Place of Origin: | Shandong, China | Brand Name: | YONGXING | Model Number: | YX-6000 |
Voltage: | AC380V | Power: | 40KW | Frequency: | 50-60HZ |
Welding Area: | 2000~3000 | Dimensions: | 7.0*8.0*2.2 | Weight: | 5.7T |
Usage: | The production line is used to automatically knit and weld two kinds o | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

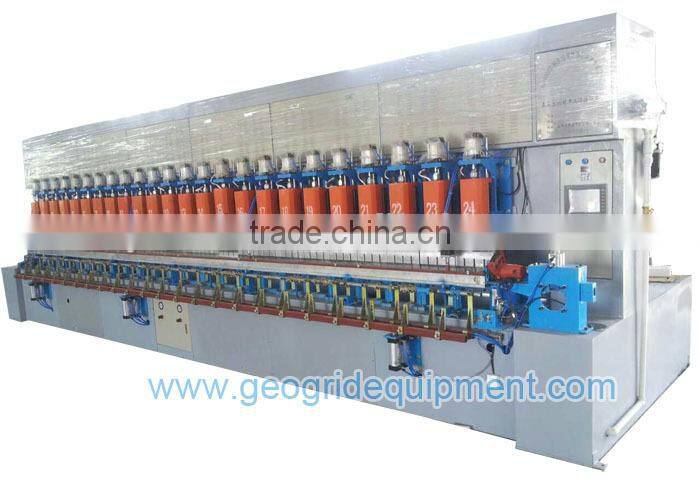

Equipment Introduction:
The production line is used to automatically knit and weld two kinds of strips.The supporting material of coal-mine roof which is used when exploiting mines;The steel-plastic complex net is used to reinforce the road basement and embankment.
Equipment Features:
1.PLC control system.
2.The transducer is the Germany piezoelectric ceramics ,the mold is made of aluminium alloy from USA
3.The pneumatic adopts the Airtac Material.
4.Use the supersonic design and welding depth establishment .
5.The intension between 20KN-200KN;
6.The mining geogrid size:40X40mm,50X50mm, 65X65mm
Knitting Steel-plastic Geogrid:
1. the vertical and horizontal strips are welded by high-frequency ultrasonic welding at the intersections ,the environment temperature could vary between -20 to 40
2. the number of the steel wire of one single strip is more than 9 or designed as the customer’ requests.
3. the intension of one single strip ≥4000N,the insulation resistance of the surfaces of one single strip ≥1000MΩ.
Equipment Parameters:
Item | Specification | Item | Specification |
No.of welding heads | 24 | The whole machine welding width | 6m |
Max power(KW) | 40 | Volume of air pressure | 0.2~0.3m³ |
Size of the equipment(L*W*H)(m) | 7.0*8.0*2.2 | Transverse weld spacing | 40mm, 50mm, 65mm |
Rated input voltage | AC380V 50-60HZ | The longitudinal weld spacing | 40mm, 50mm, 65mm |
Rated input pressure | 0.6~0.8MPa | Daily output | 2000~3000 |
