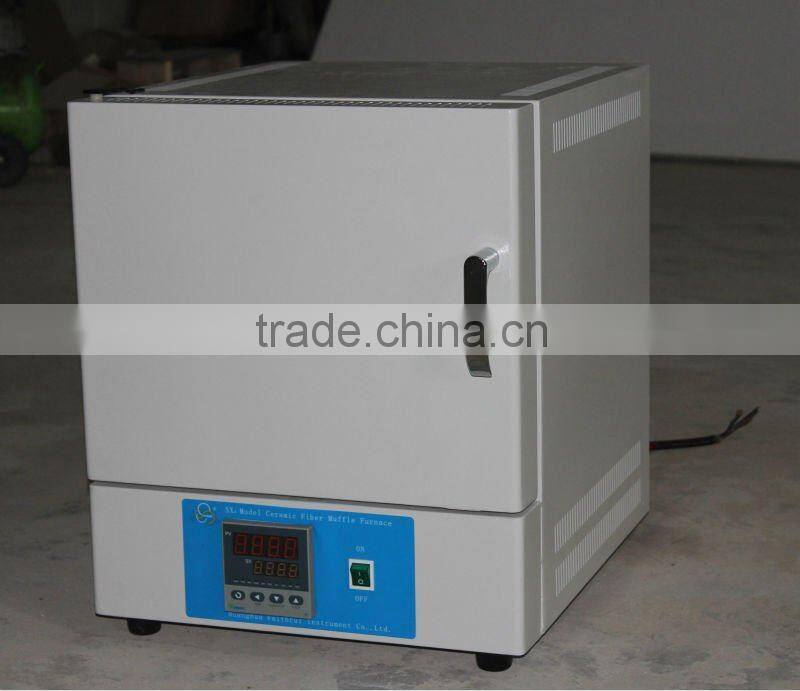

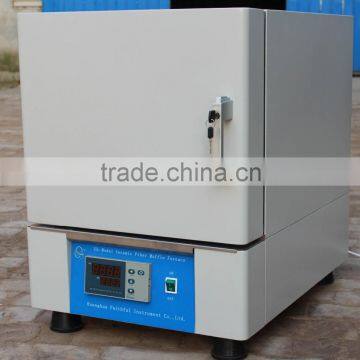

Help CenterHigh Temperature Muffle Furnace With Ceramic Inner Chamber
Related Products
-
Annealing Furnace, Heat Furnaces, Metal Melting FurnaceUS$ 317 - 1,245MOQ: 1 Unit -
Blast Furnace, High Temperature Furnaces, Curing OvenUS$ 187 - 1,245MOQ: 1 Unit
-
Electronic Temperature Regulation Resistance FurnaceUS$ 10 - 10MOQ: 1 Piece
-
Annealing Furnace, Box Furnace, Ceramic Fiber Muffer FurnaceUS$ 665 - 3,200MOQ: 1 Unit
-
Lab Electric FurnaceUS$ 8.5 - 32MOQ: 1 Unit
Curing Oven, Blast Furnace, High Temperature Furnace, Lab Furnace , Muffle Furnace
Uses:
The product is used for elements analysis in colleges & universities,scientific research institutes,and laboratories of insustrial and mining enterprises.
Characteristics:
1. Cold rolling steel with electrostatic power coated exterior.
2. The user can choose the PID two digitals screen controller and Programmable controller as inquiry.
3. The top quality controller and Taiwan's high quality sensor make sure precise temperature.
4. The wires imported from Japan make sure long life and avoid dirty the inner chamber.
5. Good quality and thicker ceramic inner chamber imported from Japan make sure the temperature rising time more shortly.
6. The wires are inlaid inside the furnace heart to provide uniform temperature distribution in the inner wall.
7. The thermal insulation material between the out shell and the inner chamber make sure the surface with the low temperature and safety.
Main Parameters:
Model |
Inner Champer size(mm) |
Power (KW) |
Voltage (V) |
Rated Tem. (°C) |
Tem.rising time(min) |
Exterior Size (mm) |
Tem-accuracy(°C) |
SX3-2.5-10 |
200×120×80 |
2.5 |
220 |
1000 |
15 |
500×240×170 |
±1 |
SX3-2.5-12 |
2.5 |
1200 |
20 |
||||
SX3-4-10 |
300×200×120 |
4 |
1000 |
15 |
600×360×210 |
||
SX3-5-12 |
5 |
1200 |
20 |
||||
SX3-8-10 |
400×250×160 |
8 |
380 |
1000 |
15 |
720×380×270 |
|
SX3-10-12 |
10 |
1200 |
20 |
