15 Ppm Bilge Alarm for Marine Oil Water Separator

Name: 15 Ppm Bilge Alarm for Marine Oil Water Separator
Brand: ANHANG
SKU: 121249277

15 Ppm Bilge Alarm for Marine Oil Water Separator thumbnail-1

15 Ppm Bilge Alarm for Marine Oil Water Separator photo-1

US$ 890 - 1,199 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

ANHANG

Model Number:

OCM-15

Contact Supplier Request Quote Chat Now

Jiangsu Bright Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name ANHANG

Model Number OCM-15

15 ppm Bilge Alarm for marine oil water separator

Product Description

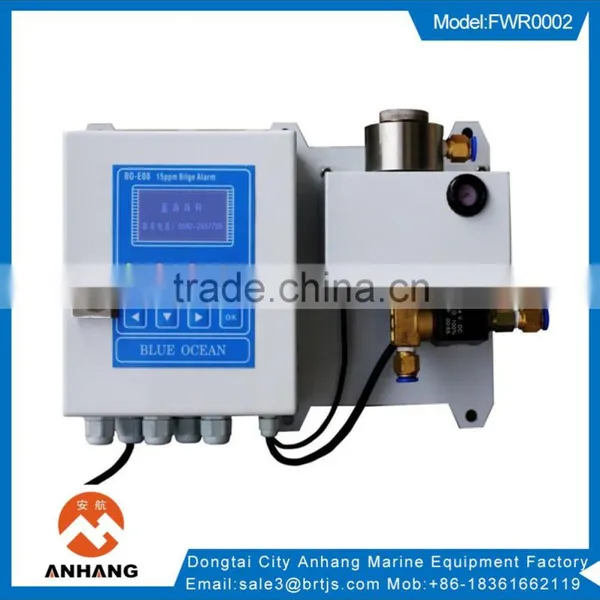

15ppm Bilge Alarm Device for Oil Water Separator

The OCM-15 type bilge water alarm device has been designed specifically for use in continuous monitoring of oil-in-bilge water, 15 ppm alarm and control of discharge, detection, memory and enquiry of alarm status. It is applicable to detect boiler condensate water. And it applies to oil and chemical industries as well.

The OCM-15 type bilge water alarm device use the technology of near infrared measurement, which can display the detected result in real time. The unit is supplied with 2 works-adjusted alarms. The set point (15ppm factory set) could be adjusted at any moment through the panel. If an alarm set point is exceed, the alarms are visible at the front panel and the appropriate relays are switched, that can be achieved the movement control of overrun closedown or the treatment of overrun recycle, and the memory and enquiry of alarm record. Furthermore, a 4 - 20 mA (equal to 0 – 15ppm) effective signal output is available for driving a recorder or external meter.

The certificate of type approval test has been obtained through comprehensive tests. This device is in accordance with the IMO-Resolution MEPC.107 (49).

SPECIFICATIO

Type:	OCM-15
Range:	0 – 30 mg/l can exceed to 50mg/l
Accuracy	Better than 5mg/l
Linearity	better than 2 %
Display	LCD display
Power Supply:	220VAC/110VAC ± 10%
Consumption:	10 VA
Alarm Points:	1-15ppm
Alarm Points works set:	15ppm
Alarm 1 delay	0-10 second.
Alarm 2 delay	0-10 second
Alarm output	Two way relays output
Alarm relay output contact value	5A, 250VAC
Alarm relay output feedback signal test	Two way working status contact testing
Alarm Indication:	Red LED's
Output Signal:	4 - 20 mA, reversible Ri < 500 Ω
Sample Water Pressure:	0.01 -6 bar
Sample Flow:	approx. 0.2 - 4 l/min depend on pressure
Ambient Temperature:	0 to + 55° C
Sample Water Temperature:	+ 1 to + 80° C
Size (over all):	360 mm W x 240 mm H x 105 mm D
Degree of Protection:	IP 45
Weight:	8kg
Pipe Connections:	R 1/4" Female
