Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > IP68 ,3+9 Pin 20A+5A Large Series Power Waterproof Connector

IP68 ,3+9 Pin 20A+5A Large Series Power Waterproof Connector

Name: IP68 ,3+9 Pin 20A+5A Large Series Power Waterproof Connector
Brand: Chogori
SKU: 121184897

IP68 ,3+9 Pin 20A+5A Large Series Power Waterproof Connector thumbnail-1

IP68 ,3+9 Pin 20A+5A Large Series Power Waterproof Connector photo-1

US$ 1 - 5 MOQ: 500 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Chogori

Model Number:

24309421-02

Contact Supplier Request Quote Chat Now

Shenzhen Chogori Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Chogori

Model Number 24309421-02

Application Power

Gender Female

Specifications

A. The waterproof rating is IP68
B. 3 types can be choose: screw type, lock bayonet type, push lock type
C. UL,CE,ROHS

The detail description of Chogori large series 3+9 pin waterproof connector

The brief introduction of chogori large series waterproof connector

we have (2,3,9,18,24,3+9,3+11)pins middle series waterproof connector
the waterproof rating can be IP66,IP6,IP68 ,it’s all depends on customer’s request
we have 3 types :screw, lock bayonet, push lock. we can use the cable provided by customers, and we also can purchase cable for our customers.
The large series advantage : Adopt separate design, increase creep distance

The specification of large series 3+9 pin waterproof connector

large series 3+9 pin waterproof connector
1	Model No.	24309421-02
2	Material	Connector Body	ABS/PBT/PA66 UL94V-0 1/8”
3		Contact	Brass with Gold Plated
4		Sealing	Silica Gel
5	Property	Current Rating	20A+5A
6		Voltage Rating	250V
7		Contact Resistance	<10mΩ
8		Insulation Resistance	1000MΩ at DC 500V
9		Breakdown Voltage	1KV/1minute
10		Temperature Rating	-45°C~+105°C
11		Durability(Plug/Unplug)	3000 times
12		Waterproof Rating	IP68
13		Cable Max. Diameter	10.8mm
14		Contact Range	2,3,9,18,24,3+9,3+11
15	Certificate	CCC; CE; ROSH

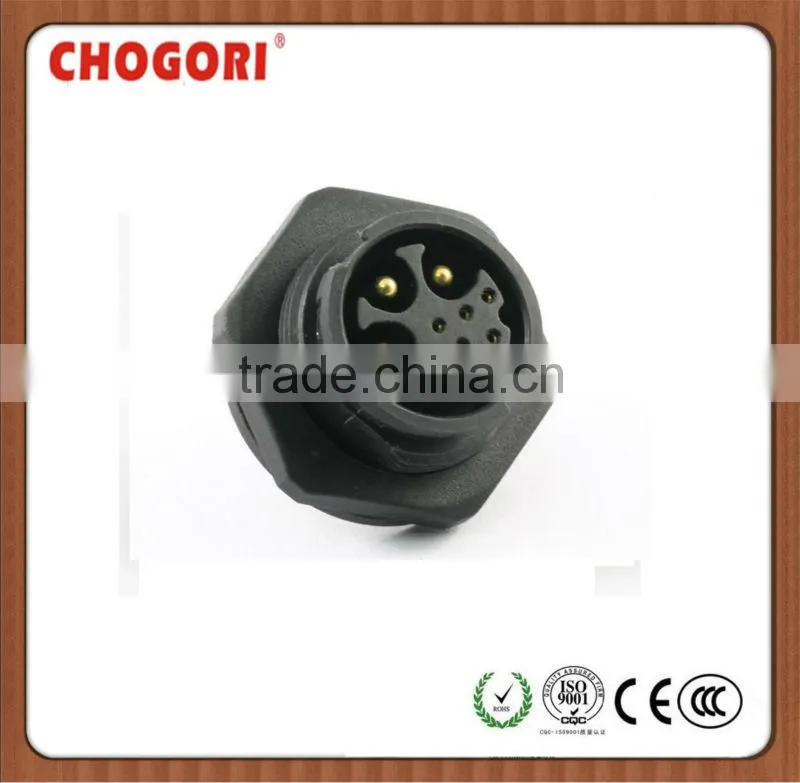

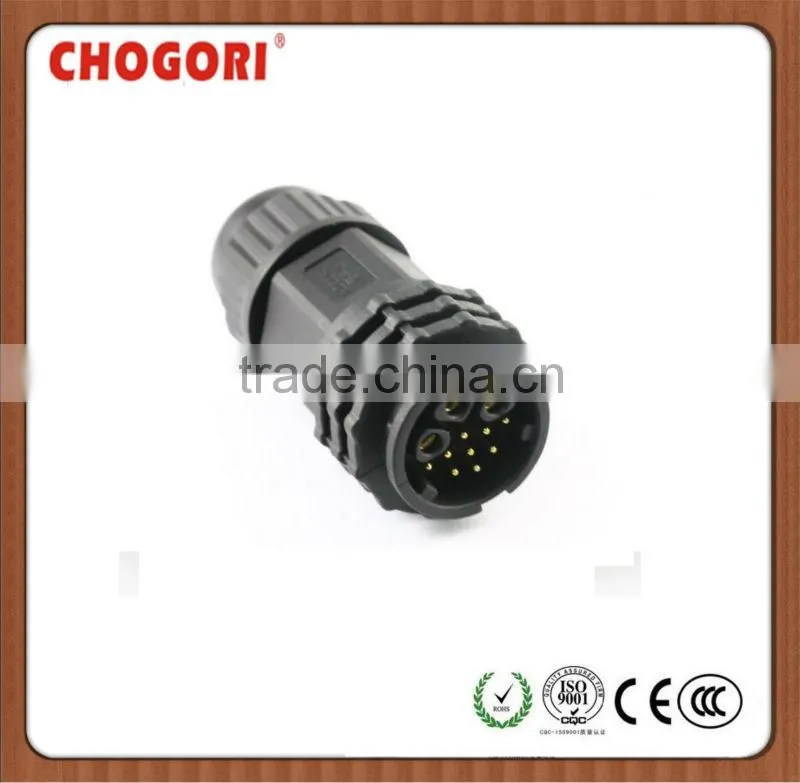

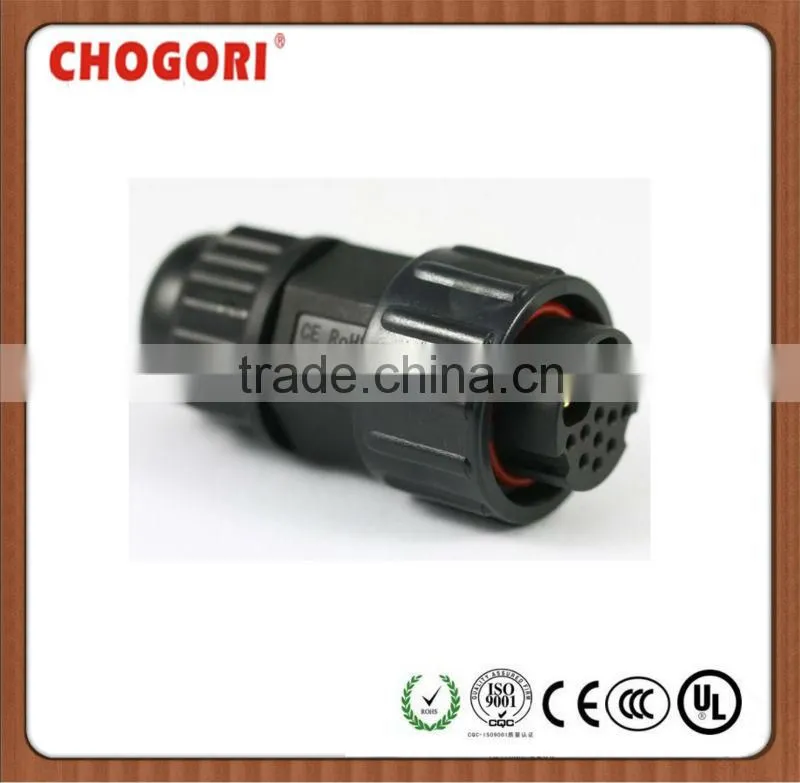

The picture of our product(Our connectors can be used in LED industry,comunication industry and so on ,if you have interest in our product, please feel free to contact us, we will provide the excellent quality and reasonable price connectors for you !)
