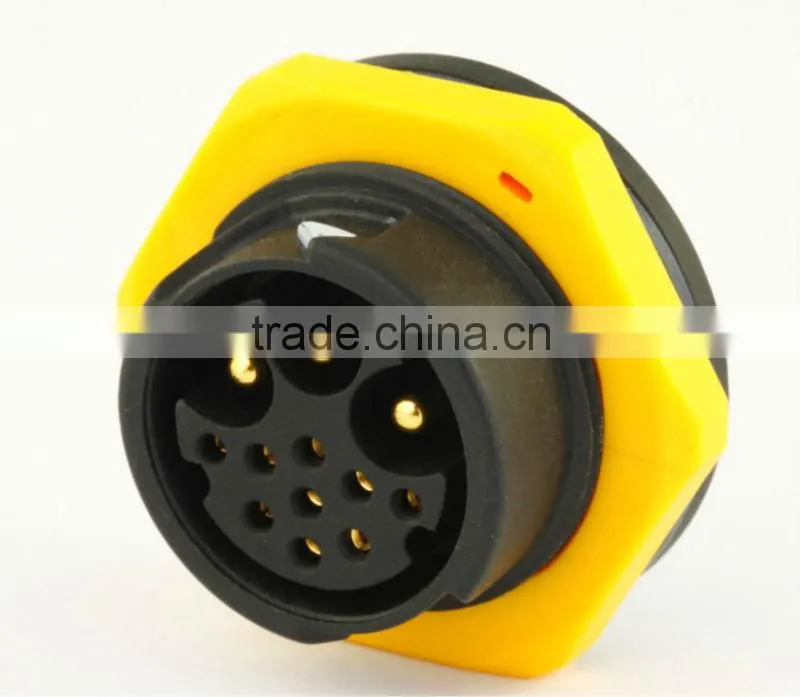

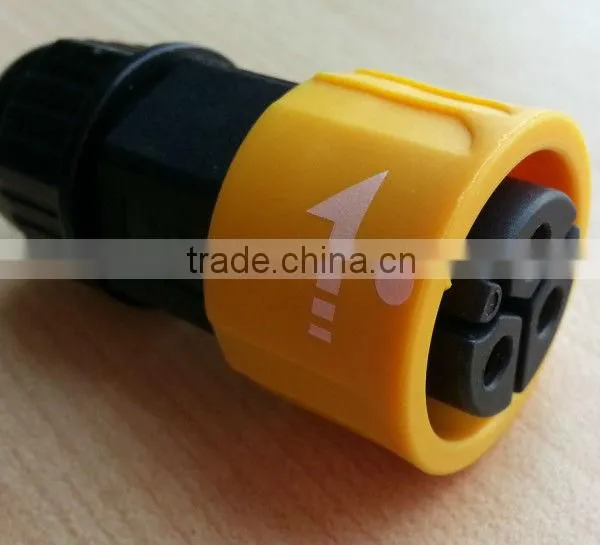

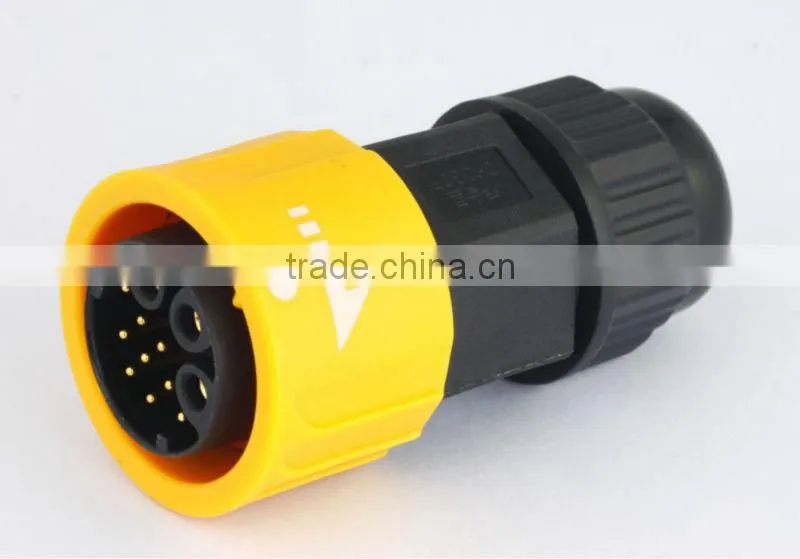

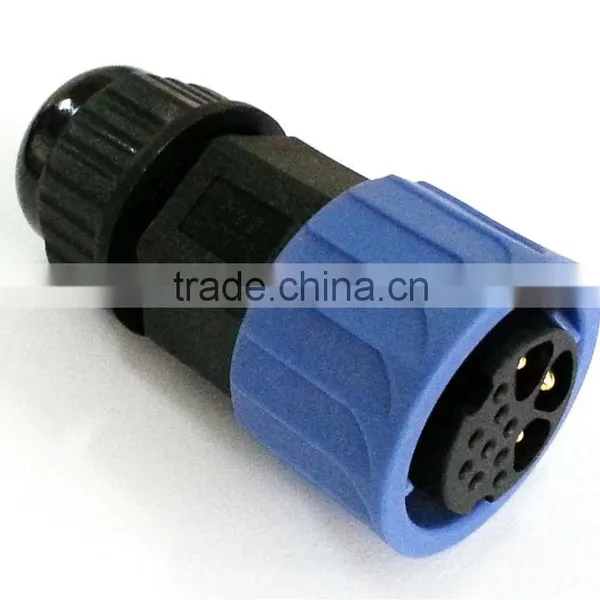

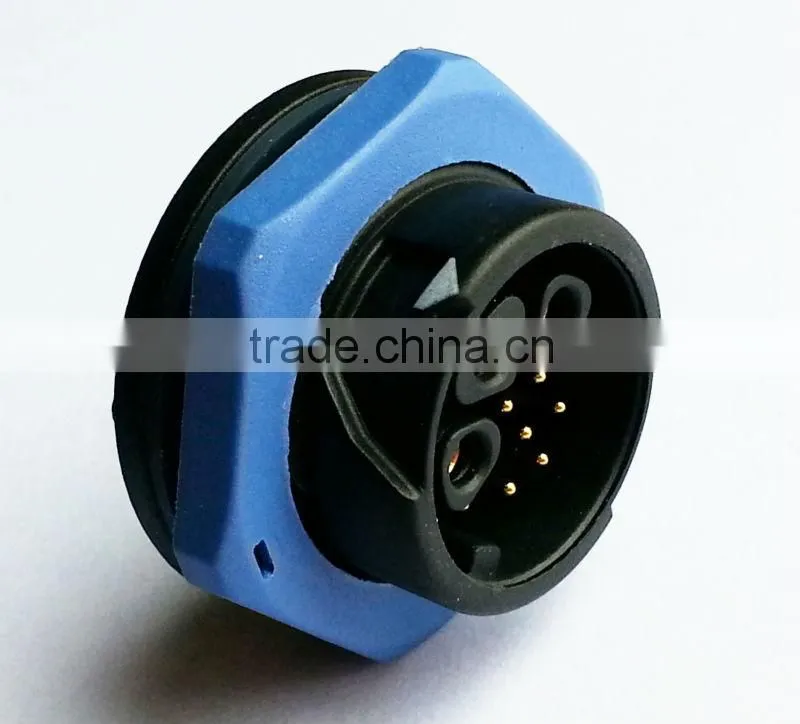

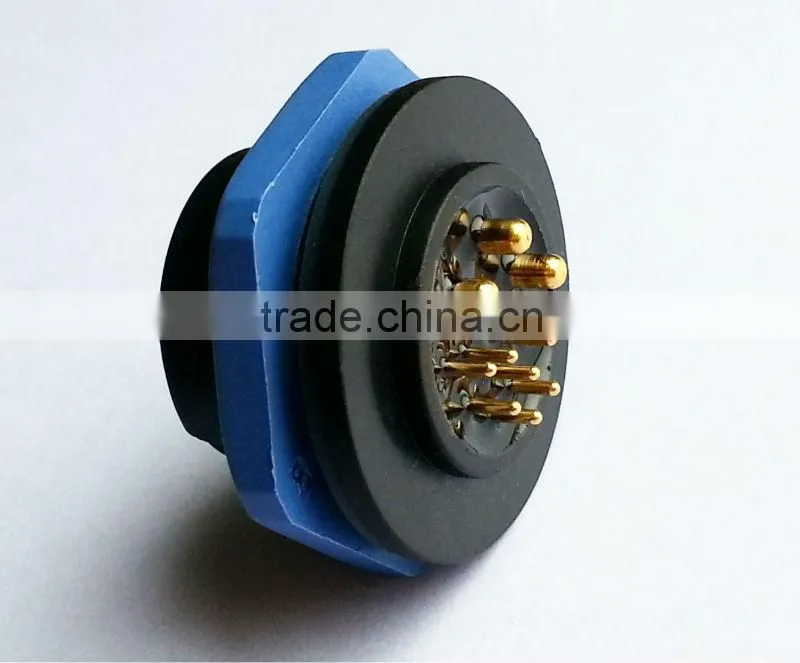

3+9p IP67 Waterproof Connector,high Quality Nyalon Watertight Connector,Chogori High Current Connector
US$ 2 - 4
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Chogori
Model Number:
24309231-01
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Butt Joint Easily and Reliably IP68 Waterproof Connector,3 Pin 20A Large Series Power ConnectorUS$ 1 - 5MOQ: 500 Pieces -
Large Series ,2pins,bayonet Lock Type,field Installable, Ip67/ip68 Waterproof ConnectorUS$ 0.5 - 5MOQ: 500 Pieces
-
IP68 Waterproof Connector,2 Pin 20A Large Series Power ConnectorUS$ 1 - 5MOQ: 500 Pieces
-
Large Series, Lock Bayonet Type, IP67&IP68, Front Panel Mount, Waterproof ConnectorUS$ 1 - 3MOQ: 200 Pieces
-
Large Series, Lock Bayonet Type, IP67&IP68, Waterproof ConnectorUS$ 1 - 3MOQ: 200 Pieces
Place of Origin
Guangdong, China
Brand Name
Chogori
Model Number
24309231-01
Type
Other, Power
Application
Other, Power&LED display&Electronical equipments&Communications
Gender
Male
Specifications
1.VDE, CE, ROHS, CCC, UL, TUV Certification2.Waterproof IP67
3.Current rating:20+5A
4.Voltage rating:250V
5.Customized
Material
Connector Body |
Nylon+GF UL94V-0 1/16” |
Contact |
Brass ,4u"--20u" Gold Plated |
Sealing |
Silica gel |
Certificate |
VDE ROHS CE CCC UL TUV
|
Property
Number of Contacts |
3pins |
Wire Gauge |
14AWG/2.08mm² |
Cable Range |
3.5-6.5mm |
Degree of Protection |
IP67 |
Machanical Operation |
>3000 mating cycles |
Temperature Rating |
-45°C~+105°C |
Rate Voltage |
250V |
Rated Current (40°C) |
20A |
Divisional Color |
Black |
Type |
Waterproof connector |
Brand Name |
Chogori |
Contact resistance |
<10mΩ |
Insulation resistance |
>10MΩ |
Breakdown Voltage |
500V(AC) |
Contact |
3+9pins |
Connector body |
Nylon |
Wire material |
PVC |
Connector OD |
28.8mm |
Mating style |
Push lock |
Assembly type |
Field installabel |
Cable length |
optional |
