Home > Products > Large > large series ,2pins,bayonet lock type,field installable, ip67/ip68 waterproof connector

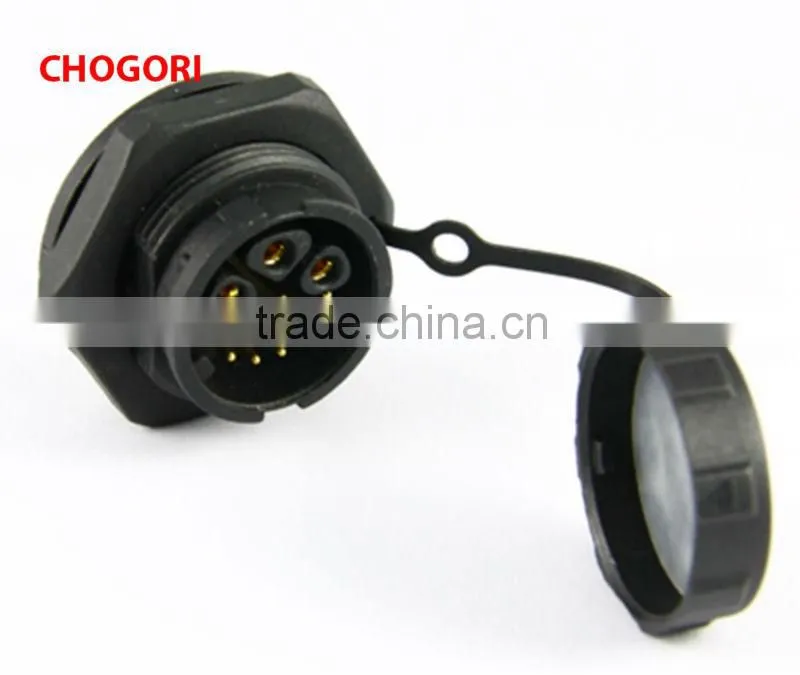

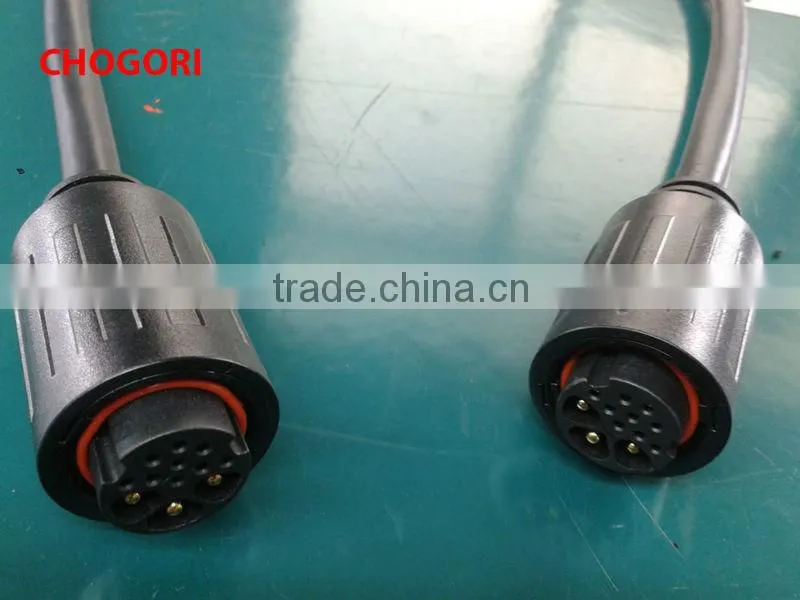

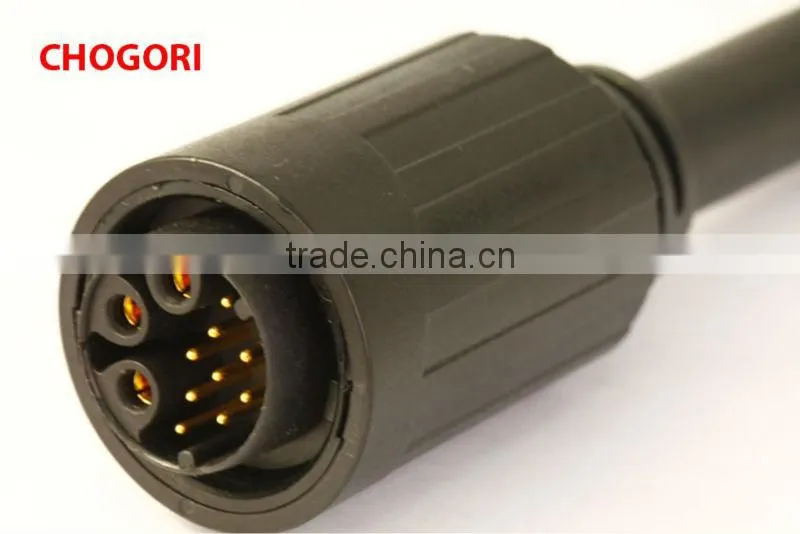

large series ,2pins,bayonet lock type,field installable, ip67/ip68 waterproof connector
- 1 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | CHOGORI | Model Number: | 21002421 |
Type: | RGB | Application: | Power | Gender: | Female |
Product Description
Specifications
(1) data waterproof connector(2) 20A,250V
(3) IP68,IP67
(3) ROHS,UL,3C
Large series are widely used in LED screen, machine equipment, and so on.
The advantages of large series:
1. adopt separate design
2. increase creep distance
3. various connection types
4. butt joint easily and reliably
5. stop man element
6. plug quickly
fit safety design: our connector are CCC UL CE certified
there are various of connection types, customers have a best choice.Lock bayonet, screw and push lock do coexist.
Power and signal became one, it can efficiently save space and reduce the cost.
Specifications | ||||||||||||
Number of Contacts | 2 | 3 | 3 | 9 | 18 | 3+9 | 3+11 | |||||
Wire Gauge | 4.0mm2 (12AWG) | 8.4mm2 (8AWG) | 0.75mm2 (18AWG) | 2.5mm2 + 0.2mm2 (12AWG+24AWG) | ||||||||
Cable Range | 4.5mm - 6.5mm, 6.5mm - 10.5mm | |||||||||||
Environmental Protection | IP67 | |||||||||||
Machanical Life | 500 mating cycles | |||||||||||
OperatingTemperature | -45°C~+105°C | |||||||||||
Voltage Rating | 300V | 300V | 300V | 125V | 125V | 300V | 300V | |||||
Rated Current (40°C) | 20A | 20A | 50A | 5A | 5A | 20A+5A | 20A+5A |
Our professionl production line
other products of large series
