Help CenterLarge 3+9 Pin Power and Signal Waterproof Connector
Related Products
-
3pin,Power and Data,for LED Display,Waterproof Power ConnectorUS$ 1 - 3MOQ: 200 Pieces -
3pin,Power and Data,for LED Display,Waterproof Power ConnectorUS$ 1 - 3MOQ: 200 Pieces
-
Large Series ,3+9 Pins,bayonet Lock Type,field Installable, Ip67/ip68 Waterproof ConnectorUS$ 0.5 - 5MOQ: 500 Pieces
-
Large Series of 24 Pin Circular Waterproof Connector ,superior Electrical and Mechanical PropertiesUS$ 1 - 5MOQ: 500 Pieces
-
Large Series of 3+11 Pin Cable Waterproof ConnectorUS$ 1 - 5MOQ: 500 Pieces
Specifications
A. The waterproof rating is IP67B. There are 3 types:screw,lock bayonet,push lock
C. UL,CE,ROHS
The detail description of Chogori large series 3+9 pin waterproof connector
The brief introduction of chogori large series waterproof connector
- we have (2,3,9,18,24,3+9,3+11)pins middle series waterproof connector
- the waterproof rating can be IP66,IP67,IP68 ,it’s all depends on customer’s request
- we have 3 types :screw, lock bayonet, push lock. we can use the cable provided by customers, and we also can purchase cable for our customers.
- The large series advantage : Adopt separate design, increase creep distance
The specification of large series 3+9 pin waterproof connector
Material |
Connector Body: ABS/PBT/PA66 UL94V-0 1/8” Contact: Brass 4U”-20U” Gold plated |
Temperature Range |
-45°C-105°C |
Waterproof Rating |
IP68 |
Durability |
3000 Cycles |
Flame Test |
UL/CAS FT4 Flame Test |
Thermal Shock |
5 Cycles at -45°C-105°C |
Salt Spray |
48 Hours |
Connector Size |
Middle |
Rate Voltage |
250V |
Rated Current |
20A+5A |
Wire Gauge |
12AWG+24AWG |
Connector Type |
male connector with scoket |
Connector Gender |
male |
Assembly Style |
molding 90 |
Mating Style |
push lock |
Application |
Medical equipment |
Outdoor LED display | |
Streetlight | |
Wireless communication | |
Marine electron | |
Actuating motor |
test equipment
|
Measurement Instrument |
Ultraviolet Tester |
|
Plastic Flame tester |
Waterproof Tester |

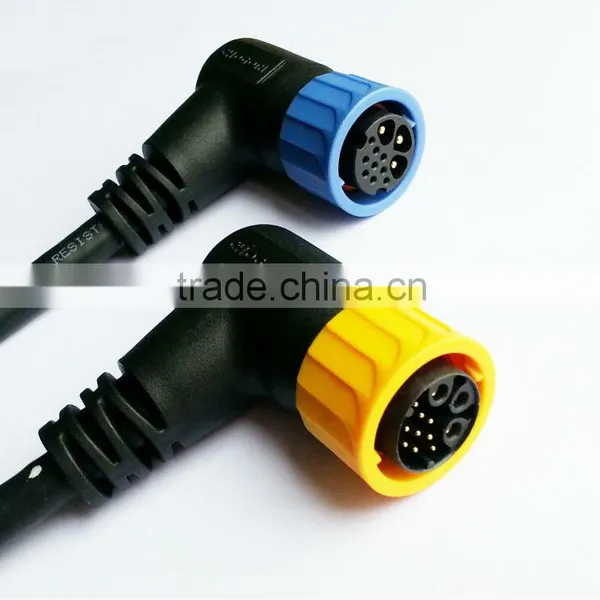

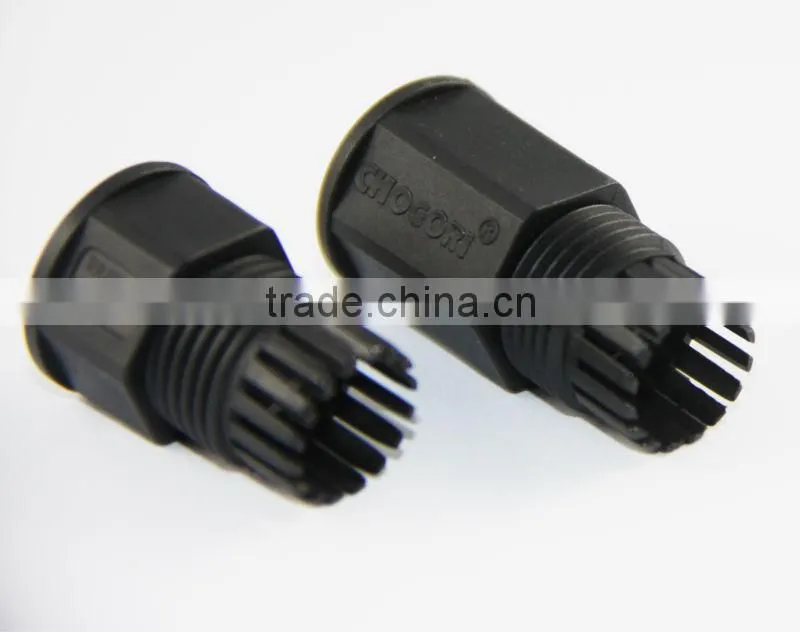

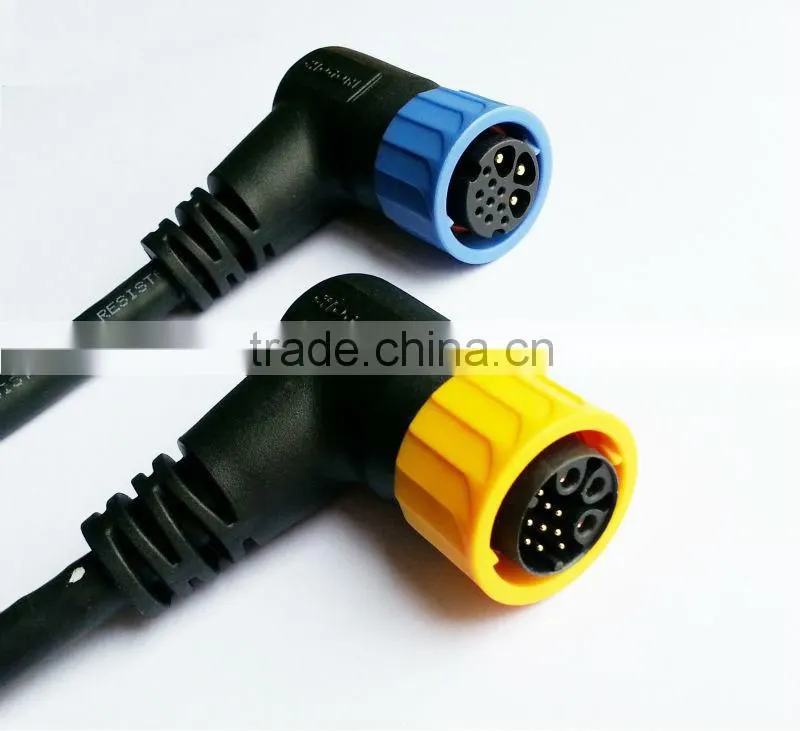

The picture of our product(Our connectors can be used in LED industry,comunication industry and so on ,if you have interest in our product, please feel free to contact us, we will provide the excellent quality and reasonable price connectors for you !)
The material of our connector
|
Body |
Nut C
|
|
Nut R
|
Plug
|
|
Plastic
|
1 to 4 |
