Specifications

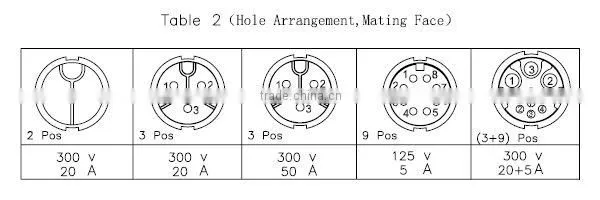

1. Power and Data connector for LED display2. 3p for 20A, 9p for 5A
3. Solder and screw type
4. IP67 waterproof

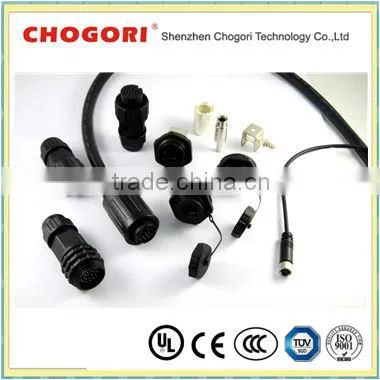

Power and data waterproof connector for LED display
Circular type, Rhombus type and square type
8 traits:
1. 2couples become 1couple connector, Improve work Efficiency and site installation efficiency
2. 2couples become 1couple connector, reduce cost
3. Less cables, More Beautiful
4.Three installation methods for panel mount connector:
1) Rhombus holes, same as installation holes of metal panel connector
2) Square 4 holes, same as installation holes of metal panel connector
3)No hole on circular type, same as installation holes of international plastic connector

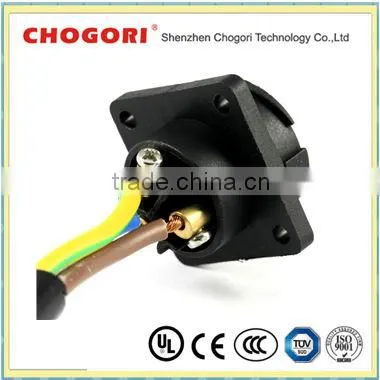

5. Two process methods for cable:
1)Solder: reliable
2)Screw: convenient, flexible
6. Fabulous design
1)Electric shock protection in the inner of panel connector
2)Waterproof cover can be fixed, it does not affect stick and draw of cable connector
7. IP67 waterproof grade
8. More than 1000times of stick and draw action, more than 5years life-span for outdoor usage
| Material | |
| Connector body: | Nylon+GF UL94V-0 1/16" |
| Plastic: | PA66 &UV resistance |
| Contact pin: | Brass(gold-plated 4 u" -20u") |
| Sealing | Silica gel |
| ROHS,CE Approved | |
| Property | |
| Contact Resistance | <10mΩ |
| Insulation Resistance | ≥100 MΩ at DC500V |
| Breakdown Voltage | ≥1KV/1Minute |
| Temperature Rating | "-45°C~+105°C |
| Waterproof Rating | IP67&IP68 |
| Durability(Plug and Insert) | ≥ 3K Plug/Unplug Cycles |
