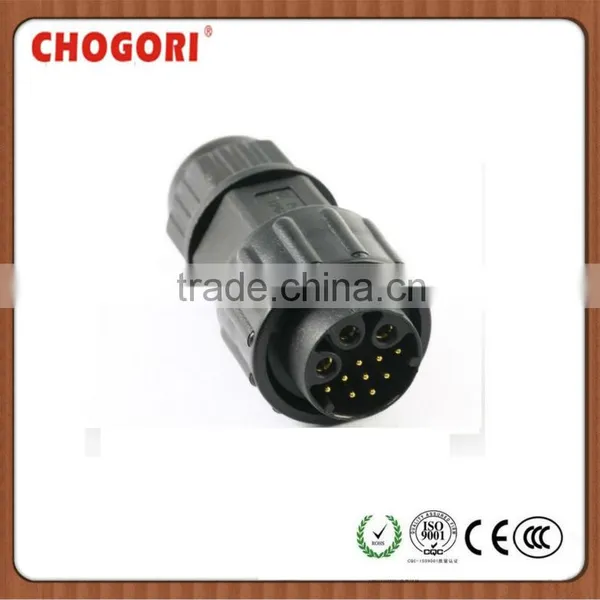

large series ,3+9 pins,bayonet lock type,field installable, ip67/ip68 waterproof connector

Specifications

(1) data waterproof connector
(2) 20A,250V
(3) IP68,IP67
(3) ROHS,UL,3C

Large series are widely used in LED screen, machine equipment, and so on.
The advantages of large series:
1. adopt separate design
2. increase creep distance
3. various connection types
4. butt joint easily and reliably
5. stop man element
6. plug quickly
fit safety design: our connector are CCC UL CE certified
there are various of connection types, customers have a best choice.Lock bayonet, screw and push lock do coexist.
Power and signal became one, it can efficiently save space and reduce the cost.

Specifications

Number of Contacts

2

3

3

9

18

3+9

3+11

Wire Gauge

4.0mm2 (12AWG)

8.4mm2 (8AWG)

0.75mm2 (18AWG)

2.5mm2 + 0.2mm2 (12AWG+24AWG)

Cable Range

4.5mm - 6.5mm, 6.5mm - 10.5mm

Environmental Protection

IP67

Machanical Life

500 mating cycles

OperatingTemperature

-45°C~+105°C

Voltage Rating

300V

300V

300V

125V

125V

300V

300V

Rated Current (40°C)

20A

20A

50A

5A

5A

20A+5A

20A+5A
