Direct dividing head F2:
1.OLIMA Brand
2.Center height:149.25,130
3.High quality
4.Competitive price with fast delivery.

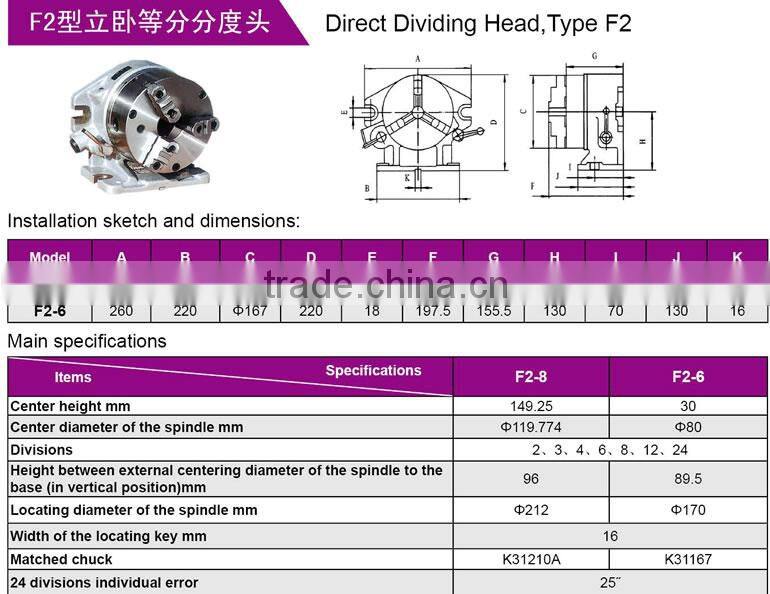

Direct dividing head F2:
Installation sketch and dimensions:
Model |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
|
F2-8 |
310 |
255 |
Φ210 |
255.25 |
18 |
214 |
171.5 |
149.25 |
80 |
150 |
16 |
|
F2-6 |
260 |
220 |
Φ167 |
220 |
18 |
197.5 |
155.5 |
130 |
70 |
130 |
16 |
Main specifications
Items Specifications |
F2-8 |
F2-6 |
Center height mm |
149.25 |
30 |
Center diameter of the spindle mm |
Φ119.774 |
Φ80 |
Divisions |
2,3,4,6,8,12,24 |
|
|
Height between external centering diameter of the spindle to the base (in vertical position)mm |
96 |
89.5 |
Locating diameter of the spindle mm |
Φ212 |
Φ170 |
Width of the locating key mm |
16 |
|
Matched chuck |
K31210A |
K31167 |
24 divisions individual error |
25 |
|
within 7 days in stock otherwise 30 days
We have the following advantages:
1 . High quality and competitive price,
2 . Delivery in time can be guranteed since we have our own factory,
3 . Strict inspection during the process of manufacturing,
4 . Truested partners, we have been exported our products to more than 60 countries and regions worldwide.
We mainly manufacturing and supplying various of Tool Holders & Machine Tool Accessories, such as Collets Chuck Sets, Boring Heads Sets, Tapping ColletsSets, Keyless Drill Chucks and Integrated Chucks, Live Centers; Dividing Heads, Rotary Tables, Machine Vices, Magnetic Chucks and Lathe Chucks., etc. All these items are in series of different sizes.
For further relevant product images or details, please visit our company website: .
Dear friend,
In order to improve our efficiency of communication. pleade inform us the following information while sending inquires:
Specific size or drawings,
Opeation environment,
Purchase quantity for each items,
Special requirements.
