Home > Industrial Equipment & Components > Cutter & Tongs > Chuck > Direct Dividing Head,Type F3

Direct Dividing Head,Type F3

Name: Direct Dividing Head,Type F3
Brand: OLIMA
SKU: 121149245
Availability: InStock

Direct Dividing Head,Type F3 thumbnail-1

US$ 100 - 1,000 MOQ: 5 Sets

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

OLIMA

Model Number:

Contact Supplier Request Quote Chat Now

Shandong Sishui Oli Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

china main ports

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name OLIMA

Model Number F3

Power Manual

Number of Jaws 3

Product Description

Direct Dividing Head Type F3:

Super Spacers with 3-Jaw Chucks of high precision, F3 type for choice.

Competitive prices. Delivery in time.

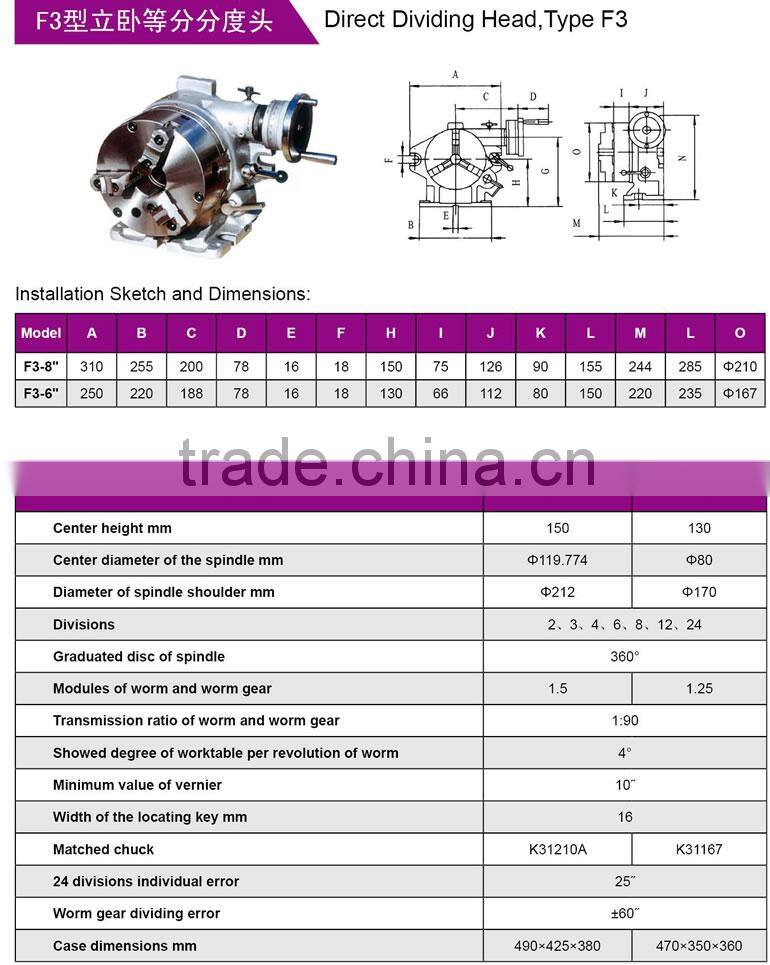

Direct Dividing Head Type F3:

Installation Sketch and Dimensions:

	A	B	C	D	E	F	H	I	J	K	L	M	L	O
F3-8"	310	255	200	78	16	18	150	75	126	90	155	244	285	Φ210
F3-6"	250	220	188	78	16	18	130	66	112	80	150	220	235	Φ167

Main Specifications

Items Specifications	F3-8	F3-6
Center height mm	150	130
Center diameter of the spindle mm	Φ119.774	Φ80
Diameter of spindle shoulder mm	Φ212	Φ170
Divisions	2,3,4,6,8,12,24
Graduated disc of spindle	360°
Modules of worm and worm gear	1.5	1.25
Transmission ratio of worm and worm gear	1:90
Showed degree of worktable per revolution of worm	4°
Minimum value of vernier	10
Width of the locating key mm	16
Matched chuck	K31210A	K31167
24 divisions individual error	25
Worm gear dividing error	±60
Case dimensions mm	490×425×380	470×350×360

Packaging & Shipping

within 7 days in stock otherwise 30 days

Our Services

We have the following advantages:

1 . High quality and competitive price,

2 . Delivery in time can be guranteed since we have our own factory,

3 . Strict inspection during the process of manufacturing,

4 . Truested partners, we have been exported our products to more than 60 countries and regions worldwide.

We mainly manufacturing and supplying various of Tool Holders & Machine Tool Accessories, such as Collets Chuck Sets, Boring Heads Sets, Tapping ColletsSets, Keyless Drill Chucks and Integrated Chucks, Live Centers; Dividing Heads, Rotary Tables, Machine Vices, Magnetic Chucks and Lathe Chucks., etc. All these items are in series of different sizes.
