Haisheng HD Wifi Led Advertising Display Screen
Negotiable
MOQ: 1 Square Meter (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Haisheng
Model Number:
HSGD-O-F-P16
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Jumbo Led Billboard Programmable for Street Video BoardUS$ 688 - 4,990MOQ: 1 Square Meter -
Led Screen P10 Jumbo Led Billboard Programmable for StreetUS$ 688 - 4,990MOQ: 1 Square Meter
-
P16 P10 Led Programmable Billboard for SaleUS$ 688 - 4,990MOQ: 1 Square Meter
-
Advertising cn Xxx Video China JumbontronNegotiableMOQ: 1 Square Meter
-
Wholesale Led Signs United States 16mm Pitch 1R1G1B or 2R1G1BUS$ 500 - 1,500MOQ: 1 Square Meter
Place of Origin
Guangdong, China
Brand Name
Haisheng
Model Number
HSGD-O-F-P16
Usage
Outdoor
Tube Chip Color
Full Color
Display Function
Video
Pixels
16mm
Screen Dimension
custom-made
Specifications
1.Low power consumption2.Long life-solid state illumination
3.Easy installation
4.User-friendly software
5.IP-65 proof
Differentiate yourself from competitors with this full-color display engineered to reach the pedestrian and city traffic front door audience. Display text, graphics, logos and basic animation in 68 billion eye-catching colors
We offer several digital billboard specification options from our popular standard billboard sizes to totally customized displays, we can help you select the digital signage that will fit your needs. Choose from our many digital billboard specifications and sizes.
| Product | HSGD-O-F-P16 |
| Pitch | 16 mm |
| Solutions | 3906 dots/m2 |
| Sizes | 256*128 mm |
| Brightness | 8500 cd/m2 |
Main features of the professional module include:
- IP65 self-carrying aluminium modules choice
- Totally hidden cables, both for video input and power supply (no visible cables at all)
- Higher impact resistance front protection system
- Integrated working-hours counter
- Manual/automatic addressing on each single module
- Fast interchangeable LED boards from the rear side
- Fast, auto-centring and locking system that allows screen to be build by two people even on a unbalanced equal floor
- Rigging/Stacking frame allows to easily install the screen on the aluminium truss
- Plug&Play technology allows real-time visualization simply plugging the video transmission cable.
- High speed refresh rate to match today camera standards
- Special designed flight-cases to build up the screen without extracting modules from the boxes
- Standard Video Control System with vertual design make sure easy install and clearence
- Professional Video Control System with RGB Spectrum
- Cables between modules up to 15 meter
- Registered CX Display LED board design, with innovative materials and cooling technology
- LED boards front-side in auto-extinguishing polycarbonate with super-high contrast
- Serial ingress video 2,5 Ghz - BNC 50 Ohm
- Vertical traction: up to 15 modules
- Vertical compression: up to 20 modules
- Brightness and colour regulation (manual and automatic) on each module and LED board
- Modules?chromatic equalization (7 bits) to use simultaneously modules?purchased in different periods
- Integrated emergency stair
| Model | PH16 outdoor full color LED display |
| Pixel pitch | 16 mm |
| Pixel density | 3906 dots/m2 |
| Pixel configuration | 1R1G1B |
| LED specification | DIP546 |
| Module matrix (pixel dots) | 16*8 |
| Module size | 256*128 mm |
| Module power consumption | 35 W |
| Cabinet matrix (pixel dots) | 64*48 |
| Cabinet size | 1024*768*140 mm |
| Cabinet pixel density | 3072 dots |
| Protection level | IP65 |
| Cabinet weight | 50 kg |
| Best viewing distance | 16 m |
| Best viewing angle | 110° (H) 110° (V) |
| Max power consumption | 800 W/m2 |
| Control mode | Synchronization |
| Graphics card | DVI Graphics card |
| Drive mode | statci constant current drive |
| Exchange frame rate | ≥60 HZ |
| Refresh rate | ≥400 HZ |
| Grey grade | 4096 grade |
| White balance brightness | ≥6500 cd/m2 |
| Working environment temperature | -20°C - +50°C |
| Working voltage | AC 100-240 V, 50-60 Hz |
| Brightness adjusted way | Manual, 256 level; Auto, 8 level. |
| MTBF | ≥10,000 h |
| Screen lifetime | 100 000 h |
| Blind dot rate | 0.0003 |
| Computer operating system | WIN98, WINXP, WIN2000, etc. |
| Video signal | RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
| Control system | DVI Graphics card + sending card + receiving card |
| PC display mode | 1024*768 |
| Software | LED studio 5. with CE, ROHS, FCC Certification, ISO 9001 |

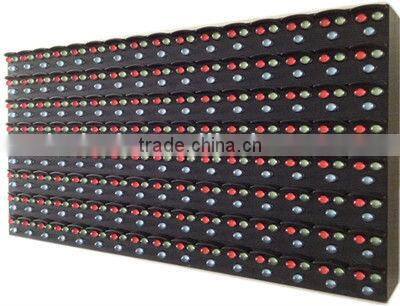

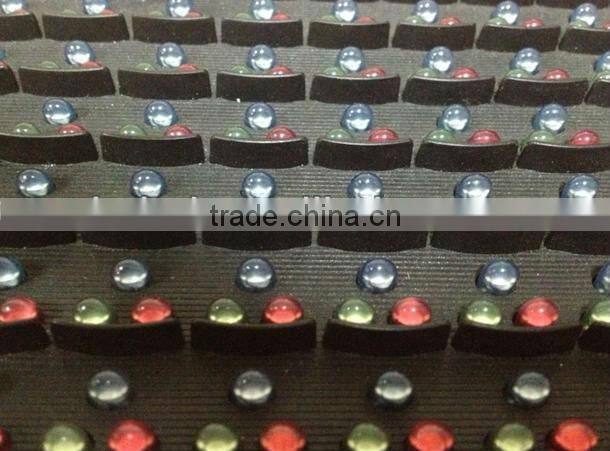

LED
Silan and OptoModule

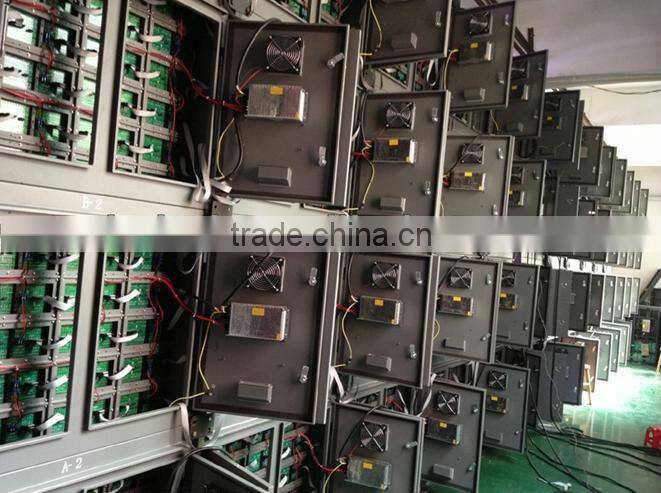

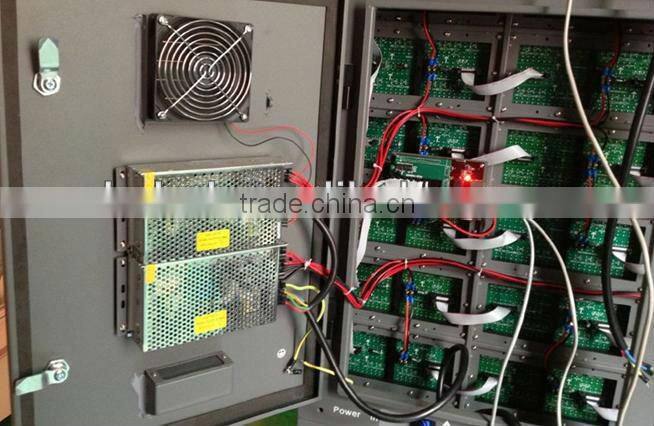

cabinet(many kinds of design cabinet)

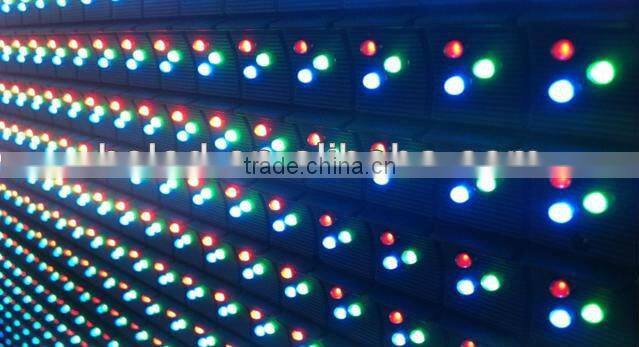

led display is aging
Aging

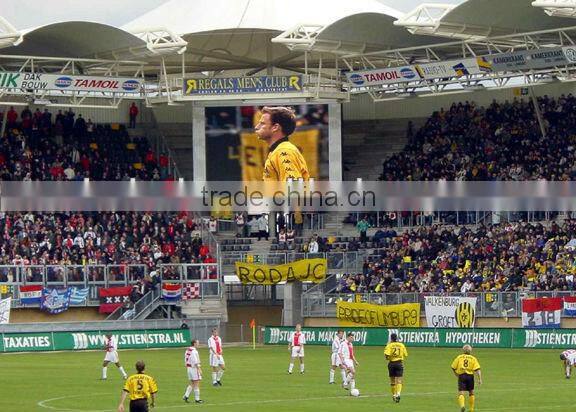

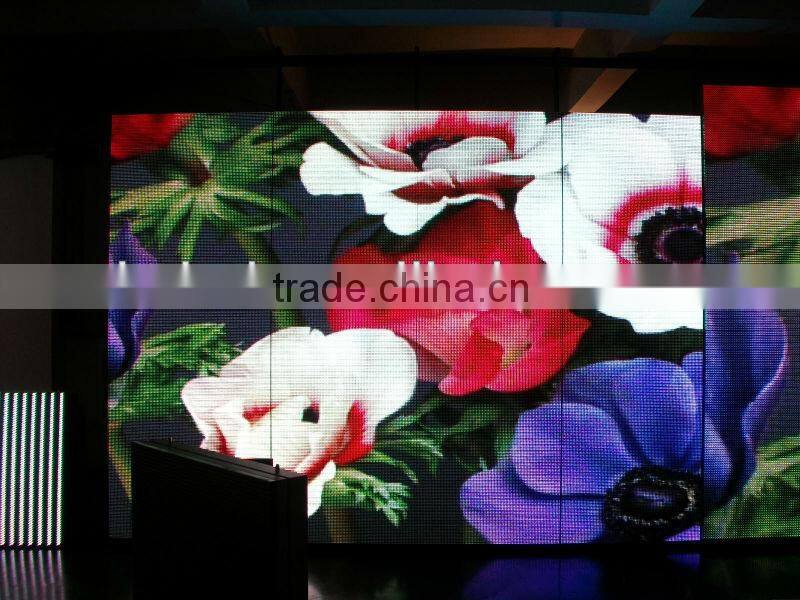

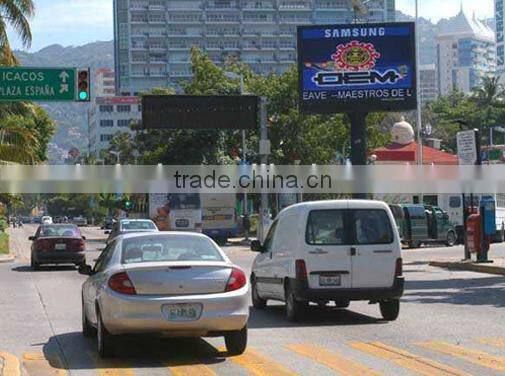

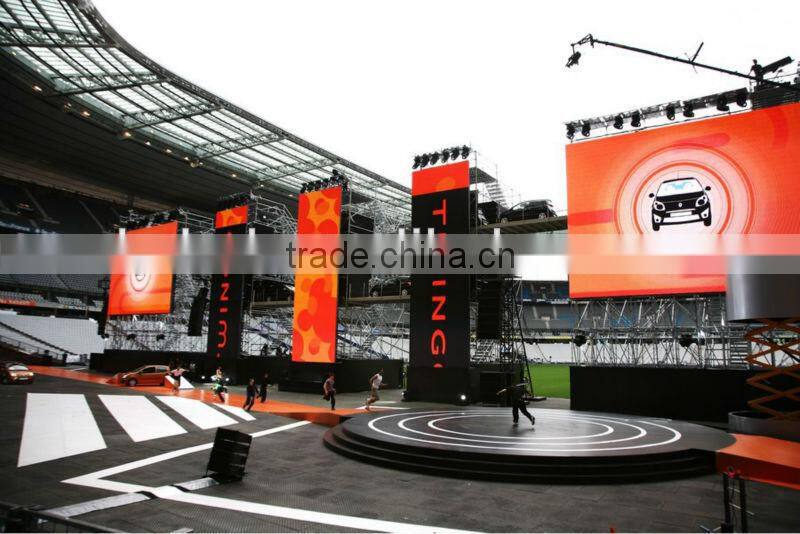

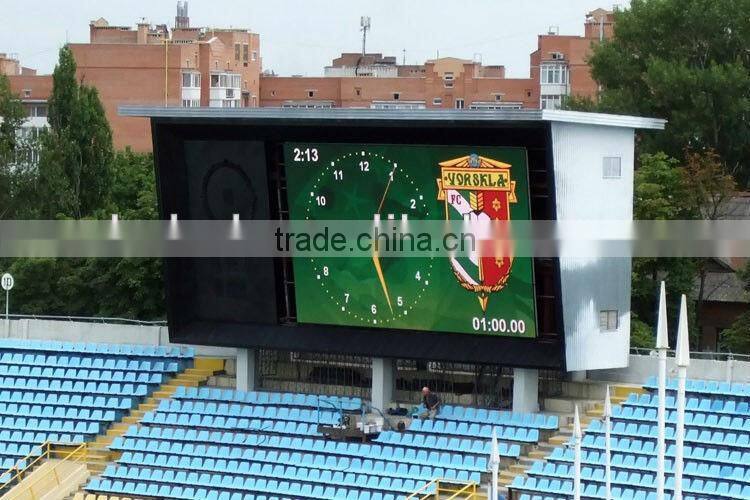

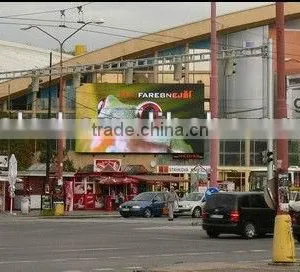

Case
