Home > Consumer Electronics > LED Display > Indoor LED Display > Wallmount P16 Led Advertising Display
Negotiable
MOQ: 1 Square Meter (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Haisheng
Model Number:
HSGD-O
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
P10 Outdoor Signle Color Or Full Color Bus LED Display ScreenNegotiableMOQ: 1 Square Meter -
New Design Waterproof Outdoor Curve Led PanelUS$ 500 - 1,500MOQ: 1 Square Meter
-
High Brughtness Dip Led Video Display BoardNegotiableMOQ: 1 Square Meter
-
Hot Sale Express Waterproof Led Video PanelUS$ 1 - 9,999MOQ: 1 Square Meter
-
Led Roadside Billboard Big tvNegotiableMOQ: 1 Square Meter
Place of Origin
Guangdong, China
Brand Name
Haisheng
Model Number
HSGD-O
Usage
Outdoor
Tube Chip Color
Full Color
Display Function
Video
Pixels
Other, 10.12.12.5.14.16.18.20.25.31.25mm
Specifications
1.p10/p12/p12.5/p14/p16/p20/p25/p31.252.5500nit-7500nits
3.iron and aluminum
4.2 years warranty
Model: P16 outdoor full color screen,video wall,led billboard,led gaint TV for advertising,commercial board
P16-1R1G1B/2R1G1B
Haisheng
LED
| | |
| led brand | opto and silan |
| red | 1100mcd/ 620nm-621nm |
| green | 2300mcd/520nm-521nm |
| blue | 500mcd/470nm-471nm |

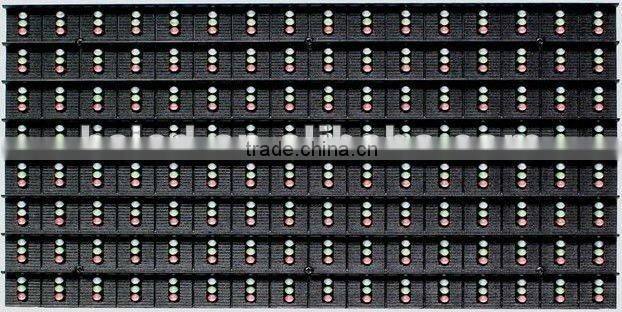

Module
| |
| led module size | 256mm*128mm |
Moudle Resolution(W×H) | 16dotsl*8dots |
| drive mode | static scanning |
| pixel density | 3906dots/sq.m |
Cabinet
Technical Specification(P16mm):
| Display and control feature | Structure feature | ||
| Specification | Parameter | Specification | Parameter |
| Pixel Pitch | 16 mm | Module size | 256*128 |
| Pixel composing | 1R1G1B | Display resolution/module | 16 dots*8dots |
| Wavelength (R) | 620±1 | Standard cabinet size | 1024 mm*768 mm |
| Wavelength (G) | 520±1 | Weight per sqm | 65 Kg/sqm |
| Wavelength (B) | 470±1 | Protection classification | IP65 |
| Wave Angle (H) | 140°(H)/ 60° | Install mode | Wallmount, hung and stand structure |
| LED package | DIP 346 | Cabinet Material | Iron/Aluminum |
| Density per sqm | 10,000 pixel | Working power | |
| Display color | 256*256*256 | Specification | Parameter |
| Whiteness brightness | ≥5500 | Working voltage | AC 220v/380v±10% 47~64Hz |
| Brightness level | 128 grade | Max power/sqm | 750W/sqm |
| Changing frame frequency | 60 Hz | Average power/sqm | 400W/sqm |
| Refresh | 480 Hz | Short circuit protection | Yes |
| Driving method | 1/4 Constant Driving | Led Lamp type | Nichia/Cree/Axt/Silan/Taiwan |
| Control mode | synchronous | Working environment | |
| Display port | DVI | Specification | Parameter |
| Display mode | 1024*768 /1024*1024 | Environment | Outdoor |
| Out of control | 1/10,000 ( scattered) | Working temperature | --20~50 |
| lifetime | 100,000 hours | Working Humidity | 10~90% |

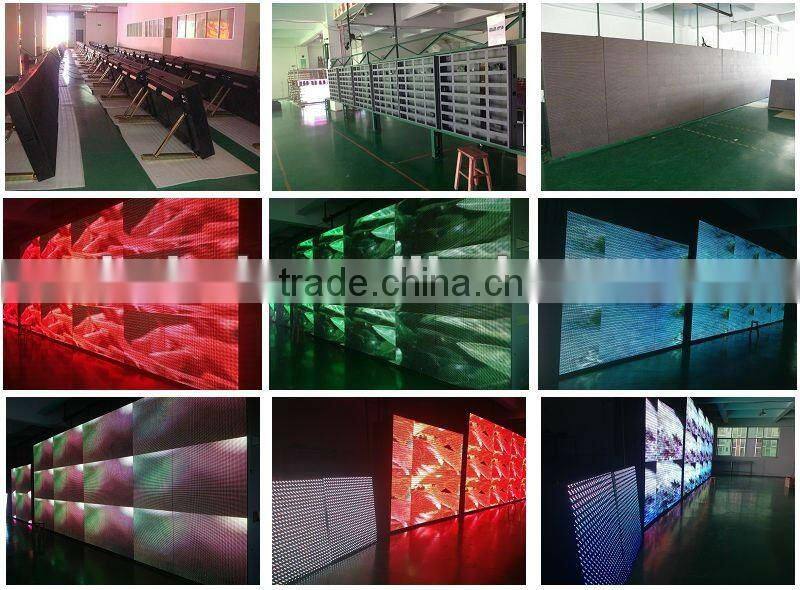

display aging and test
certification

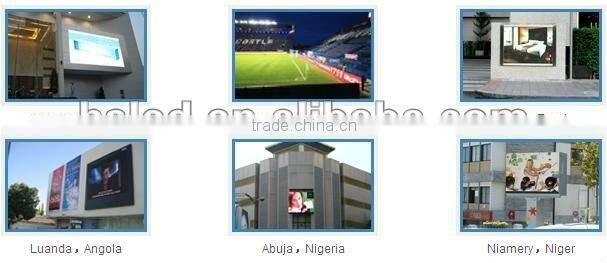

our case
