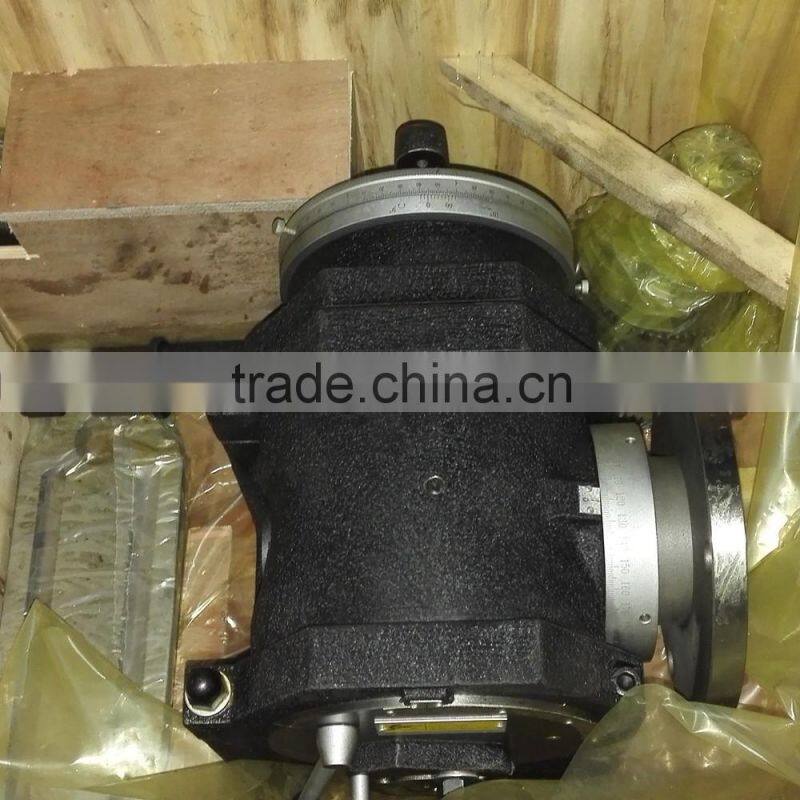

Help CenterF11-100A Universal Indexing Milling Dividing Head
Related Products
-
BS1,BS2 Semi-universal Milling Machine Dividing HeadsUS$ 300 - 500MOQ: 1 Set -
Milling Universal Indexing Dividing HeadUS$ 160 - 800MOQ: 1 Set
-
BS Serie SEMI-universal Indexing HeadUS$ 100 - 1,000MOQ: 10 Sets
-
Semi-universal Dividing HeadsUS$ 200 - 1,000MOQ: 10 Sets
-
Index Head Spiral Head F11 Series Universal Dividing HeadUS$ 1 - 1,000MOQ: 10 Sets
Semi-universal Dividing Heads types of BS0, BS1, BS2

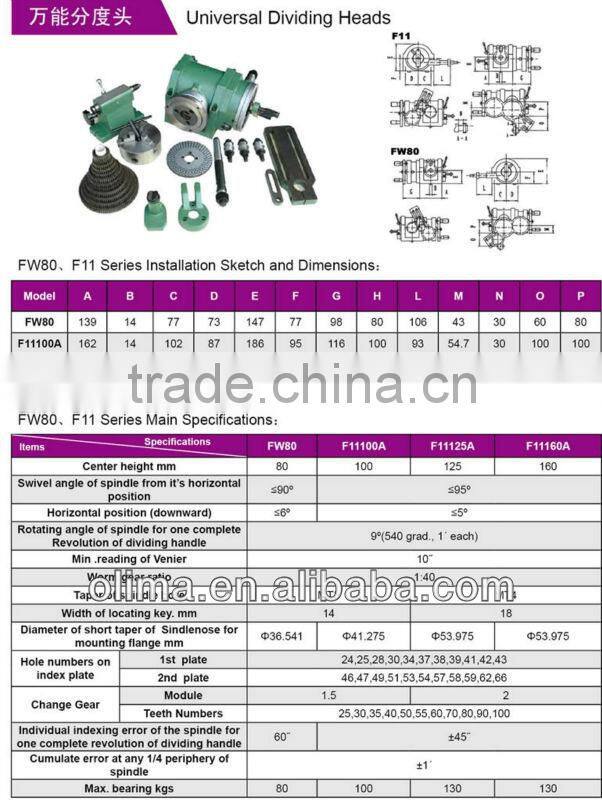

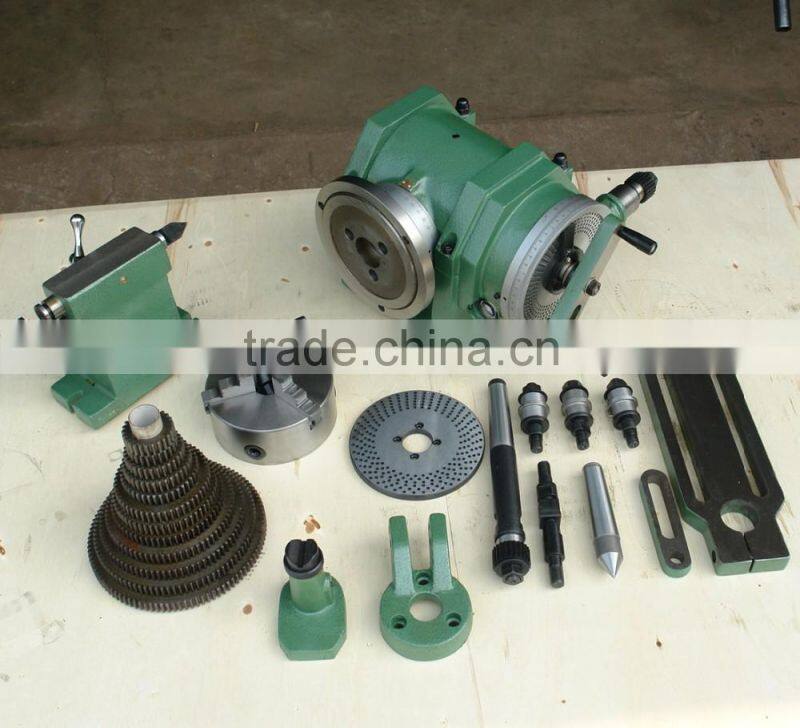

universal types: FW80 F11 100A 125A 160A

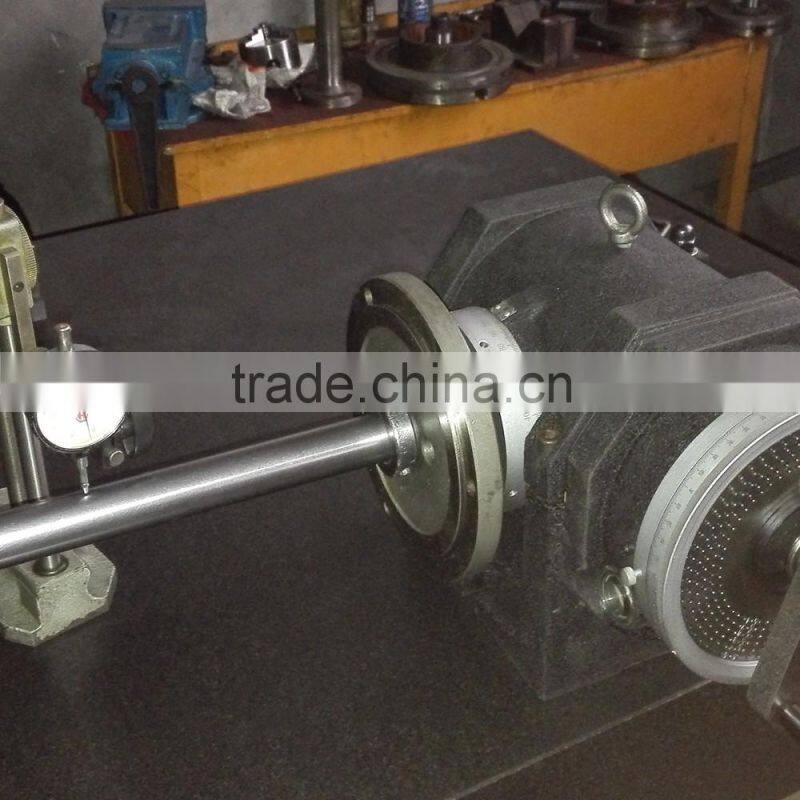

| Specification | F11 100A | F11 125A | F11 160A | |
| F12 100 | F12 125 | F12 160 | ||
| Swivel Hight mm | 100 | 125 | 160 | |
| Swivel angle of sindle from it's horizontal position (upward) | ≤95° | |||
| Horizontal position(downward) | ≤6° | |||
| Rotaing angle of spindle for one complete revolution of dividing handle | 9°(540 GRAD;1'each | |||
| Min. reading of vernier | 10" | |||
| Worm gear ratio | 1:40 | |||
| Taper of spindle bore | MT3 | MT4 | ||
| Width of locating key mm | 14 | 18 | ||
| Dia. Of short taper of spindle nose for mounting flage mm | 41.275 | 53.975 | 53.975 | |
| Hole numbers on index plate | 1st plate | 24,25,28,30,34,37,38,39,41,42,43 | ||
| 2nd plate | 46,47,49,51,53,54,57,58,59,62,66 | |||
| Change gear | Module | 1.5 | 2 | |
| teeth numbers | 25,30,35,40,50,55,60,70,80,90,100 | |||
| Individual indexing error of the spindle for one complete revolution of dividing handle | ±45" | |||
| Cumulate error at any 1/4 periphery of spindle | ±1' | |||

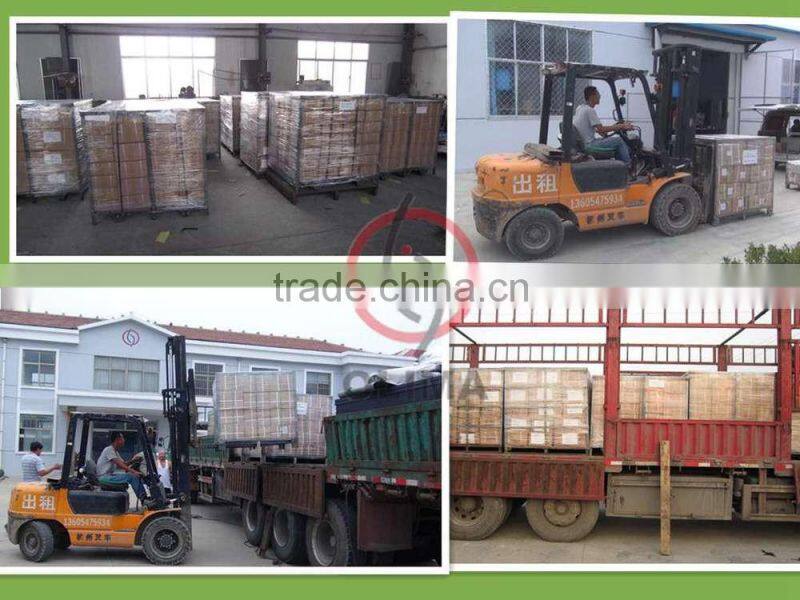

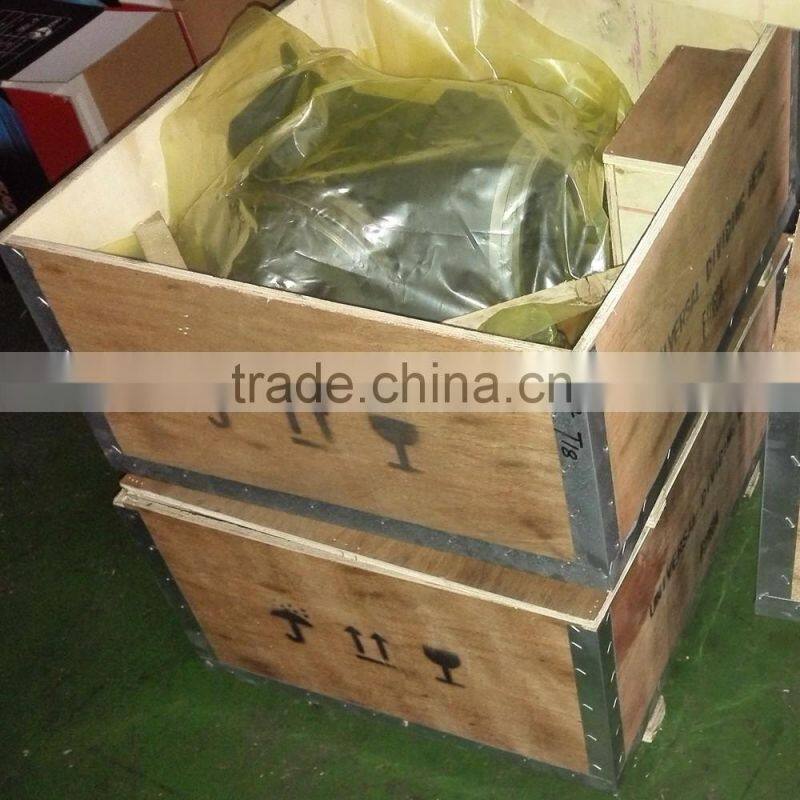

Packaging Detail: Cartons OR Wooden box
Delivery Detail: within 7days ,otherwise 35days
