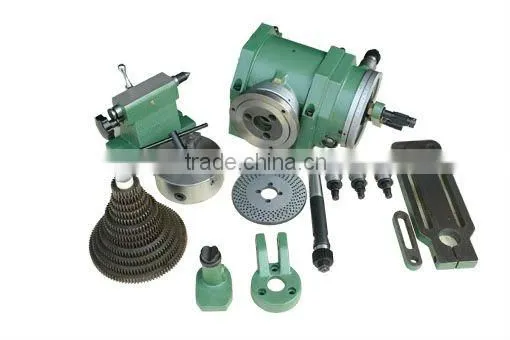

Name: Index Head Spiral Head F11 Series Universal Dividing Head
Brand: OLIMA
SKU: 121148025

ALL CATEGORIES

Index Head Spiral Head F11 Series Universal Dividing Head

Send Inquiry to This Supplier

Mr. Wenguo Lee

Manager

Shandong Sishui Oli Machine Co., Ltd.

Jining, Shandong, China

* Message

0/5000

* Email

Get quotes from multiple Verified Suppliers simultaneously.

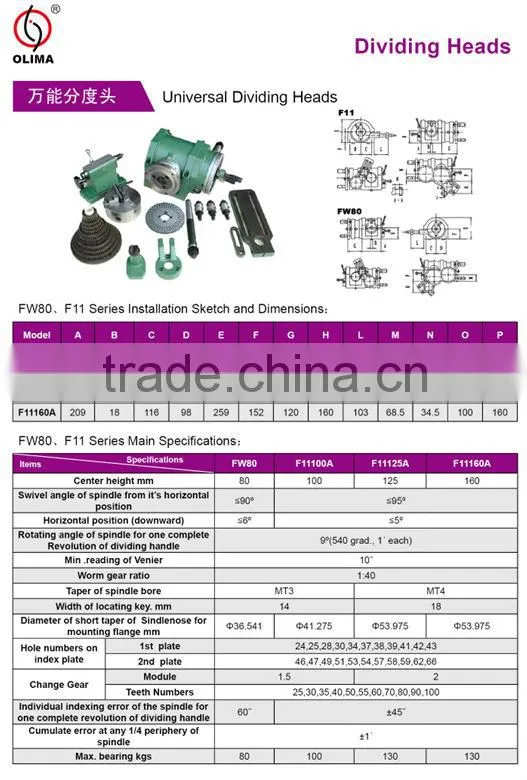

Specification		F11 100A	F11 125A	F11 160A
		F12 100	F12 125	F12 160
Swivel Hight mm		100	125	160
Swivel angle of sindle from it's horizontal position (upward)		≤95°
Horizontal position(downward)		≤6°
Rotaing angle of spindle for one complete revolution of dividing handle		9°(540 GRAD;1'each
Min. reading of vernier		10"
Worm gear ratio		1:40
Taper of spindle bore		MT3	MT4
Width of locating key mm		14	18
Dia. Of short taper of spindle nose for mounting flage mm		41.275	53.975	53.975
Hole numbers on index plate	1st plate	24,25,28,30,34,37,38,39,41,42,43
	2nd plate	46,47,49,51,53,54,57,58,59,62,66
Change gear	Module	1.5	2
	teeth numbers	25,30,35,40,50,55,60,70,80,90,100
Individual indexing error of the spindle for one complete revolution of dividing handle		±45"
Cumulate error at any 1/4 periphery of spindle		±1'

Index Head Spiral Head F11 Series Universal Dividing Head
