Video Display Function and Outdoor Usage led outdoor display
| Pixel Pitch | 16mm |
| Type | DIP346 |
| Arrangement | 2R1G1B |
| Brand | Epistar |
| Chip parameters | Red (620-625nm) IV:(1000-1200mcd) |
| Chip parameters | Green (520-525nm) IV:(2000-2500mcd) |
| Chip parameters | Blue(470-475nm) IV:(500-650mcd) |
| Module Resolution | 16×8=128(Dots) |

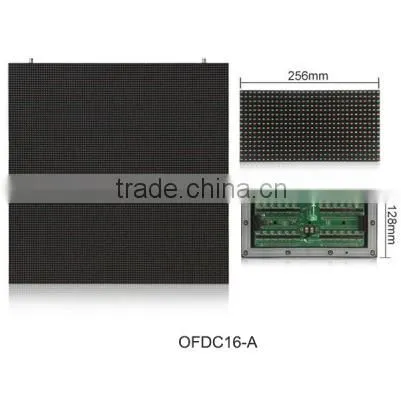

| Module Size | 256×128mm |
| Module Weight | 0.75kg |
| Pixel Density | 3906 Dots/sqm |
| Cabinet Resolution | 64×64=4096(Dots) |
| Cabinet Dimension(W*H*D) | 1024×1024×185mm |
| Module Quanty /Cabinet | 4×8=32(Pcs) |
| Cabinets Material | Steel |
| Cabinet Weight | 54kg |
| Brightness | >8500cd/sqm |
| Viewing Angle | 110(Horizontal), 55(Vertical) |
| Nearest Viewing Distance | 19m |
| Power Consumption (Max) | 800 w/sqm |
| Power Consumption (Average) | 250 w/sqm |
| Display Function | Text, Graphics, Video |
| Refresh Rate | >1000Hz |
| Drive Mode/Driver Position | Static Separated driver board |
| Frame Frequency | no less than 60 frame/sec |
| Input Voltage | AC110-220V±10%, 50/60Hz |
| Output Voltage | DC-5V, 40A/60A/80A |
| Color Grayscale | 16bit |
| Gray Scale per Color | 65536 level |
| Color Processing | R(1024)×G(1024)×B(1024) |
| Brightness Adjustment | 256 color levels, can be adjusted manually and automatically optional |
| MTBF( mean time between failures) | 5000 hours |
| Life-span | 100, 000 hours |
| Protection Level(front/back) | IP66/IP54 |
| Malfunction Dot Rate | less than 0.0001 |
| Working Temperature | -30oC~50oC |
| Humidity | 15%~85% |
| Control Mode | Synchronization/Asynchronization |
| Control System | Sending Card, Receiving Card, Receiving HUB |
| Software | LED Studio(HSTV-linsn) |
| Language | Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic,Korean,German |
| Control Card Input | DVI, USB, RJ45, HDMI(Sold separately) |
| Input Signal | AVI/MPG/MPEG/TXT.etc |
| PC Operating System | Microsoft Windows 10 ,Windows 7 and XP |
| Communication Type | Net cable; 3G, WIFI(Sold separately) |
| Certificate | CE, ROHS, FCC, ISO9001, TUV |
DIP Full Color Outdoor Advertising LED Display
The high resolution LED screen is known for displaying great quality pictures and videos to a broader audience. Highly usable for outdoor advertising such as banks, stages, promotion, exhibitions, highways, stations, stadiums and other outdoor areas.

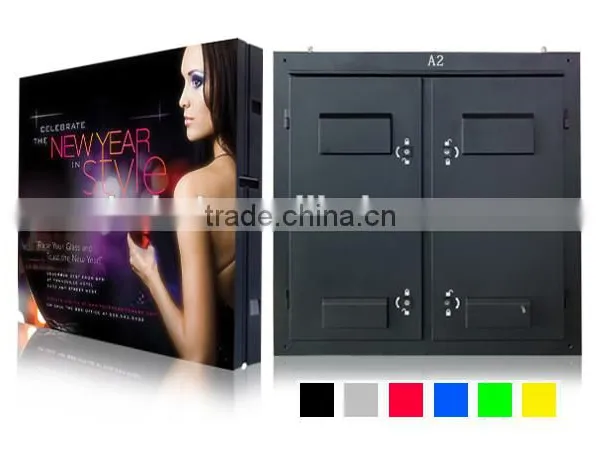

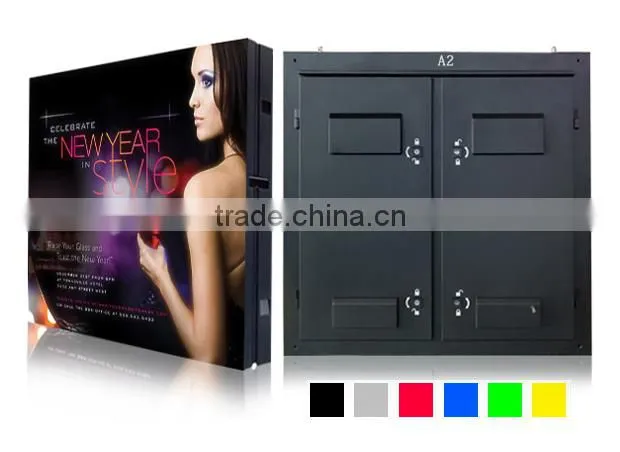

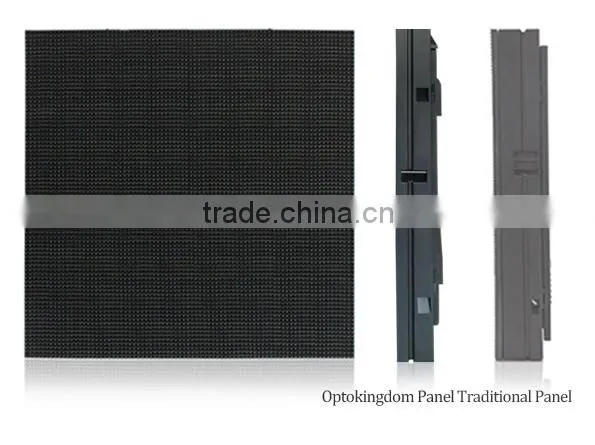

Unique Design - Easy to Install & Transport
The cabinet of Large Advertising LED Screen features unique rugged design which makes it easy to carry and install. The lightweight cabinet is easy to carry and saves transportation cost. It's damage free and lasts for a lifetime. Pick out from different standard colors of cabinets.
Careful Product Installation
Each and every single part of the display is watchfully installed by our engineers. Also, great care is taken in material selection and product assembling. This ensure the ultimate product you get are better than your expectations.

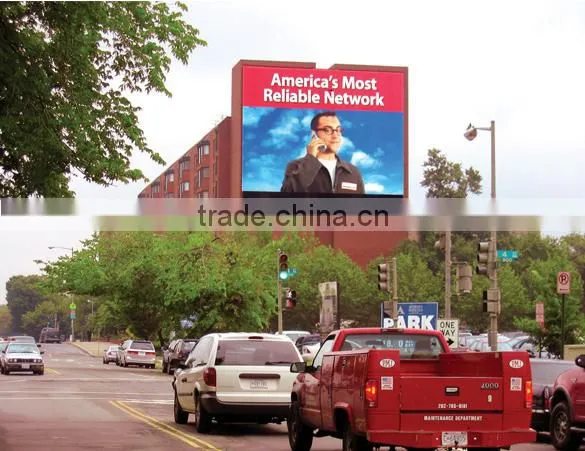

Outstanding Outdoor Performance
The displays are created for supreme quality outdoor performance, and it delivers the same with perfection. See pictures, videos, text and much more with every detail. The high resolution display offers picture-perfect outputs in outdoor areas - in any environment conditions.
Get Every Detail in Picture
We spend some time with every detail of the product, so that you can enjoy every detail of your marketing pictures. The pixel-perfect pictures are a treat to watch. It means, you will not miss any detail in the picture, video or text displayed on the screen.

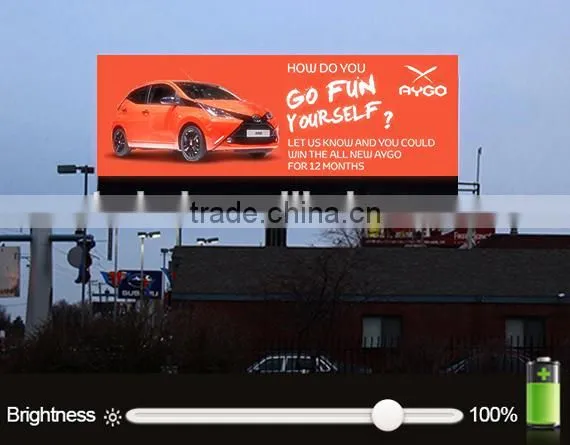

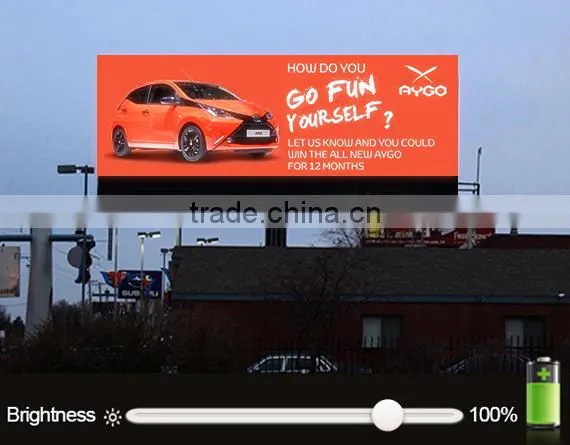

High Brightness, Better Quality
Installing at outdoor places require the displays to produce high brightness outputs. The high brightness and high definition features of the Large Advertising LED Screen ensures great quality pictures - making it a perfect fit for stage, banks, highways, promotion, station, stadium and other outdoor places.

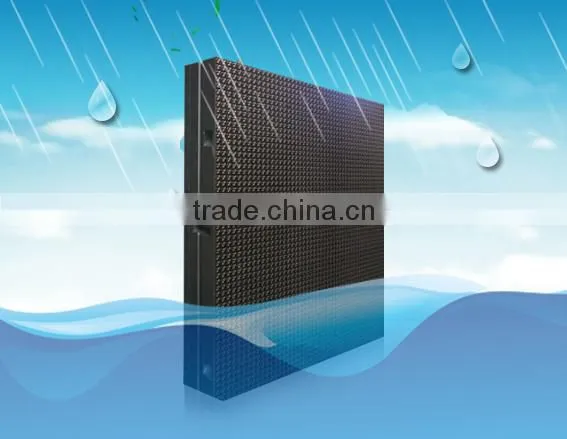

High IP Rating IP66 - Safe and Reliable
The special waterproof design of Large Advertising LED Screen protects it from water and dust. When installed in outdoor areas, protection is a serious matter. Special guard protects it from environment dangers. High IP Rating IP66 ensures great quality outputs in every condition.
High Refresh Rate
The Large Advertising LED Screen is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate. It features a high refresh rate of 1000Hz, producing best quality outputs in form of pictures, videos and texts.

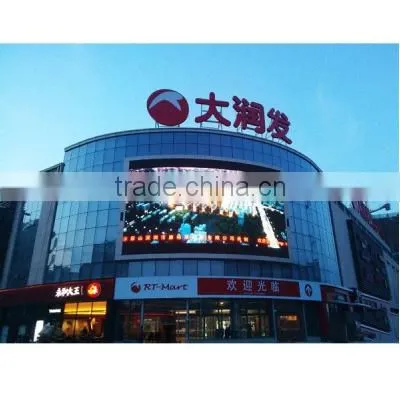

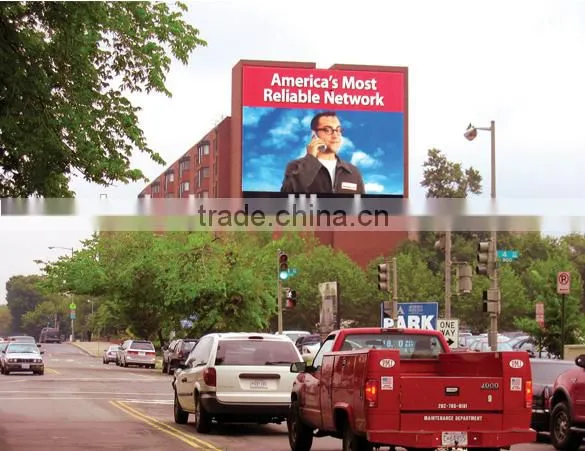

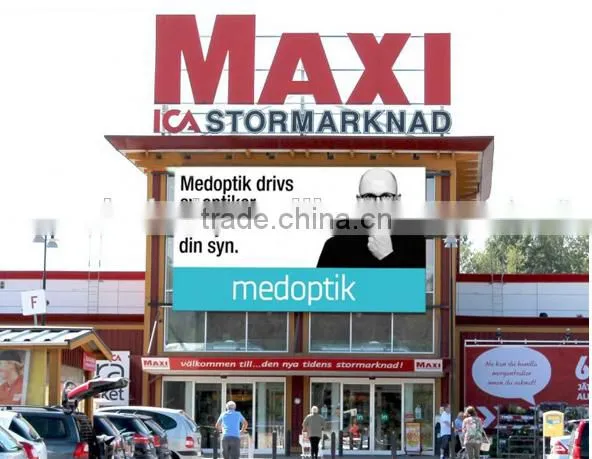

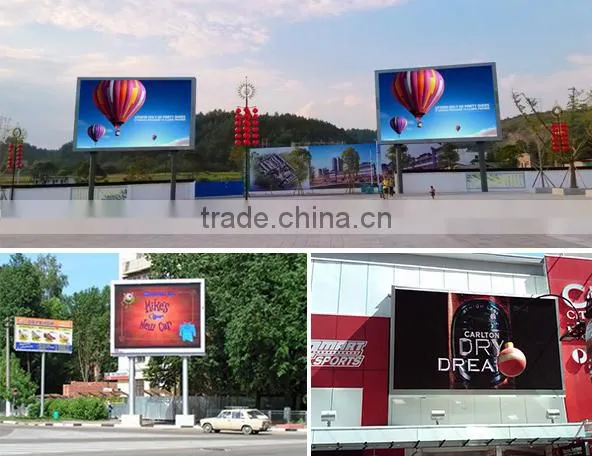

Application

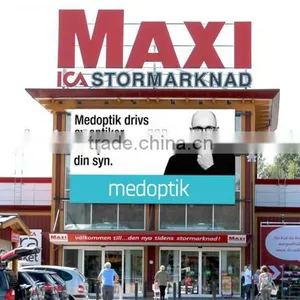

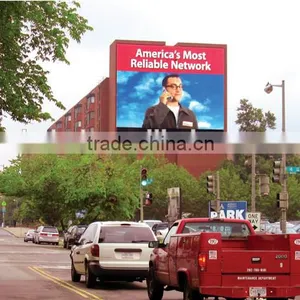

The Large Advertising LED Screen can be used for many purposes and at many places. It can be used for advertisement, banner display, demonstration, video displays, educational purposes and much more. You may use it at outdoor areas like highways, streets, malls, stages, stadium, KTV, airport and at many more outdoor places.
Our Company Building
Our company is built on values, and those values reflect from our product quality, support service and customer care. Have a look at our company building. This is the place where we create best quality products that have passed certifications like CE, FCC, RoSH and SGS and many more.
Best Quality Guaranteed
Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality products.
Best After-sale Service
If your Large Advertising LED Screen is defected and is in warranty period, we offer you free accessories for the product. Whenever you need us, we are always there for you. Our support staff is more than willing to assist you for any query or concern. Feel free to contact us any time.
