Specifications
1.1R2.Taiwan opto
3.picth 10mm
4.2 years warranty
P10 Red Color LED Sign
1. Function :

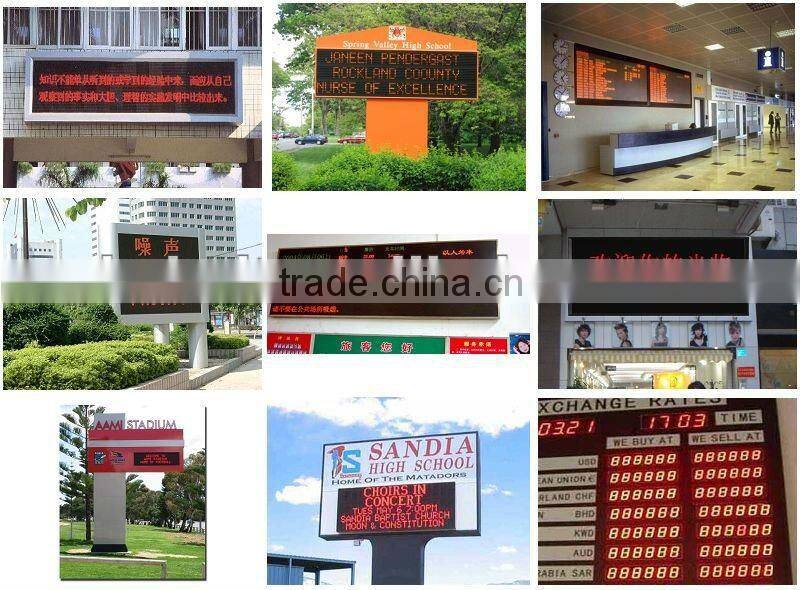

It can be used in the traffic environmetns, such as bus station, airport, highway and so on as the guiding system. And it can also be used in banks, estate, stock to show the information of stock, exchange, estate and so on. Also, it is very popular in shops, gym, postoffice, hotel etc to show the important information.
2. Technology Character :
(1) Adanced digital techonlody for vedio.
(2) Distributing scanning method and modularity in designs.
(3) Constant static driving method and the brightness can be adjusted by itself.
(4) Super brightness and pure pixels
(5) Clear pictures with distortion and doubble images.
(6) Can show vedio, cartoon, graph, letters, pictures and so on.
(7) Can be controlled by Lan remotely.

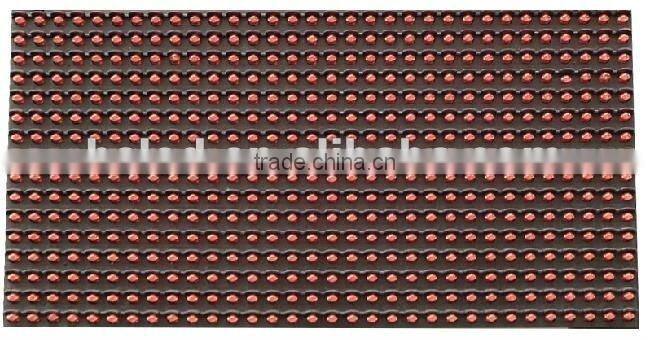

3. red module

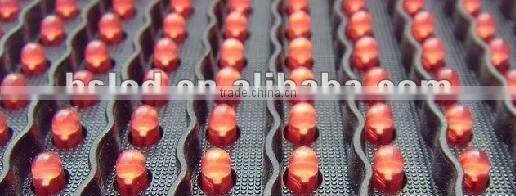

when lighting up
4.specification
|
LED lamp |
chip |
Genelite, TaiWan Opto, Silan or according to your need |
Encapsulation Form |
R: DIP 546 |
|
brightness |
R: 625± 2.5nm |
|
wave length |
R: 600mcd |
|
| ||
|

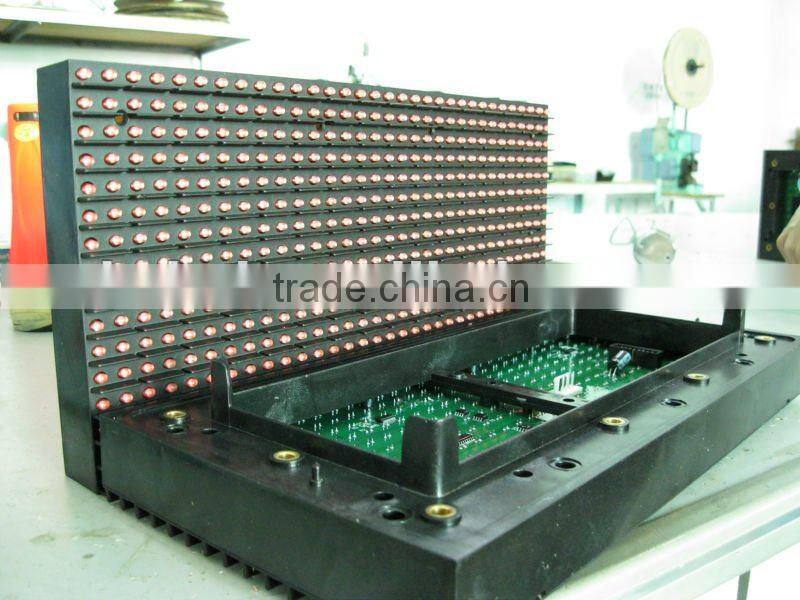

LED Module |
Pitch |
10mm |
pixel configuration |
1R |
|
Module size |
320mm×160mm |
|
resolution |
32dots(W)*16dots(H) |
|
weigh |
0.74kg/pc |
|
| ||
|
LED Cabinet (Standard) |
Resolution |
64dots(W)*64dots(H) / 96dots(W)*96dots(H) |
Size |
640mm(W)*640mm(H) / 960mm(W)*960mm(H) |
|
Cabinet material |
Iron |
|
Module quantity |
2pcs(W)*4pcs(H) / 3pcs(W)*6pcs(H) |
|
Weigh |
Less than 75kg/sqm |
|
| ||
|
LED display |
Pixel density |
10000 dots/m 2 |
Drive mode |
constant current |
|
Scan style |
1/4 scanning |
|
Brightness |
1200cd/sqm |
|
MTBF |
≥1, 000 hours |
|
Life span |
≥100, 000 hours |
|
Blind Dot Percentage |
<0.00001 |
|
Best Viewing Distance |
10-100m |
|
Viewing Angle |
120degree (horz.), 60degree (vert.) |
|
Working temperature |
-20deg - +50deg |
|
Stock Temperatur |
-35deg~+85deg |
|
Relative Humidity |
10% to 90% |
|
Average power consumption |
100 W/m 2 |
|
Max power consumption |
250W/m2 |
|
Refresh Rate |
≥400Hz |
|
Frame Frequency |
60Hz |
|
| ||
|
Ingress protection |
Front: IP65 Rear: IP21 |
Voltage |
AC220V/50HZ or AC110V/60HZ |
|
File format supported |
TXT, graphics |
|
Control distance |
LAN wire: 100m multi-model fiber: ≤ 500m single-model fiber: ≤ 15km |
|
Assembly |
Quick assembling structure makes it convenient to install and uninstall rapidly without any traditional manual tools Separated control system per cabinet |
|
Protection |
Over-current protection, short current protection, over-load protection, and short-load protection |
|
Guarantee |
Two years warranty |
|
p10 red color display sign
