Cheap super mini RFID wireless data transfer module 50-80m induction distance can be customized

Specifications

We produce MODULE ! CUSTOM-MADE module is OK! Our factory produce your own board! Change / modification is accepted!

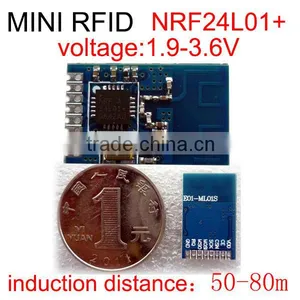

RFID mini size NRF24L01 / wireless module / active wireless data transmission RFID CC2500

-----------------------------------------------------------------------------------------------------------------

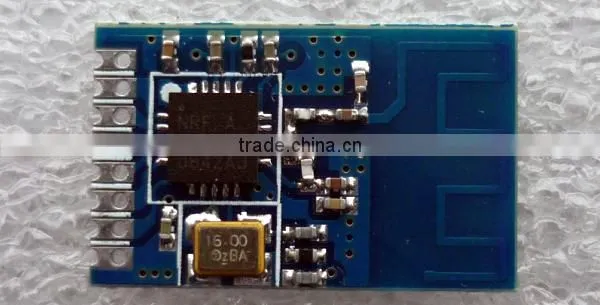

PRODUCT PICTURE

------------------------------------------------------------------------------------------------------------------
PRODUCT FEATURES

Product use:

Mouse and keyboard, wireless headphones, intelligent motion device, remote control device, a voice application, safety devices, VOIP application, toys, intelligent Home Furnishing, wireless sensor, alarm, high speed data transmission, and other short distance wireless application of near distance;

Development board to almost all of the market, pins are compatible and the module, can directly replace, you don't have to suffer price in order to support! Fully supporting, better performance!

Other similar modules:

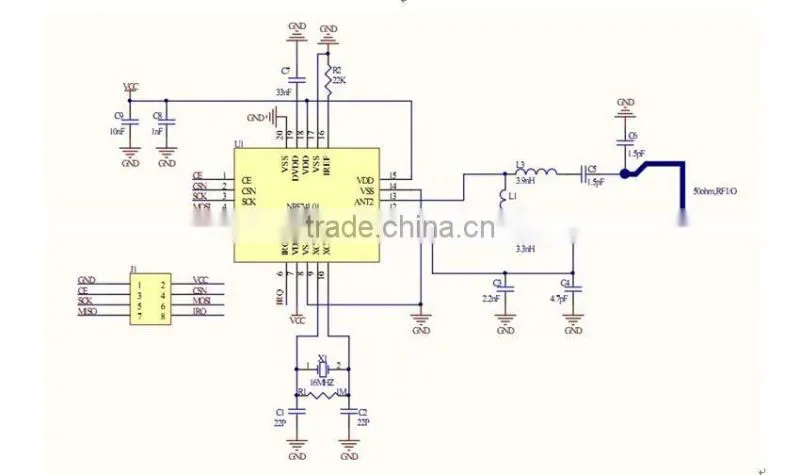

Module with SPI interface, external microcontroller communicate through SPI and module, to complete the configuration register and read, to complete the wireless data transceiver. We will provide examples and data.

Module power supply voltage must be 1.9-3.6V, if the use of 5V microcontroller IO driver, please 1K series resistance, avoid damage.

Near the antenna, do not place metal objects have obvious influence on the antenna; the module placed in metal shell sealing, the distance will be greatly reduced.

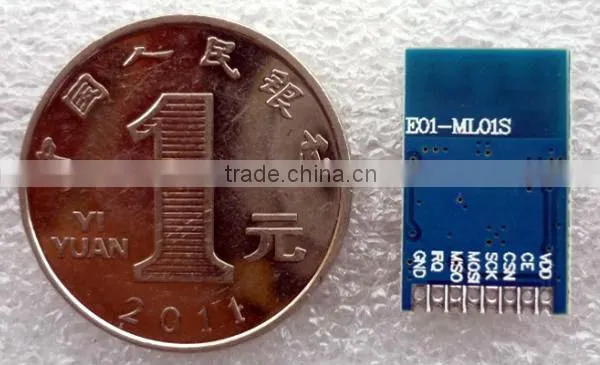

This module requires at least 2 only, can communicate with each other, and pin nRF24L01+PA+LNA module we are fully compatible, can also exchange.

Advantage:

The 0402 version, with Murata holding device, 10ppm high schedule imported crystal, the performance of the module to achieve excellent, and small size.

Module open transmission distance is 50-80m, room 10-15m, vary according to the circumstances, only for reference.

This module Taobao than ordinary version on Nordic, as well as the official version, performance much better. The main reason is the production of material, and an antenna design.

This is in-line nRF24L01P module in full Taobao minimum volume, really is used with + chip model, rather than the Shenzhen wide L01 substitute.

This module design and technology, already mature, have high volume applications, please rest assured that the use of. Module production also totally geodesic, rather than sampling methods in general.

Pin compatibility Taobao on other modules, can be directly to upgrade and replace, make your device to achieve better performance. But the price is very cheap.

Only crystal a, 8-10 times the cost is the common module, Japan Murata inductance and capacitance element, more than domestic components can match. Of course, brings the high frequency and high performance.

-----------------------------------------------------------------------------------------------------------------
SHIPPING TERMS

1.Ship to whole world : DHL , UPS, FEDEX, EMS, HKPOST, SGPOST,SWPOST

2.Lead time:2days. If we don't have stock at that time, it takes 2-4days to produce it.

 ------------------------------------------------------------------------------------------------------------------
PAYMENT TERMS

1.We accept PAYPAL, TT, WESTERN UNION, ESCROW

2.Commission:
   *Paypal: total sum *0.041
   *Escrow: total sum *0.05
   *TT: $28-$45(according to amount)
   *Western union: $0

-------------------------------------------------------------------------------------------------------------------
GUARANTEE PERIOD

    3 Months, if the quality have any problems, We have a good after sale

service team will slove the quality problems for you.

1.If you test the products and it doesn't work, pls keep it and send it to us in

   1 month, we will send the good one to you with the following order.

2.If the product is already used by you, then no warranty.

3.If the product is broken by man-made, then no warranty.

----------------------------------------------------------------------------------------------------------------------
CONTACT US

SKYPE:aimeehe2011  Cellphone:13760273376
