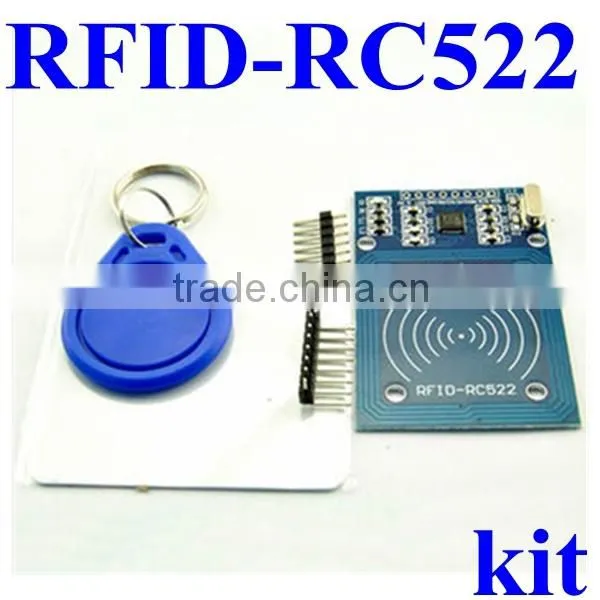

Help CenterMFRC522 RFID RF IC Card Module Kits With Free S50 Fudan Card Key Chain
Related Products
-
RF Transmitter and Receiver Module Switching Signal Output With Remote Controller (2 Buttons on and off ) 3.3v-5vUS$ 0.1 - 1MOQ: 5 Pieces -
New Product ! FM Stero Transmitter Module/board Dc3-16v 3mw 16mA,power-off Memory Function ,76-108Mhz,adjustable Input VolumeUS$ 3.2 - 3.93MOQ: 5 Pieces
-
NEW FM Stereo Transmitter Module DC3-16v 3mW 16mA, Campus Radio FM Transmitter Wireless Microphone 76-108Mhz,non-volatile MemoryUS$ 3.2 - 3.93MOQ: 5 Pieces
-
433Mhz RF Link Kit RF Transimitter and Reciever ModuleUS$ 0.1 - 5MOQ: 5 Pieces
-
4 Digital LED Display Module ,Adjustable Brightness Module With ClockUS$ 1.82 - 1.98MOQ: 5 Pieces
MFRC522 is applied to 13.56MHz contactless communication highly integrated chip card reader, is NXP for the "Three Tables" application launch of a low-voltage, low-cost, small size and non-contact card reader chip, smart instrumentation and portable handheld devices developed better choice. MF RC522 using advanced modulation and demodulation concept completely integrated in all types of 13.56MHz passive contactless communication methods and protocols. Support 14443A compatible transponder signals. The digital part handles ISO14443A framing and error detection. In addition, support fast CRYPTO1 encryption algorithms, terminology validation MIFARE products. MFRC522 supports MIFARE Series higher speed non-contact communication, two-way data transfer rates up to 424kbit / s. As a highly integrated 13.56MHz card reader new family of chips, MF RC522 MF RC500 and MF RC530 and there are many similarities, but also have many features and differences. It is between the host communication using SPI mode, helps to reduce connection, reduce PCB board size and cost.
Working current: 13 - 26mA/ DC 3.3V
Idle current: 10-13mA/ DC 3.3V
Sleep current: <80uA
Peak current: <30mA
Working frequency: 13.56MHz
Supported card type: S50 Mifare1, S70 Mifare, UltraLight Mifare1, Pro Mifare, Desfire Mifare
Product physical characteristics: size: 40mm x 60mm
Ambient operating temperature: -20 - 80 degrees Celsius
Environmental storage temperature: -40 - 85 degrees Celsius
Environment relative humidity: relative humidity 5% - 95%
SHIPPING TERMS
1.Ship to whole world : DHL , UPS, FEDEX, EMS, HKPOST, SGPOST,SWPOST
2.Lead time:2days. If we don't have stock at that time, it takes 2-4days to produce it.
------------------------------------------------------------------------------------------------------------------
PAYMENT TERMS
1.We accept PAYPAL, TT, WESTERN UNION, ESCROW
2.Commission:
*Paypal: total sum *0.041
*Escrow: total sum *0.05
*TT: $28-$45(according to amount)
*Western union: $0
GUARANTEE PERIOD
3 Months, if the quality have any problems, We have a good after sale
service team will slove the quality problems for you.
1.If you test the products and it doesn't work, pls keep it and send it to us in
1 month, we will send the good one to you with the following order.
2.If the product is already used by you, then no warranty.
3.If the product is broken by man-made, then no warranty.
