Home > Consumer Electronics > LED Display > Indoor LED Display > Cheap Full Color Led Screen Outdoor P13.33 DIP Video Wall Designed by Haisheng Factory

Cheap Full Color Led Screen Outdoor P13.33 DIP Video Wall Designed by Haisheng Factory

Name: Cheap Full Color Led Screen Outdoor P13.33 DIP Video Wall Designed by Haisheng Factory
Brand: HaiSheng
SKU: 121143333
Availability: InStock

Cheap Full Color Led Screen Outdoor P13.33 DIP Video Wall Designed by Haisheng Factory thumbnail-1

Cheap Full Color Led Screen Outdoor P13.33 DIP Video Wall Designed by Haisheng Factory photo-1

Negotiable MOQ: 1 Square Meter (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

HaiSheng

Model Number:

HSGD-O-F-P13.3

Contact Supplier Request Quote Chat Now

Shenzhen Haisheng Led Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name HaiSheng

Model Number HSGD-O-F-P13.3

Usage Outdoor

Tube Chip Color Full Color

Display Function Video

Pixels Other, 13.3MM

Screen Dimension customized size

Specifications

1.new Cost effective item
nical support
3.Brighter, IP65
4.CE,ROHS, FCC
5.Lower power consumption

Cheap full color led screen outdoor P13.33 DIP video wall designed by Haisheng factory

P13.33 product positioning:

With the serious competition of LED display market, we develop P13.33 by ourselves. As a new item,

P13.3 has the advantage on the price comparing with P10, P12.5, P16, but its power consumption

is 200 w/sq.m, IP 65 and bright above 6500nits, longer view distance 13.3m - 100m, life span 100000 hours.

Item		Specifications
LED Lamp	Type	13.3 mm dismeter high brightness LED lamps
	Arrangement	1R,1G,1B
	Red Wavelength (dominant)	625nm-627nm
	Green Wavelength (dominant)	523nm-525nm
	Blue Wavelength (dominant)	475nm-477nm
LED Cabinet	Dot Pitch	13.3 mm
	Physical Pixel	5640dots/sq.m
	Module size	320*160
	Module pixel	24*12
	Resolution	72*72pixel
	Dimension	960*960mm
	Brightness	above6500nit
	Viewing Angle	110(Horizontal),55(Vertical)
	Best Viewing Distance	13.3~150 meters
	Power Consumption (Max)	600 w/sq.m
	Power Consumption (Typical)	200 w/sq.m
	Weight	50 Kgs/sq.m
	Frame Frequency	no less than 60 frame/sec
	Refresh Rate	no less than 800 HZ/sec
	Voltage	220/110 VAC, 50/60 Hz
	MTBF	5000 hours
	Life Pan	100,000 hours
	Protection Level	IP 65
	Malfunction Dot Rate	less than 0.0001
	Working Temperature	-20°C~65°C
	Humidity	10%~99%
Control System	Drive Mode	1/3 constant current
	Control Mode	synchronous /asynchronous
	Control System	PCTV Board + DVI Board + Control Board + Network cable Transmission
	Software	LED Studio (LINSN)
	Input Signal	RF,S-VIDIEO,RGB,RGBTV,YUT,YC,COMPOSTITION
	PC System	Win2000,Win XP, 7, 8 etc
Features	- GENELITE /CREE lamp with uniform color and high reliability - Super brightness, long and wide viewing distance - Automatic pipelining production - Use static-constant current for smooth and nature color transitions - Outstanding consistency in color and brightness, no Mosaic effects - Special structure design for water-proof and mothproof - Modular design for easy installation and maintenance - Operating software compatible with widely available software - Can be designed hanging system to satisfy special conditions

About Haisheng:

Shenzhen Haisheng Optoelectronic CO., LTD is a professional LED display, HSTV manufacturer.
It is a high technology which is specialized in researching, designing, manufacturing and exporting
all kind of LED products. We have our own professional R&D department, engineers, sales department,
experienced QC and workers.

Currently we design and produce our new type of products, such as HSTV, double
sided led display, one whole body outdoor advertising led display, one whole body led window display.

We focus on looking for the best solution for every customer’s projects and also glad to see that we receive
good feedback and win long term relationship. Win-win business is what we pursue all the time.

Advantageous descriptions:
1. professional technical support + quality promise
2. CE ROHS FCC ISO9001 certificate
3. Alibaba + TUV assessment supplier approved
4. 2 year waranty + 1 set of spare part for free

Basic promise from Haisheng:
A: Full automatic production to control our high quality, best color consistency and get better performance.
B: Energy saving, low power consumption and long lifespan 100,000 hours (about 10 years).
C: We guarantee that the equipment we provide are brand new, complete and unused.
D: Good heat dissipation capability and high waterproof because of the unique design of vent fan (like shutter).
E: Our quality control throughout every process from materials-production- test-package-delivery

After sale service:

1) Guidance service: We can guide on line if customers have questions about the installation and usage.

For large project, we provide your engineer a week free training, or if customer could bear the relevant cost, our engineer can go to customer’s country for on-site guidance.

2) Warranty period: 2 years after shipment.

3) Maintenance principles: response in time, solve problems as soon as possible and ensure the use.

4) Maintenance terms: In the Maintenance period, free of all maintenance charges. Under normal use and storage, our company will be responsible for the equipments. If there is any failure in product quality, our company will maintain and change the components for free.After Maintenance period, only charge the material costs free of manual work fees.

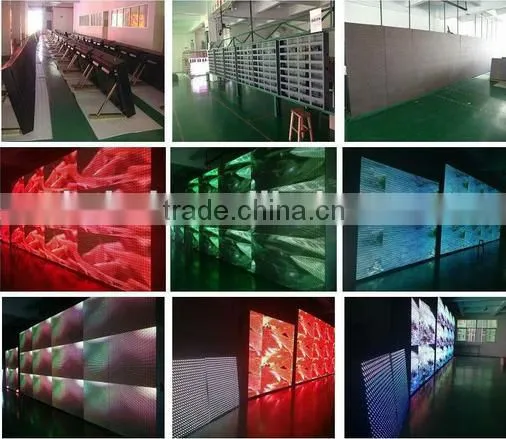

Factory Gallery:

Quality control steps:

Materials management - SMT - LED plug in - wave soldering - welding, LED angle and flatness inspection - PCD assemble - Electric properties testing Modules assemble - High-low temperature aging test -

module potted - High - low temperature aging test after potting - LED screen assemble - Waterproof test- LED screen 72hs reliability test - Out- going inspection - Packing

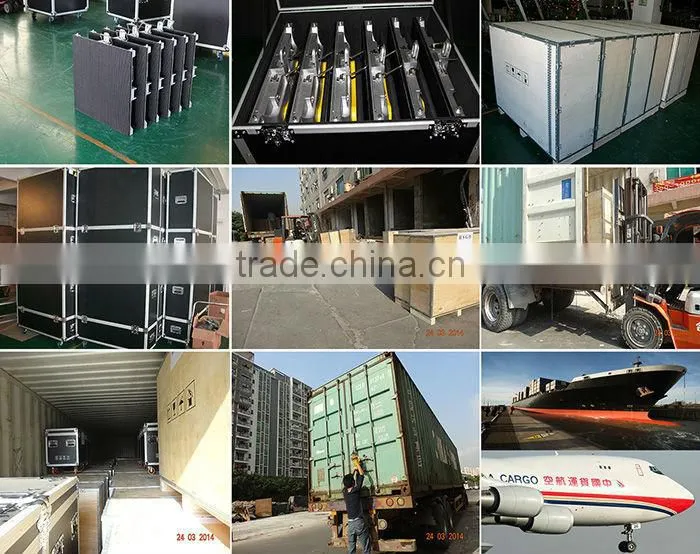

Aging test and shipping

Currently, products have mainly been exported to USA, UK,RU, AU, NL, Germany, Spain, Peru, Brazil, France, Italy, Greece, Japan, Korea, Kazakhstan etc.
