Help CenterPH8 LED Outdoor Display Screen/LED Screen/Outdoor LED Display Screen
Related Products
-
PH10 Outdoor Big Screen LED/LED Screen/Outdoor LED Display ScreenUS$ 500 - 1,000MOQ: 20 Pieces -
PH8 Outdoor LED Display Screen for Cars/LED Screen/Outdoor LED Display ScreenUS$ 500 - 1,000MOQ: 20 Pieces
-
PH6 Outdoor Car LED Display Screen/LED Screen/Outdoor LED Display ScreenUS$ 500 - 1,500MOQ: 20 Pieces
-
PH5 Outdoor Mobile LED Screen/LED Screen/Outdoor LED Display ScreenUS$ 500 - 2,000MOQ: 20 Pieces
-
Haisheng P10 Full Color Outdoor Led Display Price for SaleUS$ 1,000 - 1,500MOQ: 1 Square Meter
The Reason you Choose HSLED LED Outdoor Screen
- Excellent Gray Scale Makes a Real Picture
- High Refresh Rate and Contrast Ratio Excellent Performance
- High Efficiency in Heat Dissipation
Hot sale led outdoor screen in 2015
Seamless splice technology makes several in one without any gap. Present a large and clear image for advertising and catch people's attention.The quality module
We adopt big brand chip and IC to make perfect performance. LED chip is provided by Epistar, Cree, Nichia and Opto. Quality IC supplied by MBI, TMS, PWM and Mingyang

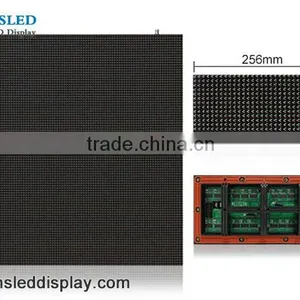

The quality module

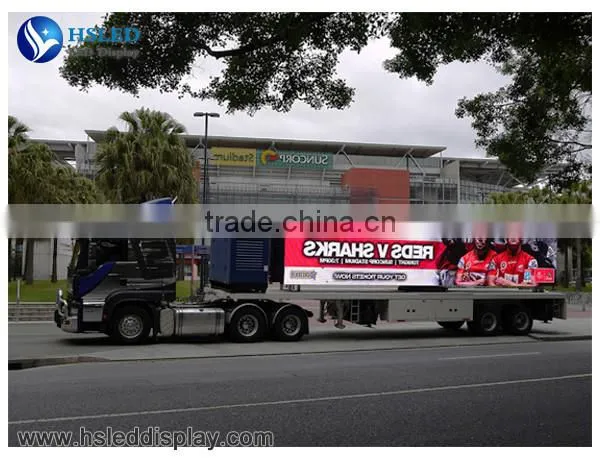

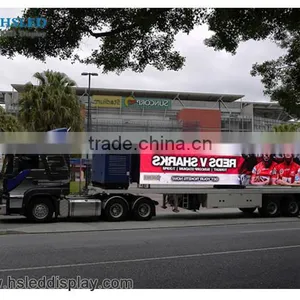

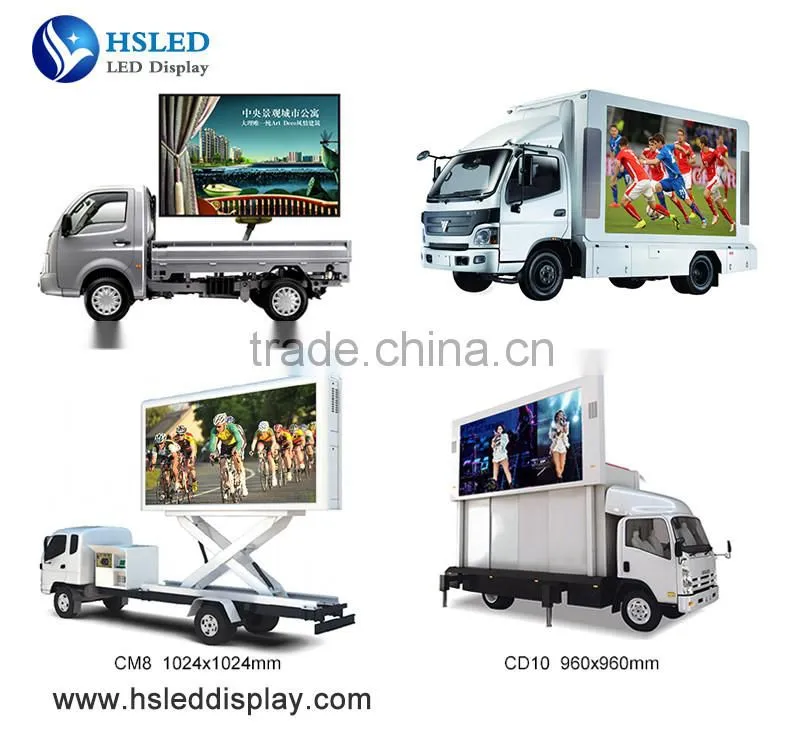

PH8 led outdoor screen
Playing your advertising anytime at anywhere. Everything has been equipped on the truck, just one man compur can handle it.

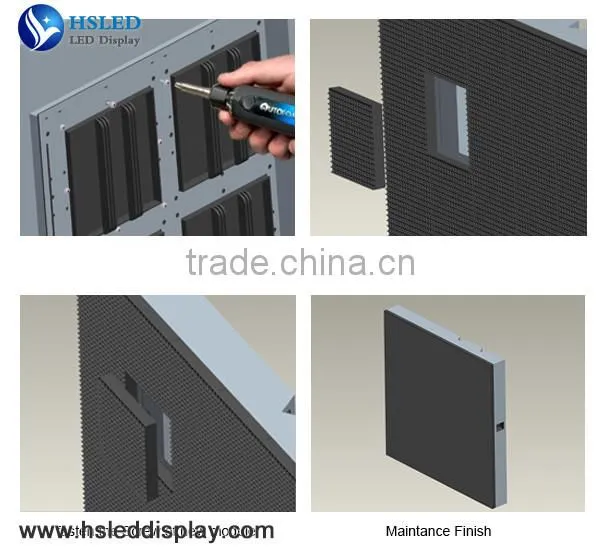

Fast maintain within minute
Replace module within minute, one screwdriver figures it out even little-to-no training.

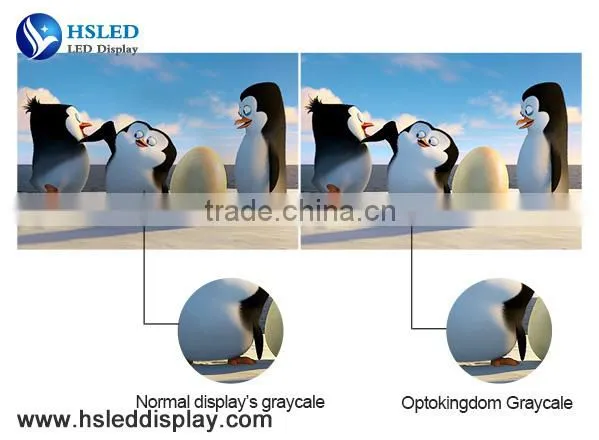

High grey scale
Adopting high level IC and system significantly improves grey scales.Over 1000Hz refresh rate ensures flicker free performance.

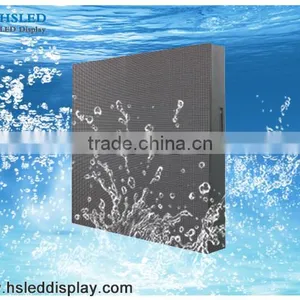

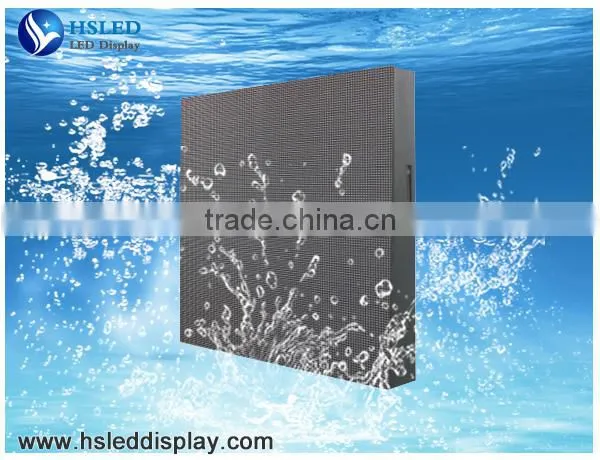

High IP Rating IP66, Safety and Reliable
Special waterproof design protect your product out of water, the high quality is worth to trust.
| LED Lamp | |||
| Type | DIP246 | Chip parameters | Red λd:(625-628nm) IV:(1000-1200mcd) |
| Arrangement | 1R1G1B | Chip parameters | Green λd:(523-525nm) IV:(2000-2500mcd) |
| Brand | Epistar | Chip parameters | Blue λd:(470-472nm) IV:(500-650mcd) |

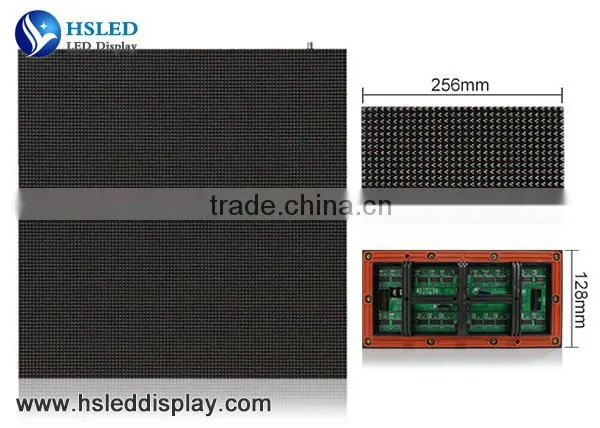

| LED Module | |||
| Pixel Pitch | 8mm | Module Size | 256×128mm |
| Module Resolution | 32×16=512(Dots) | Module Weight | 0.65kg |

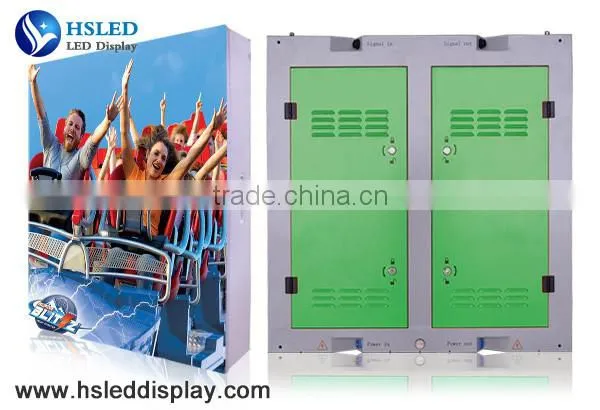

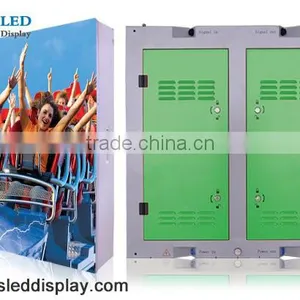

| LED Cabinet | |||
| Pixel Density | 15625 Dots/sqm | Frame Frequency | no less than 60 frame/sec |
| Cabinet Resolution | 128×128=16384(Dots) | Input Voltage | AC110-220V±10%,50/60Hz |
| Cabinet Dimension(W*H*D) | 1024×1024×140mm | Output Voltage | DC-5V,40A/60A/80A |
| Module Quanty /Cabinet | 4×8=32(Pcs) | Grey Scale Levels | 16bit |
| Cabinets Material | Steel | Color Processing | R(1024)×G(1024)×B(1024) |
| Cabinet Weight | 50kg | Brightness Adjustment | 256 color levels,can be adjusted manually and automatically optional |
| Brightness | ≥6500cd/sqm | MTBF( mean time between failures) | 5000 hours |
| Viewing Angle | 110(Horizontal),55(Vertical) | Life-span | 100,000 hours |
| Nearest Viewing Distance | 11m | Protection Level(front/back) | IP66/IP54 |
| Power Consumption (Max) | 1000 w/sqm | Malfunction Dot Rate | less than 0.0001 |
| Power Consumption (Average) | 300 w/sqm | Working Temperature | -30℃~50℃ |
| Display Function | Text,Graphics,Video | Humidity | 15%~85% |
| Refresh Rate | ≥1000Hz | Drive Mode/Driver Position | Constant driving 1/4 Scan,Combined diver board |
| Control System | |||
| Control Mode | Synchronization/Asynchronization | Input Signal | AVI/MPG/MPEG/TXT.etc |
| Control System | Sending Card, Receiving Card,Receiving HUB | PC Operating System | Microsoft Windows 7, XP and Vista |
| Software | LED Studio ( HSTV-linsn ) | Communication Type | Net cable,3G,WIFI(Sold separately) |
| Language | Chinese,Traditional Chinese,English,French,Japanese,Russian,Thai,Spanish,Polish,Italian,Portuguese,Turkish,Dutch,Greek,Bulgarian,Romanian,Arabic | Certificate | CE,ROHS,FCC,ISO9001,TUV |
| Control Card Input | DVI,USB,RJ45,HDMI(Sold separately) | ||
More led outdoor screen
1. We have woodencase package and flightcase package for your option, woodencase package is the normal package for goods and flightcase package is for easy and frequent transfering of the goods.
2. Shipping by sea is the service until to the destination port. It’s cheap but very slow. Our trading terms are ETX, FOB and CIF. Shipping by sea is a very nice choice if your goods weight is more than 500 KG.
3. Shipping by air is the service until to the destination airport. It’s cheap and very fast but clients have to clear goods from customs by themselves. You can choose shipping by air if your goods are more than 100 KG, however, if your goods are very heavy and are urgently needed, you can also choose shipping by air.
4. Express is door to door service, it’s very convenient. If your products are less than 100 KG, shipping by express is a very nice choice.
Optokingdom foreign trade LED shopping mall is a B2C business platform which is mainly built by HaiSheng Led CO.,LTD and a dozen of electronic component suppliers in Shenzhen. The total foundation is more than 10 million USD. It's a direct purchasing platform for small and medium project contractors and terminal users to find inexpensive high-quality products, rapid after-sales service, safe and fast logistics service. Clients are welcome to register on .
Our management principle: Clients will get what they pay without troubles bake at home.
Out target: to promote the development of optoelectronic industry, to reduce the earth resource consumption, to protect the human living environment.
Our duty: No cheating to clients but only honest trading.
our certificates and reputation
The important components of our product are supplied by big brand. Such as CREE, OPTO, NICHIA, MBI, PWM and Mingyang etc. And we have pass quality certificated of authority, such as RoHS, SGS, CE, FCC, ISO9001 and Alibaba, etc. and gained a lot of awards
