Video Display Function and Full Color Tube Chip Color led display module
| Pixel Pitch | 6mm |
| Type | SMD3528 |
| Arrangement | 1R1G1B |
| Brand | Epistar |
| Chip parameters | Red (620-625nm) IV:(250-300mcd ) |
| Chip parameters | Green (520-525nm) IV:(450-550mcd) |
| Chip parameters | Blue (470-475nm) IV:(100-120mcd) |
| Module Resolution | 32×32=1024(Dots) |

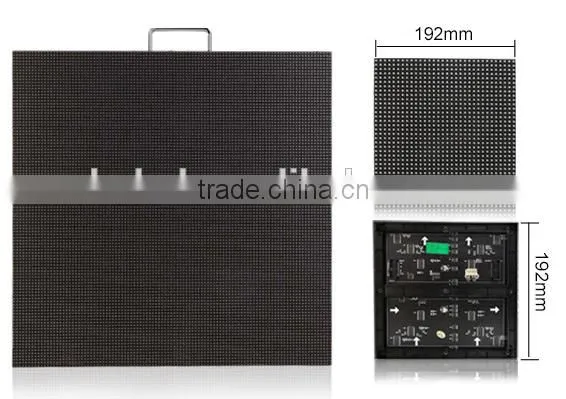

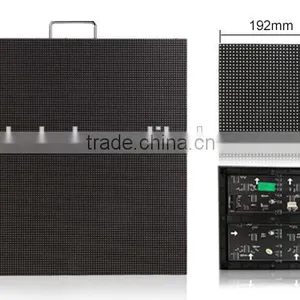

| Module Size | 192×192mm |
| Module Weight | 0.25kg |
| Pixel Density | 27777 Dots/sqm |
| Cabinet Resolution | 128×128=16384(Dots) |
| Cabinet Dimension(W*H*D) | 768×768×75mm |
| Module Quanty /Cabinet | 4×4=16(Pcs) |
| Cabinets Material | Aluminum |
| Cabinet Weight | 15kg |
| Brightness | >1800cd/sqm |
| Viewing Angle | 140(Horizontal), 140(Vertical) |
| Nearest Viewing Distance | 9m |
| Power Consumption (Max) | 600 w/sqm |
| Power Consumption (Average) | 180 w/sqm |
| Display Function | Text, Graphics, Video |
| Refresh Rate | >800Hz |
| Drive Mode/Driver Position | Constant driving 1/16 Scan, Combined diver board |
| Frame Frequency | no less than 60 frame/sec |
| Input Voltage | AC110-220V±10%, 50/60Hz |
| Output Voltage | DC-5V, 40A/60A/80A |
| Color Grayscale | 16bit |
| Gray Scale per Color | 65536 level |
| Color Processing | R(1024)×G(1024)×B(1024) |
| Brightness Adjustment | 256 color levels, can be adjusted manually and automatically optional |
| MTBF( mean time between failures) | 5000 hours |
| Life-span | 100, 000 hours |
| Protection Level(front/back) | IP43/IP31 |
| Malfunction Dot Rate | less than 0.0001 |
| Working Temperature | -15oC-50oC |
| Humidity | 15%-85% |
| Control Mode | Synchronization/Asynchronization |
| Control System | Sending Card, Receiving Card, Receiving HUB |
| Software | LED Studio ( HSTV-linsn ) |
| Language | Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean,German |
| Control Card Input | DVI, USB; RJ45, HDMI(Sold separately) |
| Input Signal | AVI/MPG/MPEG/TXT.etc |
| PC Operating System | Microsoft Windows 7, XP and Vista |
| Communication Type | Net cable; 3G, WIFI(Sold separately) |
| Certificate | CE, ROHS, FCC, ISO9001, TUV |
Indoor fixed LED display

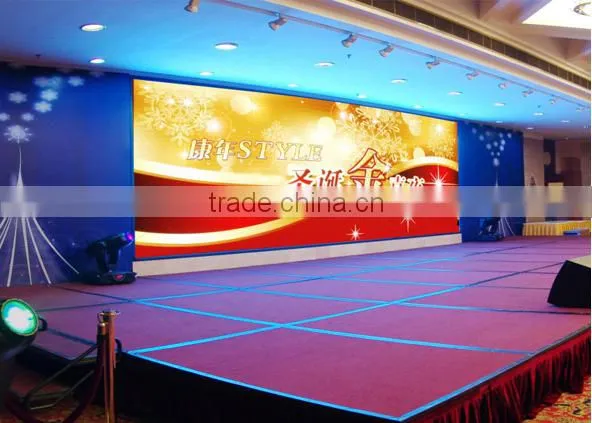

Lightweight and outstanding performance, serving the highly demanding advertising market. Widely use for stage, concert, exhibition, hotel, bank, station etc.
Ultra high definition screen with lightweight structure
High resolution screen provides delicate pictures. Adopting aluminum cabinet to reduce weight,indoor led display can be lifted up without effort and enables convenient installation.

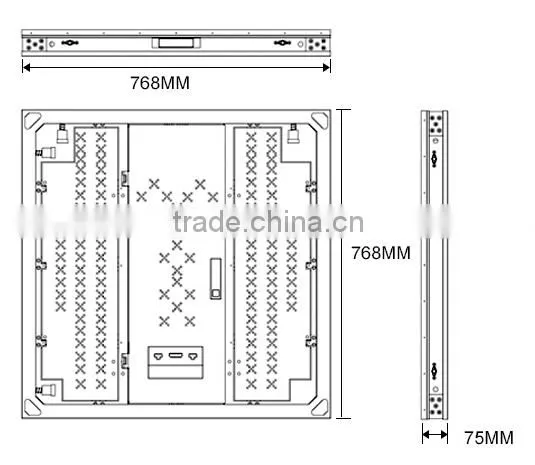

Standard cabinet dimension
Ultra-lightweight die casting aluminum cabinet adopted quick lock system ensure fast installation and easy to transportation.
Outstanding indoor performance
Fixed led display become more and more popular. whatever picture, text , or video can be shown clear and attractive.
Free design, customized to your needs.
Indoor led display cabinet provides flexible design solution for a variety of LED displays customized according to the customer's practical demand of size and pixel pitch.
High refresh rate enables the screen to get rid of scan lines.
Over 1000Hz refresh rate enables flicker free performance, delicate pictures can be delivered accurately without scan lines.
High grey scale and contrast ensure a outstanding
Its brilliant picture performance relies on high gray scale depending on high level IC and system, and its high contrast creates rich, vivid colors.

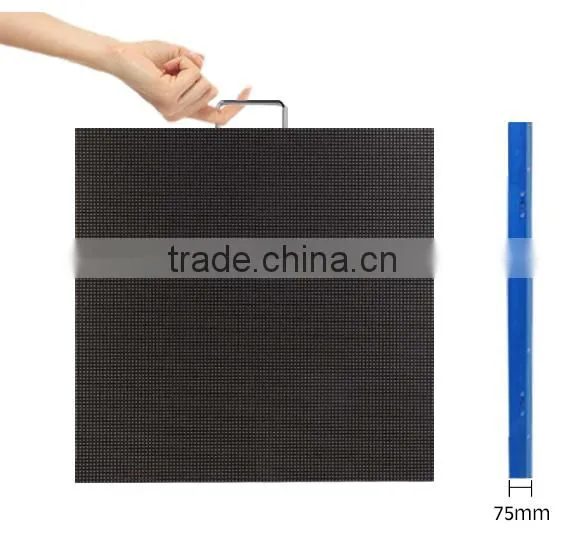

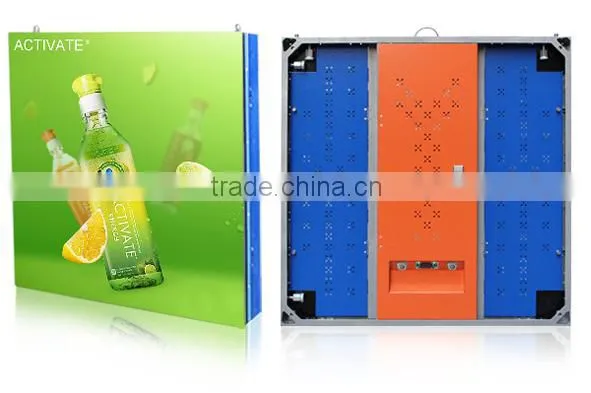

Lightweight and slim construction, easy to lift up.
Adopting aluminum cabinet construction to reduce weight, it can be be lifted up by one hand without effort and enables convenient installation and disassembly.
Silence operation with low power consumption.
This display can keep stable performance from continuous silence operation with low power consumption, fast heat dissipation.

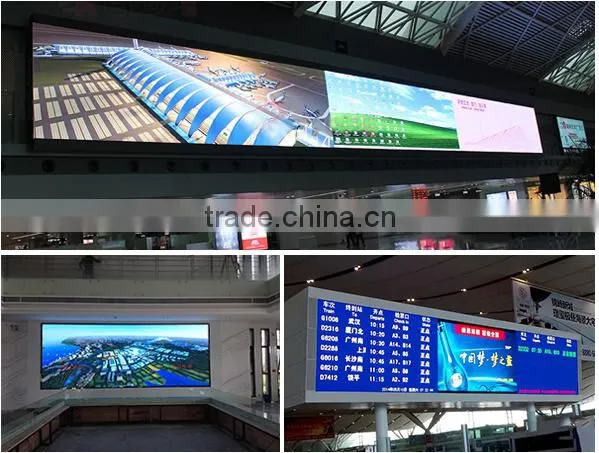

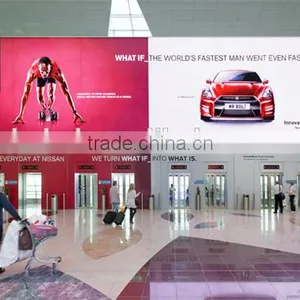

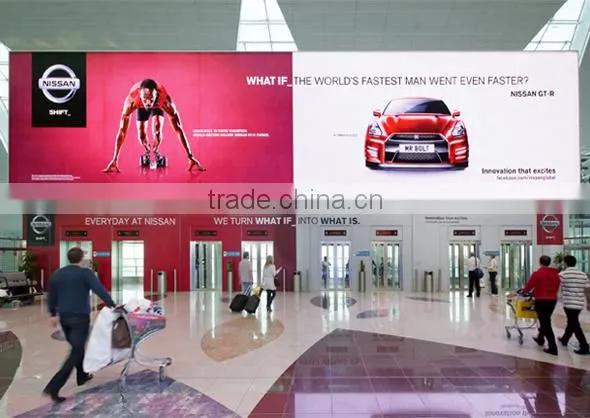

Application
Our products have been installed in all over the world.Indoor rental display widely used in KTV,Hotel,Airport,the mall.

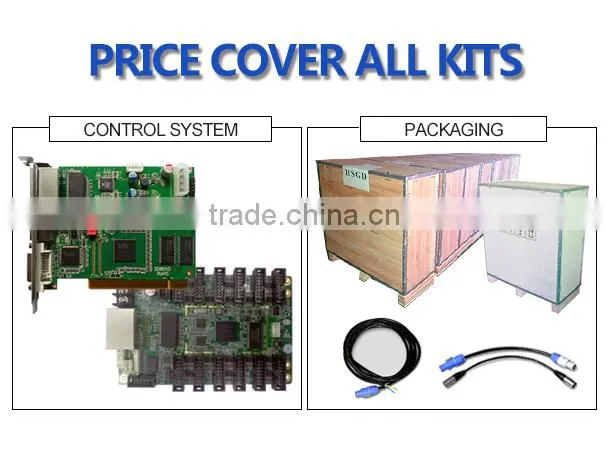

Price cover all kits
The price of the product include the cabinet, control system, and package. It is very convenient for you.
Outlook of our company building
Our products have passed CE, FCC, RoSH and SGS certification and so on. We promise offer quality product to every customers.
Quality is better than all
Our quality principle is “Total Quality Management,Continual Improvement, Excellent Service,Quick Response” In that way,every detail in production can get Quality Assurance.
Good after-sales service
If the product is faulty we will provide free accessories of the product to you during the warranty period.
