Innovative digital square led tv P0mm outdoor full color with high definition vivid video effect
1.Features:
1. The brightness can be adjusted according to the environmental changes automatically for energy saving.
2. Passed strict watar proof test by IP65.
3. Almost all kinds of signal input formats are acceptable, such as TV, HCTV, S-video, NTSC/PAL,DVI, AVI, VGA, SDI,MOV,MPG,HD-SDI, etc.
4. Self-developed steel structure and special kits are adopted to keep the flatness and smoothness of display.
5. Long durability and high reliability; Low maintenance cost.
6. Fit for various computers net, standard connection sockets, easy installation.
7. Excellent heat emission capability.
8. Auto power on/off, work unattendedly.
2. Parameters for outdoor full color light led panel P10
Lamp |
Pixel configuration:1R1G1B |
Chip |
Wave |
Brightness |
|
R |
Opto |
620-621nm |
600mcd |
||
G |
Silan |
520-521nm |
2300mcd |
||
B |
Silan |
470-471m |
450mcd |
||

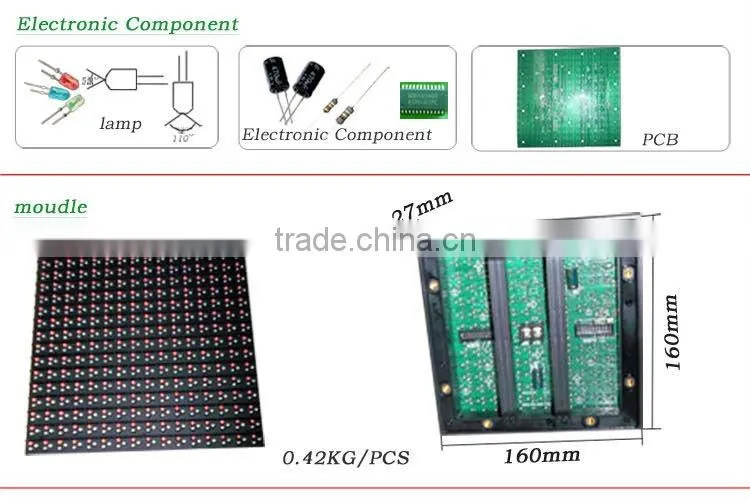

Module |
Module resolution |
16 x 16 pixels |
|||
Module size |
160 x 160mm |
||||
Pixel pitch |
10mm |
||||
Cabinet |
Physical resolution |
96x 96 pixels |
|||
Cabinet size |
960 x 960 x 145 mm |
||||
Physical density |
9216 pixels/cabinet |
||||
Module quantity |
36 pcs = 6(w) x 6(h) |
||||
Material |
Steel or Aluminium |
||||
Weight |
50Kg |
||||
Display |
Brightness |
≥ 6500 cd/m2 |
|||
Brightness adjusted |
100 grade by software, or by Auto-optic induced |
||||
Gray Scale |
1024 levels per color |
||||
Display color |
1.07Billion |
||||
Color temperature(k) |
6500 deg. K |
||||
Physical density |
10000 pixels/m2 |
||||
Whole display flatness |
≤ 1mm juncture |
||||
Best view distance |
10m-100m |
||||
Best view angle |
Horizontal ±60°, Vertical ±45° |
||||
Storage temperature |
-35°C ~ +85°C |
||||
Working temperature |
-20°C ~ +65°C |
||||
Driving method |
Constant driving current Scan: 1/4 |
||||
Refresh frequency |
>480Hz |
||||
Frame rate |
≥ 60Hz |
||||
Humidity(RH) |
10 % ~99% |
||||
Protection grade |
IP65 |
||||
Earth leackage current |
<1.5mA |
||||
Power supply |
AC 110 / 220V, 50/60Hz |
||||
Average power consumption |
300w/m2 |
||||
Max power consumption |
700w/m2 |
||||
MTTF |
10, 000 hours |
||||
Life span |
100, 000 hours |
||||
Control |
Control system |
Linsn |
|||
Signal interface |
DVI |
||||
Software |
LED Studio |
||||
Input signal |
RF,SVIDEO,RGB,RGBTV,YUT,YC,COMPOSITON |
||||
Communication distance |
Single cable |
≤140m |
|||
Moultimode Fiber |
≤ 500m |
||||
Single Mode fiber |
≤ 200Km |
||||
Signal transfer mode |
Synchronous Control System |
||||
3. Product list and application area
1. Indoor full color LED display: Equally and compactly make the red, green, blue color in one dot, equally distribute at the panel to make the whole display.
2. Usually apply for physical sports, advertisement, bank, stock exchange, station, port, mansion video wall,hospitals, market, telecommunication, school, monitor, restaurant, entertainment.
3. Full spec. : P6.25mm, P8mm, P16mm, P20mm, P25mm, P31.5mm etc.
4. Both the structures for rental and fix installation are available.
4.Warranty and Maintenance Promise
1. on 2 years' warranty for entire screen.
2. on-site professional service.
3. hotline service, fast response.
4. adequate spare parts supply.
5. regular maintenance service.
6. technical support on upgrades and replacement.
