programmable outdoor full color led screen 1R1G1B P12 big tv advertising screen
1.Features:
1. The brightness can be adjusted according to the environmental changes automatically for energy saving.
2. Passed strict watar proof test by IP65.
3. Almost all kinds of signal input formats are acceptable, such as TV, HCTV, S-video, NTSC/PAL,DVI, AVI, VGA, SDI,MOV,MPG,HD-SDI, etc.
4. Self-developed steel structure and special kits are adopted to ke free led display control software ep the flatness and smoothness of display.
5. Long durability and high reliability; Low maintenance cost.
6. Fit for various computers net, standard connection sockets, easy installation.
7. Excellent heat emission capability.
8. Auto power on/off, work unattendedly.
2. Parameters for outdoor full color LED screen P12

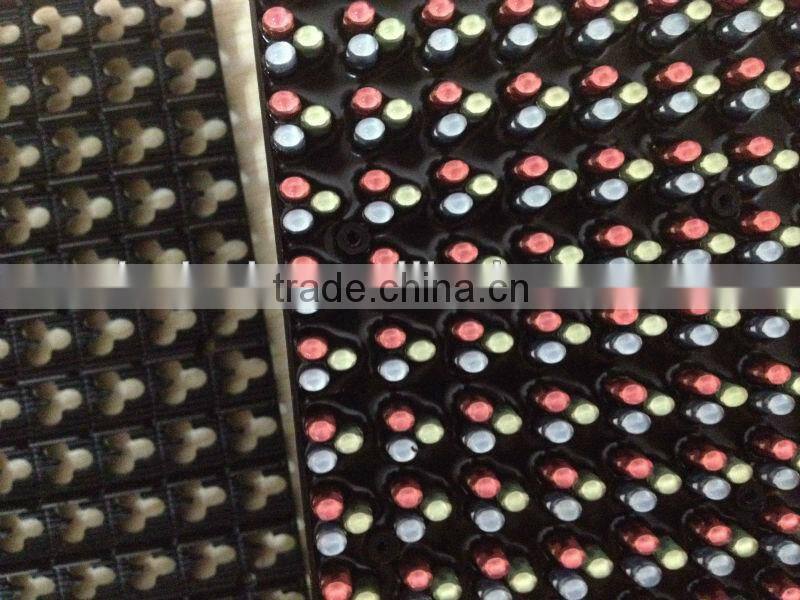

LAMP |

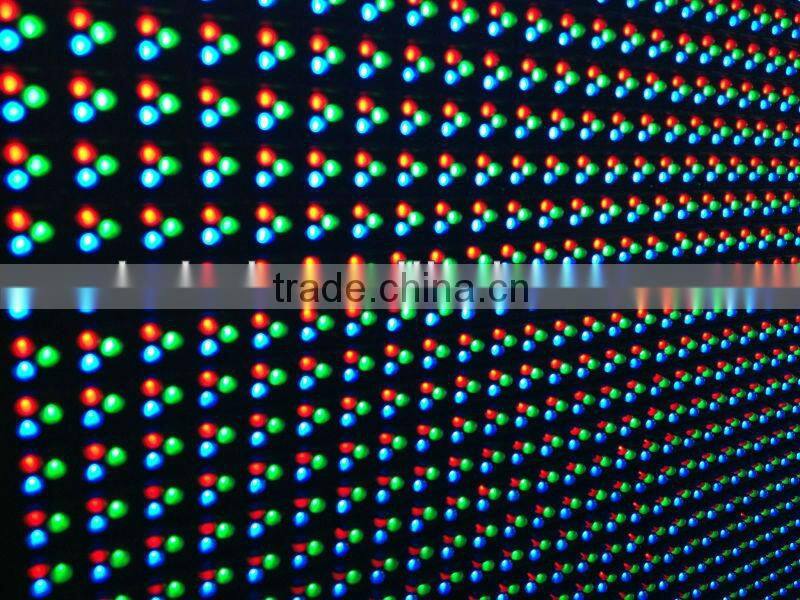

Pixel configuration:1R1G1B |
Chip |
Wave |
Brightness |
|
R |
Opto |
620-621nm |
600mcd |
||
G |
Silan |
520-521nm |
2300mcd |
||
B |
Silan |
470-471m |
450mcd |
||

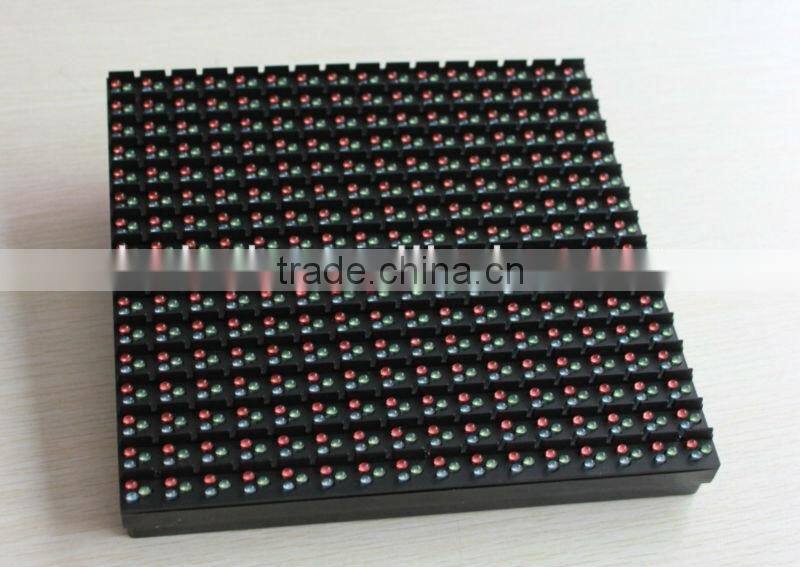

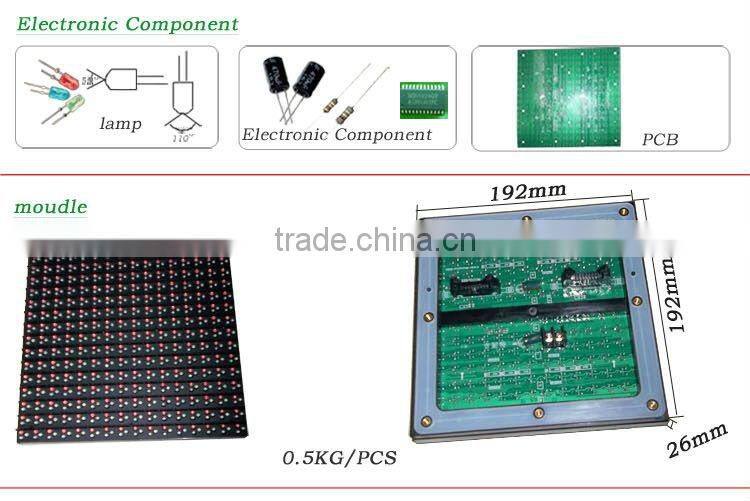

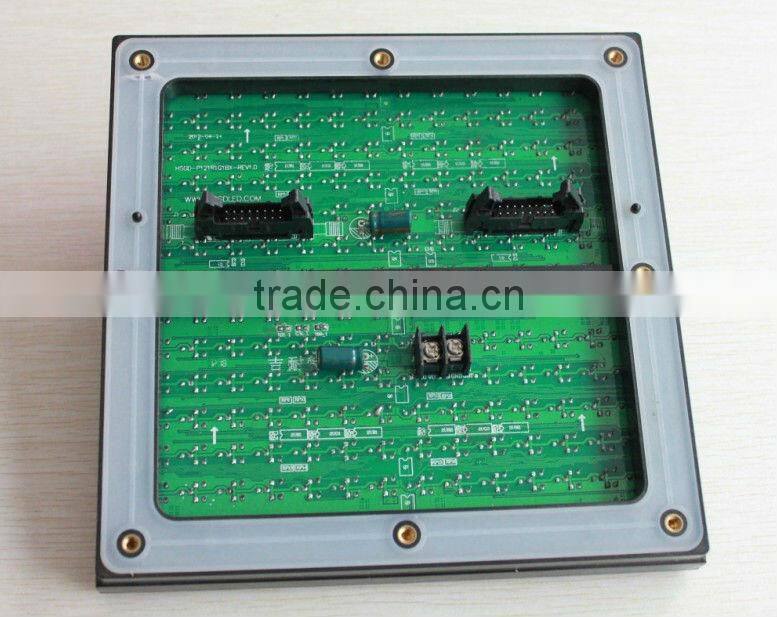

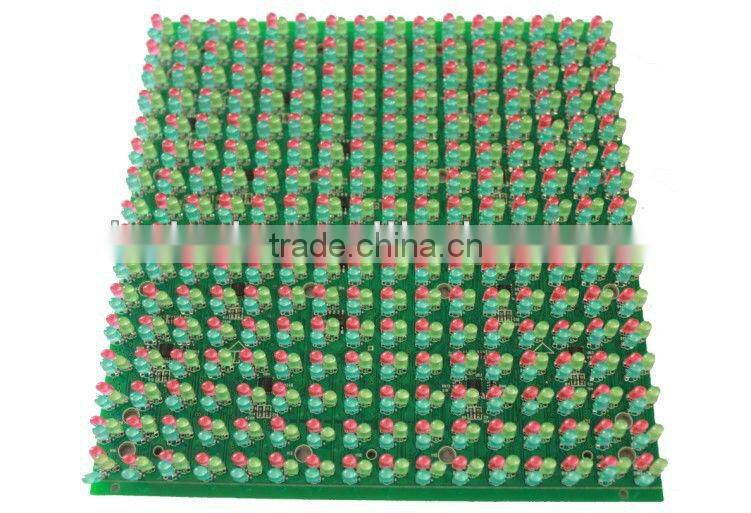

Module |
Module resolution |
16 x 16 pixels |
|||
Module size |
192 x 192mm |
||||
Pixel pitch |
12mm |
||||

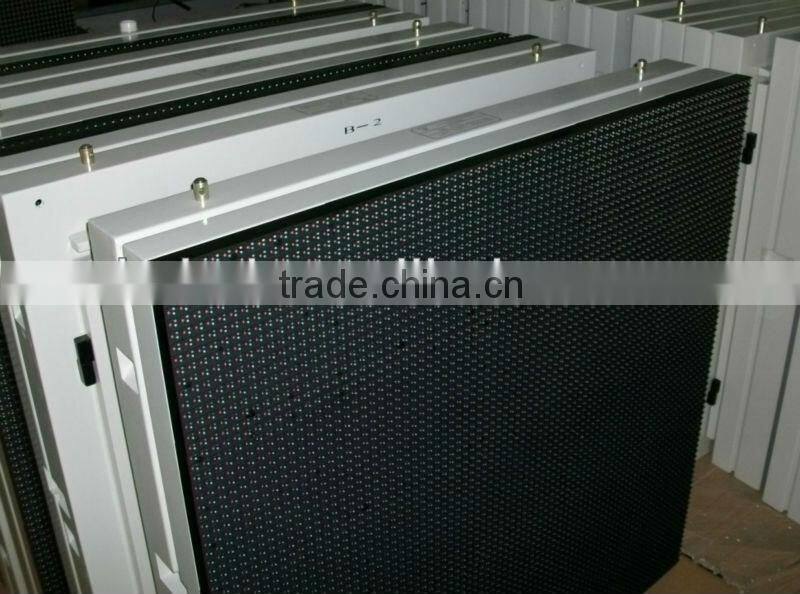

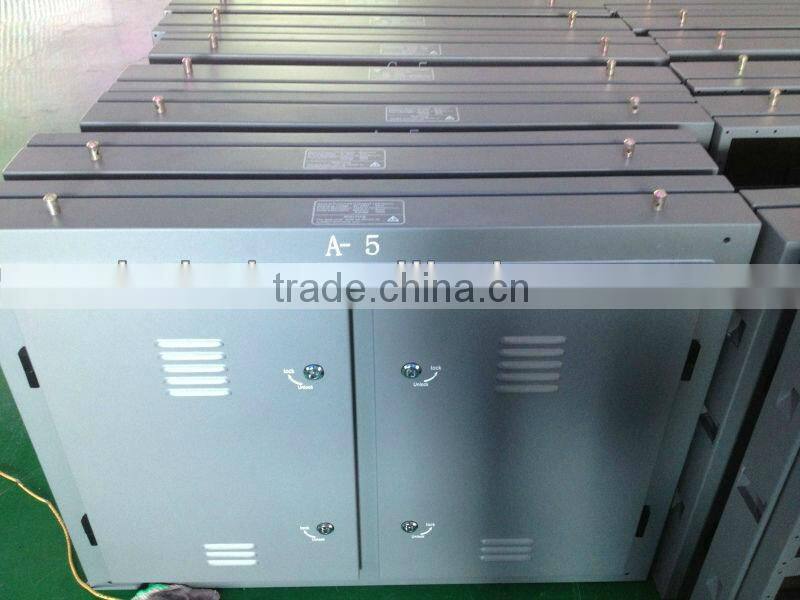

Cabinet |
Physical resolution |
80x 80 pixels |
|||
Cabinet size |
960 x 960 mm |
||||
Physical density |
6400 pixels/cabinet |
||||
Module quantity |
25pcs = 5(w) x 5(h) |
||||
Material |
Steel or Aluminium |
||||
Weight |
50Kg/30Kg |
||||
Display |
Brightness |
≥ 7500 cd/m2 |
|||
Brightness adjusted |
100 grade by software, or by Auto-optic induced |
||||
Gray Scale |
1024 levels per color |
||||
Display color |
1.07Billion |
||||
Color temperature(k) |
6500 deg. K |
||||
Physical density |
10000 pixels/m2 |
||||
Whole display flatness |
≤ 1mm juncture |
||||
Best view distance |
12m-100m |
||||
Best view angle |
Horizontal ±55°, Vertical ±30° |
||||
Storage temperature |
-35°C ~ +85°C |
||||
Working temperature |
-20°C ~ +65°C |
||||
Driving method |
Constant driving current Scan: 1/4 |
||||
Refresh frequency |
>480Hz |
||||
Frame rate |
≥ 60Hz |
||||
Humidity(RH) |
10 % ~99% |
||||
Protection grade |
IP65 |
||||
Earth leackage current |
<1.5mA |
||||
Power supply |
AC 110 / 220V, 50/60Hz |
||||
Average power consumption |
200w/m2 |
||||
Max power consumption |
600w/m2 |
||||
MTTF |
10, 000 hours |
||||
Life span |
100, 000 hours |
||||
Control |
Control system |
Linsn |
|||
Signal interface |
DVI |
||||
Software |
LED Studio |
||||
Input signal |
RF,SVIDEO,RGB,RGBTV,YUT,VGA,YC,COMPOSITON |
||||
Communication distance |
Single cable |
≤140m |
|||
Moultimode Fiber |
≤ 500m |
||||
Single Mode fiber |
≤ 200Km |
||||
Signal transfer mode |
Synchronous Control System |
||||

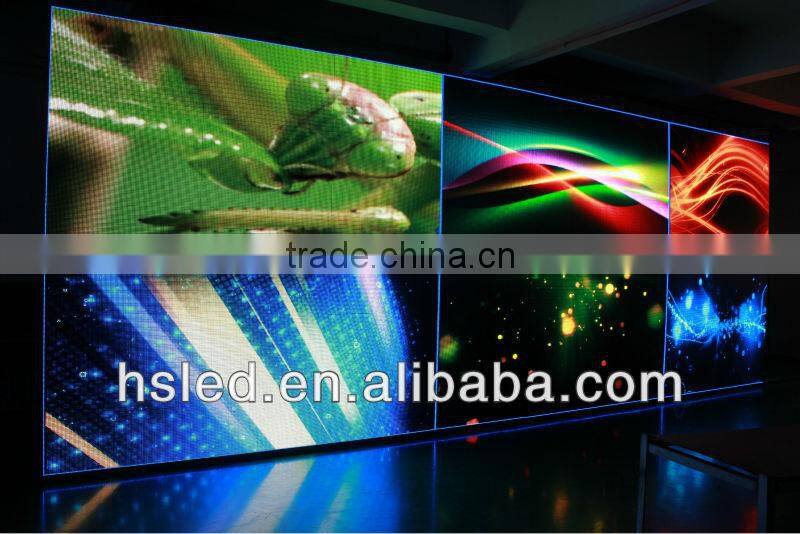

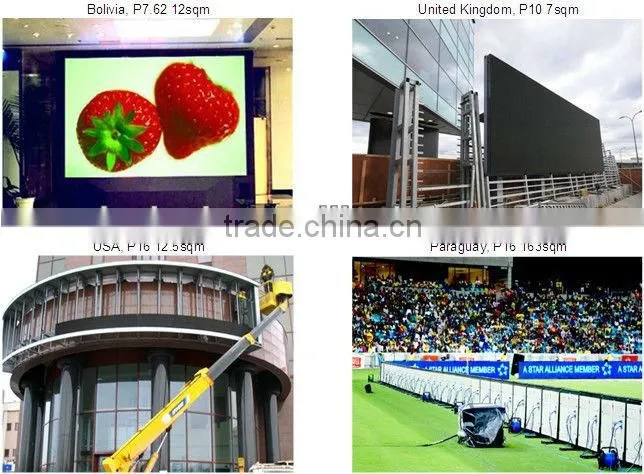

3. Application
1. Bond,financial information display ;
2. Airport flight dynamic information display ;
3. Port and station guide information display ;
4. Sports information display ;
5. Scheduling command center information display ;
6. The postal service, telecommunications, mall shopping center service areas such as business promotion and information display ;
7. Advertising media of new products display;
4. Advantages of our products
1. High flexibility: our company has made researches on various outdoor circumstances, and applied the research achievements to design systems, so as to obviously improve both the flexibility and reliability of our products in various bad circumstances outdoors.
2. Rich colors: with three basic colors (red, green and blue) to form the unit boxes, 256-level gradation of red, green and blue form 16777216 kinds of colors, making the electronic displays showing rich colors, high saturation, and high resolution, and also enabling them to show high frequency dynamic images.
3. High brightness: the products adopt super-high brightness LED, so that you can see clearly from a long distance even in strong sunshine.
4. Good effect: the products adopt non-linear calibration technology to realize clearer images with stronger feeling of layers.
5. High reliability: the products adopt the static scanning technology and the module design technology to offer higher reliability and stability.
6. Diversified display modes: the products support multiple display modes.
Easy operation: the products adopt popular video playing software to facilitate system operations.
5. Warranty and Maintenance Promise
1. Maintenance principles: response in time, solve problems as soon as possible and ensure the use.
2. Warranty period: We offer you 2 years warranty. In the warranty period of the LED screen body, free of all maintenance charges; After warranty period, only charge for the material costs free of manual work costs.
3. Life Maintenance: After the completion of the project, we will conduct life maintenance of the system continuously, perfect the system and update the software. For the hardware equipment, we only charge for expenses on components.
4. After-sale service: regular maintenance, revisit, enquiry for comments, improvement.
