Video Display Function and Full Color Tube Chip Color 6mm Indoor and Outdoor LED Display
| Pixel Pitch | 6mm |
| Type | SMD3528 |
| Arrangement | 1R1G1B |
| Brand | Epistar |
| Chip parameters | Red (620-625nm) IV:(250-300mcd ) |
| Chip parameters | Green (520-525nm) IV:(450-550mcd) |
| Chip parameters | Blue (470-475nm) IV:(100-120mcd) |

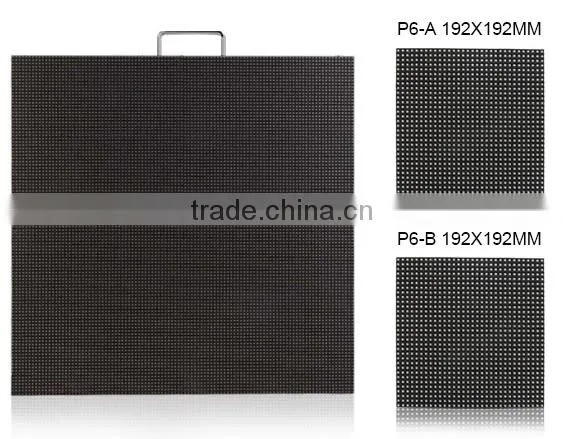

| Module Resolution | 32×32=1024(Dots) |

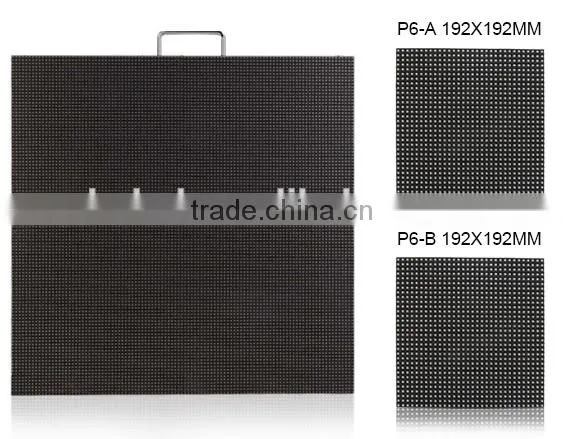

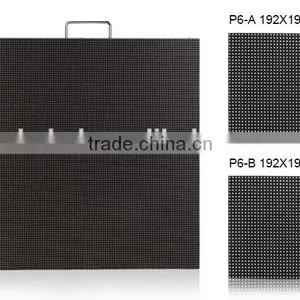

| Module Size | 192×192mm |
| Module Weight | 0.25kg |
| Pixel Density | 27777 Dots/sqm |
| Cabinet Resolution | 128×128=16384(Dots) |
| Cabinet Dimension(W*H*D) | 768×768×75mm |
| Module Quanty /Cabinet | 4×4=16(Pcs) |
| Cabinets Material | Aluminum |
| Cabinet Weight | 15kg |
| Brightness | >2400cd/sqm |
| Viewing Angle | 140(Horizontal), 140(Vertical) |
| Nearest Viewing Distance | 9m |
| Power Consumption (Max) | 800 w/sqm |
| Power Consumption (Average) | 240 w/sqm |
| Display Function | Text, Graphics, Video |
| Refresh Rate | >1000Hz |
| Drive Mode/Driver Position | Constant driving 1/8 Scan, Combined diver board |
| Frame Frequency | no less than 60 frame/sec |
| Input Voltage | AC110-220V±10%, 50/60Hz |
| Output Voltage | DC-5V, 40A/60A/80A |
| Color Grayscale | 16bit |
| Gray Scale per Color | 65536 level |
| Color Processing | R(1024)×G(1024)×B(1024) |
| Brightness Adjustment | 256 color levels, can be adjusted manually and automatically optional |
| MTBF( mean time between failures) | 5000 hours |
| Life-span | 100, 000 hours |
| Protection Level(front/back) | IP43/IP31 |
| Malfunction Dot Rate | less than 0.0001 |
| Working Temperature | -15oC-50oC |
| Humidity | 15%-85% |
| Control Mode | Synchronization/Asynchronization |
| Control System | Sending Card, Receiving Card, Receiving HUB |
| Software | LED Studio ( HSTV-linsn ) |
| Language | Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic,Korean,German |
| Control Card Input | DVI, USB; RJ45, HDMI(Sold separately) |
| Input Signal | AVI/MPG/MPEG/TXT.etc |
| PC Operating System | Microsoft Windows 7, XP and Vista |
| Communication Type | Net cable; 3G, WIFI(Sold separately) |
| Certificate | CE, ROHS, FCC, ISO9001, TUV |
Indoor fixed LED display
The advanced assembled structure produces seamless display and visual effects, offering you the perfect visual performance you desire from your LED display. The display can be used at banks, indoor stages, concert halls, station, summit rooms, exhibition and theatres etc.
Seamless Display and Visual Effects
The advanced assembled structure produces seamless display and visual effects, offering you the perfect visual performance you desire from your LED display. The picture quality remains high due to best quality display material.

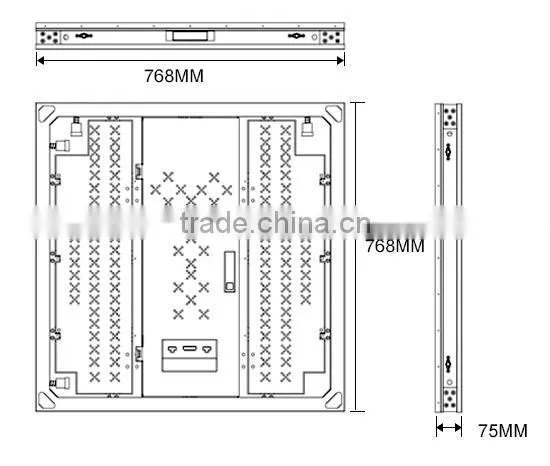

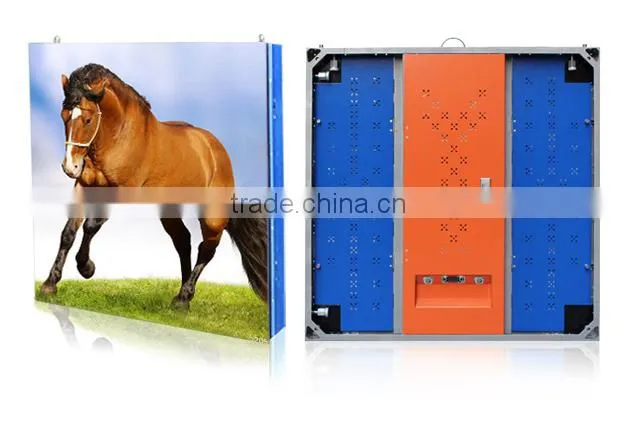

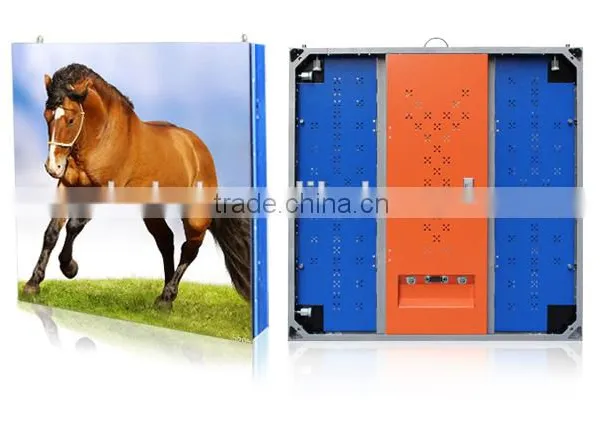

Standard Cabinet Dimensions
The ultra-lightweight cabinet made is aluminum alloy which gives it extra strength. The cabinet of Ultra-Slim Indoor LED Display is designed with perfection, making it really easy to install. Also, the quick-lock feature requires no technical skills to install and uninstall.

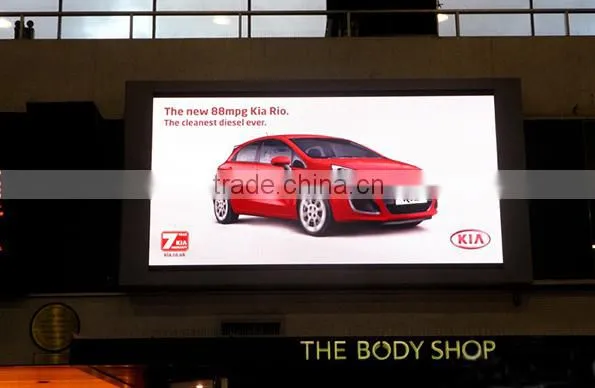

Outstanding Indoor Performance
The displays are created for supreme quality indoor performance, and it delivers the same with perfection. See pictures, videos, text and much more with every detail. The high resolution display offers picture-perfect outputs in indoor areas.
Integrated Design, Fast Installation
The thin size and ultra-lightweight modules makes it easy to carry, transport and install. You hardly need any specialized tools or skills to install it. Everything is inbuilt, and it can be installed within a few minutes using simple screw-driver.
High Refresh Rate
The Ultra-Slim Indoor LED Display is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate. It features a high refresh rate of 1000Hz, producing best quality outputs in form of pictures, videos and texts.
Star Product, Superb Quality
The Ultra-Slim Indoor LED Display is manufactured by using best quality material, purchased from most reputed vendors. The final products feature supreme quality and offers best outputs. High refresh rate and gray level ensures the picture quality remains seamless.

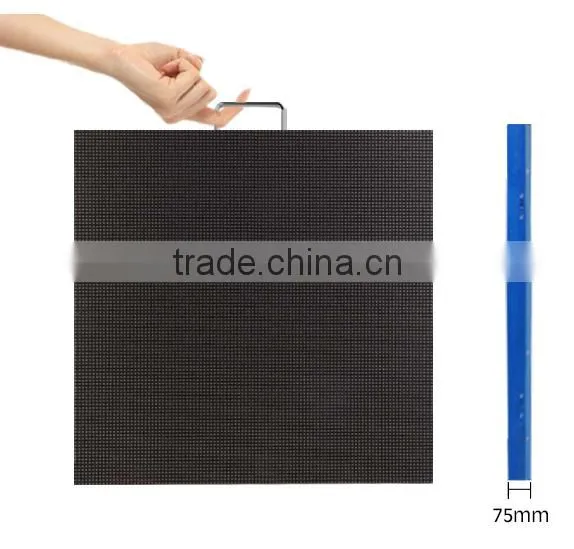

Space Saving, Ultra-lightweight
The Ultra-Slim Indoor LED Display is very thin which makes it ultra-lightweight and space saving. Can be installed at any area without requiring much space. The light weight of LED screen is easy to carry, transport and install - saving good amount of money on your labor costs.
Silence Operation - Low Power Consumption
The Ultra-Slim Indoor LED Display is known for its silence operation and low power consumption. It is also known for fast heat dissipation which will save more energy. Cut on the electricity expenses and help environment with this highly advanced advertising display.

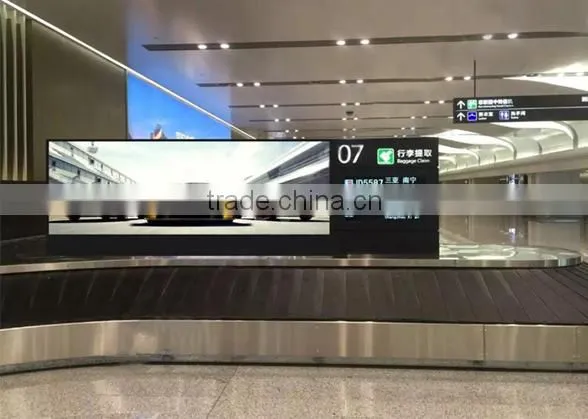

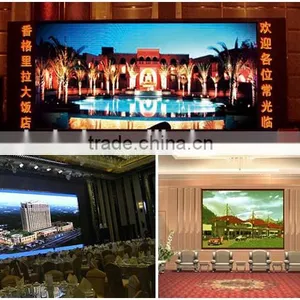

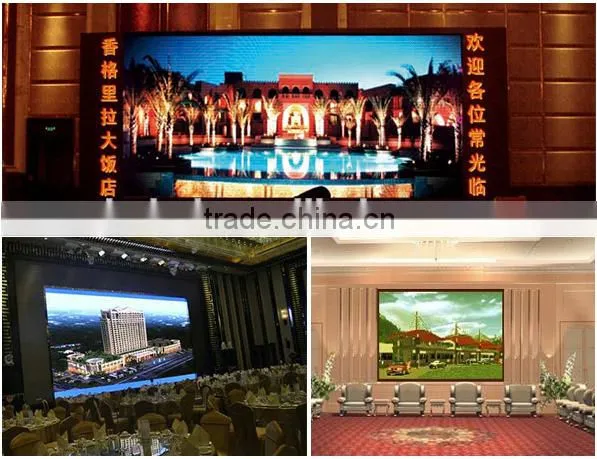

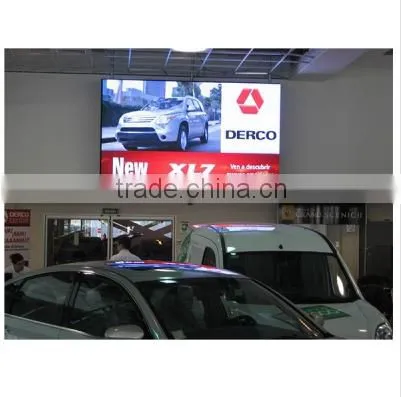

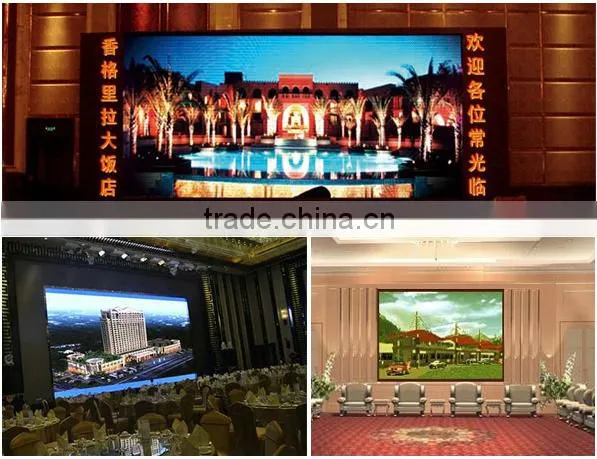

Application
The Ultra-Slim Indoor LED Display is highly usable at indoor places like malls, stages, chain stores, hotels, public buildings, bars, restaurants, banks etc. Its thin size and ultra-lightweight module makes it easy to install at any area without covering much space.

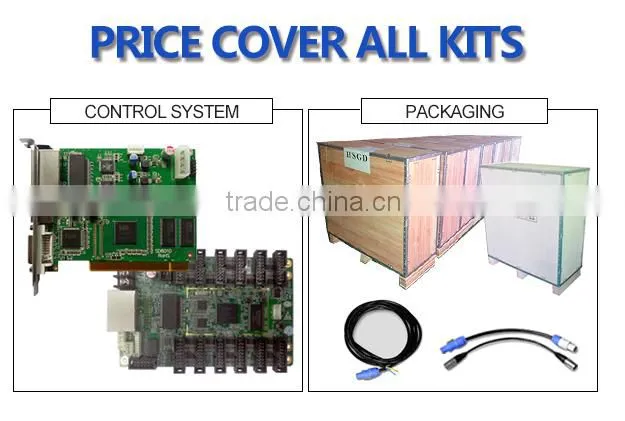

One Price for All
In single price, you get the complete kit which includes the LED display, cabinet, control system and package. It saves you a lot of money. Also, we replace the faulty accessories without any cost if your product is in warranty period.
Our Company Building
Our company is built on values, and those values reflect from our product quality, support service and customer care. Have a look at our company building. This is the place where we create best quality products that have passed certifications like CE, FC, RoSH and SGS and many more.
Best Quality Guaranteed
Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality products.
Best After-sale Service
If your Ultra-Slim Indoor LED Display is defected and is in warranty period, we offer you free accessories for the product. Whenever you need us, we are always there for you. Our support staff is more than willing to assist you for any query or concern. Feel free to contact us any time.
