DC DC Step up Voltage Regulator 10-32V to DC 60-95V 2A 70-100W Boost Converter dc Voltage Transformer

We produce MODULE ! CUSTOM-MADE module is OK! Our factory produce your own board! Change / modification is accepted!

DC DC step up voltage regulator 10-32V to DC 60-95V 2A 70-100W boost converter dc voltage transformer

-----------------------------------------------------------------------------------------------------------------

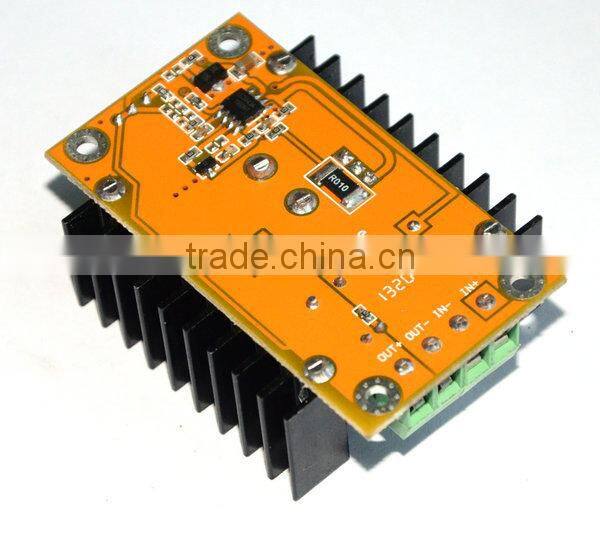

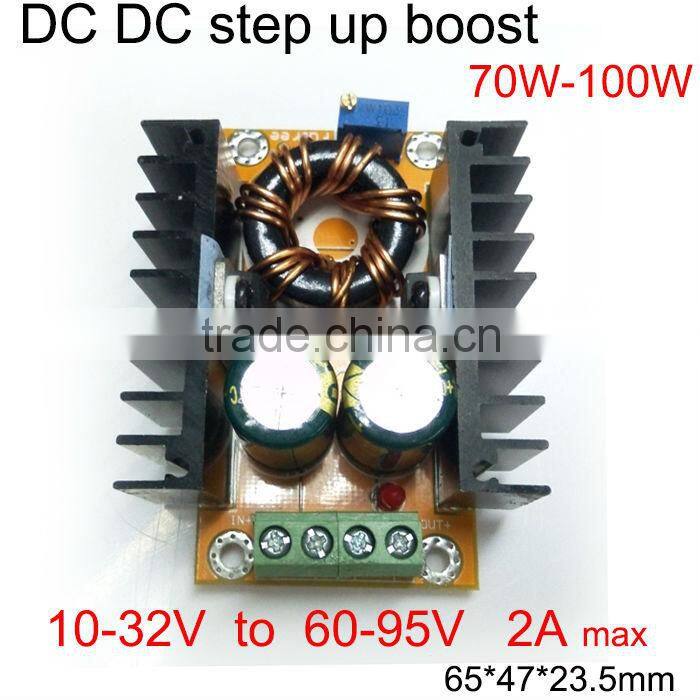

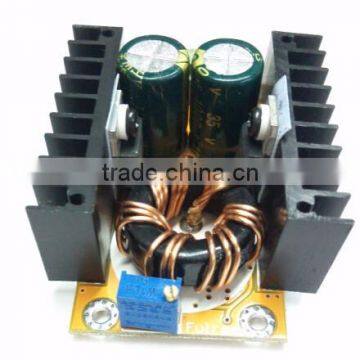

PRODUCT PICTURE

------------------------------------------------------------------------------------------------------------------
PRODUCT FEATURES

The modular nature: non isolated step-up module (BOOST)

Input voltage: 10-32V

Continuous adjustable output voltage: 60-95V

Output current: 2A (MAX)

Input current: 16A (MAX) (more than 10A please strengthen heat dissipation,)

Output power: natural cooling 70W (MAX), to strengthen the heat 100W (MAX) real power

The conversion efficiency of 85% typical:

Output ripple: 2% (MAX) 20M bandwidth

Working temperature: industrial grade (-40 °C to +85 °C) (environmental temperature exceeds 40 degrees, please reduce power use, or to strengthen the heat)

Full temperature: 45 °C

The typical no-load current: 35mA

Load regulation: + 0.5%

Voltage regulation rate: 0.5%

The dynamic response speed: 5% 200uS

Short circuit protection: no (please install fuse or circuit at the input)

Connection: welding free, terminal

Weight: 67 grams

-----------------------------------------------------------------------------------------------------------------
SHIPPING TERMS

1.Ship to whole world : DHL , UPS, FEDEX, EMS, HKPOST, SGPOST,SWPOST

2.Lead time:2days. If we don't have stock at that time, it takes 2-4days to produce it.

 ------------------------------------------------------------------------------------------------------------------
PAYMENT TERMS

1.We accept PAYPAL, TT, WESTERN UNION, ESCROW

2.Commission:
   *Paypal: total sum *0.041
   *Escrow: total sum *0.05
   *TT: $28-$45(according to amount)
   *Western union: $0

-------------------------------------------------------------------------------------------------------------------
GUARANTEE PERIOD

    3 Months, if the quality have any problems, We have a good after sale

service team will slove the quality problems for you.

1.If you test the products and it doesn't work, pls keep it and send it to us in

   1 month, we will send the good one to you with the following order.

2.If the product is already used by you, then no warranty.

3.If the product is broken by man-made, then no warranty.

----------------------------------------------------------------------------------------------------------------------
