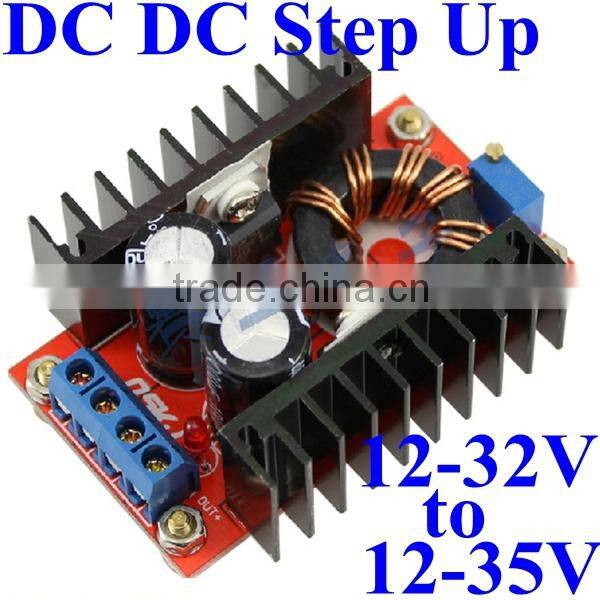

dc dc Boost Converter Step up Adjustable Power Module 11v 12v 10v 12v 14v 15v 16v 17v 18v to 19v 24v 28v 32v Voltage Regualtor

We produce MODULE ! CUSTOM-MADE module is OK! Our company produce your own board!

-----------------------------------------------------------------------------------------------------------------PRODUCT PICTURE and FEATURES

Module nature: non isolated boost module

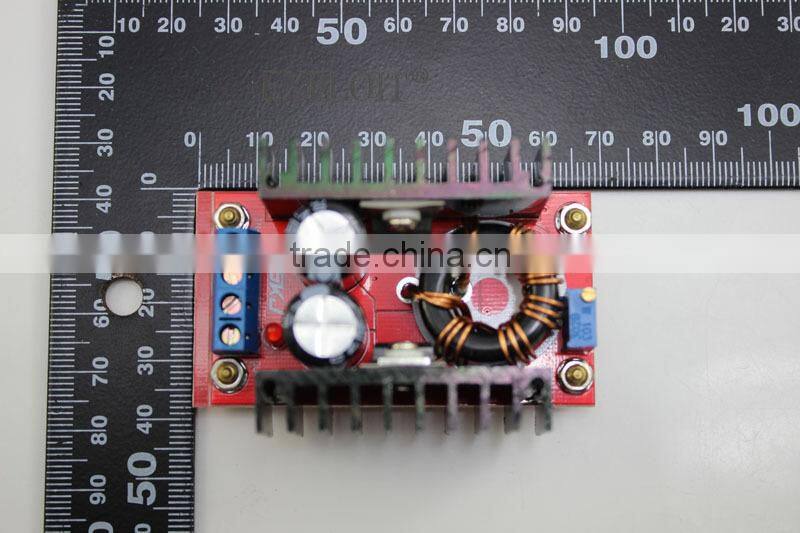

Module size: long 65MM* high 23MM* (wide 56.5MM including fins)
Input: IN+ input positive, IN- input negative
Output mode: OUT+ output positive, OUT- output negative
Wiring: free welding, terminal
Input voltage: 12-32V
Output voltage: (1) continuous adjustable (12-35V) the default delivery voltage of the shop 19V
(2) fixed output (optional between 12-35V)
Output current: 6A (MAX)
Input current: 10 (MAX) (exceeding 10A please strengthen the cooling,)
Output power: natural cooling 100W (MAX), plus fan 150W (MAX)
Easily lead 90W 65W notebook computer including dual core
12V battery with ordinary 3.42A 19V laptop module temperature of about 45 degrees
Conversion efficiency: 94% (input 19V output 2.5A 16V measured) (for reference only)
Working temperature: industrial grade (-40 to +85) (the ambient temperature is over 40 degrees, please lower the use of power, or fan.
Full load temperature rise: 45
No-load current: typical 25mA
Short circuit protection: no (please install overcurrent protector at input)
Input back protection: No, in the input series diode
Weight: 70G
Application range
1) a DIY output can adjust the vehicle power supply, only need in access to input your 12V power supply, the output voltage you can (14-35V) freedom of regulated continuously, but the output voltage is not lower than the input voltage oh.
2) universal car notebook power supply. Input in your 12V power supply, the output adjustment into your laptop can work.
3) boost charger, you can use 12V power to charge higher than 12V battery, such as 24V battery.
4) power supply for your electronic equipment as long as the voltage is regulated to the voltage you need and the current does not exceed the rated current can work normally.
5) before the system level power supply, when you doing a project input for 10-18V, and your system board and need about 24V power supply and power, with common DC-DC power module is too small, you choose the module will be your best choice, no debugging can be directly on the machine, easy to do, high power boost.
