HD Super slim P2.5 indoor Rental Led Screen Led video Panel
- 3000 Square Meter / Square Meters per Month
- SHENZHEN
- Credit Card PayPal
- HD indoor P3 stage led screen for concert
- Aluminum alloy Indoor Rental LED Display Screen P3 SMD super thin LED video wall panel
- Super slim light 3mm P3 indoor hd rental led back stage screen for motor exhibition/concert
- indoor small pitch HD video stage rental p2.5 indoor led screen
- Fashion HD P3 Indoor Led Display Screen For Advertising And Stage
- High definition 3mm pitch P3 indoor stage rental led display for concert/advertising/church
Product Details
Place of Origin: | Guangdong, China | Brand Name: | HaiSheng | Model Number: | HSGD-I-F-P2.5 |
Usage: | Indoor | Tube Chip Color: | Full Color | Display Function: | Video |
Pixels: | Other, 2.5mm | Screen Dimension: | custom size |
Packaging Details
flightcase
Product Description
HD Super slim P2.5 indoor Rental Led Screen Led video Panel
Convenient:
1.Only two cables out, signal cable and power supply cable, keep led screen working more safe.
2.Super light and slim. 10Kg/cabinet and 55mm thickness cabinet, high end design and quality,
3.save labor cost and time on each cabinet 15 seconds, a piece of cake to install and dismount.

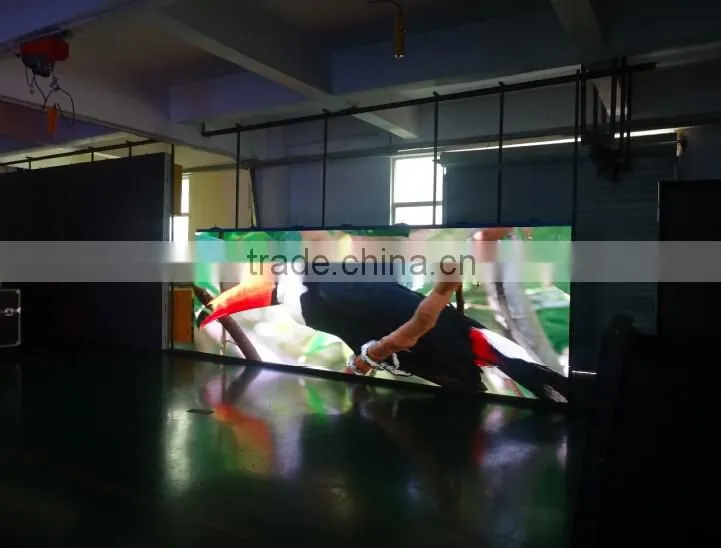

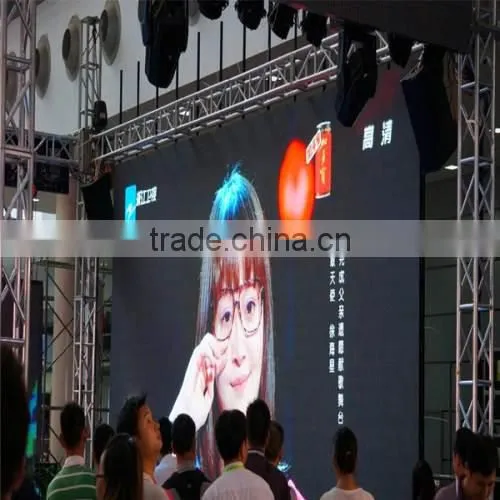

It could be used as stage background or live show with closer best view distance, high definition and high brightness, very practical, pls see below pictures for your reference.
LED Lamp | |
Type | SMD2121 black body |
Brand | Epistar |
Arrangement | 1R1G1B |
Chip parameters | Red (625-630nm) IV:(65-115mcd) |
Chip parameters | Green (523-526nm) IV:(215-265mcd) |
Chip parameters | Blue (470-473nm) IV:(33-83mcd) |
LED Module | |
Pixel Pitch | 2.5mm |
Module Size | 160×160mm |
Module Resolution | 64×64=4096(Dots) |
Module Weight | 0.48kg |
LED Cabinet | |
Pixel Density | 160000 Dots/sqm |
Frame Frequency | no less than 60 frame/sec |
Cabinet Resolution | 256×256=65536(Dots) |
Input Voltage | AC110-220V±10%, 50/60Hz |
Cabinet Dimension(W*H*D) | 640×640×95mm |
Output Voltage | DC-5V, 40A/60A/80A |
Module Quanty /Cabinet | 4×4=16(Pcs) |
Grey Scale Levels | 16bit |
Cabinets Material | Aluminum-magnesium alloy Cabinet |
Color Processing | 65536 |
Cabinet Weight | 10kg |
Brightness Adjustment | 256 color levels, can be adjusted manually and automatically optional |
Brightness | >1200cd/sqm |
MTBF( mean time between failures) | 5000 hours |
Viewing Angle | 140(Horizontal), 140(Vertical) |
Life-span | 100, 000 hours |
Nearest Viewing Distance | 3m |
Protection Level(front/back) | IP31/IP54 |
Power Consumption (Max) | 1300 w/sqm |
Malfunction Dot Rate | less than 0.0001 |
Power Consumption (Average) | 400 w/sqm |
Working Temperature | -10oC-50oC |
Display Function | Text, Graphics, Video |
Humidity | 15%-85% |
Refresh Rate | >1000Hz |
Drive Mode/Driver Position | Constant driving 1/32 Scan, Combined diver board |
Control System | |
Control Mode | Synchronization/Asynchronization |
Input Signal | AVI/MPG/MPEG/TXT.etc |
Control System | Sending Card, Receiving Card, Receiving HUB |
PC Operating System | Microsoft Windows 7, XP and Vista |
Software | LED Studio ( HSTV-linsn ) |
Communication Type | Net cable; 3G, WIFI(Sold separately) |
Language | Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic |
Certificate | CE, ROHS, FCC, ISO9001, TUV |
Control Card Input | DVI, USB, RJ45, HDMI(Sold separately) |
About Haisheng:
Shenzhen Haisheng LED CO., LTD is a professional LED display, HSTV manufacturer.
It is a high technology which is specialized in researching, designing, manufacturing and exporting
all kind of LED products. We have our own professional R&D department, engineers, sales department,
experienced QC and workers.
Currently we design and produce our new type of products, such as HSTV, double
sided led display, one whole body outdoor advertising led display, one whole body led window display.
We focus on looking for the best solution for every customer’s projects and also glad to see that we receive good feedback and win long term relationship. Win-win business is what we pursue all the time.
Advantageous descriptions:
1. professional technical support + quality promise
2. CE ROHS FCC ISO9001 certificate
3. Alibaba + TUV assessment supplier approved
4. 2 year waranty + 1 set of spare part for free
Basic promise from Haisheng:
A: Full automatic production to control our high quality, best color consistency and get better performance.
B: Energy saving, low power consumption and long lifespan 10,000 hours (about 10 years).
C: We guarantee that the equipment we provide are brand new, complete and unused.
D: Good heat dissipation capability and high waterproof because of the unique design of vent fan (like shutter).
E: Our quality control throughout every process from materials-production- test-package-delivery(led lamp, module, c
Company Profile
ShenZhen HaiSheng Optoelectronic CO.,LTD is a professional LED Display and LED Lights Manufacturer. It's a hi-tech enterprise which is specialized in researching, desiging, manufacturing and exporting all kind of LED Products. With qualified talents, high technology and aboundant funds, we have many offices and branches in most cities of China, so we can offer rapid and perfect service to our clients.
Our Company has a high-quality professional technicians and advanced modern production equipment : SMT machine,injection molding machine, COB machine, high temperature aging furnace, TABLE machine (point-by-point brightness debug) reflow soldering machine and serveral wave soldering machines, PCBA lines, automatic packaging production lines and 1000sqm aging vertical testing stand. Fully implement strict ISO9001-2000 quality management, and strive to make every piece of LED displays, LED unit boards, modules, lighting to be the best, our products have passed the European CE, American UL certification and other related certifications. All the products researched and developed by HaiSheng have reached the advanced level in the international market.
Relying on the advantages of the strategic union consisting of the company, the domestic and foreign company have developed into a genuine cross-century modern enterprise with resource sharing, division & coorperation, advantages complementary and high-performance operation.
At present, HaiSheng Optoelectronic CO.,LTD have formed a"Genelite" brand of LED Displays with features of low attenuation, high brightness, anti-static, good stability, high gray level, and had got good reputation from our customers. Our products mainly applied in City Square LED Display, Highway Advertising LED Display, Shopping mall LED Display, Stadium LED Display,etc. It had been widely used in advertising, bars, airport, bus station, ports, stadiums, banks, schools, factories, post and telecommunications, shopping malls, hospitals, industry and commerce, taxation, customs,monitoring centers,etc. The products have been exported to United States, Russia, Britain, France, Australia, Greece, Italy, Japan, Korea, Taiwan, and Kazakhstan,etc.
With strong financial, professional technique strength, stable quality, fast and perfect service allows users to have the most stable and cost-effective products. Our company is dedicated to serving clients of the whole world with clear high-quality orientation, continuously innovating techniques and internationally synchronous management concepts.
