Digital signage systems and smart tv
| LED Lamp | |
| Type | SMD2121 black body |
| Brand | Epistar |
| Arrangement | 1R1G1B |
| Chip parameters | Red (620-625nm) IV:(250-300mcd ) |
| Chip parameters | Green (520-525nm) IV:(450-550mcd) |
| Chip parameters | Blue (470-475nm) IV:(100-120mcd) |
| LED Module | |
| Pixel Pitch | 4mm |
| Module Size | 256×128mm |
| Module Resolution | 64×32=2048(Dots) |
| Module Weight | 0.23kg |
| LED Cabinet | |
| Pixel Density | 62500 Dots/sqm |
| Frame Frequency | no less than 60 frame/sec |
| Cabinet Resolution | 192×192=36864(Dots) |
| Input Voltage | AC110-220V±10%, 50/60Hz |
| Cabinet Dimension(W*H*D) | 768×768×75mm |
| Output Voltage | DC-5V, 40A/60A/80A |
| Module Quanty /Cabinet | 3×6=18(Pcs) |

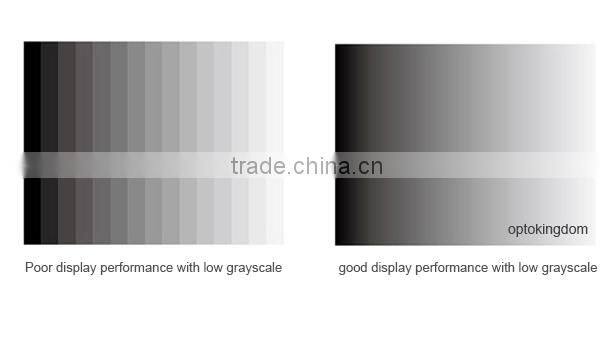

| Color Grayscale | 16bit |
| Gray Scale per Color | 65536 level |
| Cabinets Material | Aluminum |
| Color Processing | R(1024)×G(1024)×B(1024) |
| Cabinet Weight | 15kg |
| Brightness Adjustment | 256 color levels, can be adjusted manually and automatically optional |
| Brightness | >1500cd/sqm |
| MTBF( mean time between failures) | 5000 hours |
| Viewing Angle | 140(Horizontal), 140(Vertical) |
| Life-span | 100, 000 hours |
| Nearest Viewing Distance | 7m |
| Protection Level(front/back) | IP43/IP31 |
| Power Consumption (Max) | 1000 w/sqm |
| Malfunction Dot Rate | less than 0.0001 |
| Power Consumption (Average) | 350 w/sqm |
| Working Temperature | -15oC-50oC |
| Display Function | Text, Graphics, Video |
| Humidity | 15%-85% |
| Refresh Rate | >1000Hz |
| Drive Mode/Driver Position | Constant driving 1/16 Scan, Combined diver board |
| Control System | |
| Control Mode | Synchronization/Asynchronization |
| Input Signal | AVI/MPG/MPEG/TXT.etc |
| Control System | Sending Card, Receiving Card, Receiving HUB |
| PC Operating System | Microsoft Windows 7, XP and Vista |
| Software | LED Studio ( HSTV-linsn ) |
| Communication Type | Net cable; 3G, WIFI(Sold separately) |
| Language | Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic |
| Certificate | CE, ROHS, FCC, ISO9001, TUV |
| Control Card Input | DVI, USB; RJ45, HDMI(Sold separately) |
PH4 SMD Indoor Full Color LED Display
The advanced assembled structure produces seamless display and visual effects, offering you the perfect visual performance you desire from your LED display. The display can be used at banks, indoor stages, concert halls, station, summit rooms, exhibition and theatres etc.

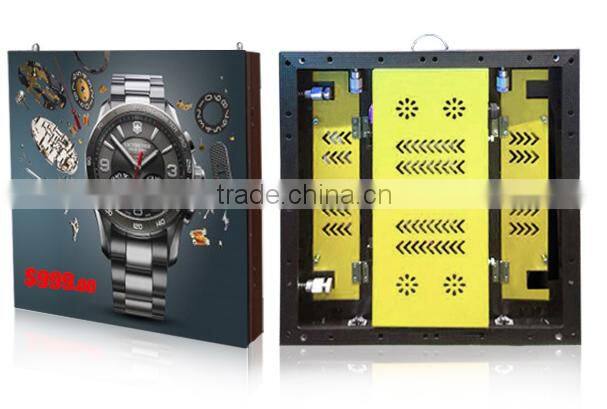

Integrated Design, Fast Installation
The thin size and ultra-lightweight modules makes it easy to carry, transport and install. You hardly need any specialized tools or skills to install it. Everything is inbuilt, and it can be installed within a few minutes using simple screw-driver.

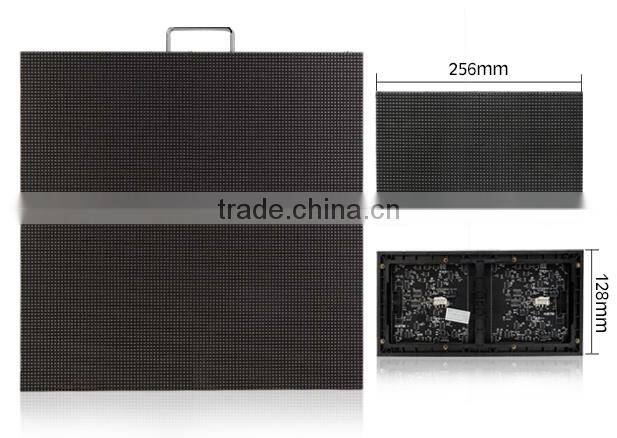

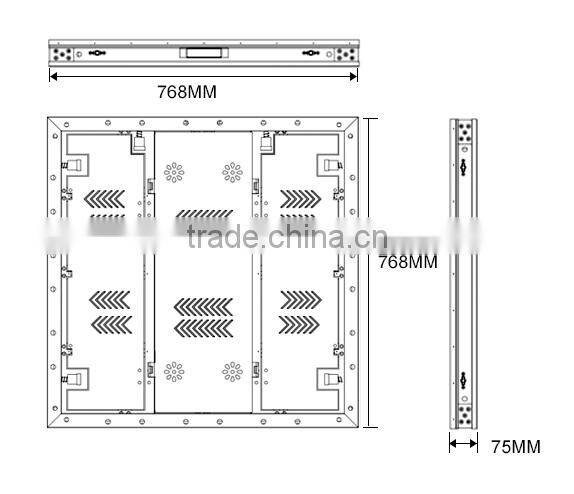

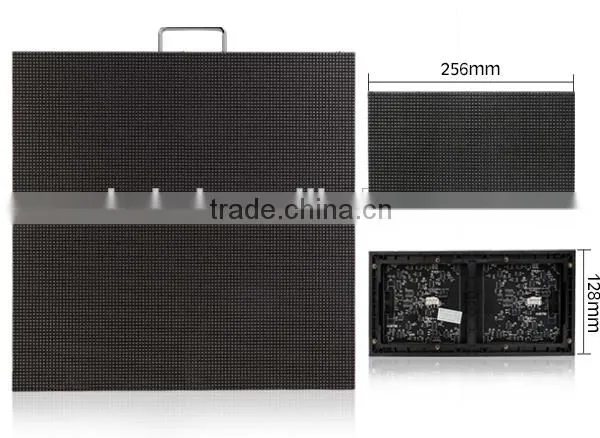

Standard Cabinet Dimensions
The ultra-lightweight cabinet made is aluminum which gives it extra strength. The cabinet of Indoor Full Color LED Display is designed with perfection, making it really easy to install. Also, the quick-lock feature requires no technical skills to install and uninstall.

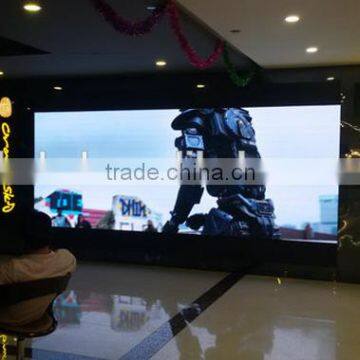

Best Indoor Performance
The displays are created for supreme quality indoor performance, and it delivers the same with perfection. See pictures, videos, text and much more with every detail. The high resolution display offers picture-perfect outputs in indoor areas.
Indoor full color LED display
Pixel pitch: 4mm
Pixel configuration: SMD
Brightness: over 2000
Refresh rate: over 1000Hz
Drive mode: 1/16 Scan Module

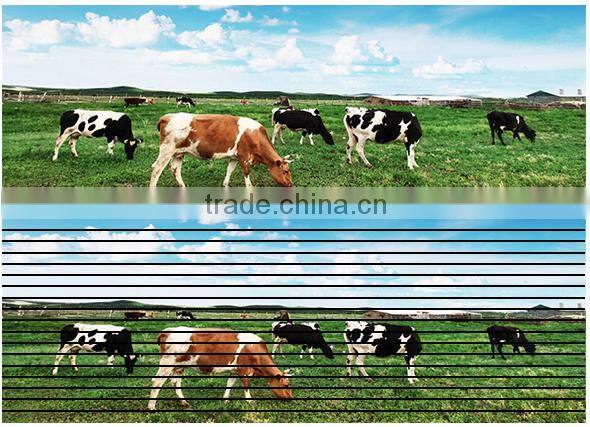

High Refresh Rate
The Indoor Full Color LED Display is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate. It features a high refresh rate of 1000Hz, producing best quality outputs in form of pictures, videos and texts.
Star Product, Superb Quality
The Indoor Full Color LED Display is manufactured by using best quality material, purchased from most reputed vendors. The final products feature supreme quality and offers best outputs. High refresh rate and gray level ensures the picture quality remains seamless.

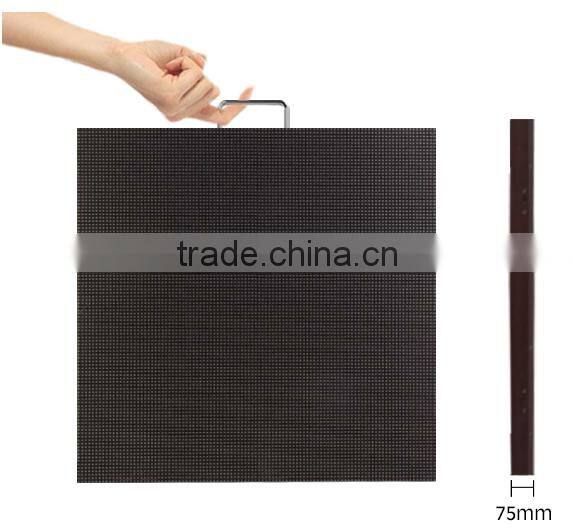

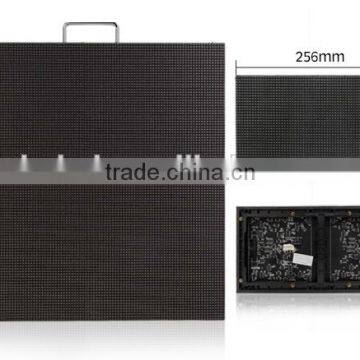

Space Saving, Ultra-lightweight
The Indoor Full Color LED Display is very thin which makes it ultra-lightweight and space saving. Can be installed at any area without requiring much space. The light weight of 15kg/panel LED screen is easy to carry, transport and install - saving good amount of money on your labor costs.
Silence Operation - Low Power Consumption
The Indoor Full Color LED Display is known for its silence operation and low power consumption. It is also known for fast heat dissipation which will save more energy. Cut on the electricity expenses and help environment with this highly advanced advertising display.

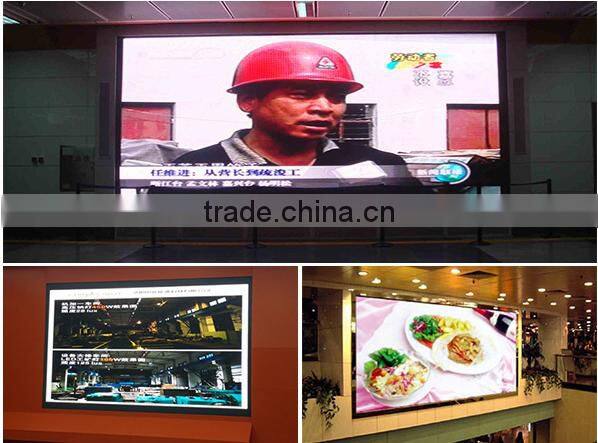

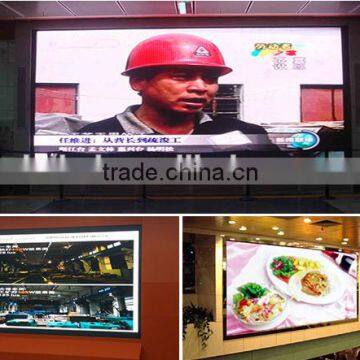

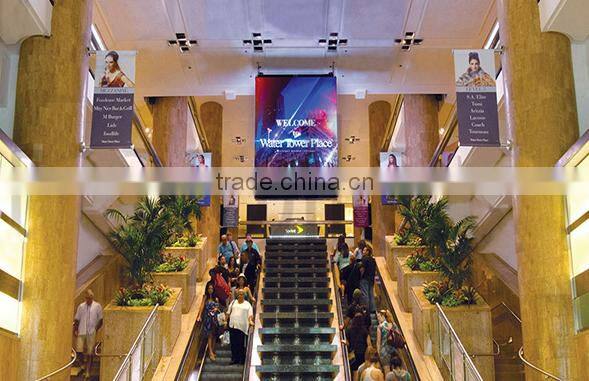

Application

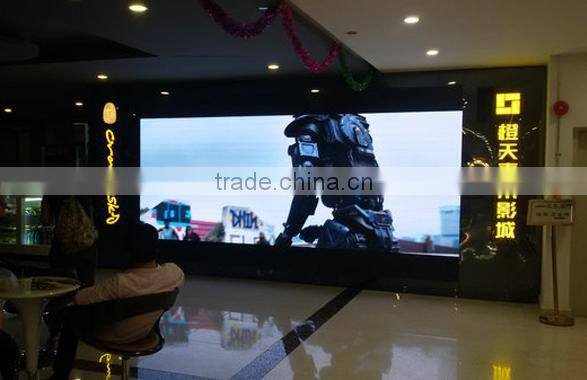

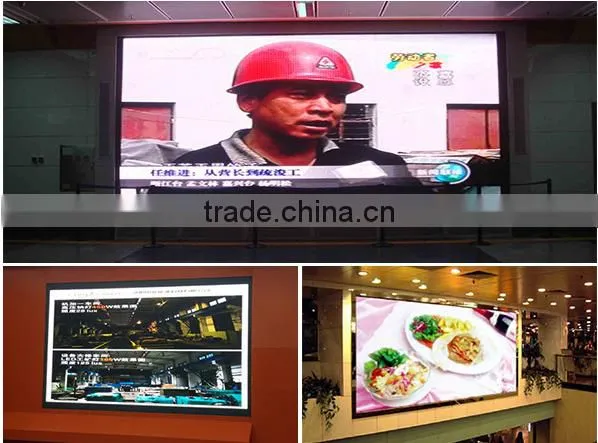

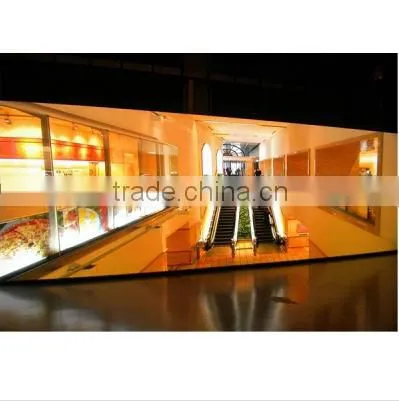

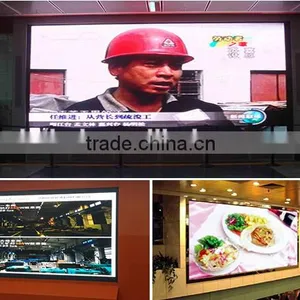

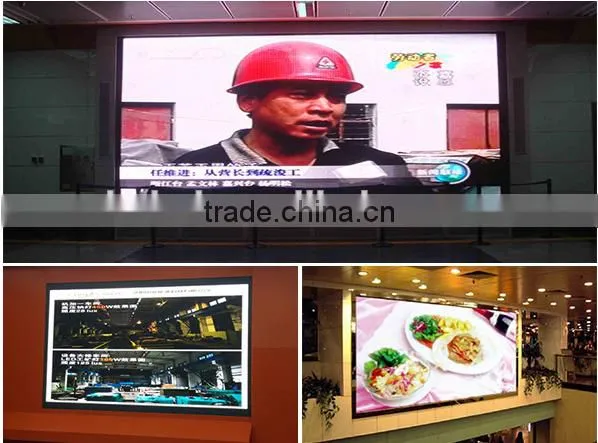

The Indoor Full Color LED Display is highly usable at indoor places like malls, stages, chain stores, hotels, public buildings, bars, restaurants, banks etc. Its thin size and ultra-lightweight module makes it easy to install at any area without covering much space.

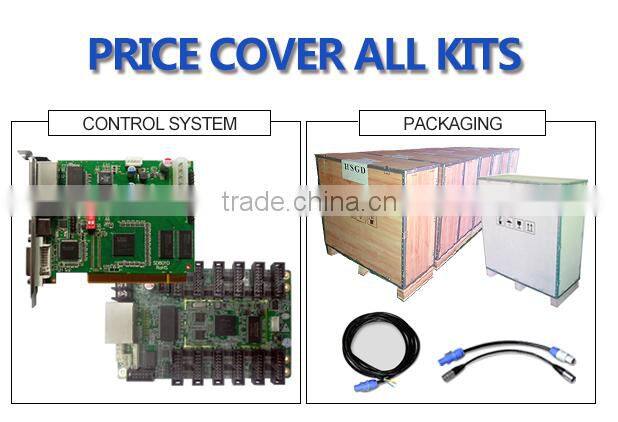

One Price for All
In single price, you get the complete kit which includes the LED display, cabinet, control system and package. It saves you a lot of money. Also, we replace the faulty accessories without any cost if your product is in warranty period.
Our company building
Our company is built on values, and those values reflect from our product quality, support service and customer care. Have a look at our company building. This is the place where we create best quality products that have passed certifications like CE, FCC, RoSH and SGS and many more.
Best Quality Guaranteed
Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality products.
Best After sale service
If your Indoor Full Color LED Display is defected and is in warranty period, we offer you free accessories for the product. Whenever you need us, we are always there for you. Our support staff is more than willing to assist you for any query or concern. Feel free to contact us any time.
