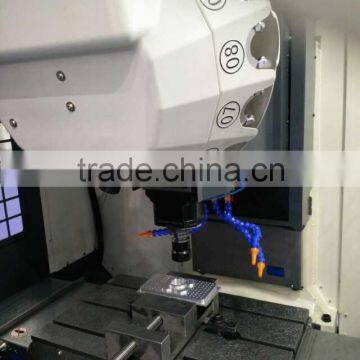

2016 newest vertical turning and milling machine center mini cnc machining center
1.The cnc machining center withing the high-speed&high-precision spindle(12000/24000RPM),
2. The cnc machining center VCM540 Machine Center is fit for highlights aluminium alloy parts on
mobile and watches.
3. The cnc machining center drilling and tapping is ultra high-speed/high performance/high-precision.
4. The cnc machining center tapping speed can reach 6000RPM and X/Y/Z axis’s movement speed can reach 60M/MIN.
| CNC machining center specifications Model VCM540 | |||
| Parts | items | unit | drilling and tapping center-ZG540 |
| Workbench | Size(L*W) | mm | 650*400 |
| Workbench load | kg | 250kg(even load) | |
| Spindle end to workbench face | mm | 150-430 | |
| Spindle | Spindle speed | r/min | 12000/24000 |
| Spindle motor | kW | 3.7/5.5kW | |
| Hole conical degree | ISO | #30(BT30) | |
| Traverse | Travel X/Y/Z | mm | 500/400/280 |
| Rapid traverse speed X/Y/Z | m/min | 60/60/60 | |
| Cutting feed speed X/Y/Z | m/min | 20/20/20 | |
| Precision |
Positioning accuracy | mm | 0.005/300 |
| Repeated positioning accuracy | mm | ±0.003 | |

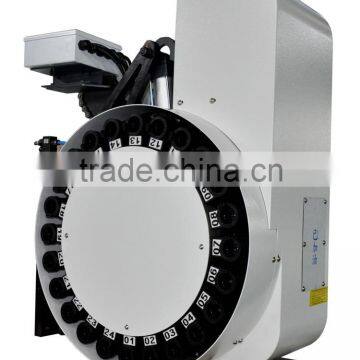

| ATC | tool capacity | ea | 21 |
| Max.tool Length | mm | 170 | |
| Max.tool dia | mm | 80 | |
| Max tools weight | kg | 3 | |
| Tool to tool(T-T) | sec | 1 | |
| Power source | Power supply | kVA | 16 |
| Air source pressure | kgf/cm²(MPa) | 6(0.6) | |
| Motor | Dimension(L*W) | mm | L1600*W2100 |
| Dimension(H) | mm | 2300 | |
| Machine tool weight | kg | 3000 | |
| Cooling | Tank volume | L | 150 |
| Cooling pump flow | L/min | 40 | |
| Congtrol panel | Spec | | MITSUBISHI/M70VB |
| Screen | | 8.4"Color TFT LCD | |
| Storage of programme | KB | 500 |
|
OUR CNC MACHINE CENTER GUARANTEE &AFTER-SVRVICE:
1.Guarantee for one year
2.24-hour technical support by email or on line
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
5. Provide Engineers for our customers
6.We could accept OEM .
Yixing Machinery Co.,LTD,It was established in 2005, The factory was located in Chinese famous province – Hubei Province,And it have bulid Research and development,procurement and sales center in Shanghai.
Company specialize in automotive, marine, medical, communications, electronics, mold and other industries, Our main products CNC lathe ,machine center ,bar feeder ,atuo lathe ,Always provide a lot of efficient processing solutions , precision, stability is an industry leader, and made a number of national patents.
The company has always adhere to the "customer-centric" philosophy, adhere to the "customers interests is first" principle, as the most professional, most intimate workshop equipment.
